AMS-25/26 Series 3/4 Inch Press Fit Magnetic Contact
Owner’s Manual
AMS-25/26 SERIES
3/4” PRESS FIT MAGNETIC CONTACT
AMS-25/26 Series 3/4 Inch Press Fit Magnetic Contact
- UL Listed
- ¾” operating gap (AMS-25 Series)
- 1¼” operating gap (AMS-26 Series)
- Self-locking
- Available in brown, gray, or ivory
Application

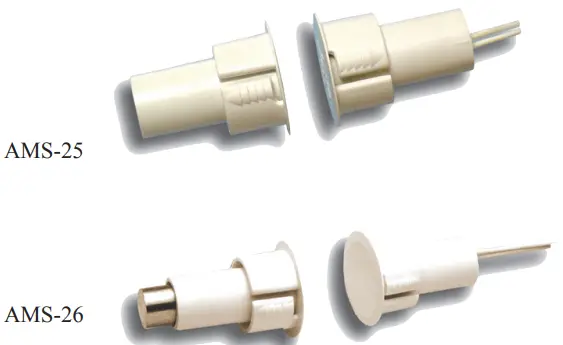

The AMS-25/26 Series is a UL listed contact designed to provide a clean and easy installation for standard openings. The AMS-25 provides a standard ¾” operating gap and the AMS-26 provides a wide 1¼” operating gap. These contacts are perfect for commercial applications where steel doors are common.

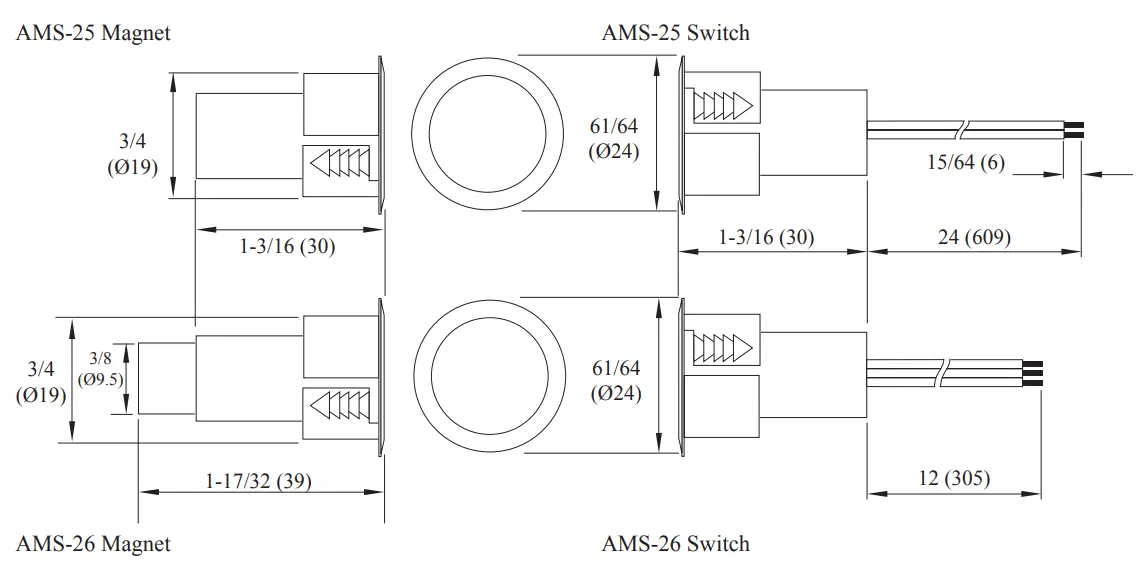

Dimensions
Specifications
| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max. Carry Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Mounting Method | Operating Temperature Range |
| AMS-25A | Brown | 4350051 | 22AWG 24’’ Lead | 10 VA | Form A N.0 | 1.0 Amp | .3 Amp | 200VDC | ¾’’ | Press fit | 32° F to 120° F (0° C to 49° C) |
| Gray | 4350158 | ||||||||||
| Ivory | 4350159 | ||||||||||
| AMS-25B | Brown | 4350052 | 22AWG 12’’ Lead | 3 VA | Form C N.O./N.C. | .5 Amp | – | 150VDC | |||
| Gray | 4350157 | ||||||||||
| AMS-26A | Brown | 4350056 | 10 VA | Form A N.O. | 1.0 Amp | .3 Amp | 200VDC | 1¼’’ | |||
| Gray | 4350160 | ||||||||||
| AMS-26B | Brown | 4350232 | 3 VA | Form C N.O./N.C. | .5 Amp | – | I 50VDC | ||||
| Gray | 4350233 |
