AMS-20 1 4 Inch Recessed Contact Fire Alarm
Owner’s Manual
AMS-20
1/4” RECESSED CONTACT

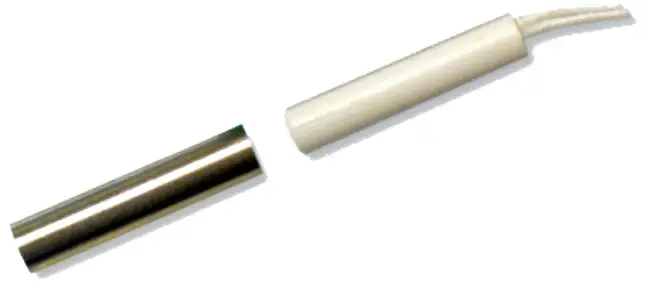

AMS-20 1 4 Inch Recessed Contact Fire Alarm
- UL and ULC Listed
- 5/8” operating gap
- Alnico 5 magnet
- Available in white, brown, gray, or ivory
Application
The AMS-20 ¼” Recessed Contact is a UL listed contact designed to provide a clean and easy installation for standard openings with limited space. The AMS-20 may be used to secure a variety of openings such as: man doors, sliding doors, windows, and other various openings where a thin, concealed contact is necessary.

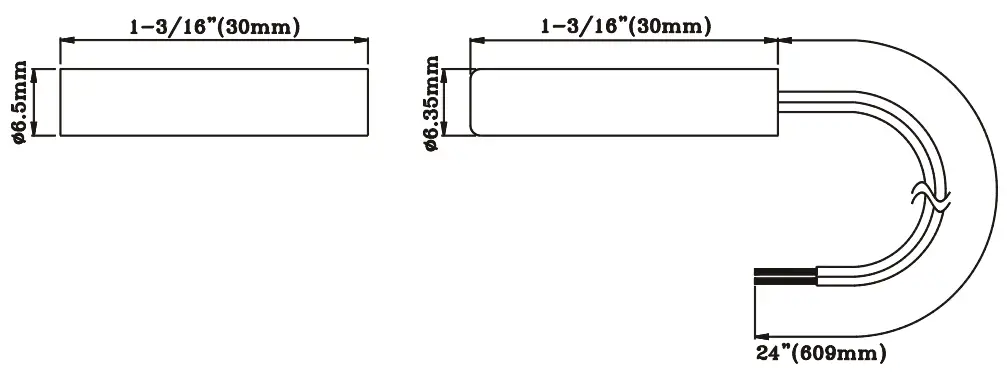

Dimensions
Specifications
| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max. Carry Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Mounting Method | Operating Temperature Range |
| AMS-20 | White | 4350136 | 22AWG 24’’ Leads | IOVA | Form A N.0 | 1.0 Amp | .3 Amp | 200VDC | 5/8’’ | Press fit | 32° F to 120° F (0° C to 49° C) |
| Brown | 4350133 | ||||||||||
| Gray | 4350134 | ||||||||||
| Ivory | 4350135 |
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support: 866-956-1211
Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8880120 – REV B
