POTTER MBA-10G12PV2 Burglar Bell Fire Alarm
Features
- UL and cUL Listed
- 68mA current draw
- Operates on 12V DC
- Eliminates EMI and RFI problems
- 95dB at 10ft. typical sound output (open field)
- Exterior color: Gray
OverView
The patented Amseco MBA Motor Driven General Signaling Bells are the latest development in audible signal technology. Through the use of a precision micro-motor and unique drive system, Amseco has been able to produce a bell that draws 68mA at 12V DC and eliminates the back EMI and RFI generation problems associated with conventional vibratory bells. Through careful design and the use of an aluminum gong, the MBA Series bells produce higher sound pressure levels than the conventional bells.
Specifications
| Rated Voltage | 12V DC |
| Starting Voltage | 8V DC |
| Max. Regulated RMS Operating current | 89mA |
| Sound Output at 10 ft. | 82.4dB |
| Typical Sound Output | 93 |

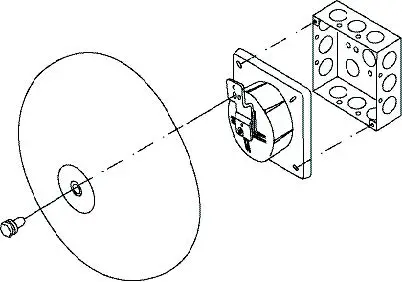

Installation

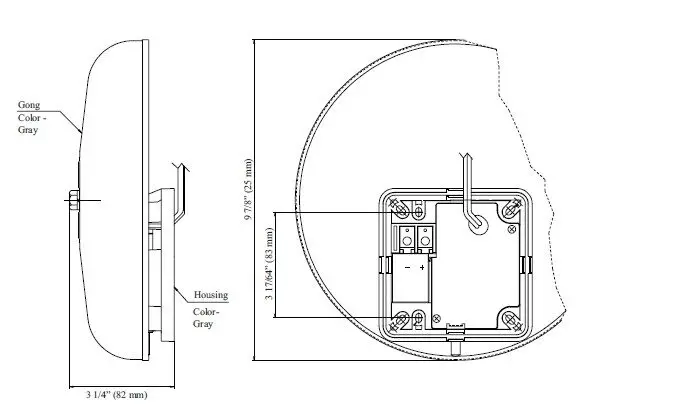

Dimensions: inches (mm)

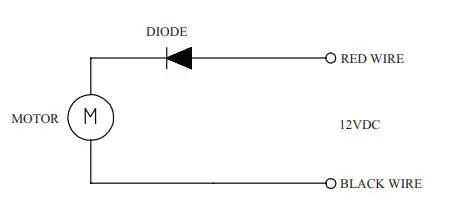

Wiring
