Model 4050
Manual Pull Stations
Owner’s Manual
Features
- easy access for inspection
- Non-coded
- aDa compliant
- Indoor use
Description

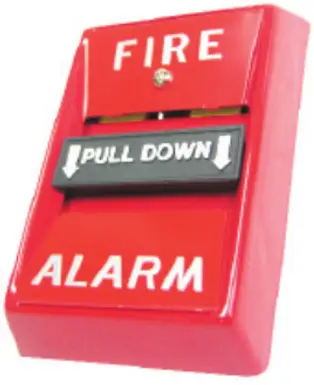

The Model 4050 Conventional Fire alarm Manual pull Station is made of rigid metal in a red finish and raised “FIRE ALARM” lettering. The manual pull station is semi-flush mounted using an optional back box. The manual pull station meets aDa requirements for station activation.
Application
Model 4050 fire alarm manual pull stations are recommended for use in hotels/motels, hospitals, schools, apartments, office buildings, industrial plants, and any other application where manual alarm initiation is required. The station is designed for indoor use. The station’s attractive appearance and durable construction allow it to fit most any application.
Specifications
Fire alarm manual pull stations shall be capable of being semi flush mounted. When operated, fire stations shall remain mechanically locked until manually reset. Fire alarm
manual pull stations shall be constructed of metal with raised lettering and shall have a red finish. Fire alarm manual pull stations shall be ADA compliant. Manual fire tations shall be Commercial products group Model 4050.
Technical Specifications
| Model 4050 | |
| Contact Ratings | 6.0A at 24 VDC Resistive Load 3.0A at 24 VDC Inductive Load |
| Dimensions | 5 1/8”H x 3 3/8”W x 1”D |
| Weight | 0.80 lbs. |

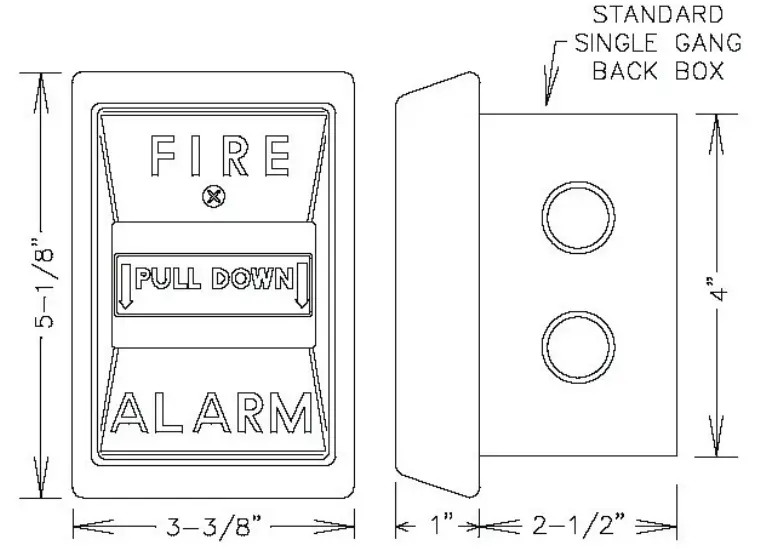

MOUNTING
SEMI-FLUSH MOUNTING
Ordering Information
| Model Number | Ordering Part Number | Description |
| 4050 | 1460250 | Single Action Pull Station, Red, 4-Wire Pigtails |
Potter Electric Signal Company, LLC
St. Louis, MO
Phone: 800-325-3936
www.pottersignal.com
8820048 REV B 1/19
