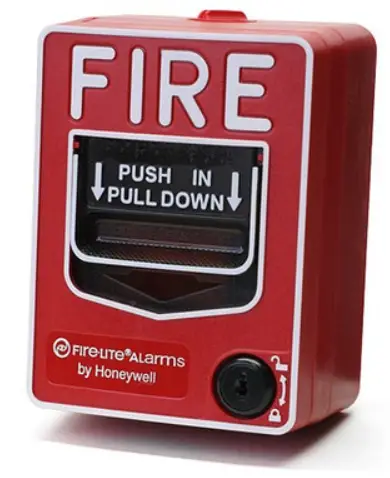

Fire Alarm Max BG-10WP Outdoor Pull Station

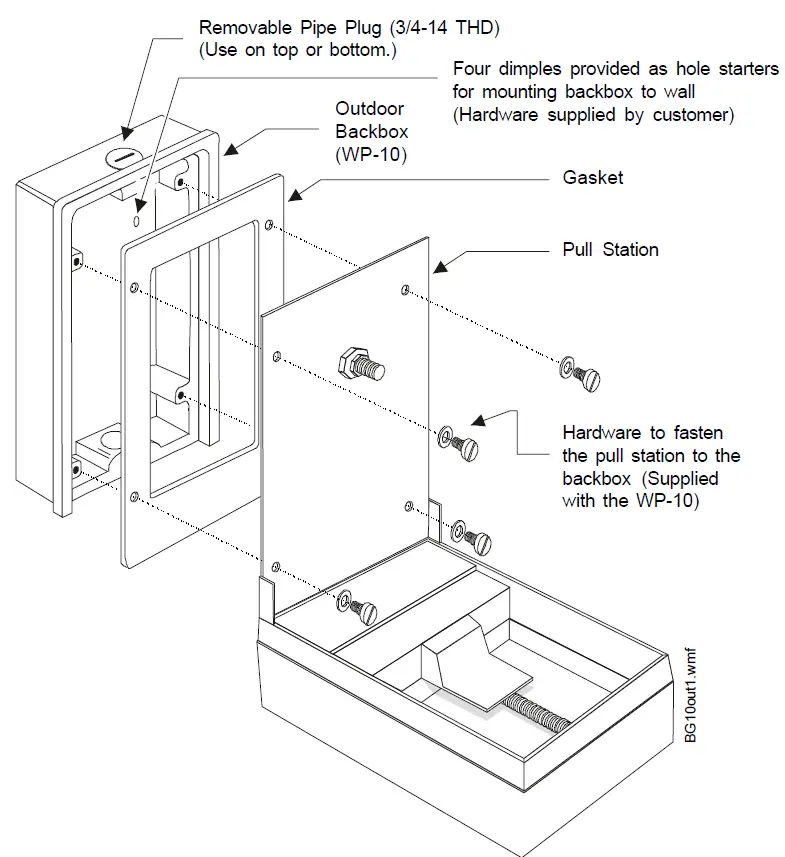

Installation Procedure
- Mount outdoor backbox to conduit pipe (top or bottom).
- Remove paper backing from gasket and secure to backbox.
- Connect wires from conduit to pull station terminal block.
- Attach pull station using hardware supplied with WP-10.
Use With Rear-access Conduit
If the installation requires running conduit through the rear of the backbox, drill a new access hole and plug the unused holes on top & bottom. Use UL Listed plugs or ones similar to the one supplied.
Per UL requirements, this hole must be located where the raised lettering will not be damaged. There is a space of 1.875 in. (47.625 mm) avail-able between the lettering and the lower edge of the backbox.
Only UL Listed Liquid-Tight Flexible Metal Conduit Fittings (Category Control Number DWTT) are suitable for use with these backboxes.
