LineLED 24V – Installation Instructions
Models LLDW60X2 WET-T
Instruction Manual
LLDW60X2 WET-T LineLED 24V Color-Changing LED Strip
Please read all instructions prior to installation and keep for future reference!
- PRODUCT SHOULD BE INSTALLED BY A QUALIFIED ELECTRICIAN
- ENSURE POWER IS OFF AT FUSE BOX PRIOR TO INSTALLTION TO PREVENT ELECTRICAL SHOCK.
- USE ONLY WITH CLASS 2 POWER UNIT
- SUITABLE FOR DAMP LOCATIONSFPO
- FOR UNDER CABINET OR SHELF MOUNT
- CONFORMS TO UL STD 2108. CERTIFIED TO CSA STD C22.2 NO.250.0.

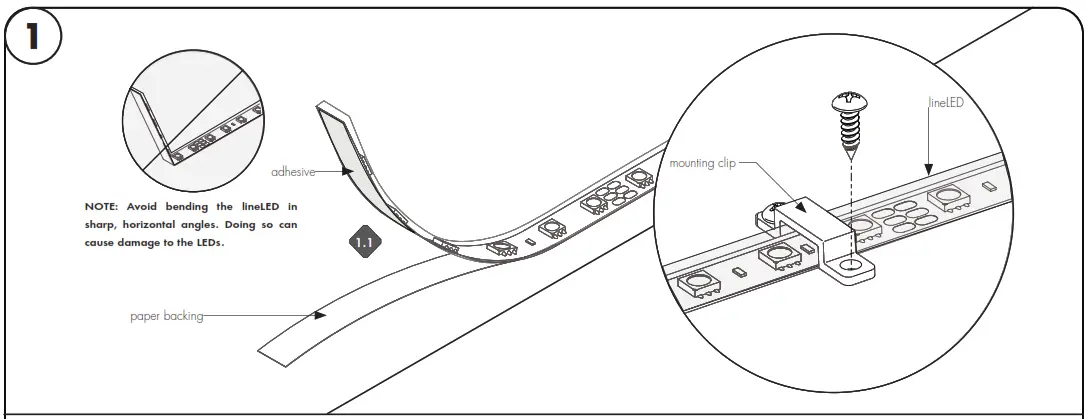

1.1 Clean the area thoroughly where the lineLED will be installed. Remove the paper backing from the lineLED and firmly press down making sure there are no air bubbles that can cause surface irregularities. Do not remove the adhesive, removing the adhesive may cause arcing of the lineLED tape.
1.2 If necessary, add a mounting clip every 12” for additional support.

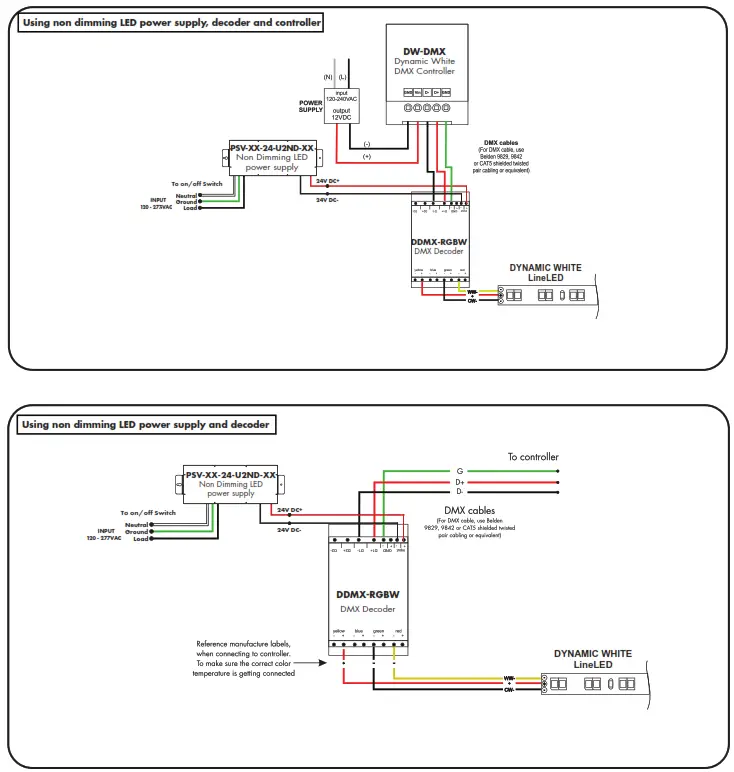

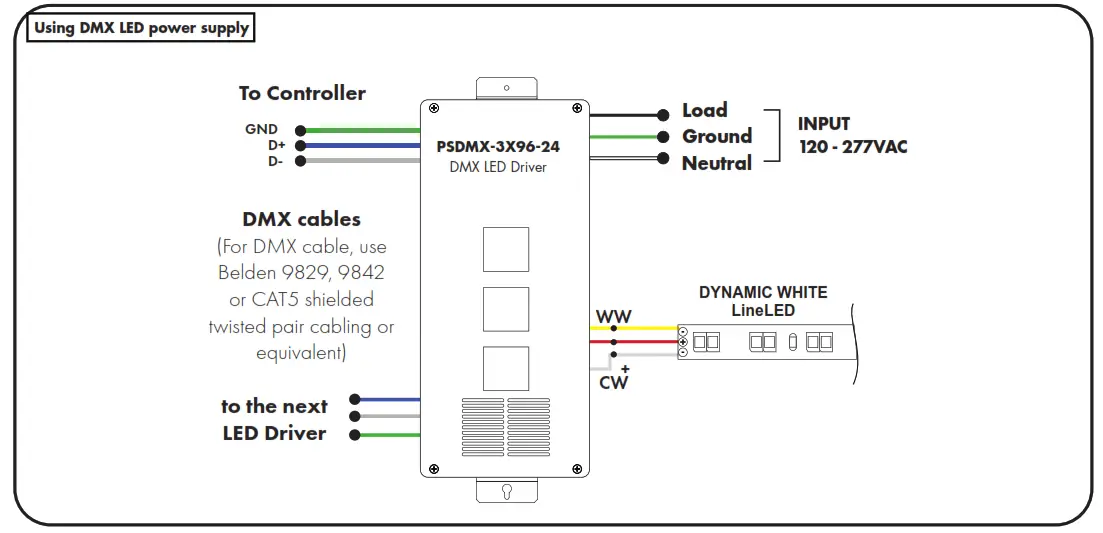

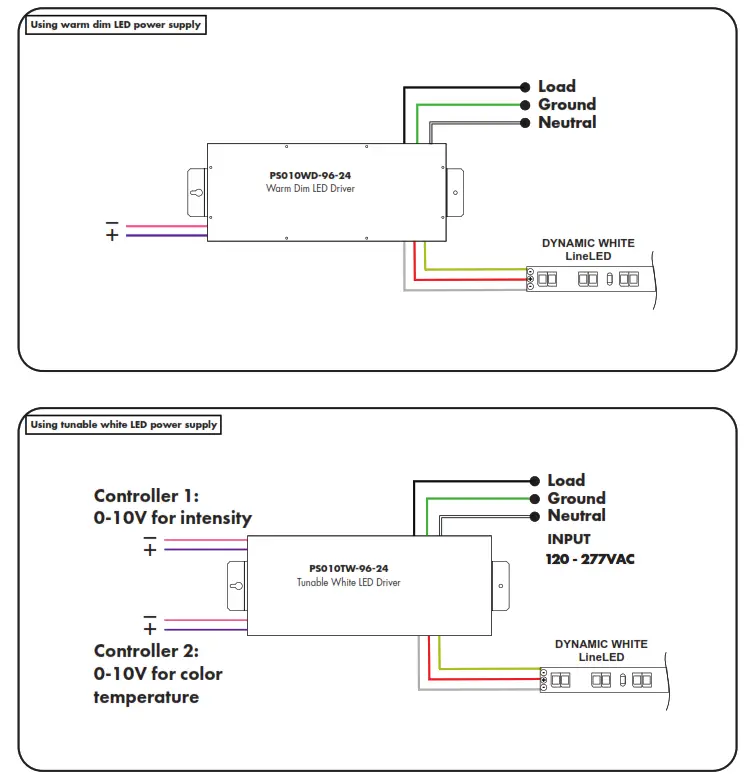

Wiring Diagrams

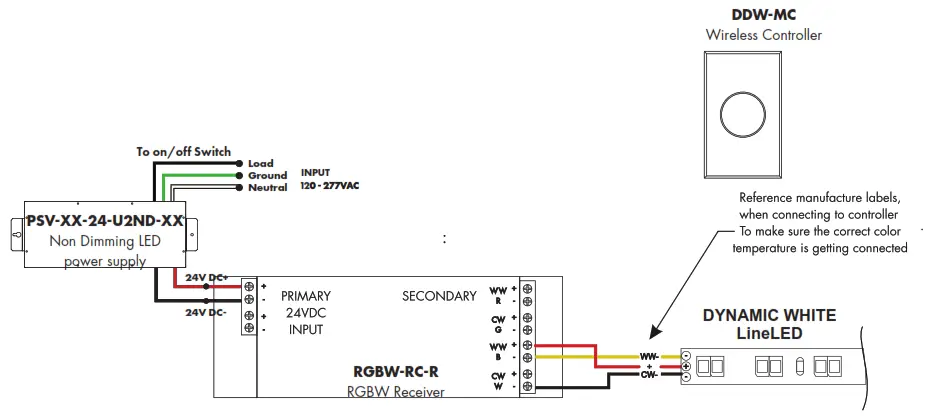

Using non dimming LED power supply, receiver and controller
Operations to Controller
- Press the learning key on the receiver, then push the rotary button. Once successfully learn, the LED lights will blink on the receiver. Do the same for the other receivers if you use them, you can add as many optional receivers as you want.
- Short press once the rotary button to switch on/off. Adjust dim brightness by the rotary button from left to right 0.1 – 100%. Adjust dim brightness by the rotary button from right to left 0.1 – 100%. Long press rotary button, the light will be 100% brightness
Double click rotary button, it will enter into dimming color temperature mode, dim WW & CW associatively, for example if WW is 70%, CW is 30%. Double click again, will enter into dimming brightness mode.
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
7777 Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
[email protected]
www.luminii.com
REV0.1
