LineLED Wet 24V – Installation Instructions
Models LLRGBWX18WET-T-PXSPI, LLRGBWX18WET-T-PXSPI
LLRGBWX18WET-T-PXSPI LineLED Wet 24V LED Strip Lights
Please read all instructions prior to installation and keep for future reference!
- PRODUCT SHOULD BE INSTALLED BY A QUALIFIED ELECTRICIAN
- ENSURE POWER IS OFF AT FUSE BOX PRIOR TO INSTALLATION TO PREVENT ELECRICAL SHOCK
- USE ONLY WITH CLASS 2 POWER UNIT
- SUITABLE FOR WET LOCATIONS
- FOR UNDER-CABINET OR SHELF MOUNT
- AVOID EXPOSURE TO DIRECT SUNLIGHT
- NOT SUITABLE FOR APPLICATIONS WHERE LEDS CAN BECOME SUBMERGED

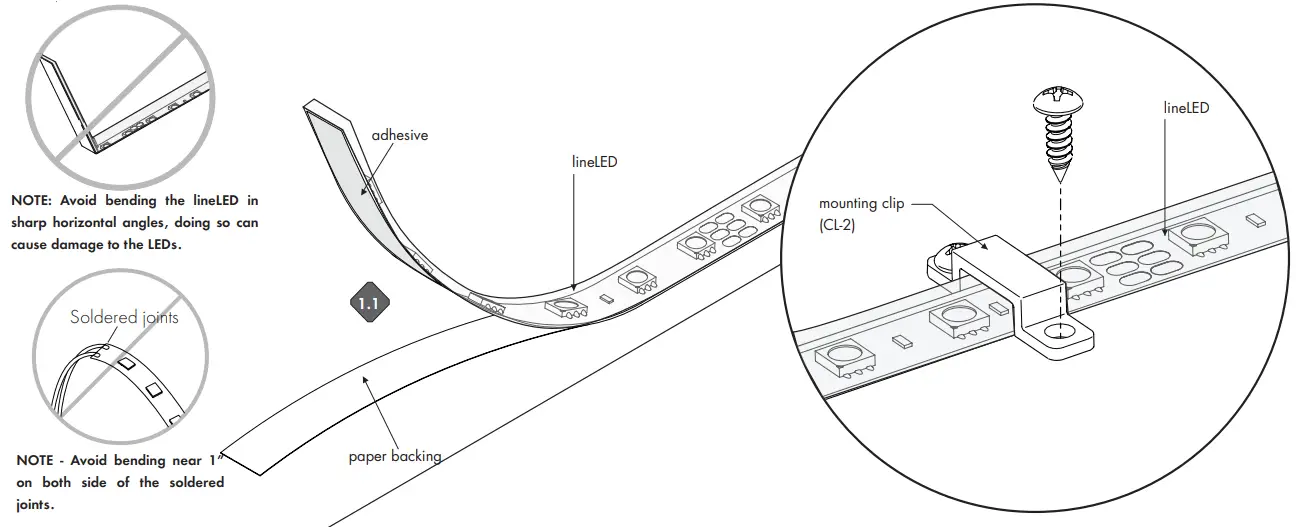

- Remove paper backing from the line LED and firmly press down. Making sure there are no air bubbles that can cause surface irregularities to the line LED. Do not remove the adhesive, removing the adhesive may cause arcing of the line LED tape.
- If necessary, add a mounting clip every 12” for additional support.
WIRING DIAGRAM
SR-DMX-SPI
Smart Pixel Line LED Decoder
NOTE: Please make sure that power is turned off before wiring. Also, ensure that the correct power supply (voltage and wattage) is used to power the LED strips connected to the decoder. Follow illustrated wiring diagram. Use screwdriver to open and close connection slots.
