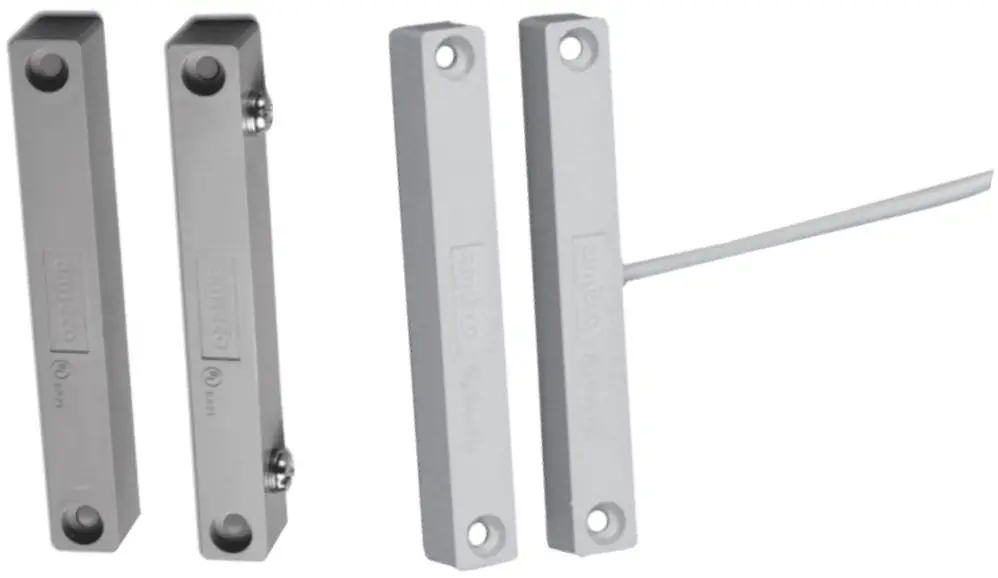

POTTER Ams-37 Series Industrial Magnetic Contact Instructions
- UL and ULC Listed
- Rugged design for industrial use
- 2” operating gap
- Alnico 5 magnet
- Available in gray or brown
Application
The AMS-37 Series Industrial Magnetic Contact is a UL Listed magnetic contact built for rugged environments and practically any opening. It is designed to provide clean and quick installations. The AMS-37 Series can be used to protect openings such as: man doors, overhead doors, roof hatches, or hinged skylights.

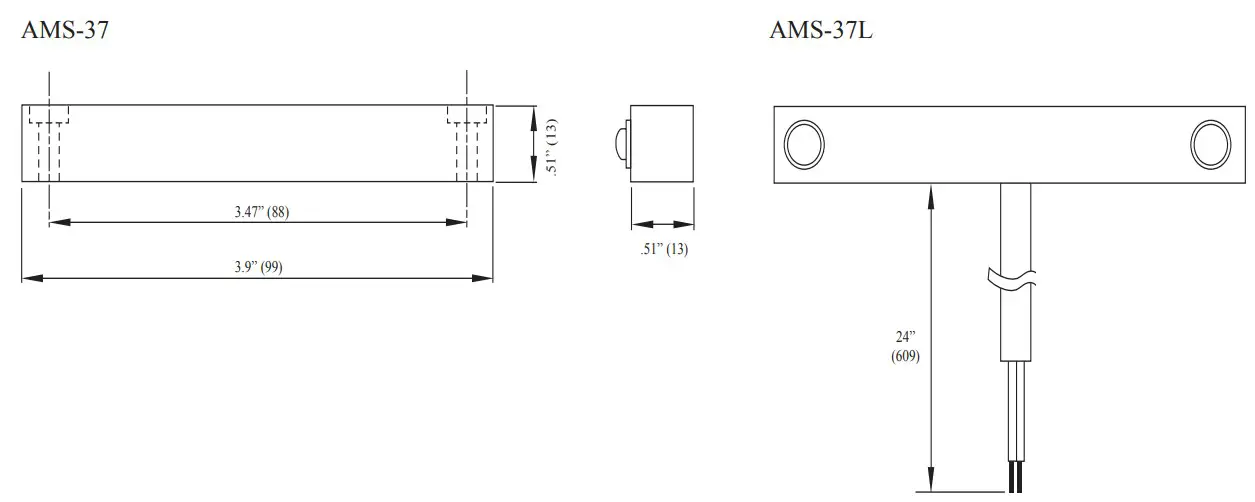

Dimensions
Specifications
| Model Number | Color | Stock Number | Contact | ContactRating | ContactType | Max. Carry Current | Max. Switching Current | Breakdown Voltage | Operating Gap | Mounting Method | Operating Temperature Range |
| AMS-37 | Gray | 4350170 | Terminal | 10VA | Form A N.O. | 2.0A | 0.5A | 250VDCmin. | 2” min. | Screws | 32°F to 120°F (0°C to 49°C) |
| Brown | 4350168 | ||||||||||
| AMS-37B | Gray | 4350234 | Form C N.O./N.C. | ||||||||
| Brown | 4350169 | ||||||||||
| AMS-37L | Gray | 4350172 | 24” leads | Form A N.O. | |||||||
| Brown | 4350060 | ||||||||||
| AMS-37L48 | Gray | 4350174 | 48” leads |
Support
Potter Electric Signal Co., LLC
- St. Louis, MO
- Cust Service: 866-240-1870
- Tech Support: 866-956-1211
- Canada 888-882-1833
- www.pottersignal.com
PRINTED IN USA
MKT. #8910231 – REV C 2/10
