AMS-51CV Insulation Displacement Surface Mount Contact
Owner’s Manual
AMS-51CV
INSULATION DISPLACEMENT
SURFACE MOUNT CONTACT

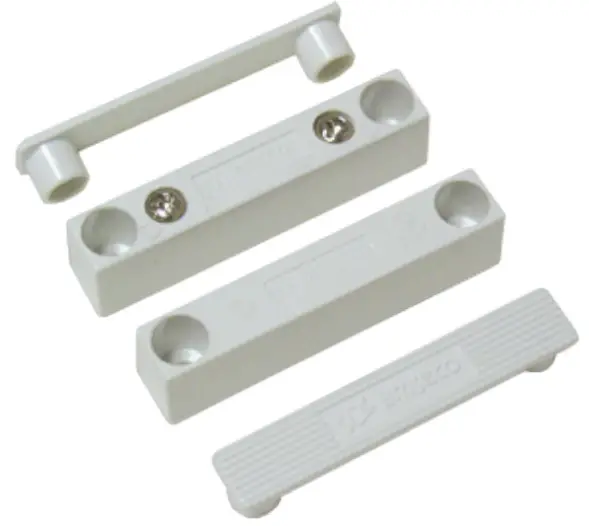

AMS-51CV Insulation Displacement Surface Mount Contact
- UL Listed
- 1” operating gap
- Simple installation
- Alnico 5 magnet
- Available in white, brown, gray, or ivory
Application
The AMS-51CV Surface Mount contact is a UL listed magnetic contact designed for quick installation using the patented insulation displacement method. Simply insert the unstripped wire and tighten the screw terminal. The AMS-51CV contact can be used to protect openings such as man doors, sliding doors, and windows.

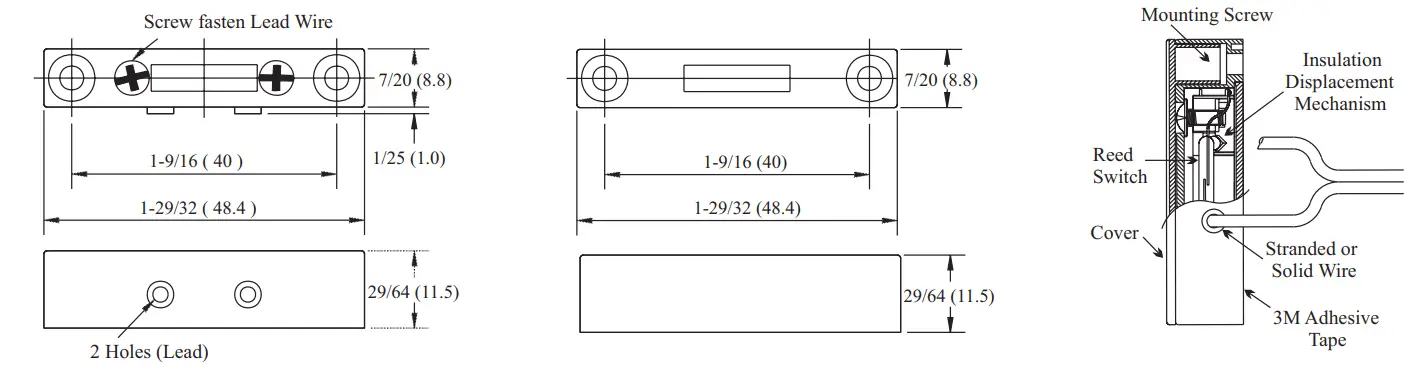

Dimensions

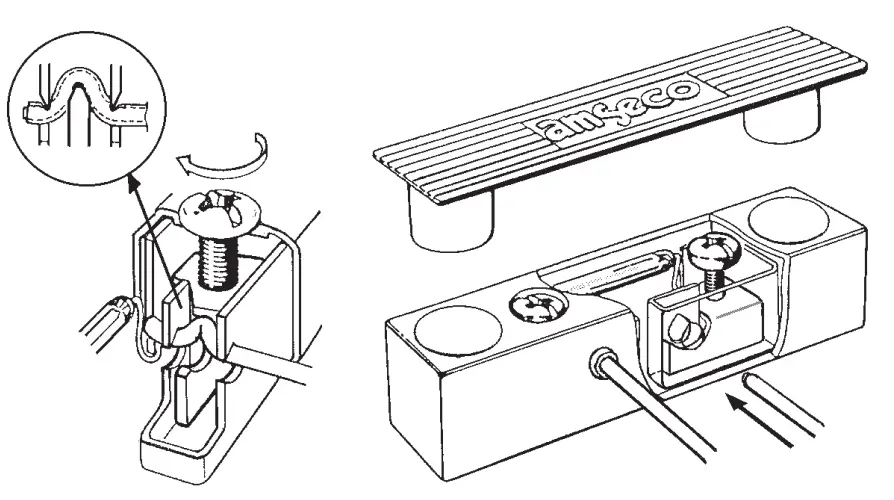

Exclusive 5-Point Contact
Specifications
| Model | Color | Stock Number | Contact | Contact Rating | Contact Type | Max. Carry Current | Max’ Switching Current | Breakdown Voltage | Operating Gap | Mounting Method | Operating Temperature Range |
| AMS-5ICV | White | 4350213 | Terminal | 10VA | Form A N.O. | 1.0 Amp | .3 Amp | 200VDC min. | 1″ | Screw in or self- adhesive | 32°F to 120°F (0°C to 49°C) |
| Brown | 4350211 | ||||||||||
| Gray | 4350212 | ||||||||||
| Ivory | 4350082 |
Potter Electric Signal Co., LLC
St. Louis, MO
Cust Service: 866-240-1870
Tech Support: 866-956-1211
Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8880117 – REV B
