Enforcer Surface-mount Contacts Specifications (+ PDF)

Capsule-Type
Surface-Mount Contacts
SM-4004-TQ/W
SM-4004-LQ/W
Manual

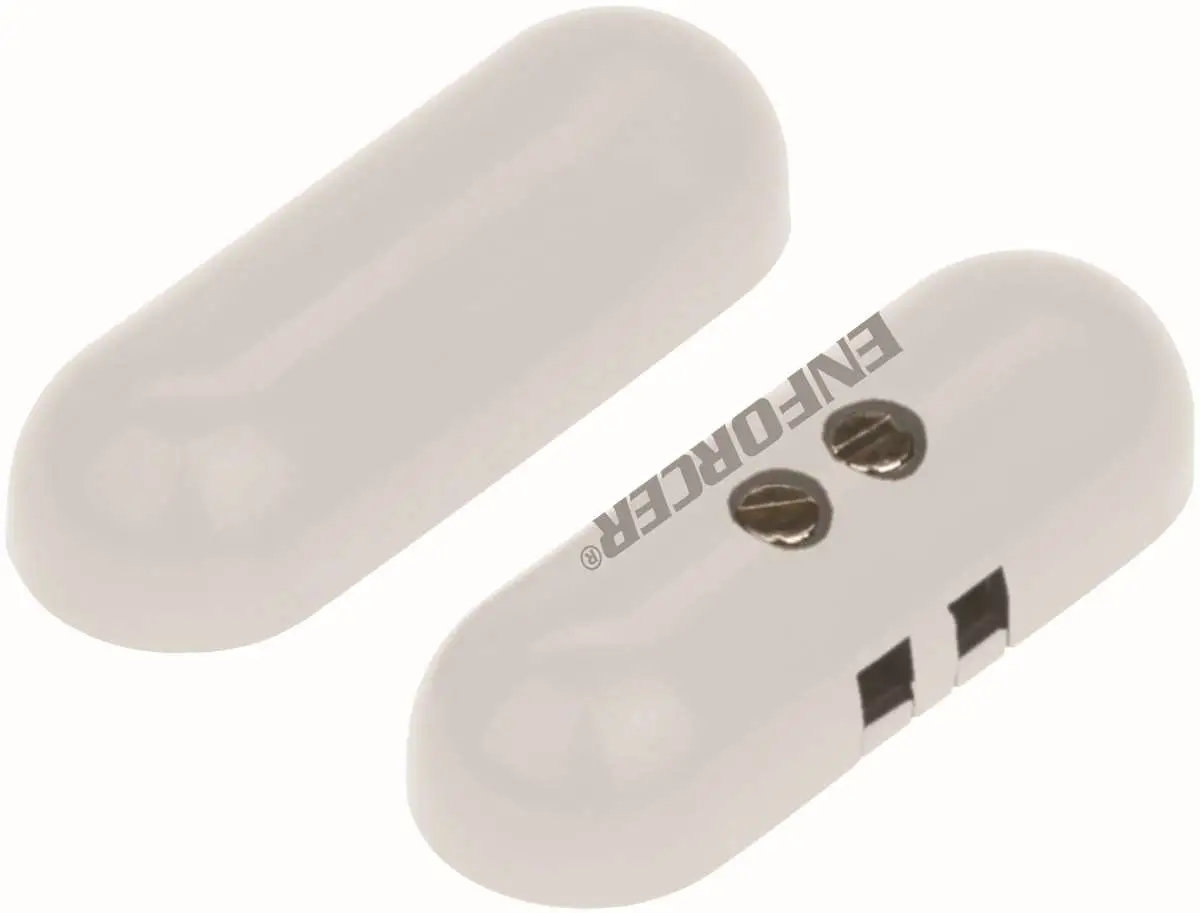

SM-4004-TQ/W shown

Miniature capsule-type magnetic contacts
Gold-plated external screw terminals for longer life and reliability with tape to cover terminals (SM-4004-TQ only)
18″ (46cm) Wire leads from the center (SM-4004-LQ only)
Adhesive mounting (double-sided tape included)
SPST, iridium-plated to have a high melting point and
Vickers hardness for higher power handling and a longer expected life (SM-4004-TQ), or ruthenium on gold underplating for a longer expected life (SM-4004-LQ)
For closed-loop circuits
1″ (25mm) Gap (SM-4004-TQ/W)
3/4″ (19mm) Gap (SM-4004-LQ/W)
Lifetime limited warranty

Contents hide

5 Documents / Resources

5.1 References

6 Related Posts

Parts List

10x Contact switches
10x Magnets
1x Manual

Specifications

Model		SM-4004-TQNV	SM-4004-LONV
Loop type		Closed-loop
Electrical connection		N.O. (SPST)
Operation gap		1″ (25mm)	³/₄” (19mm)
Connectors		Gold-plated screw terminals	18″ (46cm) Leads from center
Material	Case	High-impact ABS plastic
	Contacts	Iridium plating	Ruthenium on gold underplating
Contact rating		1.0A@10VDC (max.)
		10W (max.)
Operating temperature		-15⁰-160° F (-25⁰-70° C)
Switch cycles		50 Million (0.1mA@5VDC)
_Dimensions	Switch	1″x³/8″x¹/4″ (25x10x6 mm)
	Magnet	1″x³/8″x¹/4″ (25x10x6 mm)
Magnet type		Rare-earth neodymium

Overview

Protected side of the door/window.

Installation

Please read the manual carefully before you begin the installation.

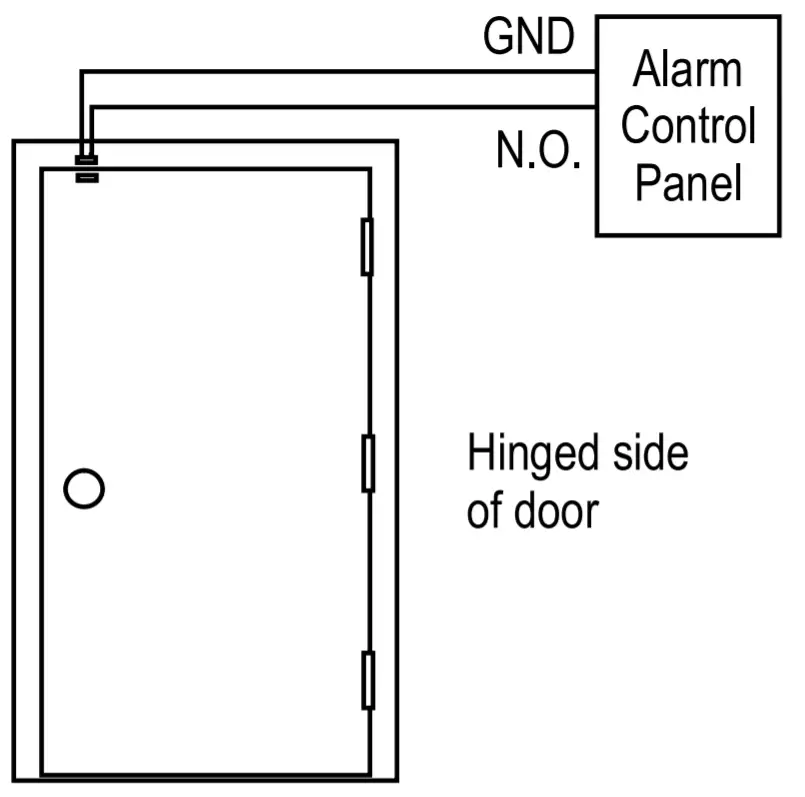

Mount the contact above the door or window on the frame. For doors, ensure that the mounting is farthest from the hinged side of the door.
Connect the two wires to the alarm control panel.
Mount the magnet on the door/window so that it will face the contact. Be sure that the gap between the contact and magnet does not exceed 1″ (25mm) for the SM-4004-TQ/W or 3/4″ (19mm) for the SM-4004-LQ/W.
