Track-Mount OverheadDoor Magnetic Contacts
SM-4201-LQ, SM-4201-L3Q, SM-4201-L6Q
Manual

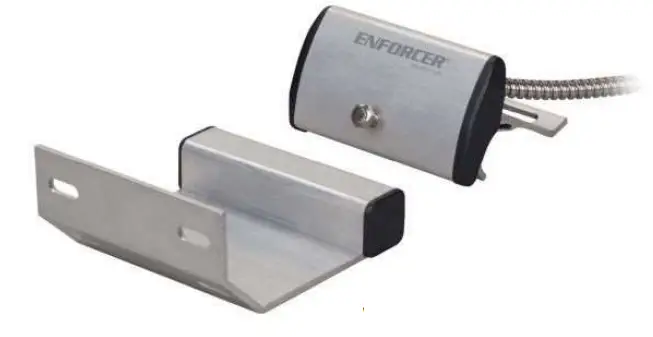

SM-4201-LQ shown

Track-Mount OverheadDoor Magnetic Contacts

• 3″ (76mm) Gap for overhead doors in both industrial and residential situations
• Rugged aluminum housing
• 36″ (91cm) Wire leads enclosed in armored cable
• The contact reed switch is iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
• Models available for:
  SPST closed loop circuits (SM-4201-LQ),
• SPDT open/closed loop circuits (SM-4201-L3Q), or DPDT open/closed loop circuits (SM-4201-L6Q)
• Mounting brackets included
• Adjustable for door-channel widths from 2~21/2″ (51~64 mm)
• Lifetime limited warranty

Optional Accessory ­-SM8201LWQ
L-bracket for door channels up to 4″ (102mm)

Parts List

1x Contact switch
1x Contact bracket
1x Magnet with bracket
1x Manual

Specifications

Overview

• Contact and magnet must be installed on the protected side of the door.

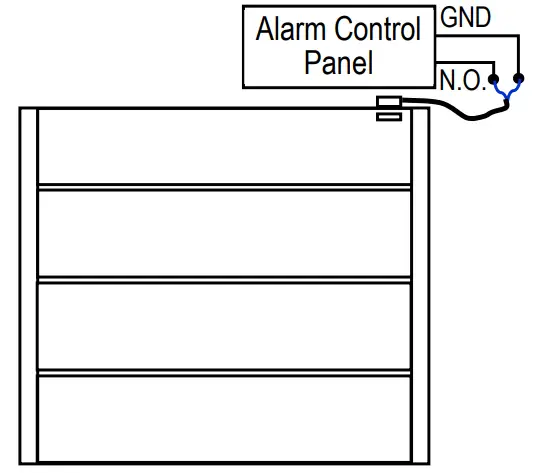

• The installation shown is for the SM-4201-LQ. Other models will be different. Alarm Control GND Panel N.O.


Installation

Please read the manual carefully before you begin the installation.

1. Mount the contact on the track in a safe location away from equipment interference and near where the magnet will be when the door is closed.
2. Run the armored cable out of the way. Run wires from the alarm control panel and connect to the corresponding wires extending from the cable armor.
3. Mount the magnet on the roll-up door so that it will trigger the contact when the door is closed. Be sure that the gap between the contact and magnet does not exceed 3″ (60mm).
