POTTER AE-2 Accessory Enclosure
Features
- 18 Gage Steel Enclosure
- Accommodates up to 2 standard size stacker bracket expansion cards
- UUKL Listed for Smoke Control
Description
The AE-2 expansion enclosure accommodates up to 2 standard size PA D100-SLCE, RLY-5, or other stacker bracket sized cards. The enclosure size is (WxHxD) 9 3/4” x 8” x 2 1/2”.
Technical Specifications
| Total expansion Card Capacity | 2 |
| Size (WxHxD) | 9 3/4” x 8” x 2 1/2” |
Installation

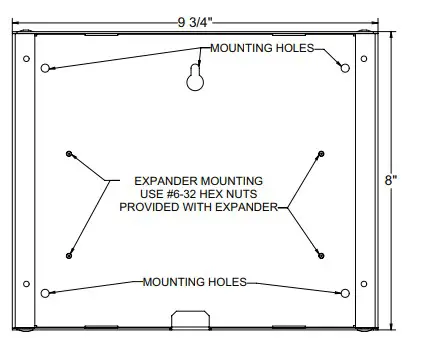

Secure the AE-2 enclosure to a suitable surface using #8 sized screws located in four of the five mounting holes provided. One expansion device can be installed in the location shown using the #6-32 sized hex nuts. an additional expander can be stacked on top of the one that is directly attached to the back box.
Ordering Information
| Model | Description | Stock No. |
| ae-2 | expansion enclosure | 3992726 |
