POTTER AE-14 Expansion Enclosure
Features
- UUKL Listed for Smoke Control
- Product includes a 5 year warranty
Description

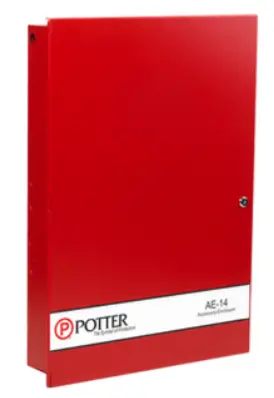

The AE-14 expansion enclosure accommodates up to 14 standard size SLCE-127, RLY-5, or other stacker bracket sized card. The enclosure size is (WxHxD) 19” x 27 3/8” x 4 5/8”.
Installation

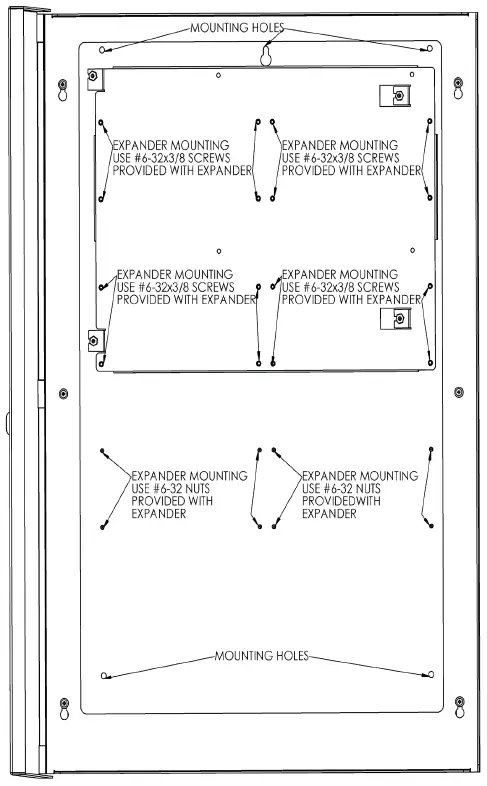

Secure the AE-14 Enclosure to a suitable surface using #8 screws located in four of the five mounting holes provided. Four Expansion devices can be installed using in the upper location shown using the #6 sized screw that is 32 threads per inch and 1/2 of an inch long. An additional four expanders can be stacked on top of the upper four. Two additional Expanders can be installed using the lower locations. An additional four expanders can then be stacked on top of these.
Technical Specifications
| Total expansion Card Capacity | 14 |
| Size (WxHxD) | 19” x 27 3/8” x 4 5/8” |
MOUNTING
Ordering Information
| x | Description | Stock No. |
| ae-14 | Expansion Enclosure |
