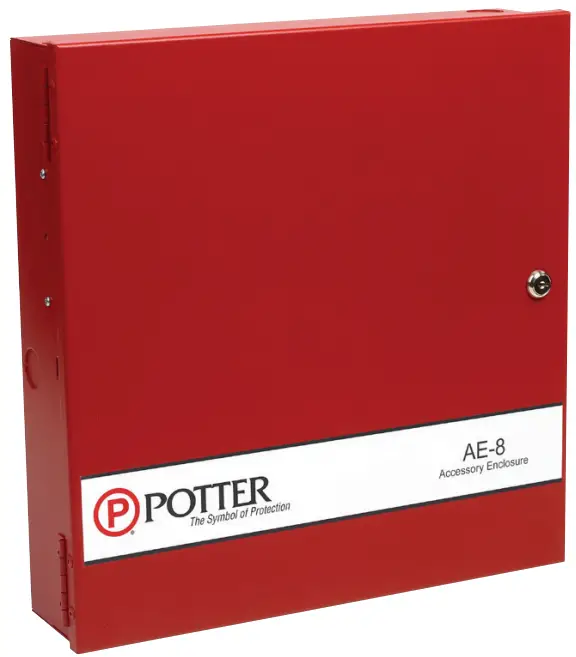

AE-8
Expansion Enclosure
Owner’s Manual
Features
- UUKL Listed for Smoke Control
- product includes a 5 year warranty
Description
The ae-8 expansion enclosure accommodates up to 8 standard size SLCe-127, RLY-5, or other stacker bracket sized card.
The enclosure size is (WxHxD) 16” x 17” x 3 7/8”.

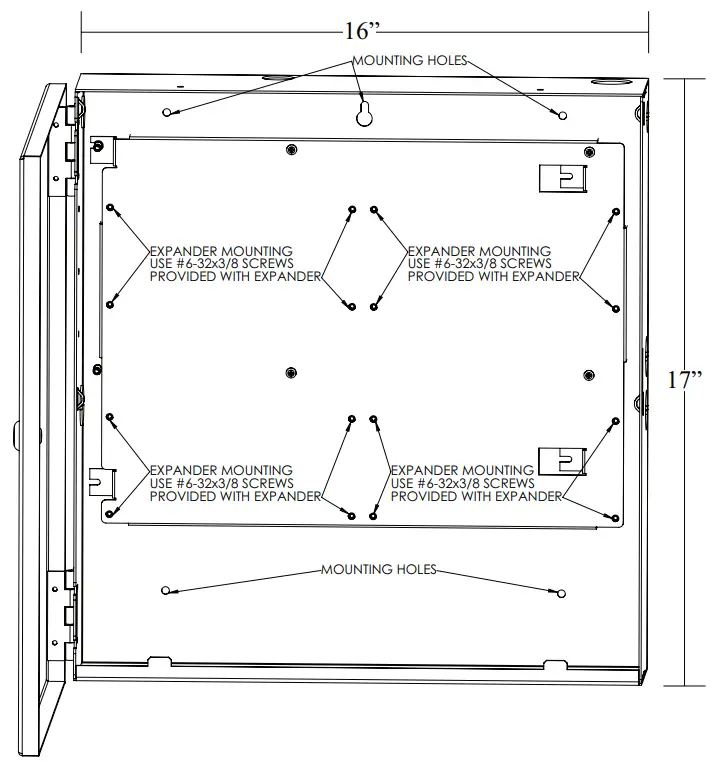

Installation
Secure the ae-8 enclosure to a suitable surface using #8 sized screw located in four of the five mounting holes provided.
Four expansion devices can be installed in the location shown using the #6 sized screw that is 32 threads per inch and 1/2 of an inch long. an additional four expanders can be stacked on top of the four that are directly attached to the mounting bracket.
Technical Specifications
| Total expansion CardCapacity | 8 |
| Size (WxHxD) | 16” x 17” x 3 7/8” |
Ordering Information
| Model | Description | Stock No. |
| AE-8 | Expansion Enclosure |
Potter Electric Signal Company, LLC
• St. Louis, MO
• Phone: 800-325-3936
• www.pottersignal.com
8830124-REv B 12/18
