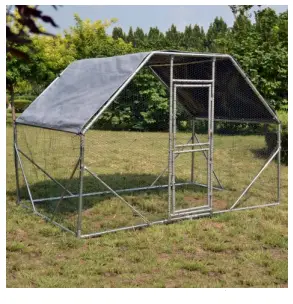

Fudajo 62395 XXL Open Enclosure
Information
The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating manual, nor in the diagrams and illustrations shown. Although WilTec Wildanger Technik GmbH has made every possible effort to ensure that this operating manual is complete, accurate, and up-to-date, errors cannot be ruled out entirely. If you have found an error or wish to suggest an improvement, we look forward to hearing from you.
Send us an e-mail to: [email protected]
or use our contact form: https://www.wiltec.de/contacts/
The most recent version of this manual in several languages can be found in our online shop: https://www.wiltec.de/docsearch
Our postal address is:
To return your goods for exchange, repair, or other purposes, please use the following address. Attention! To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods.
E-mail: [email protected]
Phone: +49 2403 55592–0
Fax: (+49 2403 55592–15)
Introduction
Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to always take some basic safety precautions when using this product. Please read this operating manual carefully and make sure that you understand it. Keep these operation instructions in a safe place.

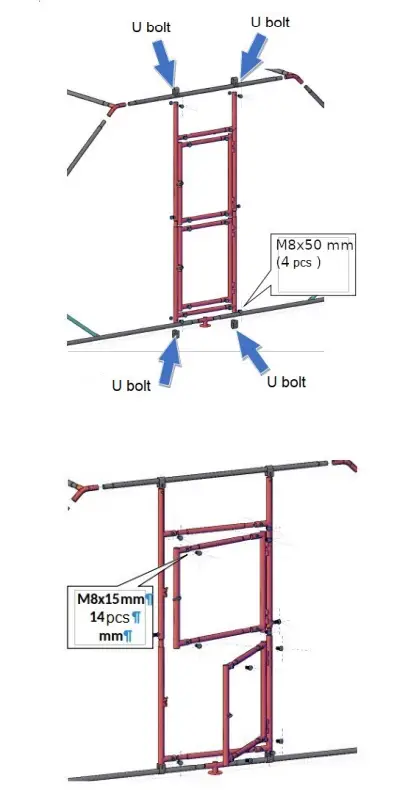

Assembly

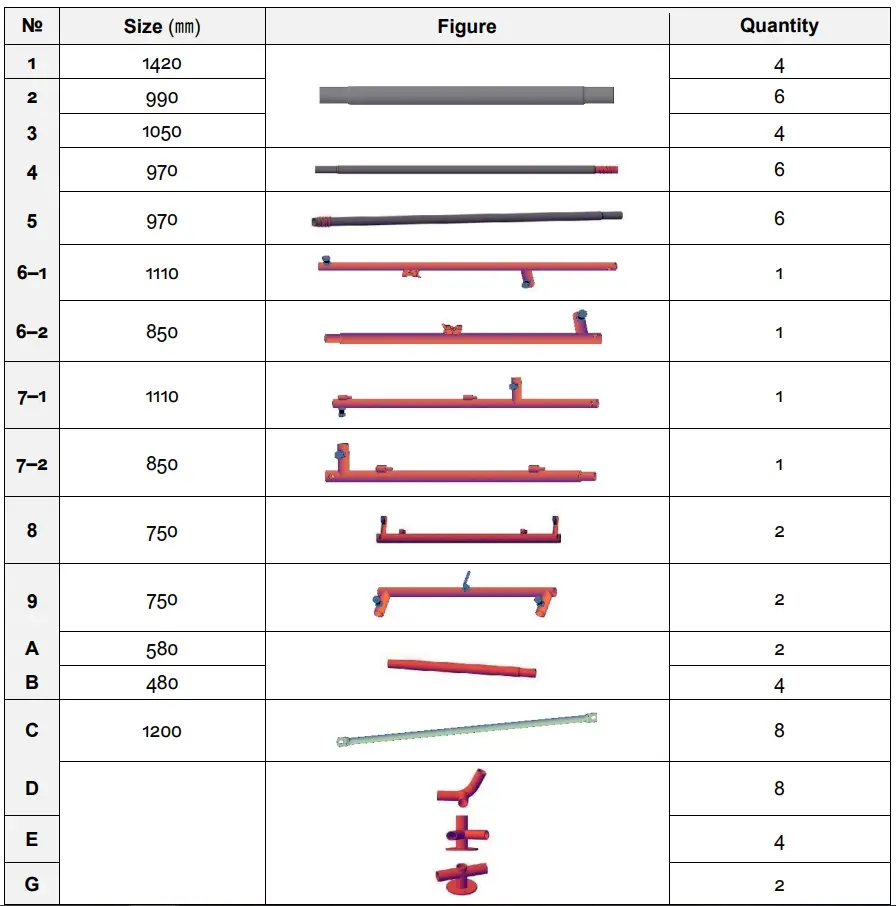

Parts lists
| Name | Qty. | Name | Qty. |
| U bolt | 4 | M8×15 screws (door) | 14 |
| Roof | 1 | Wing screw | 40 |
| Rubber rope (roof) | 1 | Self-tapping M5.5×19 screw | 10 |
| Wire for tying | 1 | Socket wrench 12/14 mm 8 mm (for self-tapping screw) | 1 1 |
| Cable tie | 1 | Cap for “G” part Cap for door | 2 6 |
| M8 square head screw | 20 | Shaft bolt | 2 |
| Nuts | 20 | Mesh wire (hexagon) | 1 |
