Lenovo Storage D1212 and D1224 Drive Enclosures

Product Guide

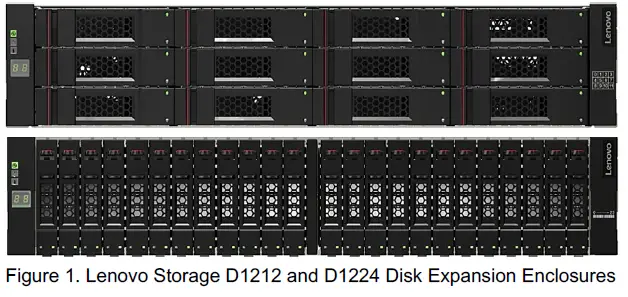

The Lenovo Storage D1212 and D1224 Disk Expansion Enclosures offer 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide simplicity, speed, scalability, security, and high availability for small to large businesses. The D1212 and D1224 deliver enterprise-class storage technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host connectivity. The D1212 and D1224 expansion units are designed for a wide range of workloads, including big data and analytics, video surveillance, media streaming, private clouds, file and print serving, e-mail and collaboration, and databases. They also well-suited for software defined storage (SDS) and Windows Server solutions with Storage Spaces.

Did you know?
The D1212 and D1224 expansion enclosures offer flexible drive configurations with the choice of 2.5-inch and 3.5-inch drive form factors, 10K or 15K rpm SAS and 7.2K rpm NL SAS hard disk drives (HDDs) and self-encrypting drives (SEDs), and SAS solid-state drives (SSDs). With support for daisy chaining, the D1212 can be scaled up to 1.72 PB for capacity-optimized configurations with HDDs, and the D1224 can be scaled up to 192 drives for performance-optimized configurations. The D1212 and D1224 expansion units support 12 Gbps SAS connectivity, which doubles the data transfer rate compared to 6 Gb SAS solutions to maximize performance of storage I/O-intensive applications.

Key features

Key features and benefits provided by the D1212 and D1224 storage expansion enclosures include:

• Versatile, scalable storage expansion with dual Environmental service Module (ESM) configurations for high availability and performance
• Flexible host connectivity to match diverse client needs for direct attach storage with support for 12 Gb SAS RAID adapters for advanced data protection or 12 Gb SAS Host Bus Adapter (HBA) for maximum JBOD performance
• 12 Gb SAS drive-side connectivity with support for 12x 3.5-inch large form factor (LFF) drives in the
• D1212 enclosure or 24x 2.5-inch small form factor (SFF) drives in the D1224 enclosure
• Scalability of up to 96 LFF or 192 SFF drives per RAID adapter or HBA with the attachment of up to eight D1212 or D1224 daisy-chained expansion enclosures, or a combination of both, to satisfy growing needs for storage capacity and performance
• Flexibility in storing data on high performance SAS SSDs, performance-optimized enterprise SAS HDDs, or capacity-optimized enterprise NL SAS HDDs; mixing and matching drive types and form factors on a single RAID adapter or HBA to perfectly meet performance and capacity requirements for various workloads
• Self-encrypting drives with a supported RAID adapter allow clients to secure their sensitive data and to comply with various security regulations when required
• Support multiple host attachments and SAS zoning for storage partitioning
• The D1212 and D1224 are designed to support the complete range of data storage requirements, from highly utilized applications to high-capacity, low usage applications.

The following 3.5-inch SAS drives are supported by the D1212:

• High performance SSDs (10 drive writes per day [DWD]): 400 GB
• Mainstream SSDs (3 DWD): 800 GB
• High-capacity, archival-class nearline HDDs: 2 TB, 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, and 16 TB 7.2K rpm
• High-capacity, archival-class nearline self-encrypting HDDs: 4 TB 7.2K rpm

The following 2.5-inch SAS drives are supported by the D1224:

• Capacity optimized SSDs (1 DWD): 3.84 TB and 7.68 TB
• Mainstream SSDs (3 DWD): 800 GB and 1.6 TB
• High performance SSDs (10 DWD): 400 GB, 800 GB, and 1.6 TB
• Performance-optimized, enterprise class HDDs
• 300 GB, 600 GB, and 900 GB 15K rpm
• 600 GB, 1.2 TB, 1.8 TB, and 2.4 TB 10K rpm
• Performance-optimized, enterprise class self-encrypting HDDs: 1.2 TB 10K rpm
• High-capacity, archival-class nearline HDDs: 1 TB and 2 TB 7.2K rpm

Additional drives and expansion units are designed to be dynamically added with virtually no downtime (operating system dependent), helping to quickly and seamlessly respond to growing capacity demands. The D1212 and D1224 expansion enclosures are designed to offer high levels of system and data availability with the following technologies:

• Dual ESMs provide redundant paths from a supported RAID controller to the drives in the enclosures for I/O load balancing and failover
• Dual-port drives (both HDDs and SSDs) with automatic drive failure detection and RAID rebuild with global hot spares with a supported RAID adapter
• Redundant hardware, including host ports, ESMs, and power and cooling modules (PCMs)
• Hot-swappable and customer replaceable components, including ESMs, PCMs, and drives

Components and connectors

The following figure shows the front of the D1224 drive expansion enclosure.

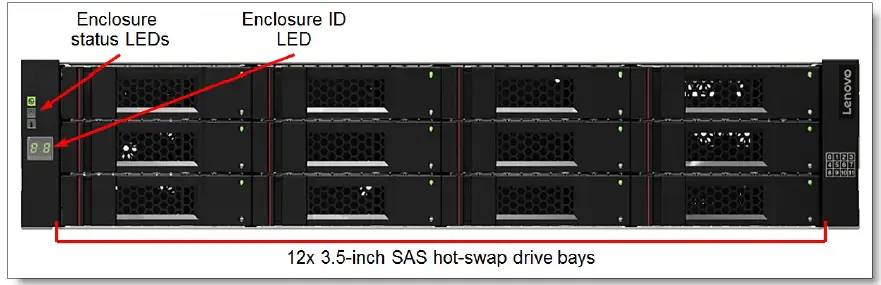

Figure 2. Front view of the D1212 drive enclosure

The following figure shows the rear of the D1212 and D1224 drive enclosures

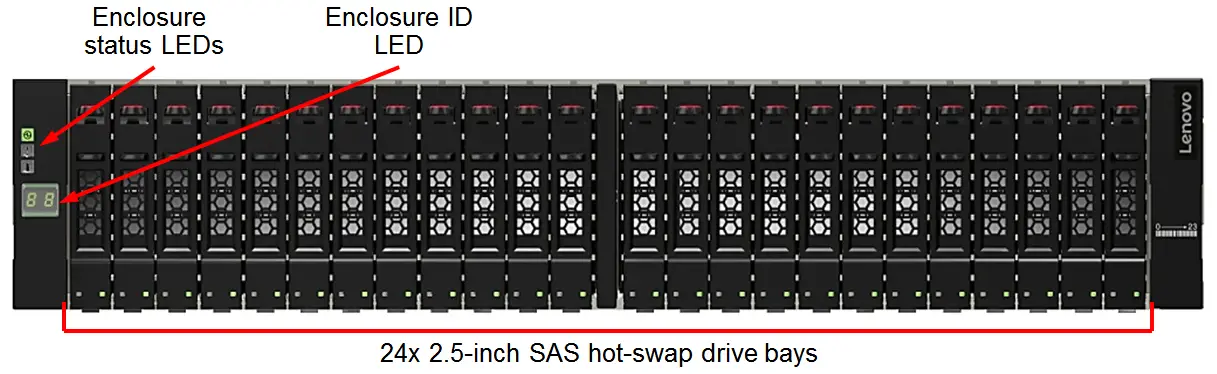

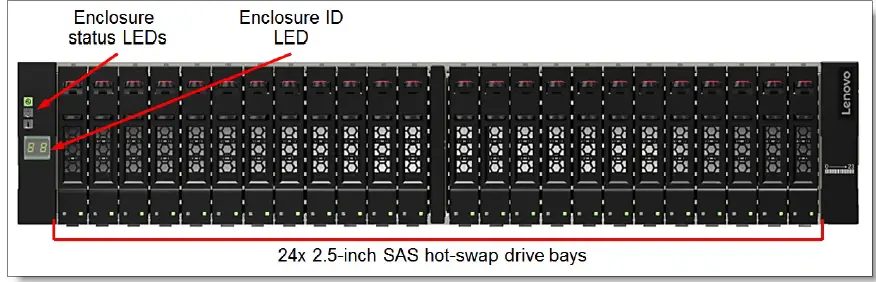

Figure 3. Front view of the D1224 drive enclosure

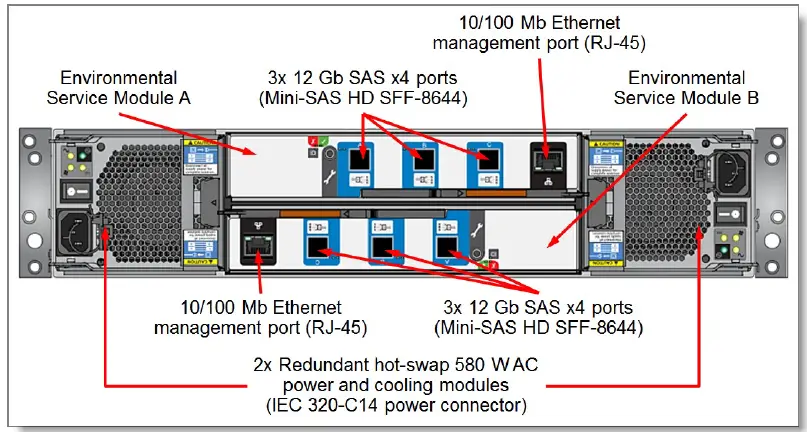

The following figure shows the rear of the D1212 and D1224 drive enclosures

System specifications
The following table lists the D1212 and D1224 system specifications.

Models

Table 2. D1212 and D1224 relationship models

Table 3. D1212 and D1224 TopSeller models

Table 4. D1212 and D1224 CTO base models

The D1212 and D1224 drive enclosures include the following items:

• One LFF or SFF chassis with the following components:
  • Dual 3-port environmental service modules
  • Two power and cooling modules
  • Drives (select models; see Table 2 and Table 3 for details)
• Two 1.5m, 10A/100-250V, C13 to IEC 320-C14 rack power cables (models listed in Table 2 and Table 3), or two customer-configured power cables (CTO models)
• External 0.5m 12Gb SAS cables (select models; see Table 2 and Table 3 for details)
• Lenovo Storage 12Gb SAN Rack Mount Kit – Rails 25″-36″
• Documentation package

Host connectivity

The D1212 and D1224 drive enclosures support dual environmental service module (ESM) configurations. Each ESM has three 12 Gb SAS x4 ports (Mini-SAS HD SFF-8644 connectors) labeled A, B, and C. These ports are used for connections to a supported RAID adapter or HBA installed in a server and for daisy chaining the D1212 and D1224 enclosures between each other. Port A on each ESM is used for connecting the external SAS ports on the RAID controller or HBA to the enclosure, or for connecting Port C on each ESM in the adjacent enclosure for daisy chaining. Port B on each ESM is used for connecting the external SAS ports on the RAID controller or HBA to the enclosure. Daisy-chaining does not use Port B for connections between adjacent enclosures. Port C on each ESM is used for connecting the external SAS ports on the RAID controller or HBA to the enclosure, or for connecting Port A on each ESM in the adjacent enclosure for daisy chaining. The expansion enclosures support single I/O path and dual I/O path connectivity topology. For single I/O path configurations, each port on the adapter can be connected to a separate chain of expansion enclosures by using the ESM A in each connected enclosure. For dual I/O path configurations, each port on the 2-port RAID adapter or HBA is connected to a different ESM chain within the same chain of enclosures. For specific configuration limits, refer to SAS RAID controllers and HBAs . For SAS RAID controllers, the controller’s firmware manages multiple I/O paths from the controller to SAS drives. For SAS HBAs, the host operating system runs multi-pathing software to manage multiple I/O paths. Up to eight D1212 or D1224 drive enclosures, or a combination of both, can be daisy-chained with support for up to four hosts attached to the chain. Without daisy-chaining, a standalone D1224 drive enclosure can support up to six directly attached hosts. In addition, up to two D1212 and up to two D3284 drive enclosures, or one D1224 and up to two D3284 drive enclosures can be daisy-chained with support for up to two hosts attached to the chain.

The following figures illustrate different host connectivity topologies.

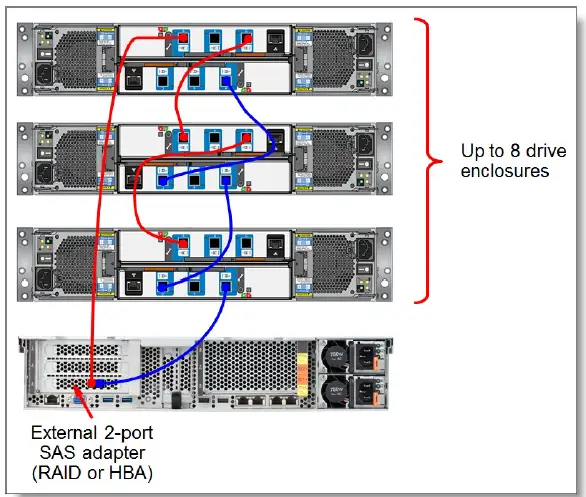

Figure 5. Connectivity topology with one host

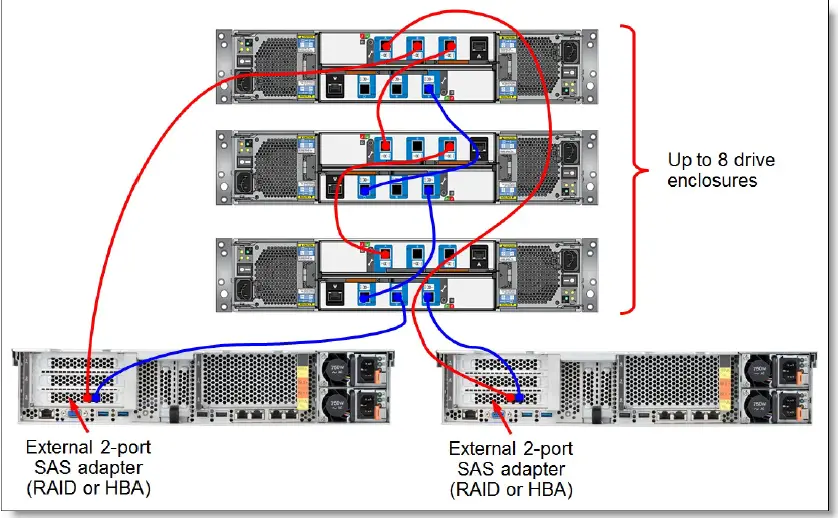

Figure 6. Connectivity topology with two hosts

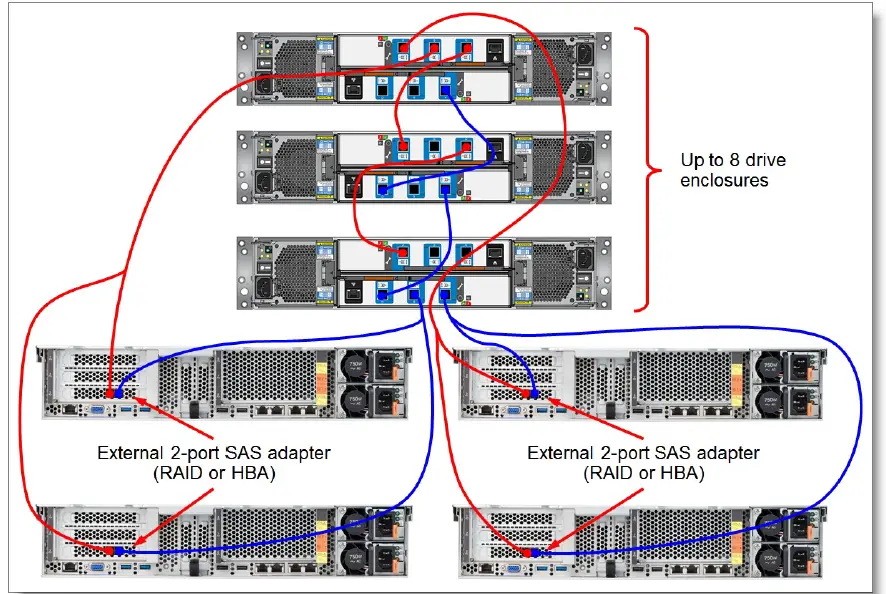

Figure 7. Connectivity topology with four hosts

Configuration notes:
Attachment of more than one host to the same enclosure without SAS zoning is supported with HBAs only (RAID controllers are not supported). While all attached hosts are capable of accessing all drives in the enclosures, the clustering software running on the hosts controls which cluster nodes have access to the drives at any given time. With SAS zoning enabled, only standalone enclosures without daisy-chaining can be partitioned for multiple host access. Expansion ports are not supported when zoning is enabled

Table 5. D1212 and D1224 zoning configurations

Table 6. SAS cable options

Drives

The D1212 drive enclosure supports up to 12 LFF hot-swap drives, and the D1224 drive enclosure supports up to 24 SFF hot-swap drives. The following tables list drive options for the D1212 and D1224 drive enclosures.

Table 7. LFF drive options (D1212)

Table 8. SFF drive options (D1224)

Power cables
The D1212 and D1224 ship standard with two 1.5m, 10A/100-250V, C13 to IEC 320-C14 rack power cables. Other power cable options are also available, and the part numbers and feature codes to order the power cables are listed in the following table (two power cables are required per each D1212 and D1224).

Table 9. Power cable options

Physical specifications

The D1212 and D1224 have the following dimensions and weight (approximate):

• Height: 88 mm (3.5 in.)
• Width: 443 mm (17.4 in.)
• Depth: 630 mm (24.8 in.)
• Maximum weight
  • D1212: 26 kg (57.3 lb)
  • D1224: 24 kg (52.9 lb)

Operating environment

The D1212 and D1224 are supported in the following environment:

Air temperature:

• Operating: 5 °C to 40 °C (41 °F to 104 °F)
• Storage: -40 °C to +60 °C (-40 °F to 140 °F)
• Maximum altitude: 3,045 m (10,000 ft)

Humidity:

• Operating: 20% to 80% (non-condensing)
• Storage: 5% to 100% (no precipitation)

Electrical:

• 100 to 127 (nominal) V AC; 50 Hz to 60 Hz; 6.11 A
• 200 to 240 (nominal) V AC; 50 Hz to 60 Hz; 3.05 A
• BTU output: 1979 BTU/hr (580 W)
• Noise level: 6.5 bels

Warranty and support

The D1212 and D1224 have a three-year customer-replaceable unit (CRU) warranty with standard call center support during normal business hours and 9×5 Next Business Day Parts Delivered. Lenovo’s additional support services provide a sophisticated, unified support structure for a customer’s data center, with an experience consistently ranked number one in customer satisfaction worldwide. The following additional Lenovo support services are available:

Premier Support: provides a Lenovo-owned customer experience and delivers direct access to technicians skilled in hardware, software, and advanced troubleshooting, in addition to the following capabilities: Direct technician-to-technician access through a dedicated phone line.

• 24x7x365 remote support.
• Single point of contact service.
• End to end case management.
• 3rd Party collaborative software support.
• Online case tools and live chat support.
• On-demand remote system analysis.

Warranty Upgrades (Preconfigured Support) are available to meet the on-site response time targets that match the criticality of your systems:

• 3, 4, or 5 years of service coverage.
• 1-year or 2-year post-warranty extensions.
• Foundation Service: 9×5 service coverage with next business day onsite response, with optional YourDrive YourData.
• Essential Service: 24×7 service coverage with 4-hour onsite response or 24-hour committed repair (available only in select regions), with optional YourDrive YourData.
• Advanced Service: 24×7 service coverage with 2-hour onsite response or 6-hour committed repair (available only in select regions), with optional YourDrive YourData.

Managed Services
Lenovo Managed Services provide continuous 24×7 remote monitoring (plus 24×7 call center availability) and proactive management of a customer’s data center using state of the art tools, systems, and practices by a team of highly skilled and experienced Lenovo services professionals. Quarterly reviews check error logs, verify firmware and operating system device driver levels, and software as needed. Lenovo will also maintain records of latest patches, critical updates, and firmware levels, to ensure customer’s systems are providing business value through optimized performance.

Technical Account Management (TAM)
A Lenovo Technical Account Manager helps customers optimize operations of their data centers based on a deep understanding of customer’s business. Customers gain direct access to a Lenovo TAM, who serves as their single point of contact to expedite service requests, provide status updates, and furnish reports to track incidents over time. Also, a TAM helps proactively make service recommendations and manage service relationship with Lenovo to make certain that customer’s needs are met.

Your Drive Your Data
Lenovo’s YourDrive YourData service is a multi-drive retention offering that ensures that customer’s data is always under their control, regardless of the number of drives that are installed in their Lenovo server. In the unlikely event of a drive failure, customers retain possession of their drive while Lenovo replaces the failed drive part. Customer’s data stays safely on customer premises, in their hands. The YourDrive YourData service can be purchased in convenient bundles with Foundation, Essential, or Advanced Service upgrades and extensions.

Health Check
Having a trusted partner who can perform regular and detailed health checks is central to maintaining efficiency and ensuring that customer systems and business are always running at their best. Health Check supports Lenovo-branded server, storage, and networking devices, as well as select Lenovo-supported products from other vendors that are sold by Lenovo or a Lenovo-Authorized Reseller.

Some regions might have different warranty terms and conditions than the standard warranty. This is due to local business practices or laws in the specific region. Local service teams can assist in explaining regionspecific terms when needed. Examples of region-specific warranty terms are second or longer business day parts delivery or parts-only base warranty. If warranty terms and conditions include onsite labor for repair or replacement of parts, Lenovo will dispatch a service technician to the customer site to perform the replacement. Onsite labor under base warranty is limited to labor for replacement of parts that have been determined to be field-replaceable units (FRUs). Parts that are determined to be customer-replaceable units (CRUs) do not include onsite labor under base warranty. Lenovo support services are region-specific. Not all support services are available in every region. For information about Lenovo support services that are available in a specific region, refer to the following resources:

• Service part numbers in Data Center Solution Configurator (DCSC):
  • http://dcsc.lenovo.com/#/services
• Lenovo Services Availability Locator
  • https://lenovolocator.com/

For service definitions, region-specific details, and service limitations, refer to the following documents:

• Lenovo Statement of Limited Warranty for Infrastructure Solutions Group (ISG) Servers and System Storage
  • http://pcsupport.lenovo.com/us/en/solutions/ht503310
• Lenovo Data Center Services Agreement
  • http://support.lenovo.com/us/en/solutions/ht116628

Services

Lenovo Services is a dedicated partner to your success. Our goal is to reduce your capital outlays, mitigate your IT risks, and accelerate your time to productivity.

Note: Some service options may not be available in all markets or regions. For more information, go to https://www.lenovo.com/services. For information about Lenovo service upgrade offerings that are available in your region, contact your local Lenovo sales representative or business partner. Here’s a more in-depth look at what we can do for you:

Asset Recovery Services
Asset Recovery Services (ARS) helps customers recover the maximum value from their end-of-life equipment in a cost-effective and secure way. On top of simplifying the transition from old to new equipment, ARS mitigates environmental and data security risks associated with data center equipment disposal. Lenovo ARS is a cash-back solution for equipment based on its remaining market value, yielding maximum value from aging assets and lowering total cost of ownership for your customers. For more information, see the ARS page, https://lenovopress.com/lp1266-reduce-ewaste- and-grow-your-bottom-line-with-lenovo-ars.

Assessment Services
An Assessment helps solve your IT challenges through an onsite, multi-day session with a Lenovo technology expert. We perform a tools-based assessment which provides a comprehensive and thorough review of a company’s environment and technology systems. In addition to the technology based functional requirements, the consultant also discusses and records the non-functional business requirements, challenges, and constraints. Assessments help organizations like yours, no matter how large or small, get a better return on your IT investment and overcome challenges in the ever-changing technology landscape.

Design Services
Professional Services consultants perform infrastructure design and implementation planning to support your strategy. The high-level architectures provided by the assessment service are turned into low level designs and wiring diagrams, which are reviewed and approved prior to implementation. The implementation plan will demonstrate an outcome-based proposal to provide business capabilities through infrastructure with a risk-mitigated project plan.

Basic Hardware Installation
Lenovo experts can seamlessly manage the physical installation of your server, storage, or networking hardware. Working at a time convenient for you (business hours or off shift), the technician will unpack and inspect the systems on your site, install options, mount in a rack cabinet, connect to power and network, check and update firmware to the latest levels, verify operation, and dispose of the packaging, allowing your team to focus on other priorities.

Deployment Services
When investing in new IT infrastructures, you need to ensure your business will see quick time to value with little to no disruption. Lenovo deployments are designed by development and engineering teams who know our Products & Solutions better than anyone else, and our technicians own the process from delivery to completion. Lenovo will conduct remote preparation and planning, configure & integrate systems, validate systems, verify and update appliance firmware, train on administrative tasks, and provide post-deployment documentation. Customer’s IT teams leverage our skills to enable IT staff to transform with higher level roles and tasks.

Integration, Migration, and Expansion Services
Move existing physical & virtual workloads easily, or determine technical requirements to support increased workloads while maximizing performance. Includes tuning, validation, and documenting ongoing run processes. Leverage migration assessment planning documents to perform necessary migrations.

Regulatory compliance

The D1212 and D1224 drive enclosures conform to the following regulations:

• BSMI CNS 13438, Class A; CNS 14336 (Taiwan)
• CCC GB 4943.1, GB 17625.1, GB 9254 Class A (China)
• CE Mark (European Union)
• CISPR 22, Class A
• EAC (Russia)
• EN55022, Class A
• EN55024
• FCC Part 15, Class A (United States)
• ICES-003/NMB-03, Class A (Canada)
• IEC/EN60950-1
• KC Mark (Korea)
• NOM-019 (Mexico)
• Reduction of Hazardous Substances (ROHS)
• UL/CSA IEC 60950-1
• VCCI, Class A (Japan)
• BIS (India)

Interoperability
Lenovo provides end-to-end storage compatibility testing to deliver interoperability throughout the network. The Lenovo Storage D1212 and D1224 support attachment to hosts that support the RAID controllers and HBAs listed in the SAS RAID controllers and HBAs section.

Important: Information that is provided in these sections is for order reference purposes only.

For end-to-end storage configuration support, refer to the Lenovo Storage Interoperation Center (LSIC): https://datacentersupport.lenovo.com/us/en/lsic
Use the LSIC to select the known components of your configuration and then get a list all other supported combinations, with details about supported hardware, firmware, operating systems, and drivers, plus any additional configuration notes. View results on screen or export them to Excel.

SAS RAID controllers and HBAs
The D1212 and D1224 enclosures support the RAID adapters and HBAs listed in the following table.

Table 10. RAID controllers and HBAs

Rack cabinets

Table 11. Rack cabinets

For specifications about these racks, see the Lenovo Rack Cabinet Reference, available from:
https://lenovopress.com/lp1287-lenovo-rack-cabinet-reference

For more information, see the list of Product Guides in the Rack cabinets category:
https://lenovopress.com/servers/options/racks

Power distribution units
The following table lists the power distribution units (PDUs) that are offered by Lenovo.

Table 12. Power distribution units

Uninterruptible power supply units
The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo.

Table 13. Uninterruptible power supply units

Lenovo Financial Services

Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world. We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses. We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution. We focus on making it easy to do business with us. Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service. Our systems, processes and flexible policies support our goal of providing customers with a positive experience. We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice. Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an in-depth understanding of your invoice and payment requirements. For you, this dedication provides a high-quality, easy, and positive financing experience. For your region-specific offers, please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website: https://www.lenovo.com/us/en/landingpage/lenovo-financial-services/
