Operation Manual

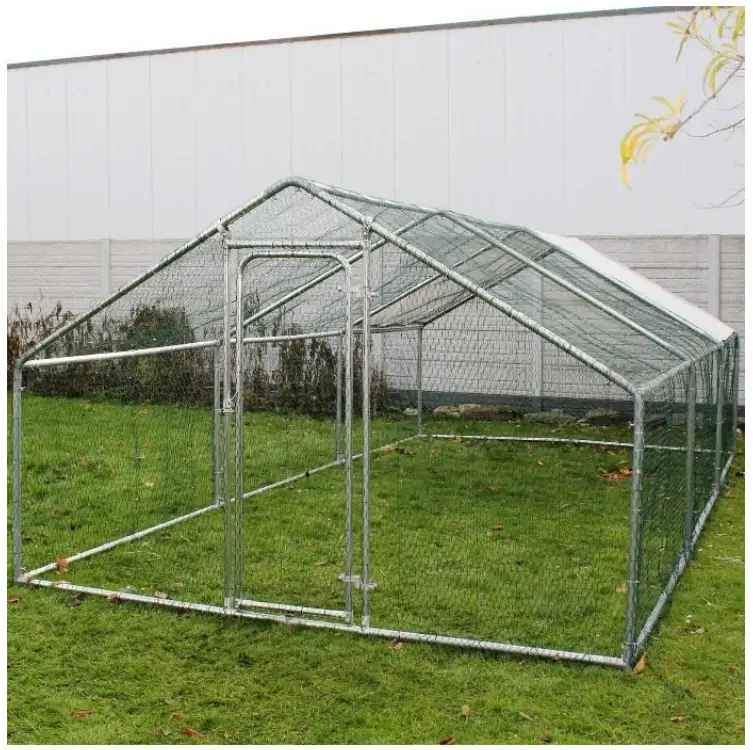

Outdoor Enclosure
61211–61213
Illustrations similar may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further developments.
The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating manual, nor in the diagrams and illustrations shown. Although WilTec Wildanger Technik GmbH has made every possible effort to ensure that this operating manual is complete, accurate, and up-to-date, errors cannot be ruled out entirely. If you have found an error or wish to suggest an improvement, we look forward to hearing from you. Send us an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in several languages can be found in our online shop:
https://www.wiltec.de/docsearch
Our postal address is: WilTec Wildanger Technik GmbH Königsbenden 12 52249 Eschweiler Germany
To return your goods for an exchange, repair, or other purposes, please use the following address. Attention! To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler Germany
E-mail: [email protected]
Phone: +49 2403 55592–0
Fax: (+49 2403 55592–15)
Introduction
Thank you for choosing to purchase this quality product. To minimize the risk of injury, we ask you to always take some basic safety precautions when using this product. Please read this operating manual carefully and make sure that you understand it. Keep these operating instructions in a safe place.

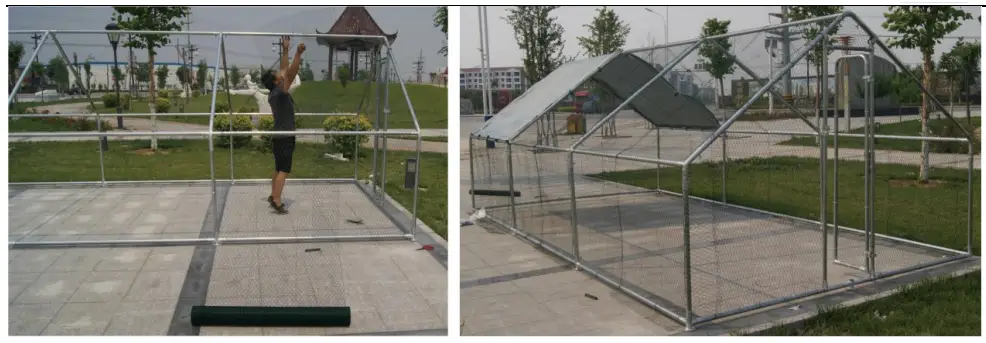

Assembly

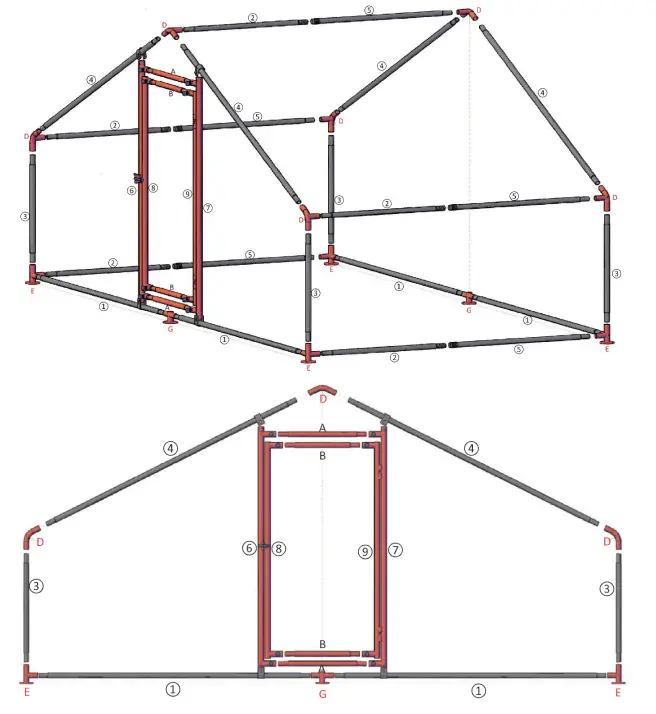

61211

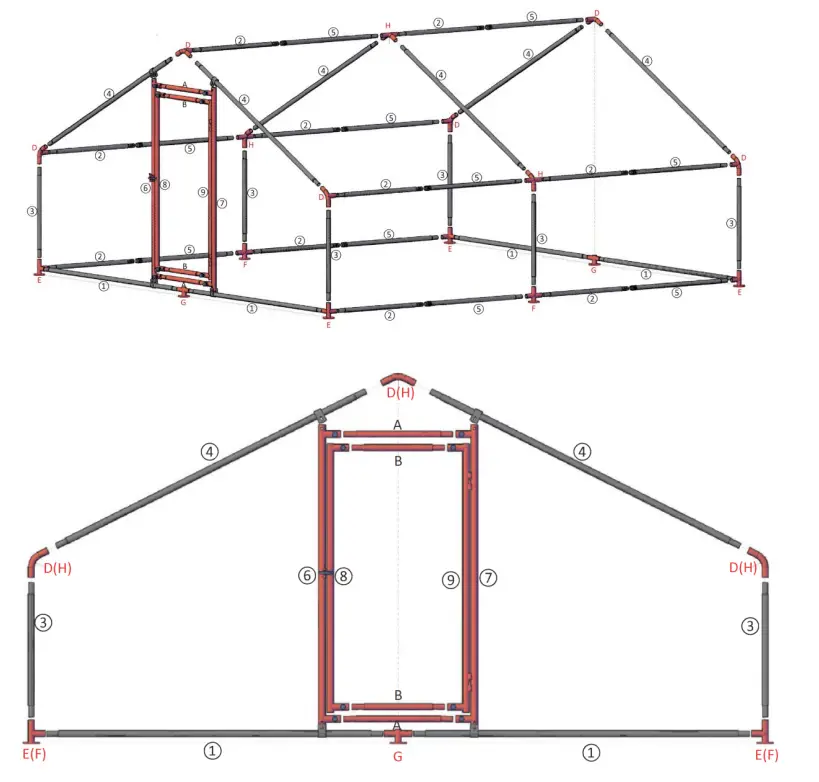

61212

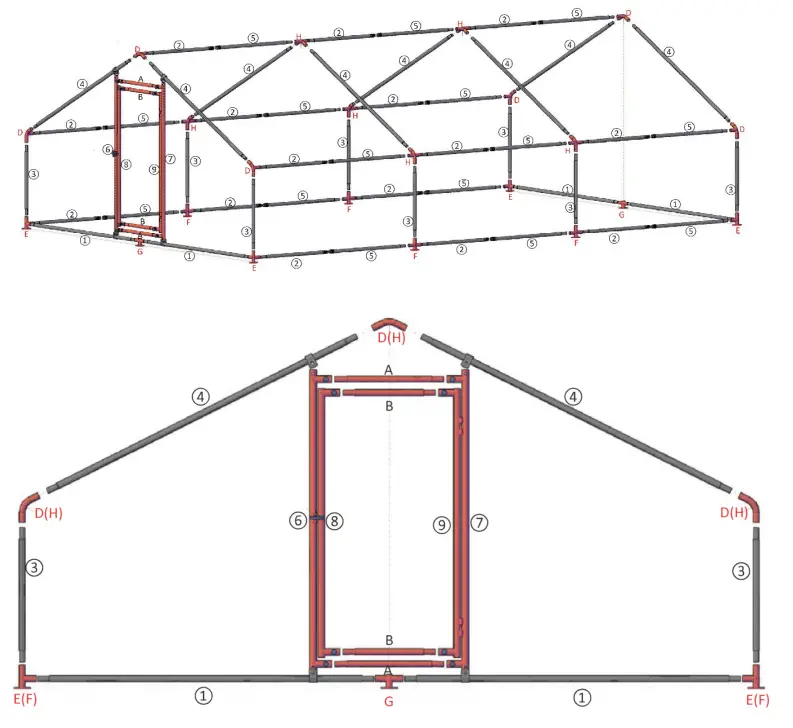

61213

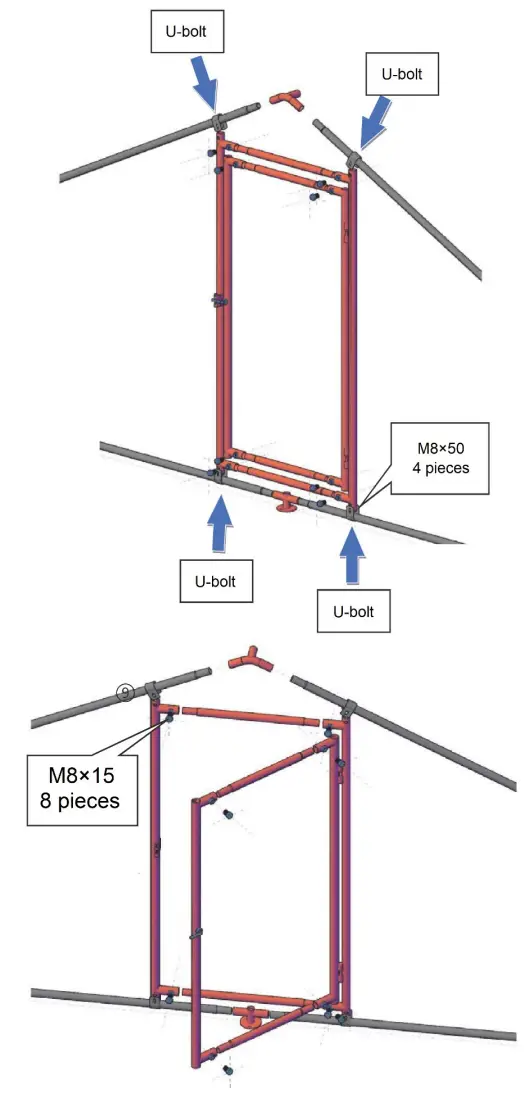

Assembling the door
Parts lists
| Name | Qty. | Name | Qty. | |||||
| U bolt | 4 | M8-square head screw (for U bolts) | 4 | |||||
| Roof | 1 | Nuts | 4 | |||||
| Stainless steel wire tie (for the roof) | 1 | M8×15 screw (for the door) | 8 | |||||
| Cable tire | 1 | Wing screw | ||||||
| Wire tie | 1 | 61211 | 34 | 61212 | 52 | 61213 | 70 | |
| № | Size (㎜) | Figure | Quantity | ||
| 1 | 1420 |
| 4 | ||
| 3 | 970 | 61211 | 61212 | 61213 | |
| 4 | 6 | 8 | |||
| 4 | 1540 | 61211 | 61212 | 61213 | |
| 4 | 6 | 8 | |||
| 2 | 990 |
| 61211 | 61212 | 61213 |
| 5 | 10 | 15 | |||
| 5 | 990 |
| 61211 | 61212 | 61213 |
| 5 | 10 | 15 | |||
| 6 | 1700 |
| 1 | ||
| 7 | 1700 |
| 1 | ||
| 8 | 1570 |
| 1 | ||
| 9 | 1570 |
| 1 | ||
| A | 570 |
| 2 | ||
| B | 480 | 2 | |||
| D |
| 6 | |||
| E |
| 4 | |||
| F |  | 61211 | 61212 | 61213 | |
| – | 2 | 4 | |||
| G |
| 2 | |||
| H |
| 61211 | 61212 | 61213 | |
| – | 3 | 6 | |||
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual, requires the written permission of WilTec Wildanger Technik GmbH.
© by WilTec Wildanger Technik GmbH
