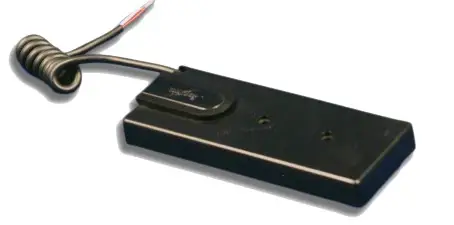

POTTER AMC-2 Money Clip
Features
- Form C circuit
- Immediate alarm signal
Application
The AMC-2 Money Clip is designed for installation in cash registers, cash boxes, and at teller’s windows. The AMC-2 employs a quiet yet highly developed reliable switch mechanism that insures an immediate alarm signal when triggered and connected to a central station.

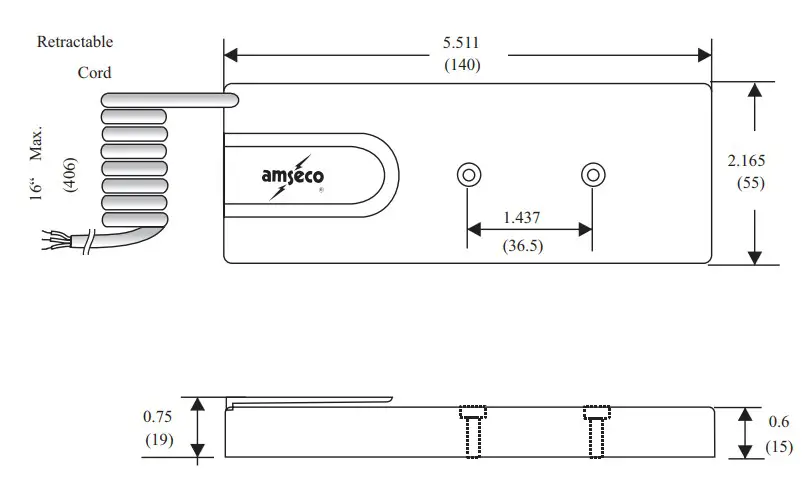

Dimensions

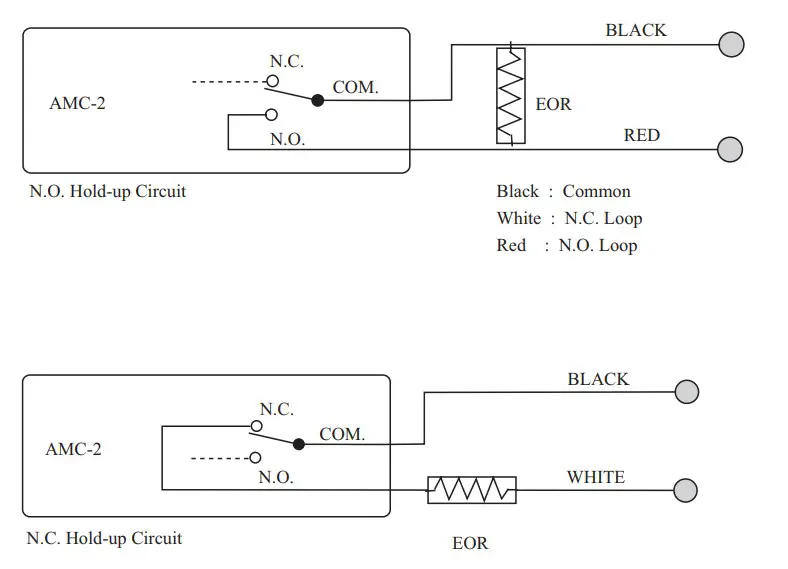

Wires: Black: Common White: N.C. Loop Red: N.O. Loop
Wiring
Specifications
| Model | Stock Number | Contact Rating | Contact Type | Cord Max. Length | Contact Resistance | Operating Gap | Operating Temperature Range |
| AMC-2 | 4390001 | 5 Amps @ 125VAC .4 Amps @ 125VDC 4 Amps @ 30VDC | N.C./ N.O | 16” | 150m/Ohms | 0.19” (0.5mm) | 32°F to 120°F (0°C to 49°C) |
