TEMPERED GLASS & RGB LED LIGHTING SYNC
Ver. 051019
User’s Manual
* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.
Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.
Precautions
- Read this manual carefully before installing.
- Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
- Wear gloves to prevent accidents when installing the product.
- Severe damage may occur when mounting the system, so do not apply excessive force.
- Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
- Be careful not to block the ventilation hole of the product when using the system.
- Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
- Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
- Do not insert your hand or another object into the product during operation, as this may injure your hand or damage the object.
- Store and use the product out of children’s reach.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.
Specifications
| Model | Z7 NEO | |
| Case Form Factor | ATX Mid-Tower | |

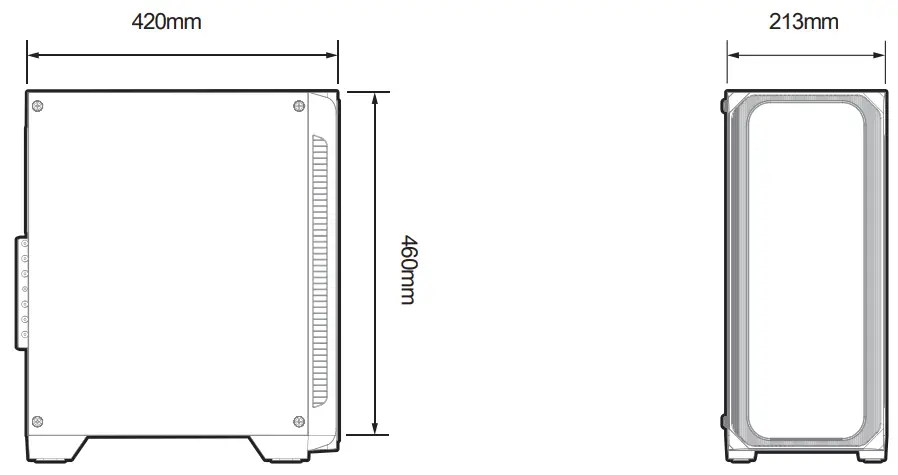

| Dimensions | 420 x 213 x 460(H)mm | |
| Weight | 7.2kg | |
| Case Materials | Plastic, Steel, Tempered Glass | |
| Motherboard Support | ATX / mATX / Mini-ITX | |
| Maximum VGA Length | 355mm | |
| Maximum CPU Cooler Height | 165mm | |
| Maximum PSU Length | 180mm | |
| PCI Expansion Slots | 7 | |
| Drive Bays | 2 x Combo (3.5″ or 2.5″), 2 x 2.5″ | |
| Fan Support | Top | 2 X 120mm, 2 X 140Mrn(RGB LED Lighting Sync Unsupported) |
| Front | 3 x 120mm | |
| Rear | 1 x 120mm | |
| Pre-Installed Fan(s) | Front | 3 x 120mm (with RGB LED Effect) |
| Rear | 1 x 120mm (with RGB LED Effect) | |
| Radiator Support | Top | 120mm / 240mm / 280mm |
| Front | 120mm / 240mm / 360mm | |
| I/O Ports | 1 x USB 3.0, 2 x USB 2.0, 1 x Headphone Jack, 1 x Microphone Jack, LED Control Button, Reset Button, Power Button | |
Caution (Radiator Support)
※ Limited fitment to memory equipped with heatsinks.
※ Some motherboards with tall heat sinks will cause interference in the installation of the 280mm radiator.

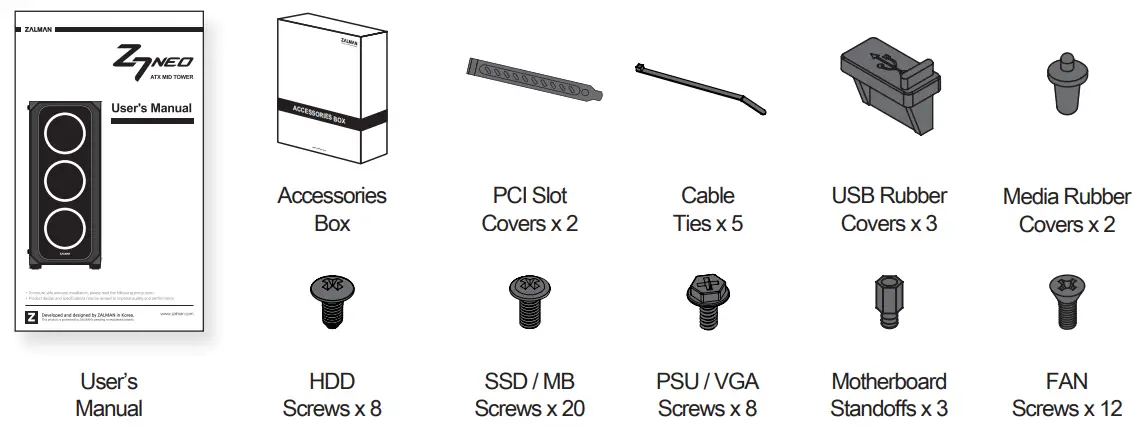

Accessories

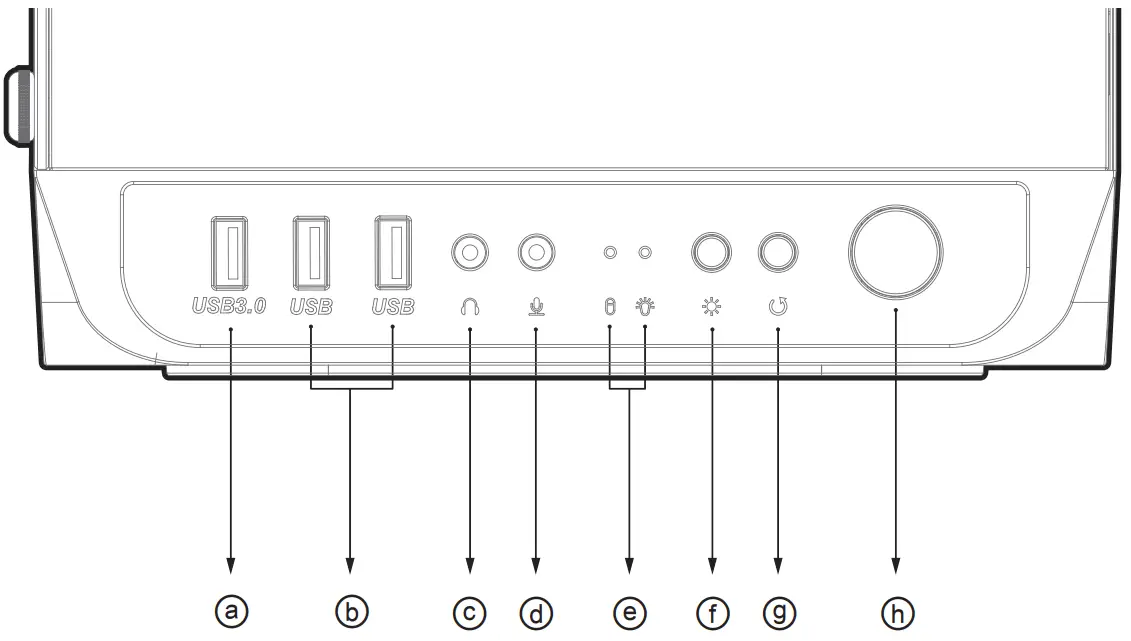

I/O Ports
| # | Part | # | Part | # | Part | # | Part |
| ⓐ | USB 3.0 Port | ⓑ | USB 2.0 Ports | ⓒ | Headphone Jack | ⓓ | Microphone Jack |
| ⓔ | HDD / Power LED | ⓕ | LED Control Button | ⓖ | Reset Button | ⓗ | Power Button |
LED Control Button
- Short Press: 1st ~ 10th RGB LED Lighting Mode (Effects & Colors) 11th RGB LED Lighting Mode Off
- Long Press: RGB LED Lighting Mode Change (LED Control Button Motherboard Sync)

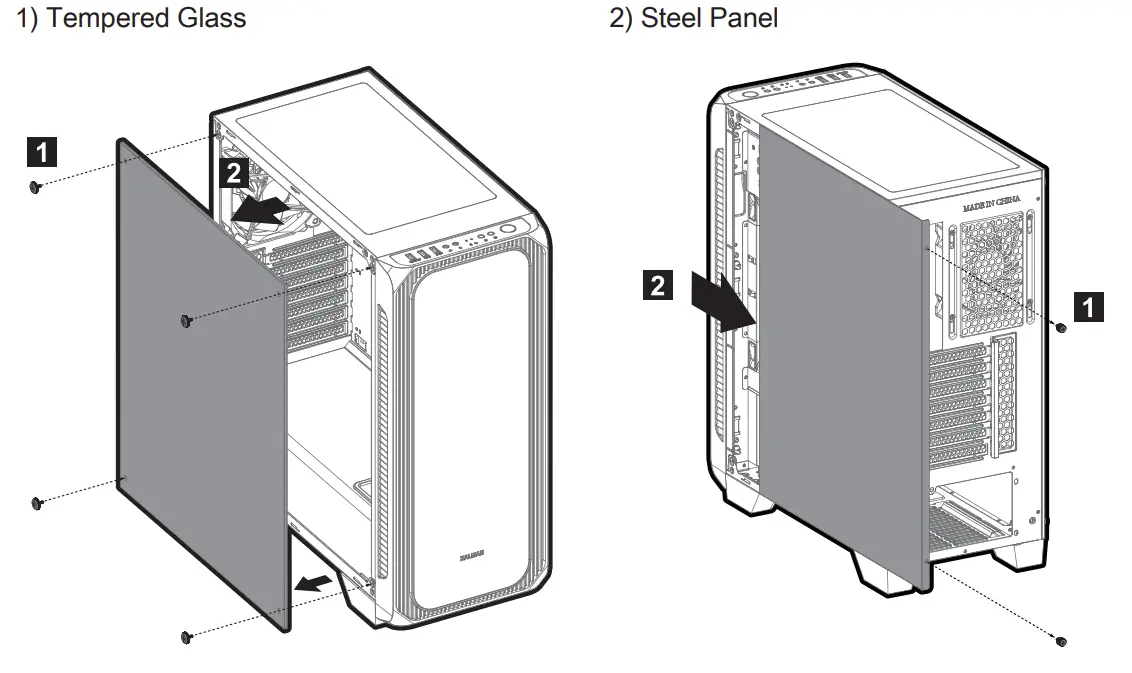

Removing the side panels

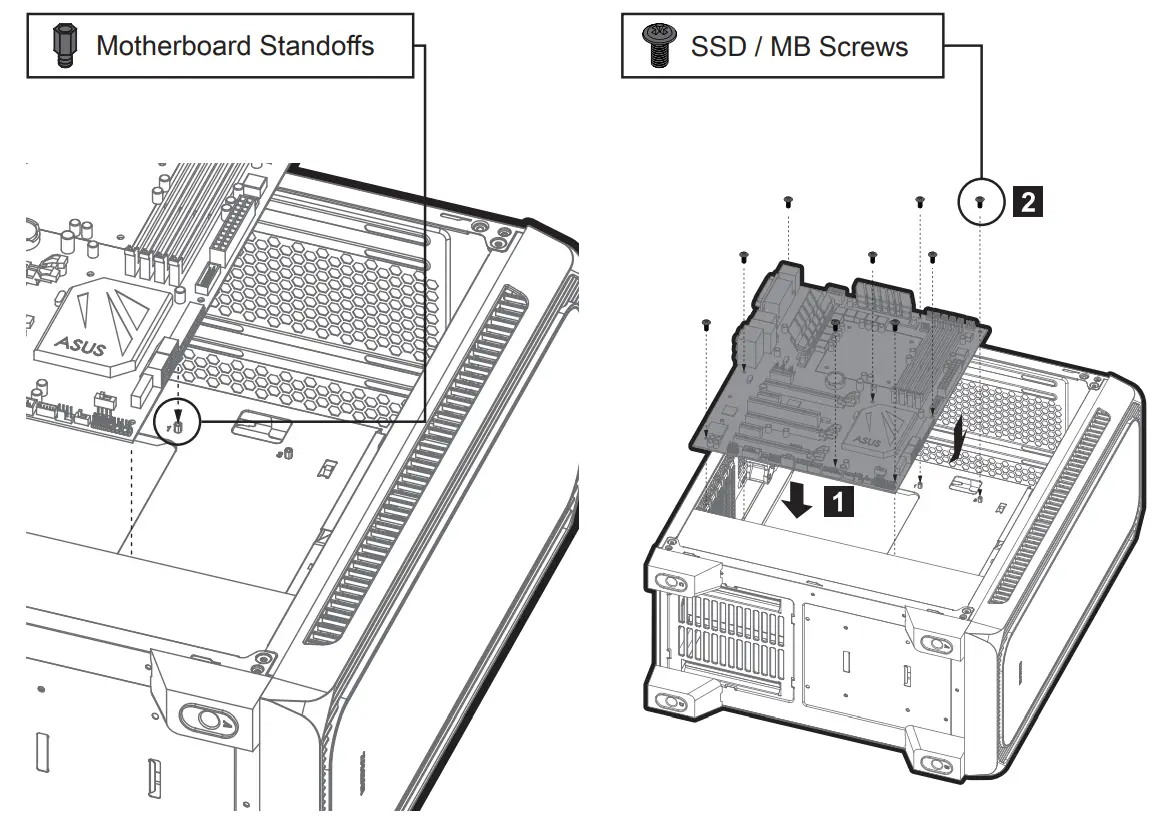

Mounting the motherboard

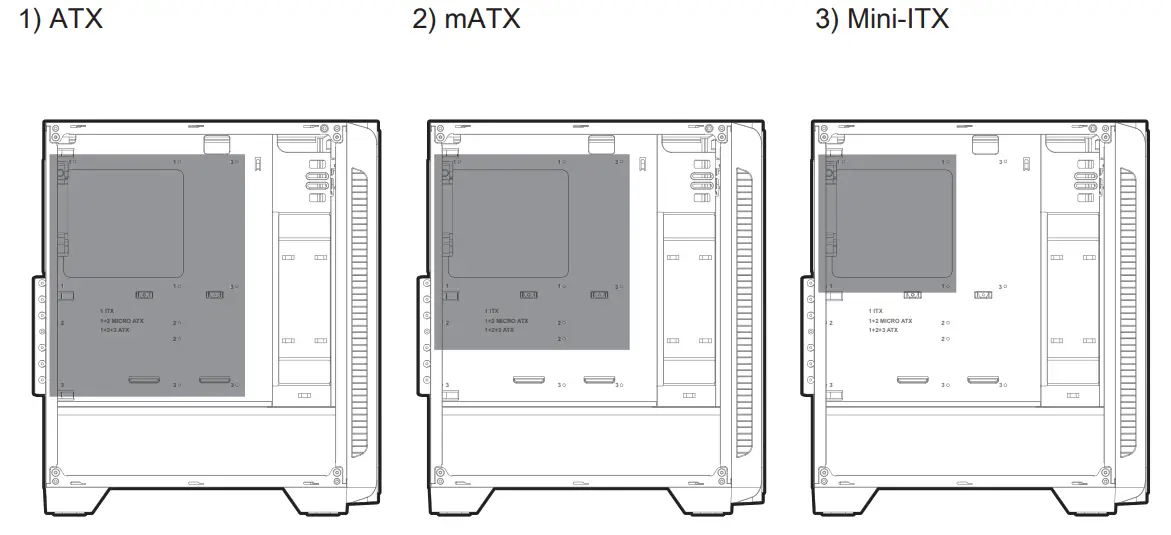

Motherboard size

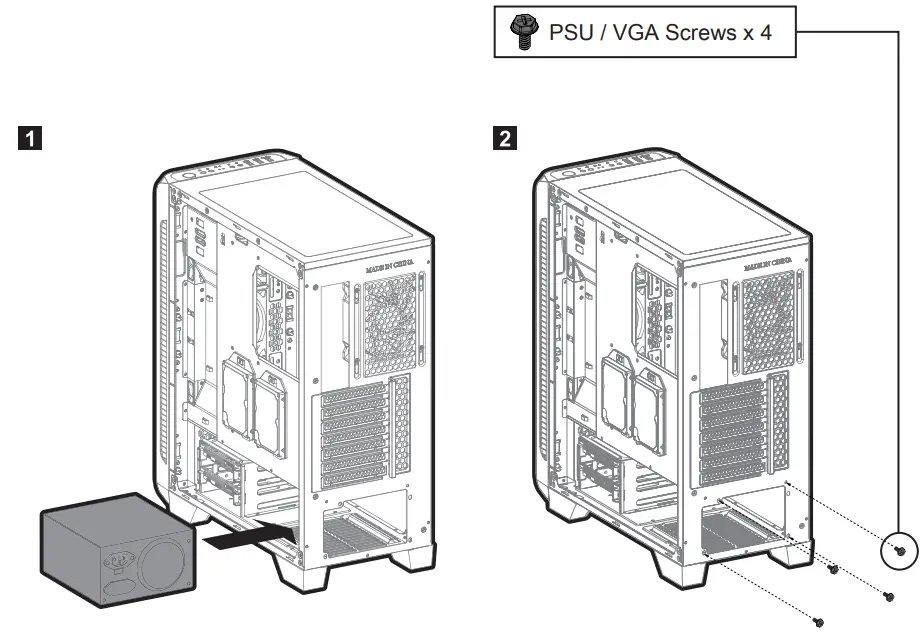

Mounting the PSU
Mounting the PCI-E(VGA) card

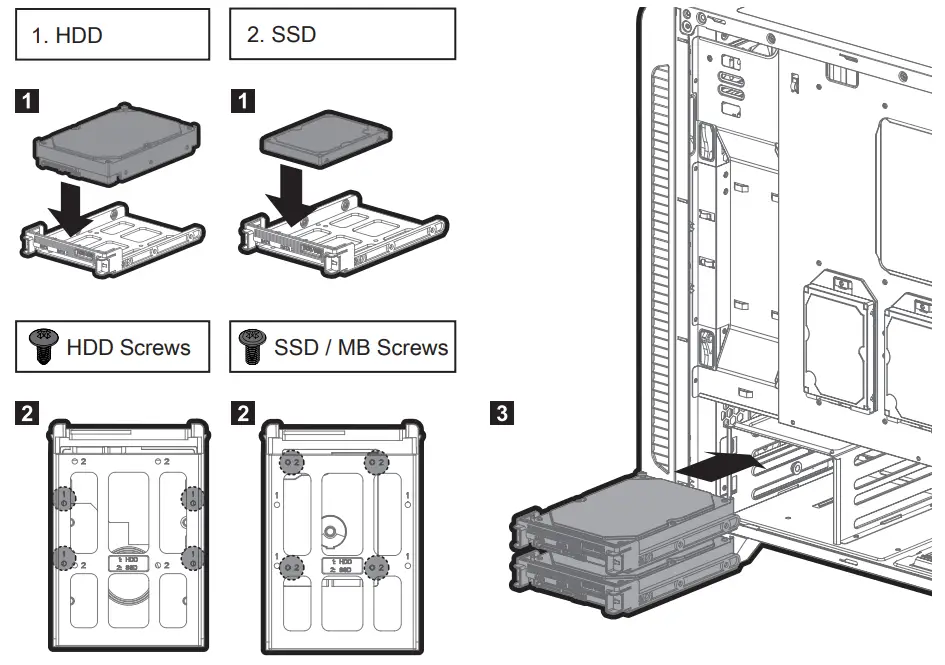

Mounting the 3.5″ and 2.5″ SSD / HDD

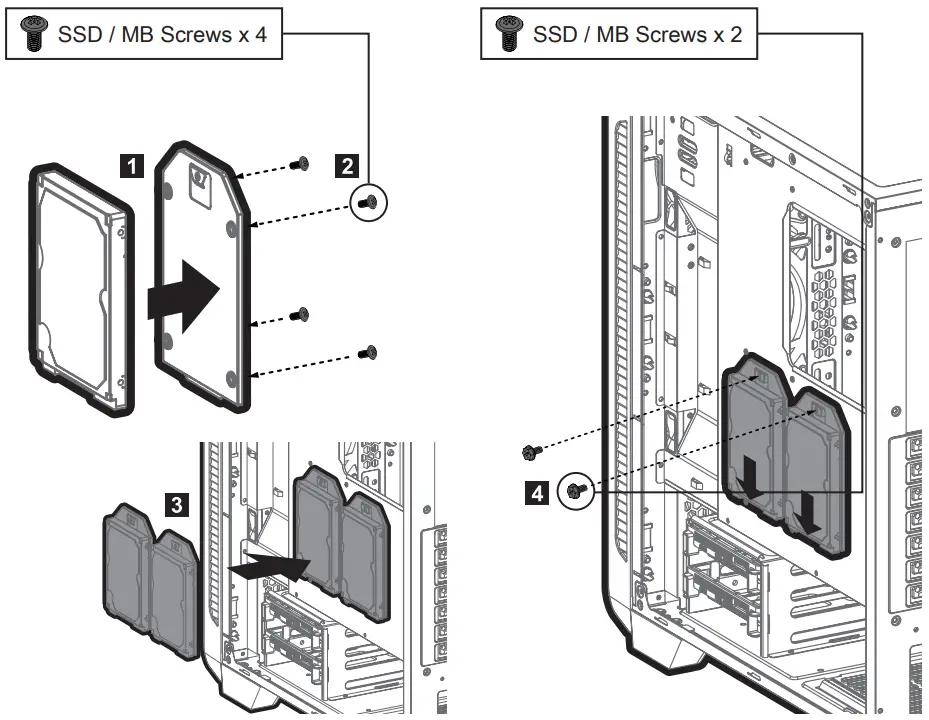

Mounting the 2.5” SSD / HDD

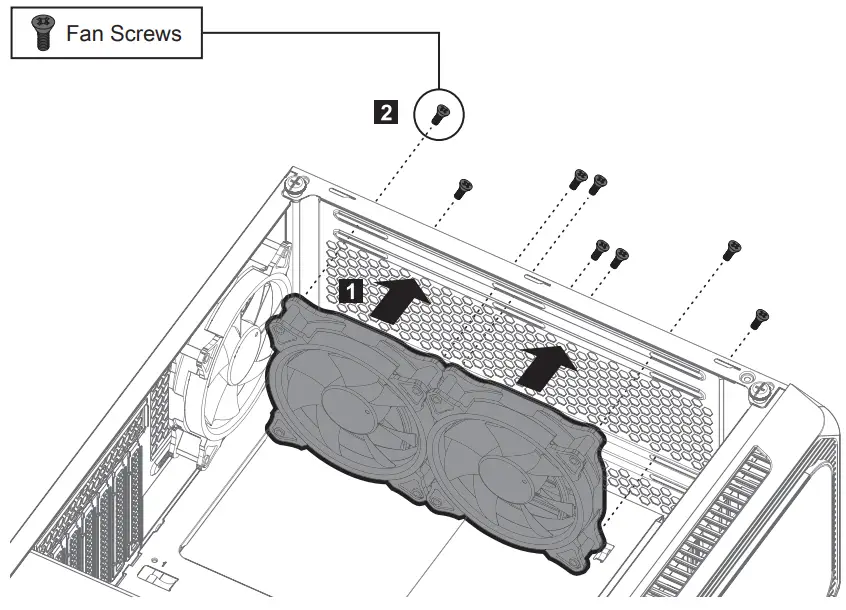

Mounting the top fans

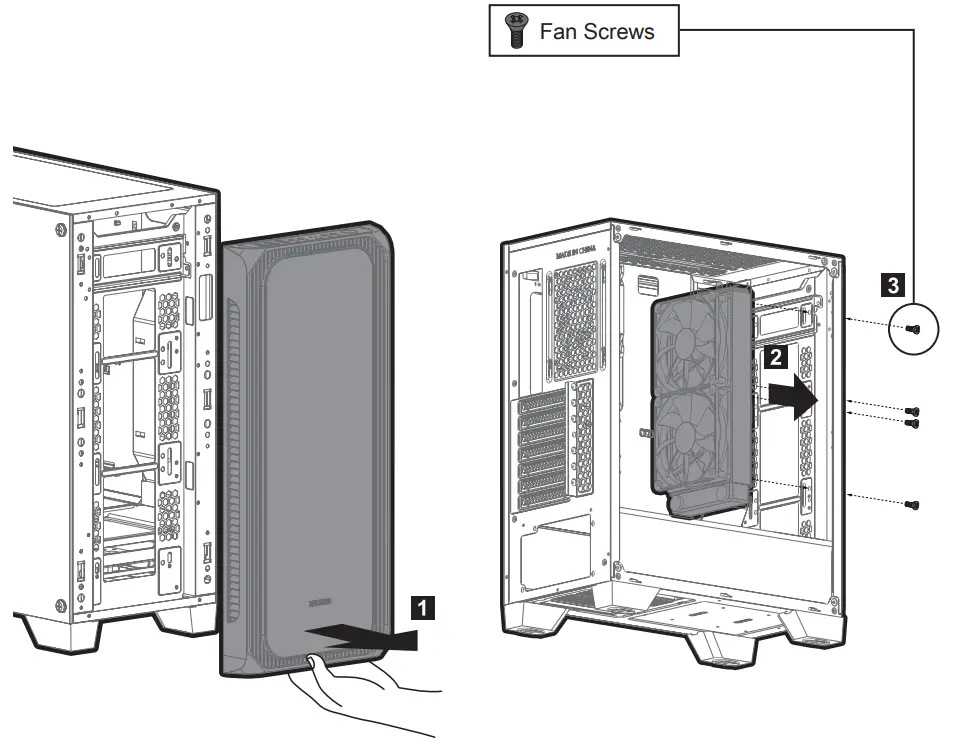

Mounting the front radiator
Caution
※ Limited fitment to memory equipped with heatsinks.
※ Some motherboards with tall heat sinks will cause interference in the installation of the 280mm radiator.

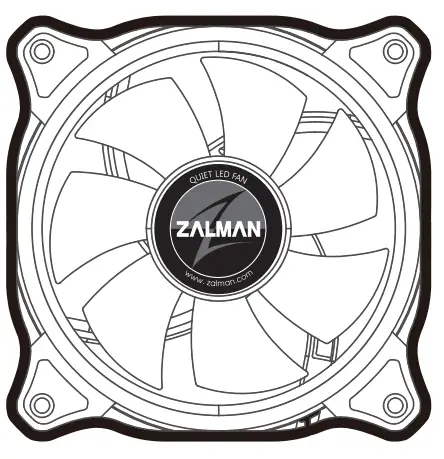

Fan specifications
RPM: 1200± 10%
Input : 12V
0.6A
I/O Connectors

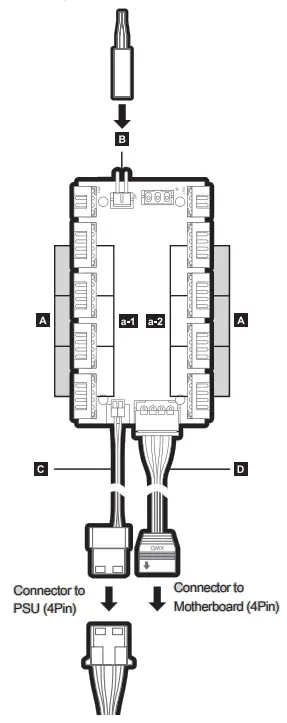

RGB LED Controller

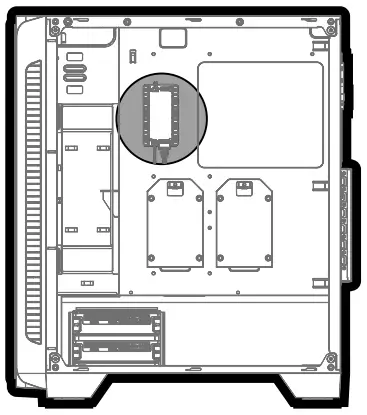

RGB LED Controller Position

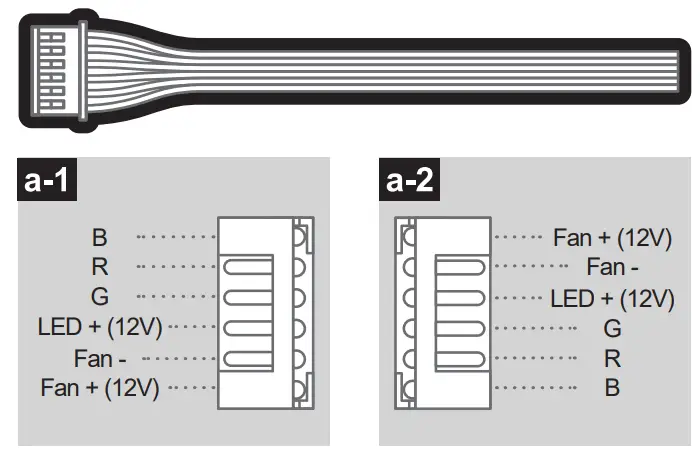

A Fan 1~8 / 6Pin
– Connector to RGB LED fans (Four pre-installed)
– RGB LED Fans I/O port 8ea

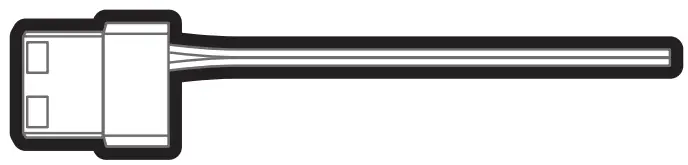

B LED Control Button / 2Pin
– Connector to LED control button
– RGB LED Lighting effects & 7 Colors
C DC Power / 4Pin
– Connector to PSU
– Input : 12V

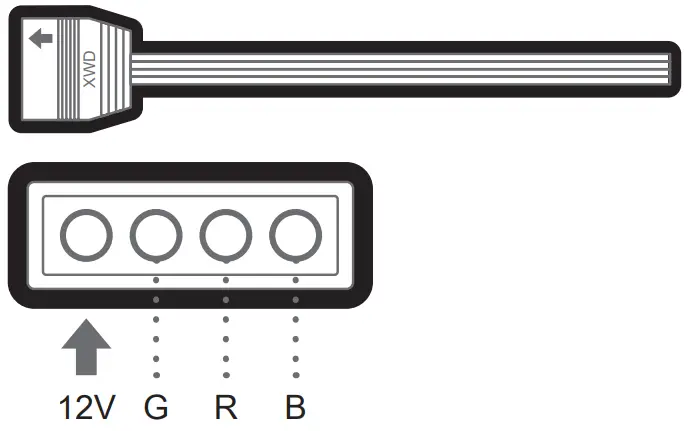

D Motherboard Sync / 4Pin
– Connector to the motherboard
– Requires motherboard that supports RGB sync
※ Caution
Please be sure to check the arrow of the female cable, it indicates where 12V needs to be connected when you are connecting it to the motherboard.
Certification
RGB LED Controller
RGB LED Controller
- ZM-RGB8P-4AS
- KC EMC : R-R-ZMT-ZM-RGB8P-4AS
