X3 ATX Mid Tower Gaming Case – White
User Manual
- To ensure safe and easy installation, please read the following precautions.
- Product design and specifications may be revised to improve quality and performance without notice.
Developed and designed by ZALMAN in Korea. This product is protected by ZALMAN’s pending or registered patents.
Contents hide
Precautions
- Read this manual carefully before installing.
- Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
- Wear gloves to prevent accidents when installing the product.
- Severe damage may occur when mounting the system, so do not apply excessive force.
- Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
- Be careful not to block the ventilation hole of the product when using the system.
- Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
- Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
- Do not insert your hand or another object into the product during operation, as this may injure your hand or damage the object.
- Store and use the product out of children’s reach.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

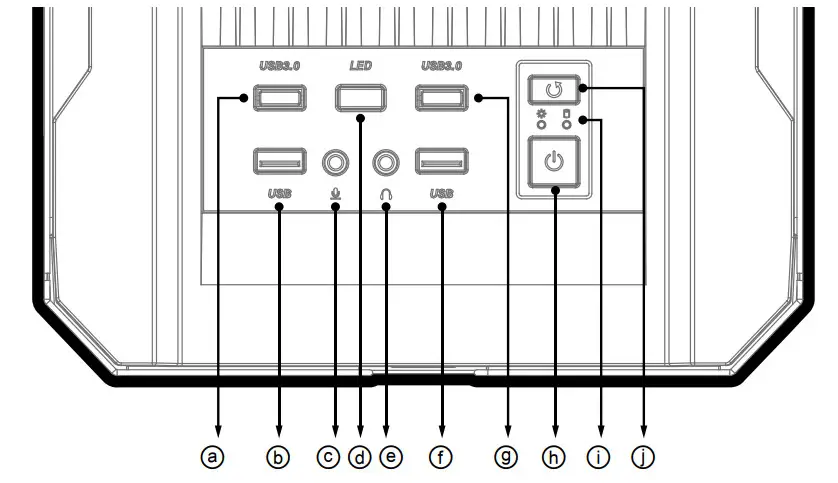

Ports
| # | Part | # | Pad | # | Part | # | Part |
| a | USB 3.0 Port | b | USB 2.0 Port | c | Microphone Jack | d | LED Control Button |
| e | Headphone Jack | f | USB 2.0 Port | g | USB 3.0 Port | h | Power Button |
RGB(Addressable) LED Control Button
- Short Press: 1st ~ 50th RGB LED Lighting Mode (Effects & Colors)
- Long Press: RGB LED Lighting Mode Change (LED Control Button → Motherboard Sync (Addressable Sync) → Lighting Off)

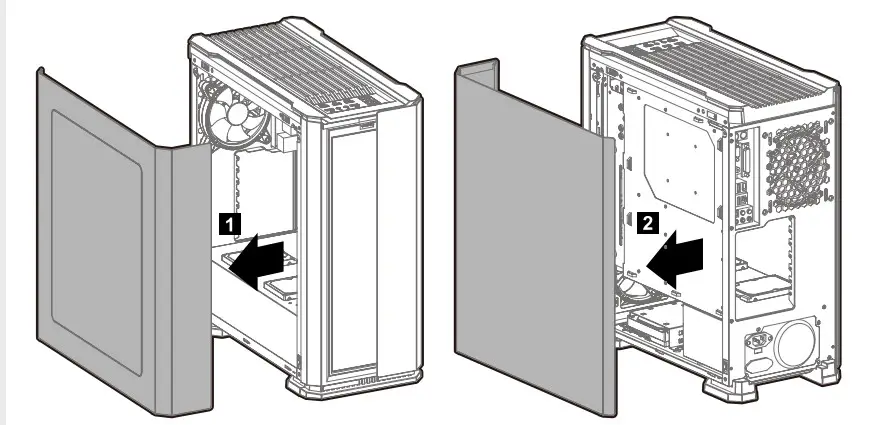

Removing the side panels

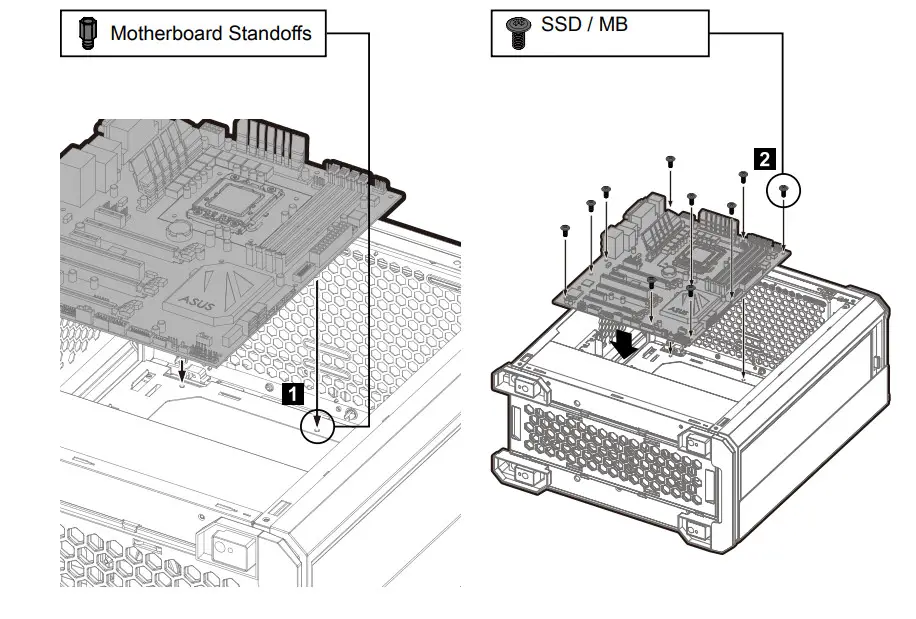

Mounting the motherboard

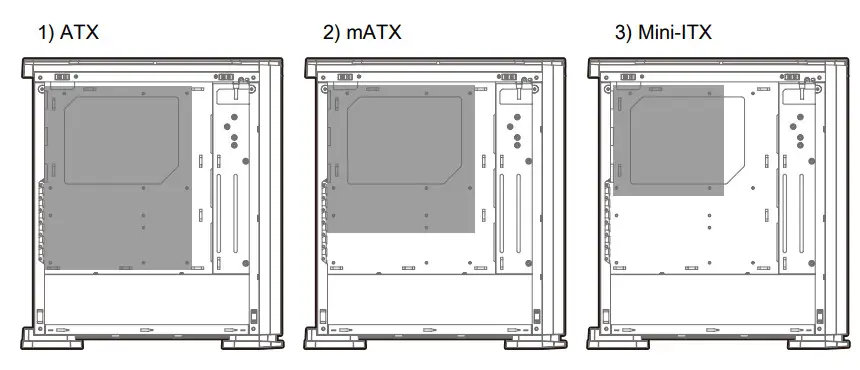

Motherboard size

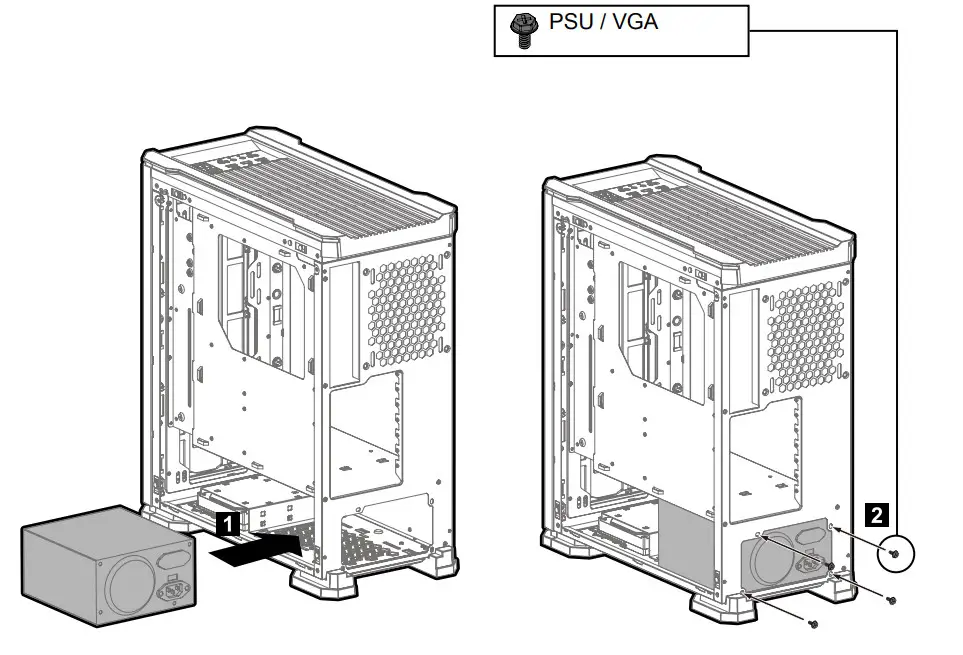

Mounting the PSU

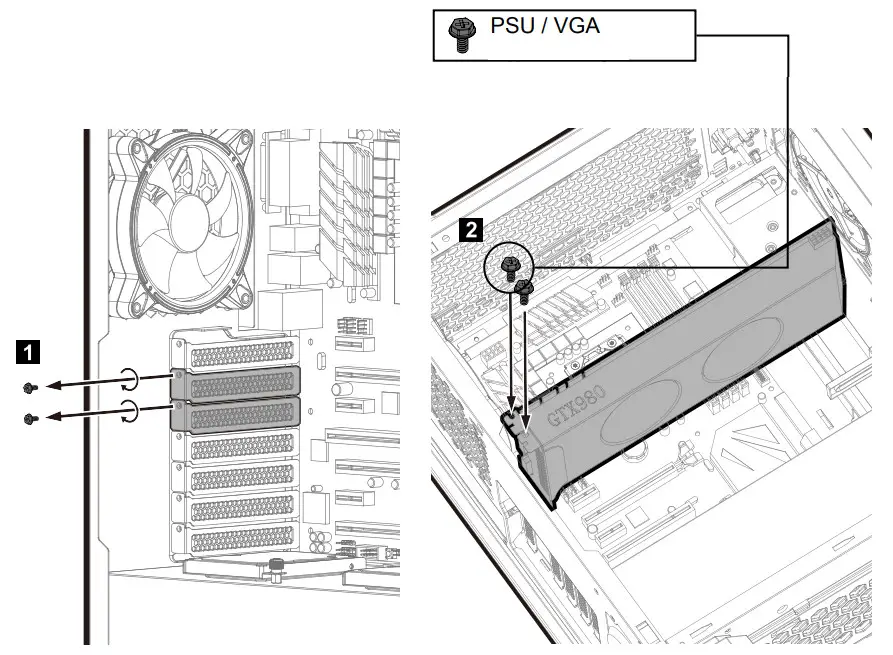

Mounting the PCI-E(VGA) card

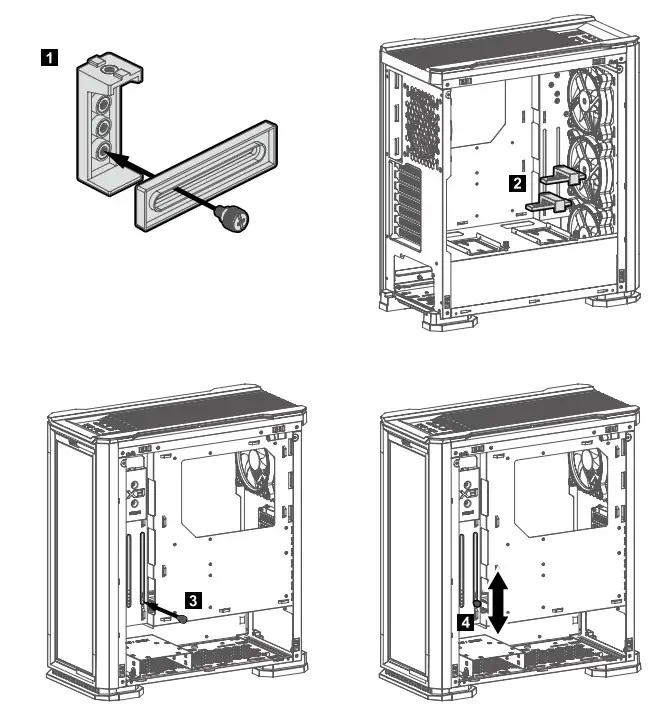

Graphics card holder

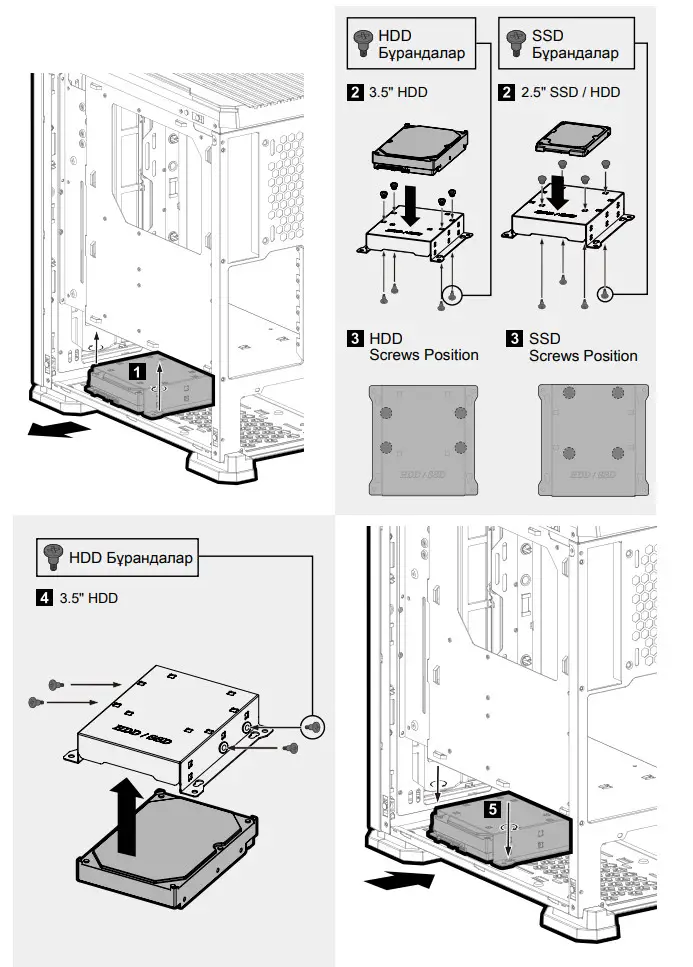

Mounting the 3.5″ and 2.5″ SSD / HDD

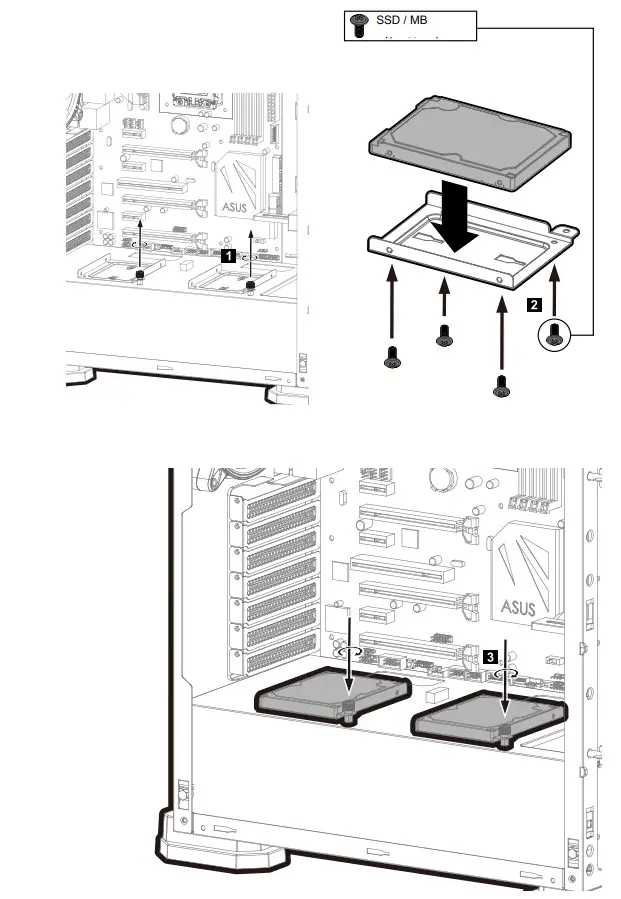

Mounting the 2.5” SSD / HDD

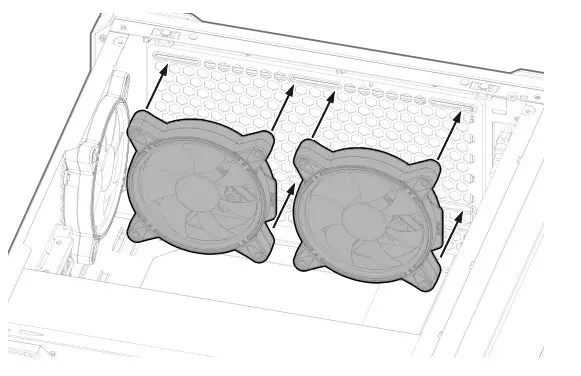

Mounting the top fans

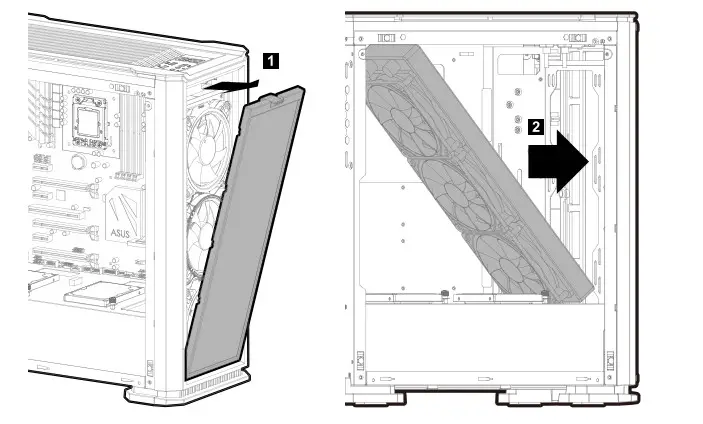

Mounting the front radiator

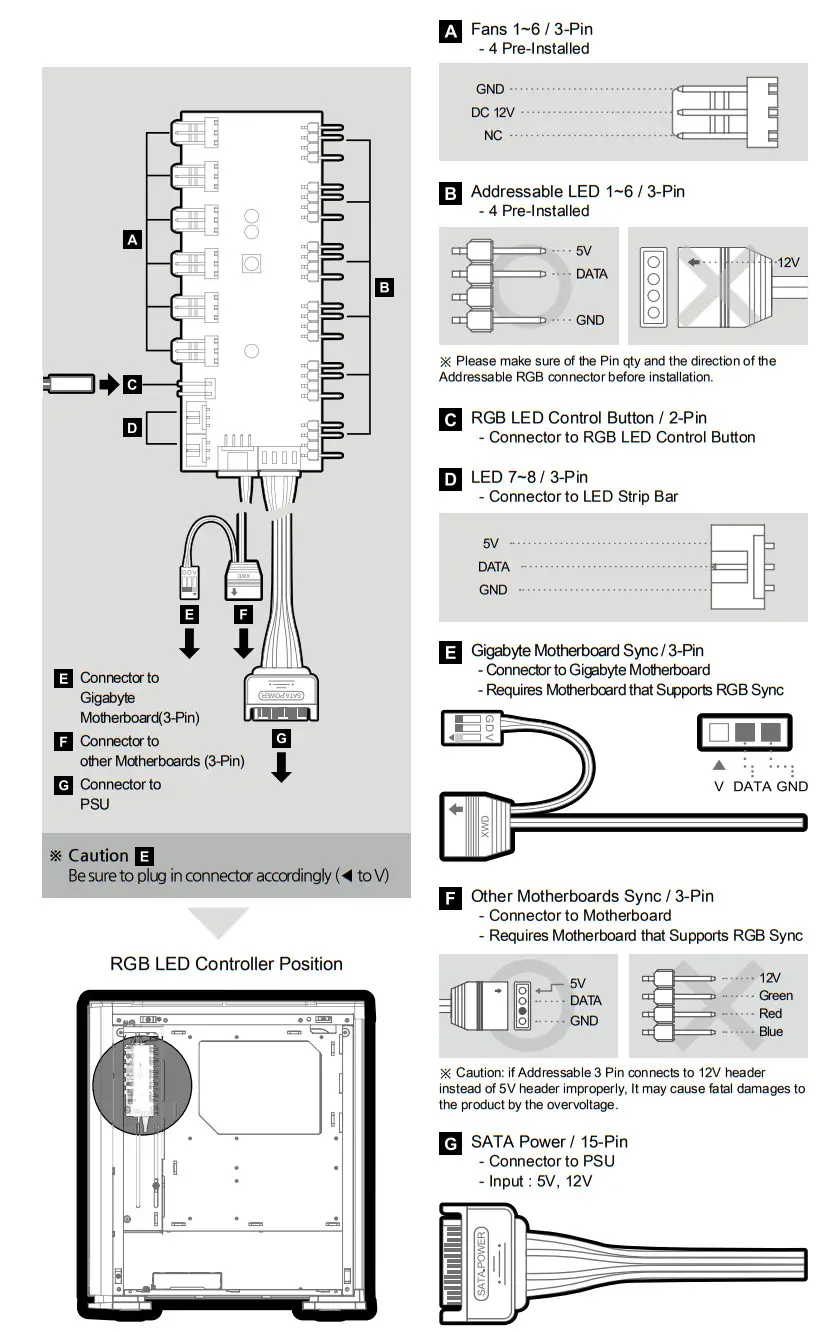

RGB LED Controller
Fan Specifications

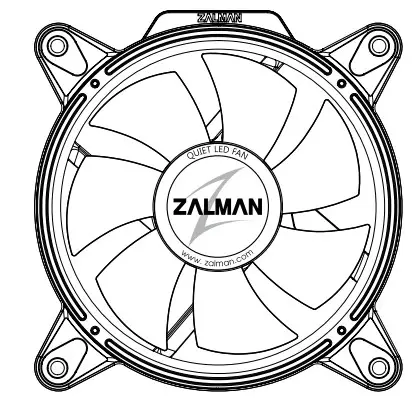

RFD 120A [ X3 ]
Dimensions : 120 x 124 x 25 mm
Bearing Type: Hydraulic Bearing
Fan – Rating Voltage: 6~13.8 V DC
– Rating Current: 150mA ±20%
LED – Rating Voltage: 4.5~5.3 V DC
– Rating Current: 800mA ±20%
Fan Speed: 800~1,500 ±10% RPM
Max Airflow: 34.34 CFM
Max Noise Level : 25.6 dB(A) ±10%
Connector: 3-Pin, 3-Pin Addressable
Weight: 160g
Life Span : 40,000 hrs
Cable Length : 580mm x 2

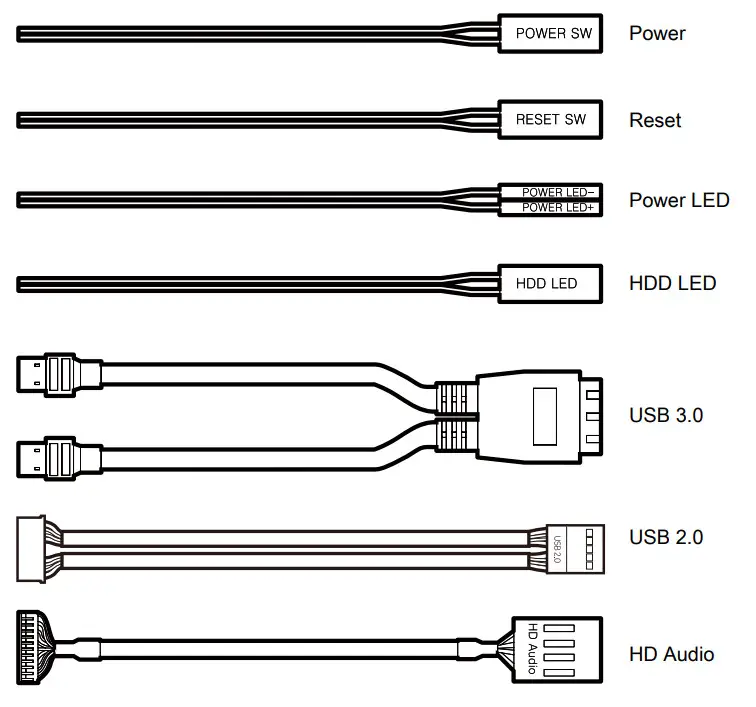

I/O Connectors
Certification
- RGB LED Controller
