ATX MID TOWER COMPUTER CASE
User’s Manual
※ RAZER CHROMA can be compatible with Z3 NEO through Z-Sync or H/W supported.

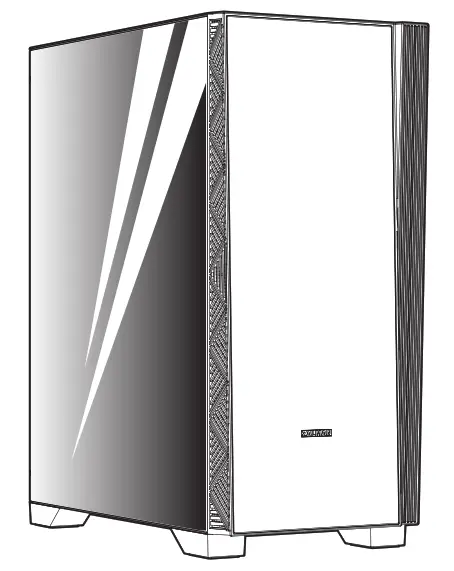

Z3 NEO ATX Mid Tower Computer Case
Ver. 062321
※ To ensure safe and easy installation, please read the following precautions.
※ Product design and specifications may be revised to improve quality and performance without notice.
Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.
Precautions
- Read this manual carefully before installing.
- Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
- Wear gloves to prevent accidents when installing the product.
- Severe damage may occur when mounting the system, so do not apply excessive force.
- Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
- Be careful not to block the ventilation hole of the product when using the system.
- Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
- Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
- Do not insert your hand or another object into the product during operation, as this may injure your hand or damage the object.
- Store and use the product out of children’s reach.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.
Characteristics
| Model | Z3 NEO | |
| Case Form Factor | ATX Mid-Tower | |

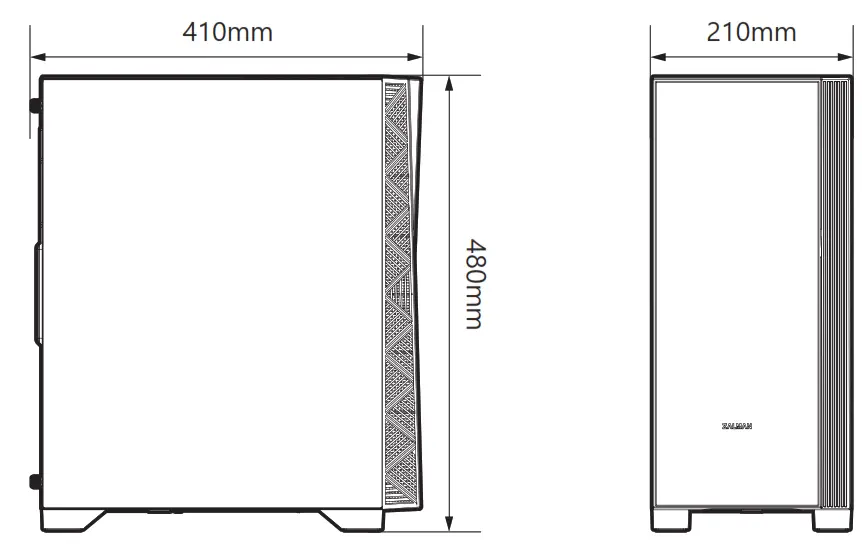

| Dimensions | 410 x 210 x 480(H)mm | |
| Weight | 6.4kg | |
| Case Materials | Plastic, Steel, Tempered Glass | |

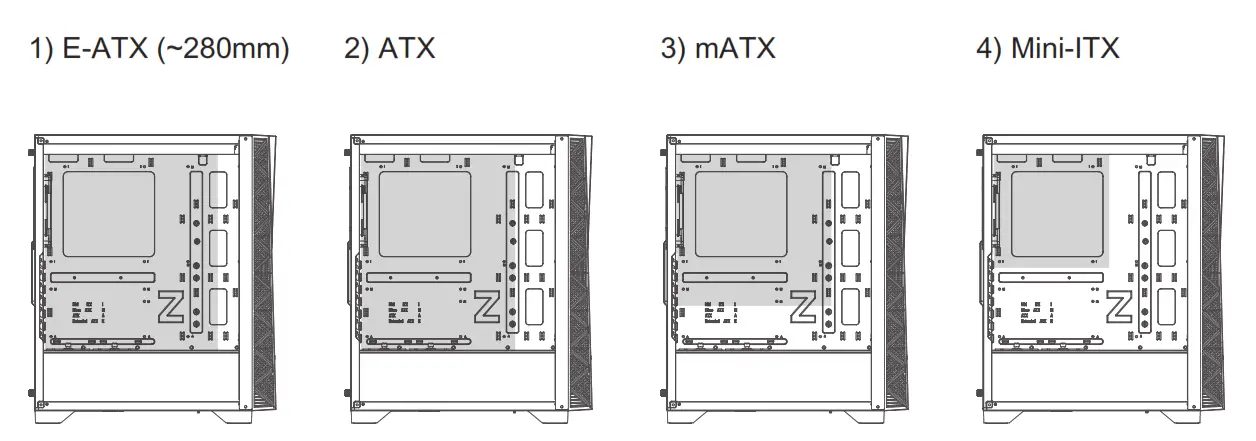

| Motherboard Support | E-ATX(-280mm) / ATX / mATX / Mini-ITX | |
| Maximum VGA Length | 315mm | |
| Maximum CPU Cooler Height | 163mm | |
| Maximum PSU Length | 160mm | |
| PCI Expansion Slots | 7 | |
| Drive Bays | 2 x 3.5″ (2 x Combo, 1 x Toolless), 4 x 2.5″ | |

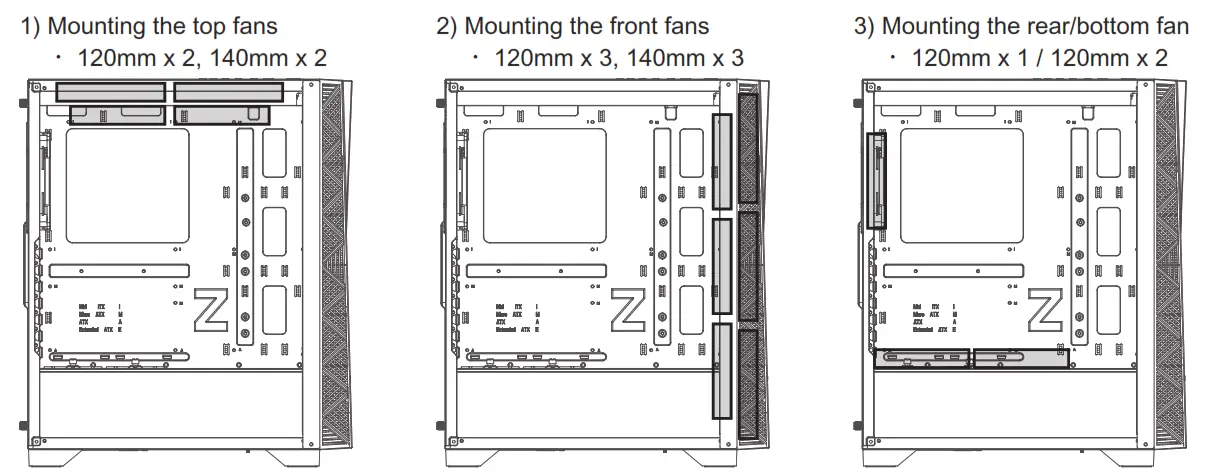

| Fan Support | Top | 2 x 120mm / 2 x 140mm |
| Front | 3 x 120mm / 3 x 140mm | |
| Rear | 1 x 120mm | |
| Bottom | 2 x 120mm | |
| Fan(s) Included | Front | 1 x 120mm (Non LED / 3Pin), 1 x Addressable RGB LED Bar |
| Rear | 1 x 120mm (Addressable RGB) | |
| ARGB Controller Included | ||
| Radiator Support | Top | 120mm / 240mm |
| Front | 120mm / 240mm / 280mm / 360mm | |
| Rear | 120mm | |
| I/O Ports | 1 x Headphone, 1 x Mic, 1 x USB 2.0, 2 x USB 3.0, Power Button, Reset Button, LED Button | |
Accessoires
I/O Ports

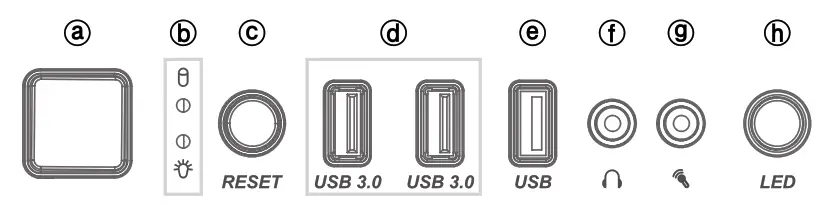

| # | Part | # | Part | # | Part | # | Part |
| ® | Power Button | ® | HDD / Power LED | ® | Reset Button | C) | USB 3.0 Ports |
| 0 | USB 2.0 Port | C) | Headphone Jack | 0 | Microphone Jack | C) | LED Button |

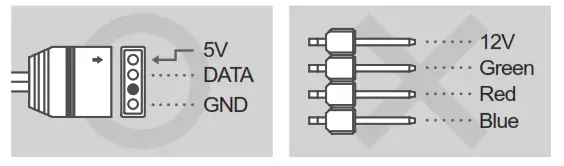

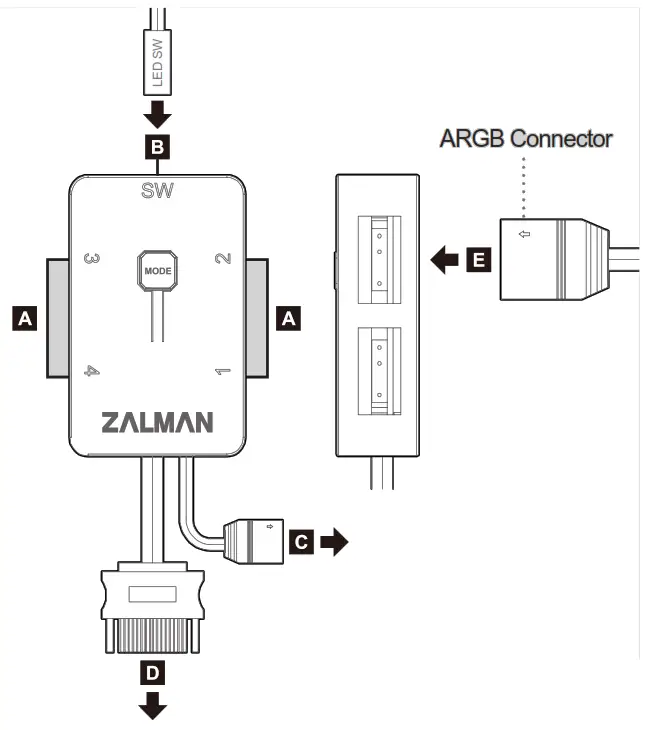

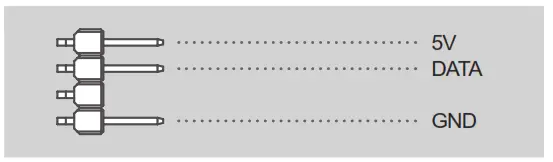

A LED ARGB 1 ~ 4/3 broches

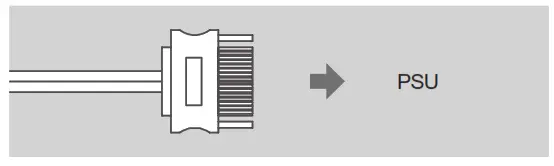

Alimentation SATA / 15-Pin

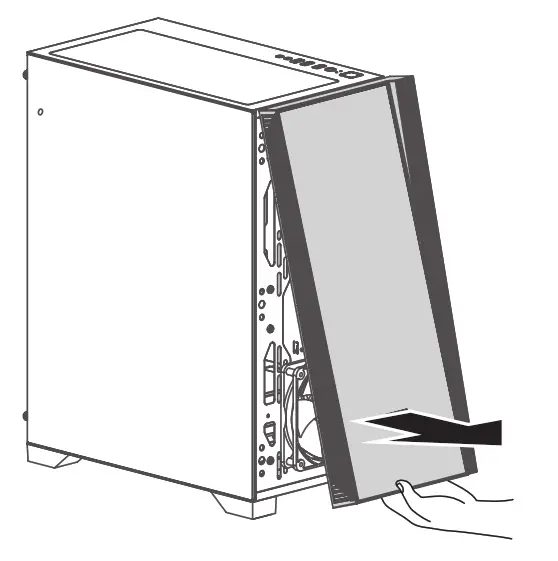

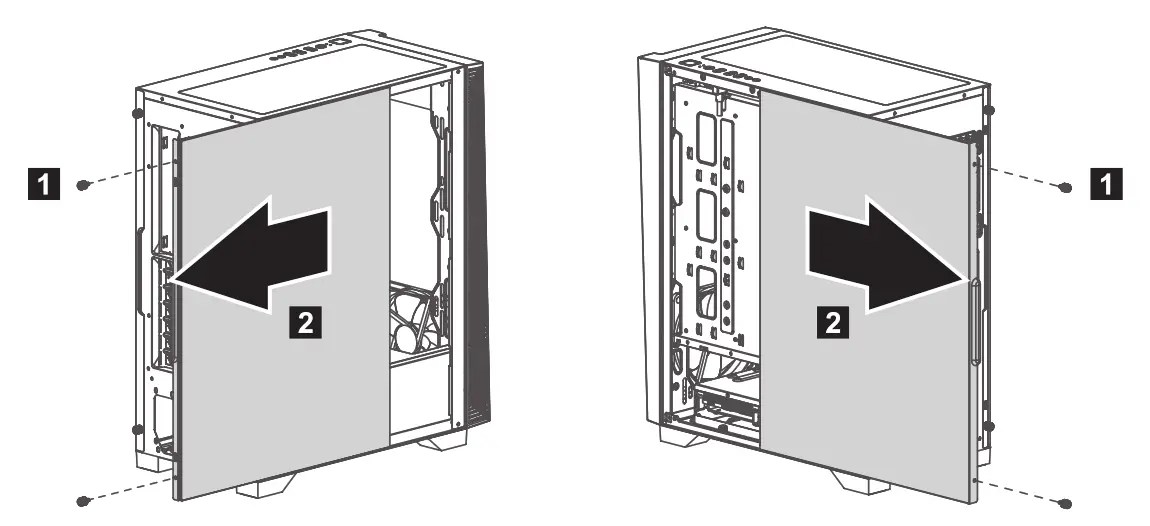

Disassembly of the side panels

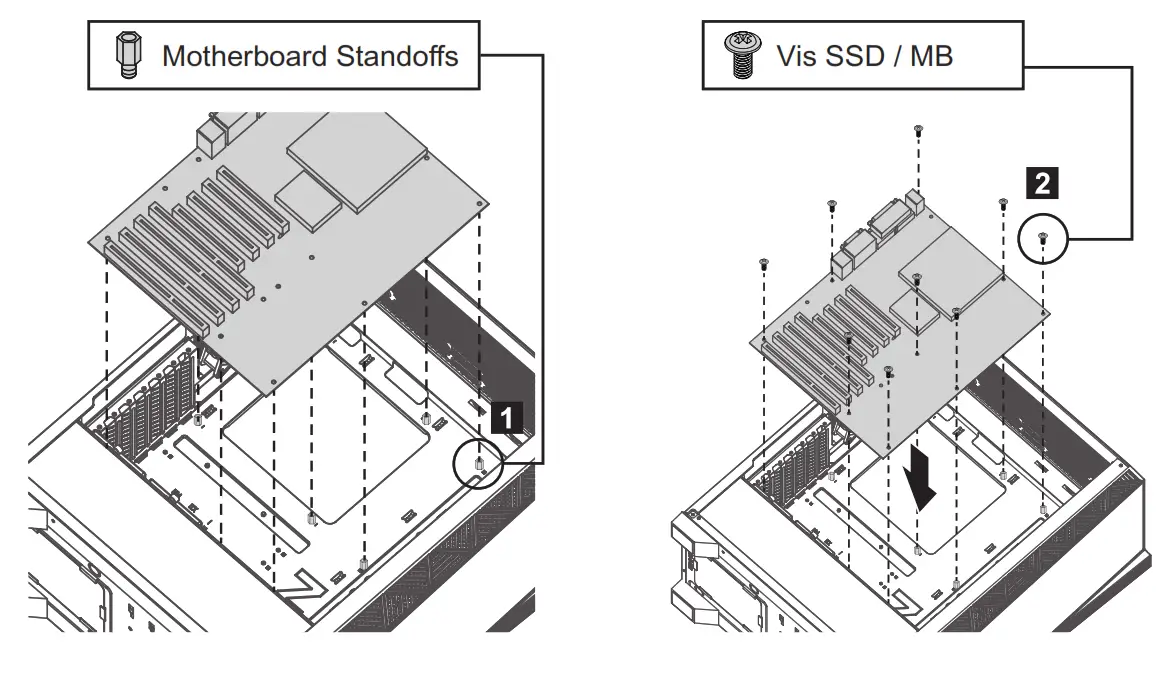

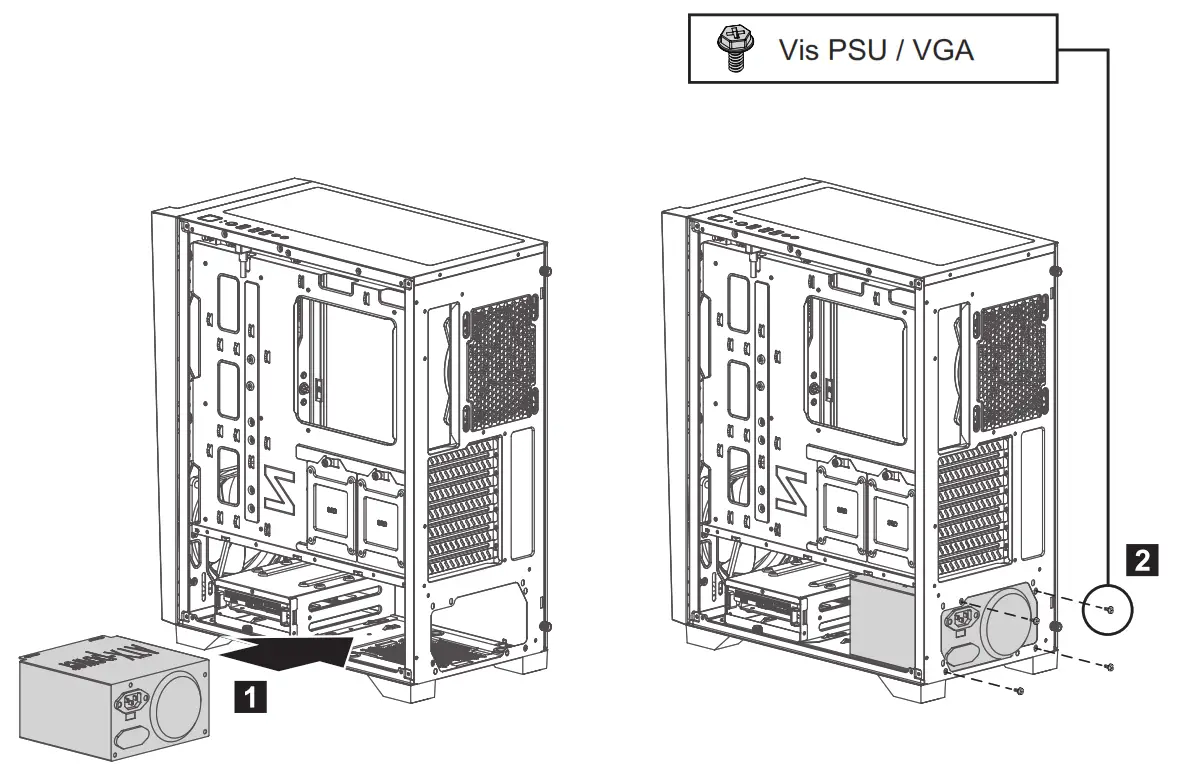

4. Two blocks of elementation in a montage

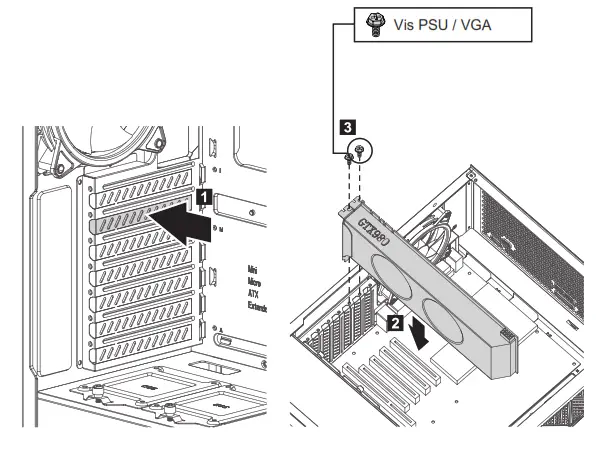

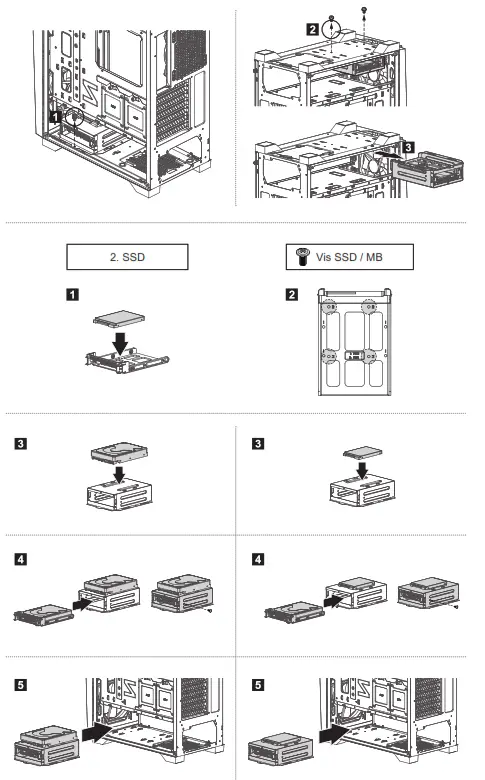

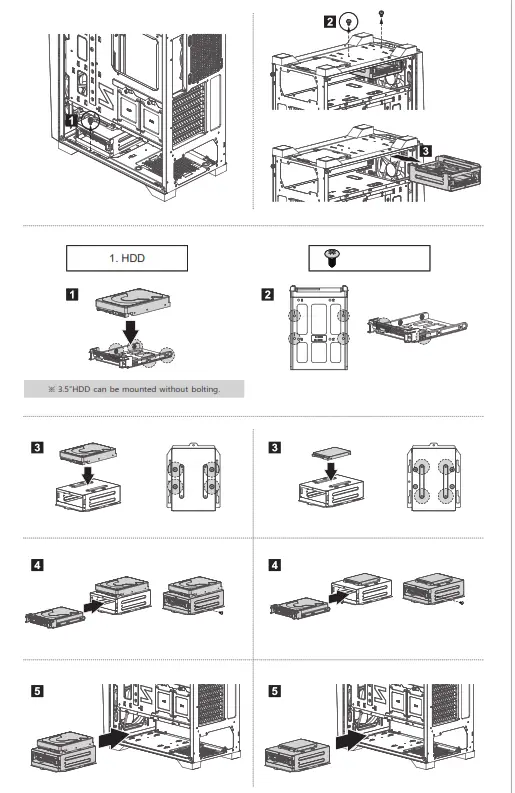

6. HDD 3.5“et 2.5”

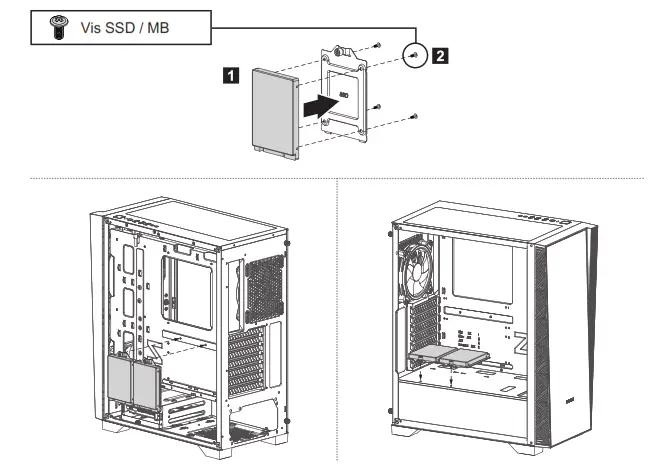

7. 2.5” in mounting
8. 2.5” double sided mounting
- Mounting the front radiator
・120mm / 240mm / 280mm / 360mm
- Mounting the top radiator
・120mm / 240mm
Mounting the rear radiator
・120mm
Ventilateur (s) inclus
- Addressable RGB LED FAN
– FAN : DC 12V 0.18A
– LED : 5V 0.72A
– Hydraulic Bearing - Standard FAN
– FAN : DC 12V 0.16A
– Sleeve Bearing

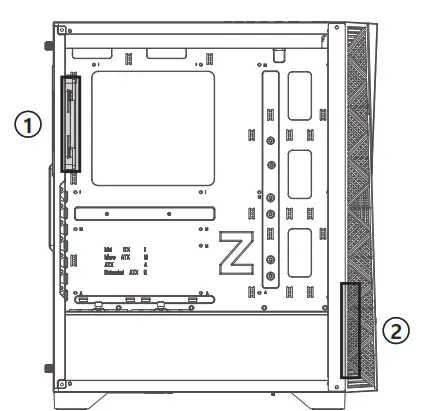

Montage country ventilateau
12. Connect A/s
