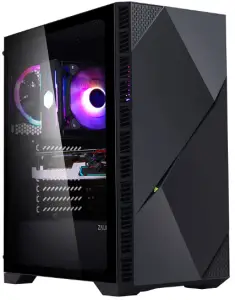

ZALMAN Z3 Iceberg ATX Mid Tower Computer Case User Manual

RAZER CHROMA can be compatible with Z3 ICEBERG through Z-Sync or H/W supported

To ensure safe and easy installation, please read the following precautions.
Product design and specifications may be revised to improve quality and performance without notice.

Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
Wear gloves to prevent accidents when installing the product.
Severe damage may occur when mounting the system, so do not apply excessive force.
Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.
Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Model		Z3 Iceberg KOR	Z3 Iceberg
Case Form Factor		ATX Mid-Tower

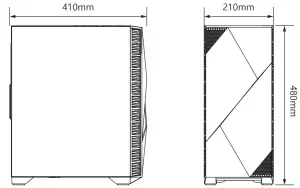

Dimensions		410 x 210 x 480(H)mm
Weight		6.6kg	6.4kg
Case Materials		Plastic, Steel, Tempered Glass

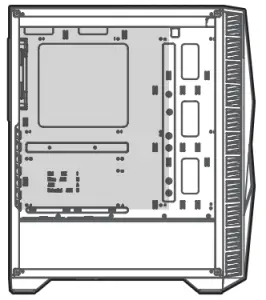

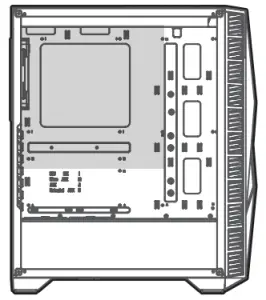

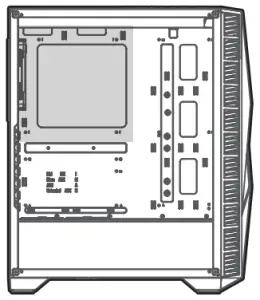

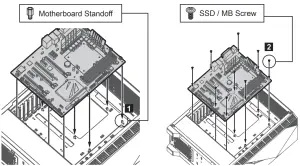

Motherboard Support		E-ATX(~280mm) / ATX / mATX / Mini-ITX
Maximum VGA Length		315mm
Maximum CPU Cooler Height		163mm

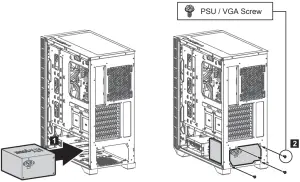

Maximum PSU Length		160mm

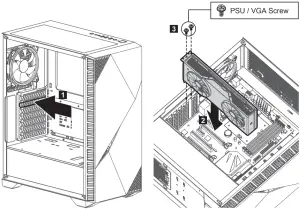

PCI Expansion Slots		7

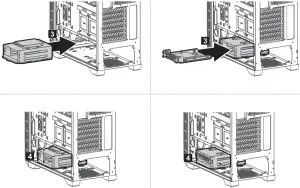

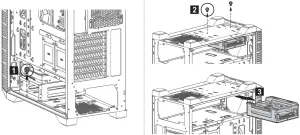

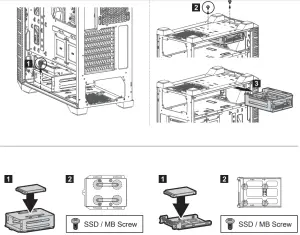

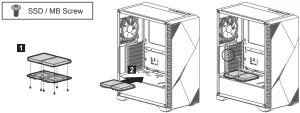

Drive Bays		2 x 3.5″ (2 x Combo, 1 x Toolless), 4 x 2.5″

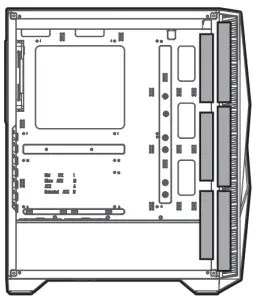

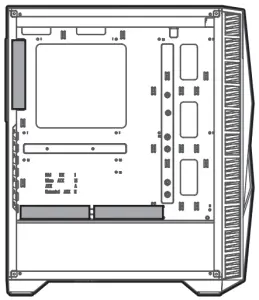

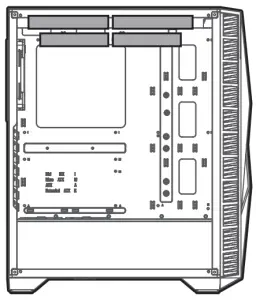

Fan Support	Top	2 x 120mm / 2 x 140mm
	Front	3 x 120mm / 3 x 140mm
	Rear	1 x 120mm

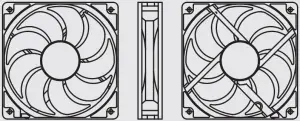

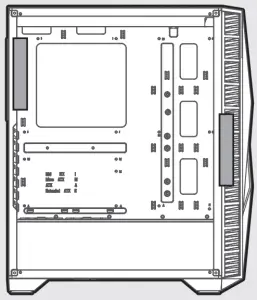

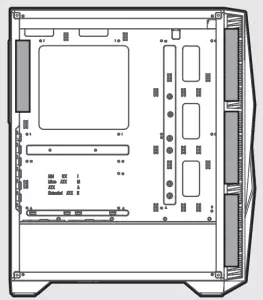

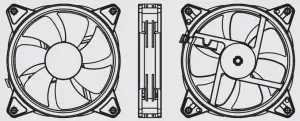

Fan(s) Included	Front	3 x 120mm (with White LED Effect)	1 x 120mm (Addressable RGB)
	Rear	1 x 120mm (with White LED Effect)	1 x 120mm (Addressable RGB)
			ARGB Controller Included

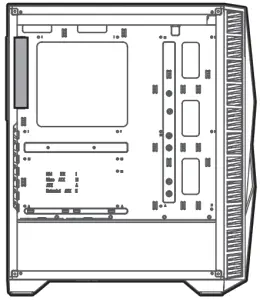

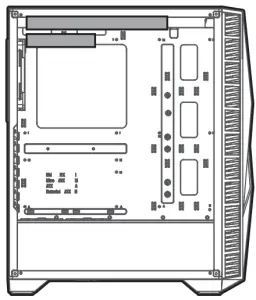

Radiator Support	Top	120mm / 240mm
	Front	120mm / 240mm / 280mm / 360mm
	Rear	120mm

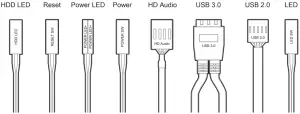

I/O Ports		1 x Headphone, 1 x Mic, 1 x USB 2.0, 2 x USB 3.0, Power Button, Reset Button, LED Button

Caution : Please do not connect ARGB fans more than 8pcs, otherwise it may cause malfunction.

LED colors & patterns can be changed by pressing the LED Button on I/O ports.
Long pressing on the LED Button for 6 seconds, RGB LED will be turn off after blinking twice in white.
Long pressing on the LED Button for 3 seconds, RGB will be synchronized with motherboard after blinking once in white. Press the LED Button again to desynchronize with motherboard.

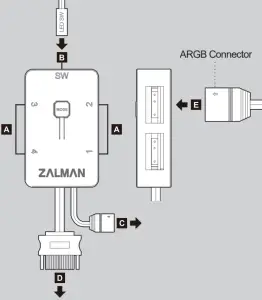

(A) ARGB LED 1~4 / 3-Pin
(B) ARGB LED Control Button / 2-Pin
- Connector to ARGB LED Control Button
(C) Other Motherboards Sync / 3-Pin
- Connector to Motherboard
- Requires Motherboard that Supports RGB Sync

  Caution: if Addressable 3 Pin connects to 12V header instead of 5V header improperly, It may cause fatal damages to the product by the overvoltage.
(D) SATA Power / 15-Pin
- Connector to PSU
- Input : 5V
(E) Connect the ARGB connector to the RGB hub

Z3 Iceberg

Z3 Iceberg KOR
