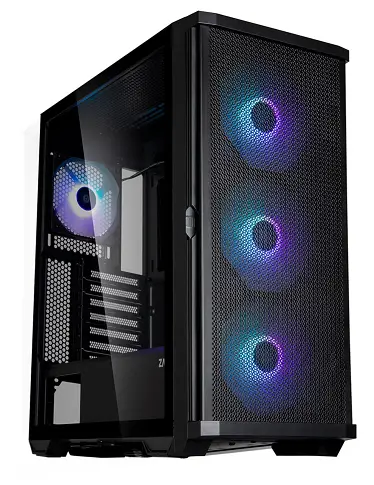

ZALMAN Z10 ATX MID Tower Computer Case
Precautions
- Read this manual carefully before installing.
- Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
- Wear gloves to prevent accidents when installing the product.
- Severe damage may occur when mounting the system, so do not apply excessive force.
- Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
- Be careful not to block the ventilation hole of the product when using the system.
- Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
- Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
- Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
- Store and use the product out of children’s reach.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.
Specifications
| Model | Z10 | Z10 Plus | Z10 Duo | |
| Case Form Factor | ATX Mid-Tower | |||

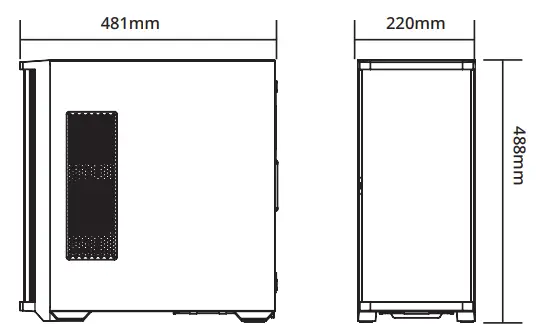

| Dimensions | 481 x 220 x 488(H)mm | |||
| Weight | 8kg | 8.1kg | 9kg | |
| Case Materials | Plastic, Steel, Tempered Glass | |||
| Motherboard Support | ATX / mATX / Mini-ITX | |||
| Maximum VGA Length | 395mm | |||
| Maximum CPU Cooler Height | 173mm | |||
| Maximum PSU Length | 200mm | |||
| PCI Expansion Slots | 7 | |||
| Case Drive Bays | 3.5″ | 2 (1 x Cage Combo, 1 x Guide Toolless) | ||
| 2.5″ | 2 | |||
|
Fan Support | Top | 3 x 120mm, 2 x 140mm | ||
| Front | 3 x 120mm, 3 x140mm | |||
| Rear | 1 x 120mm | |||
| Bottom | 2 x 120mm | |||
| Side | 2 x 120mm | |||
| Fan(s) Included | Front | 3 x 140mm Black Fan | 3 x 140mm ARGB Fan | 3 x Infinity LED |
| Rear | 1 x 120mm Black Fan | 1 x 120mm ARGB Fan | 1 x Infinity LED | |
| Radiator Support | Top | 120mm / 140mm / 240mm / 280mm / 360mm | ||
| Front | 120mm / 140mm / 240mm / 280mm / 360mm | |||
| Rear | 120mm | |||
| Dust Filter | Top | Magnetic PVC | ||
| Bottom | Slide PVC (With Frame) | |||
| I/O Ports | 2 x USB3.0, 1 x USB Type-C, HD AUDIO, MIC, PWR, Reset, LED Button | |||

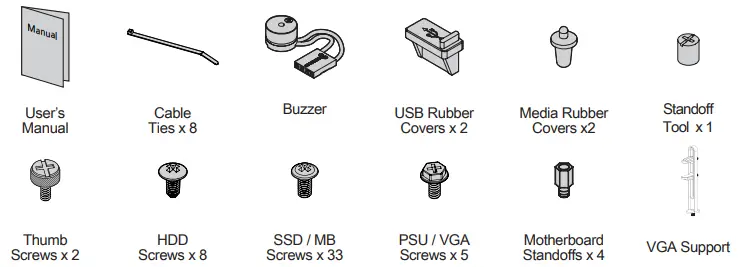

Accessories component
I/O Ports
| # | Part | # | Part | # | Part | # | Part |

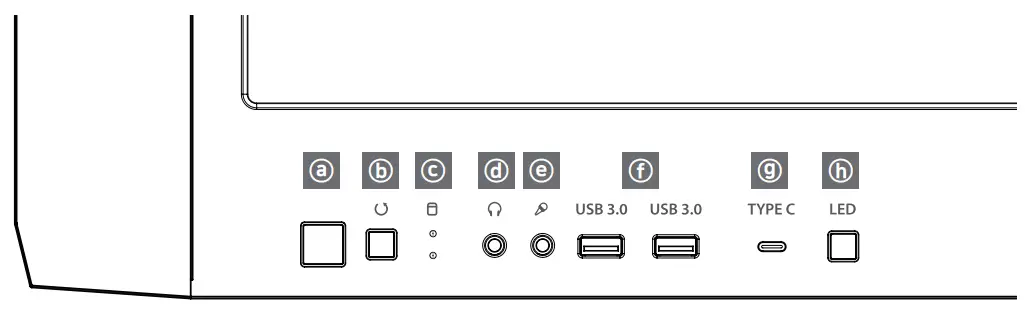

| ⓐ | Power Button | ⓑ | Reset Button | ⓒ | HDD / Power LED | ⓓ | Headphone Jack |
| ⓔ | Microphone Jack | ⓕ | USB 3.0 Ports | ⓖ | Type-C | ⓗ | Led Button |

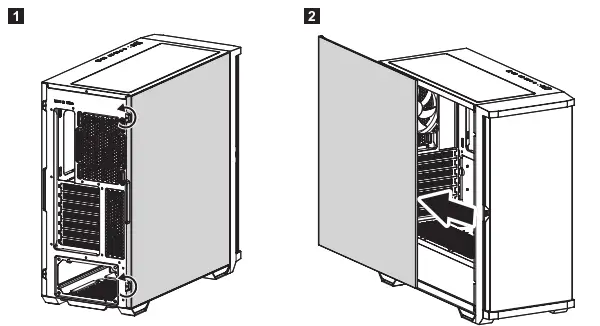

Removing the side panels

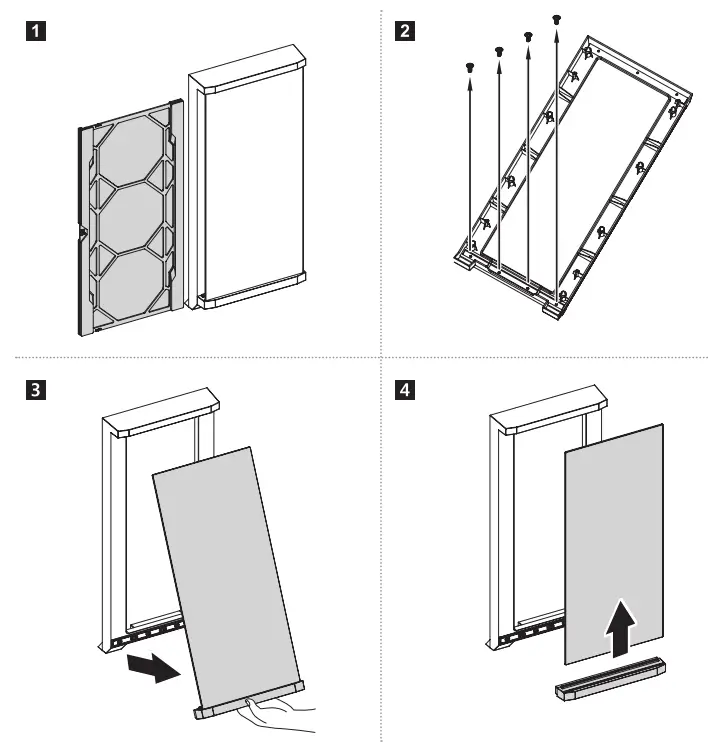

Removing the front panel

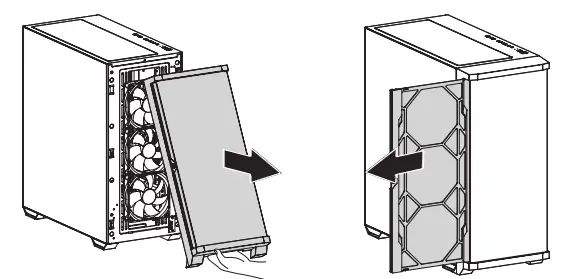

- Removing the front dust filter
- Front Bezel

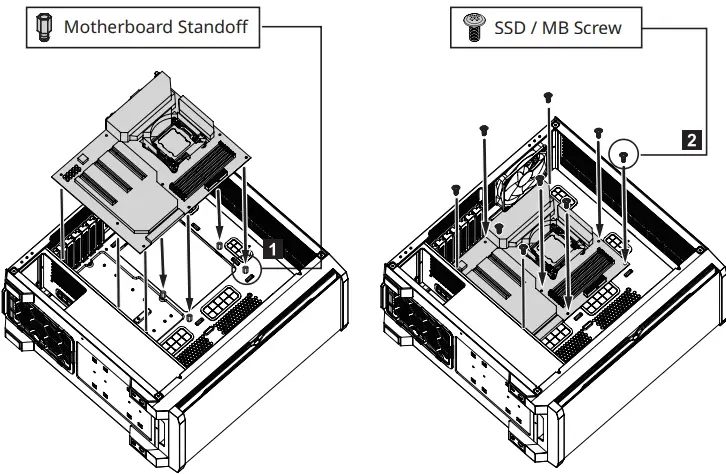

- Mounting the motherboard

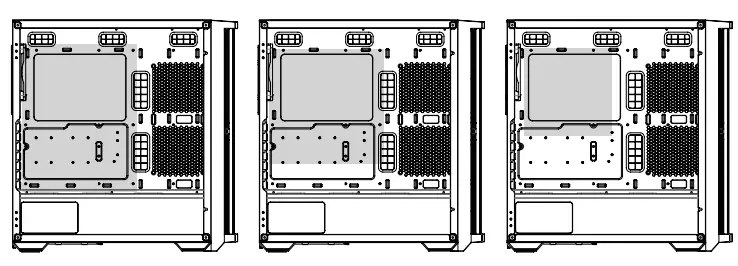

- Motherboard size
- ATX
- mATX
- Mini-ITX

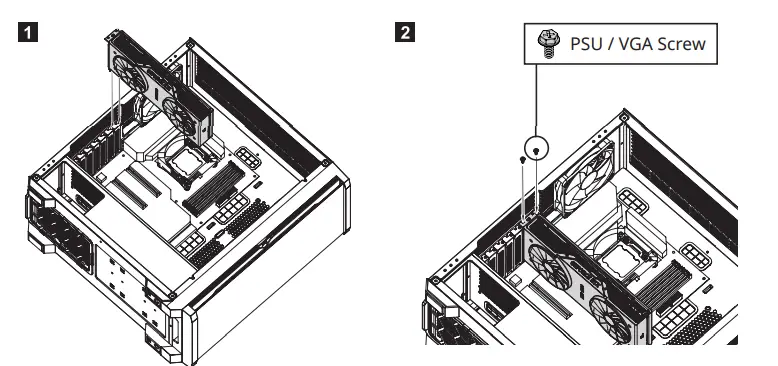

- Mounting PCI-E(VGA) card

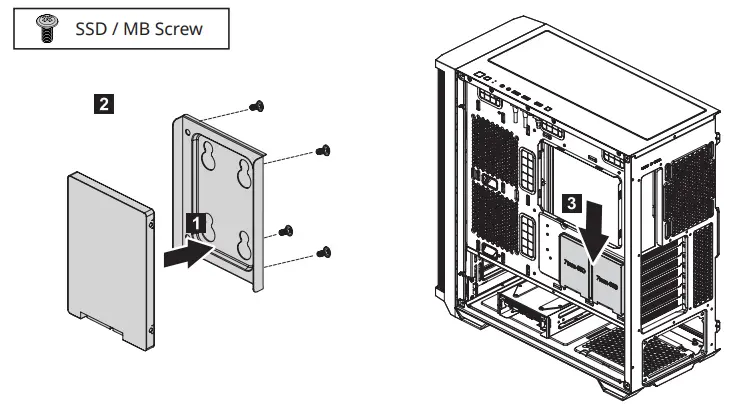

- Mounting the 2.5″ SSD

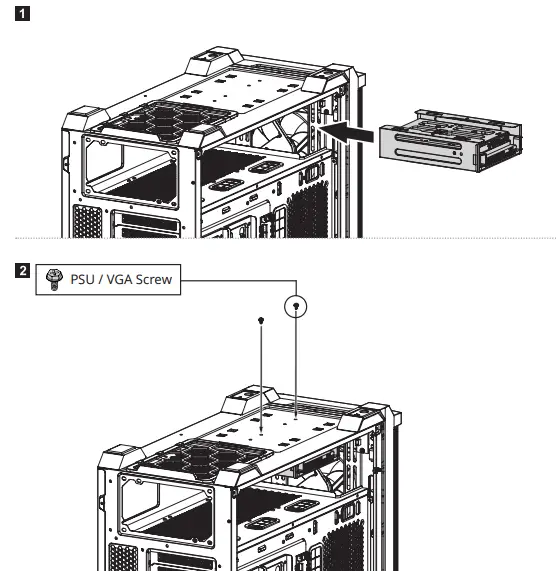

- Mounting the 3.5″ and 2.5″ SSD / HDD

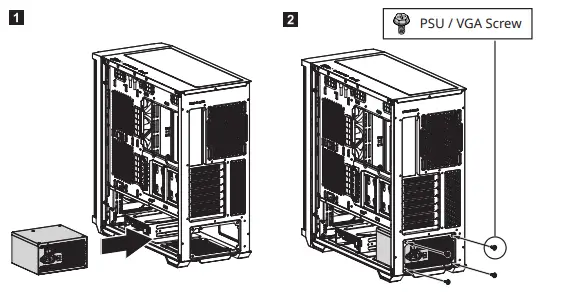

- Mounting the PSU

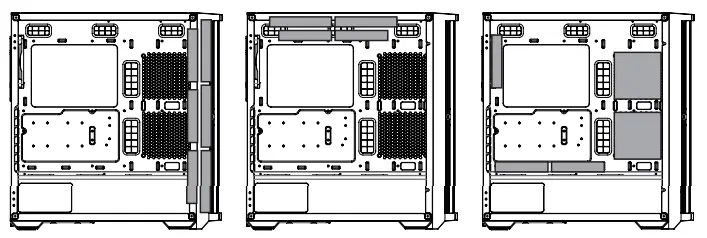

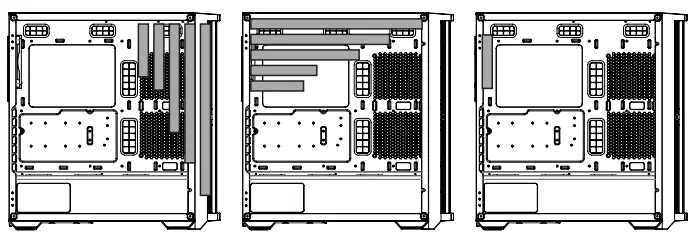

- Mounting the radiator
- Mounting the front radiator
- 120mm / 140mm / 240mm / 280mm / 360mm
- Mounting the front radiator
- 120mm / 140mm / 240mm / 280mm / 360mm
- Mounting the rear radiator
- 120mm
- 120mm
- Mounting the front radiator
- Mounting the fans
- Mounting the front fans
- 3 x 120mm, 3 x 140mm
- Mounting the top fans
- 2 x 120mm, 2 x 140mm
- Mounting the rear/bottom/ side fan
- 1 x 120mm / 2 x 120mm / 2 x 120mm
- 1 x 120mm / 2 x 120mm / 2 x 120mm
- Mounting the front fans

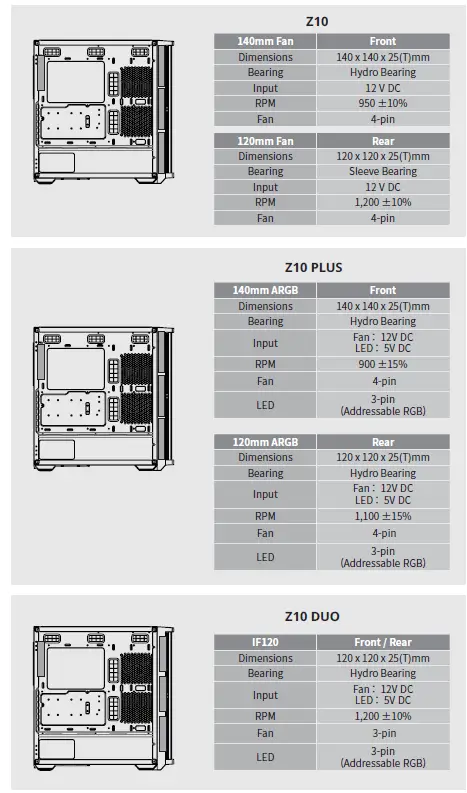

Fan(s) Included / Fan Specifications

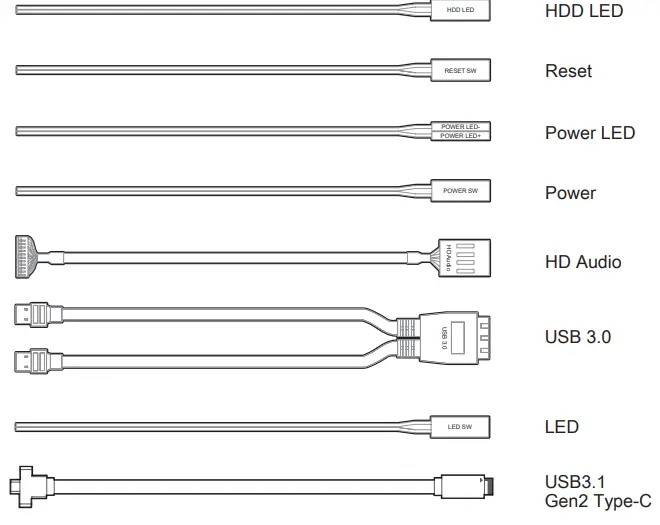

I/O Connectors
Certification
