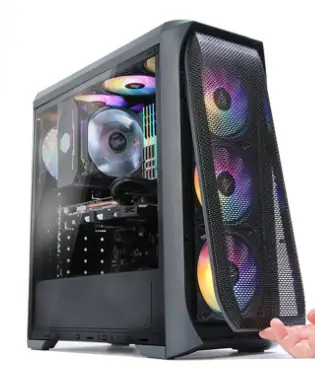

ZALMAN N5 MF ATX MID Tower Computer Case

Precautions

• Read this manual carefully before installing.
•  Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
•  Wear gloves to prevent accidents when installing the product.
•  Severe damage may occur when mounting the system, so do not apply excessive force.
•  Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
•  Be careful not to block the ventilation hole of the product when using the system.
•  Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
• Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
•  Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
•  Store and use the product out of children’s reach.
• Our company assumes no responsibility for any problem that occurs due to theuse of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
• The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

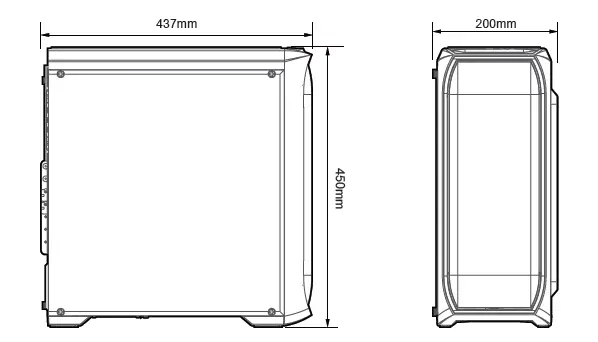

Specifications

Accessories

• User’s Manual

• Buzzer

• SSD / MB Screws x 20

• Cable Ties x 5

• PSU / HDD / VGA Screws x 8

• Thumm Screws x 2

• Motherboard Standoffs x 3

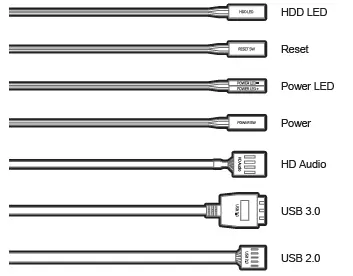

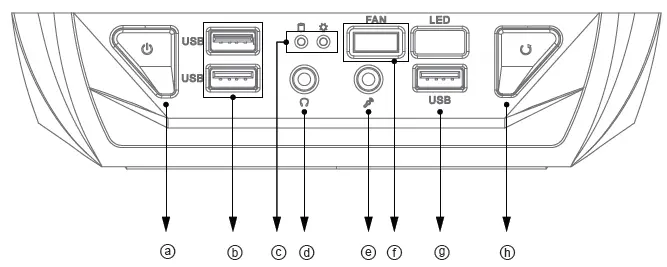

I/O Ports

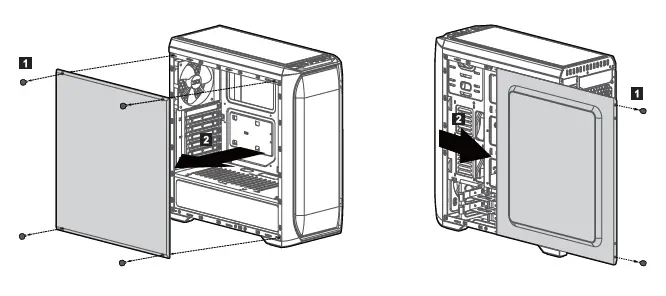

1. Removing the side panels
   • Acrylic Panel
   • Steel Panel

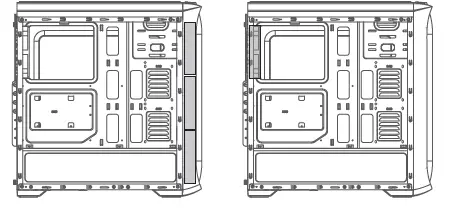

2. Removing the front panel

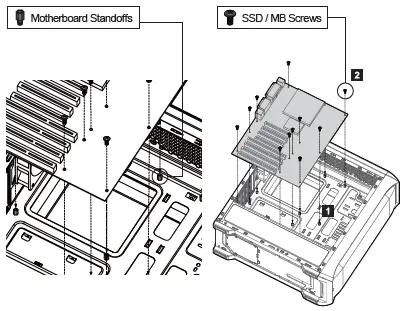

3.  Mounting the motherboard

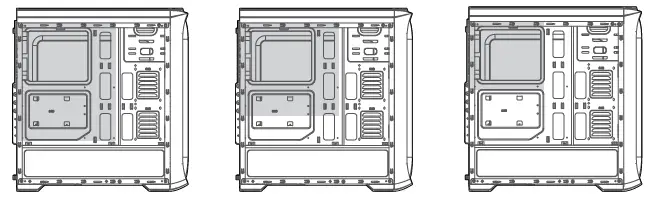

   •  Motherboard size
     Pick out the 8-Pin auxiliary power cable(CPU power connector) through the groove on top before installing motherboard.
     • ATX
     • mATX
     • Mini-ITX

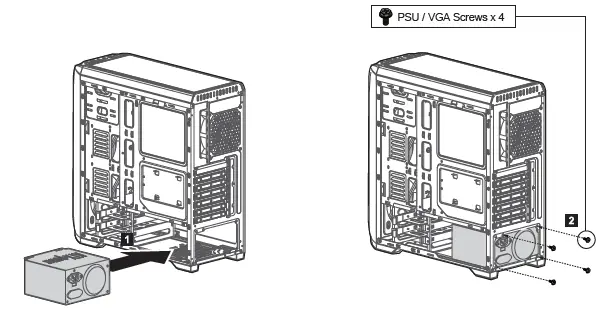

4. Mounting the PSU

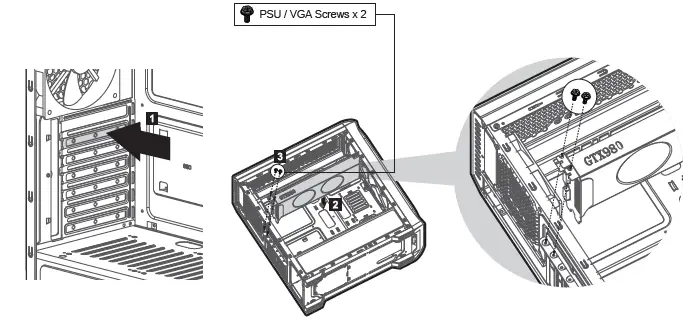

5. Mounting the PCI-E(VGA) card

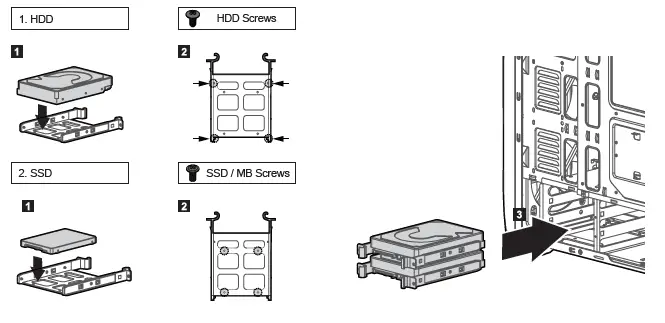

6. Mounting the 3.5″ and 2.5″ SSD / HDD

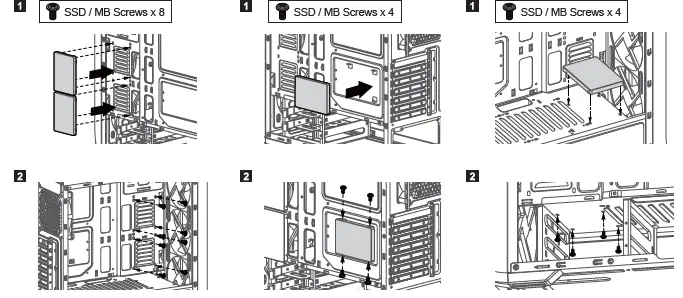

7. Mounting the 2.5″ SSD / HDD

8. Mounting the fans
   • Mounting the top fans
   • Mounting the bottom fans

9. Fan(s) Inclued
   • Front : 3 x 120mm Fan – with RGB LED Effects
   • Rear : 1 x 120mm Fan – with RGB LED Effects

10. Fan Controller
    4 Control Modes of Fan speed & LED brightness

    Mode	Fan Speed	LED Brightness
    Mode 1.	High	High
    Mode 2.	Low	Low
    Mode 3.	Low	Off
    Mode 4.	Off	Off

    Caution: shutting off your system fans could cause increase of system temperature.

11.  I/O Connectors


References

• zalman.com
• zalmansvc.com
