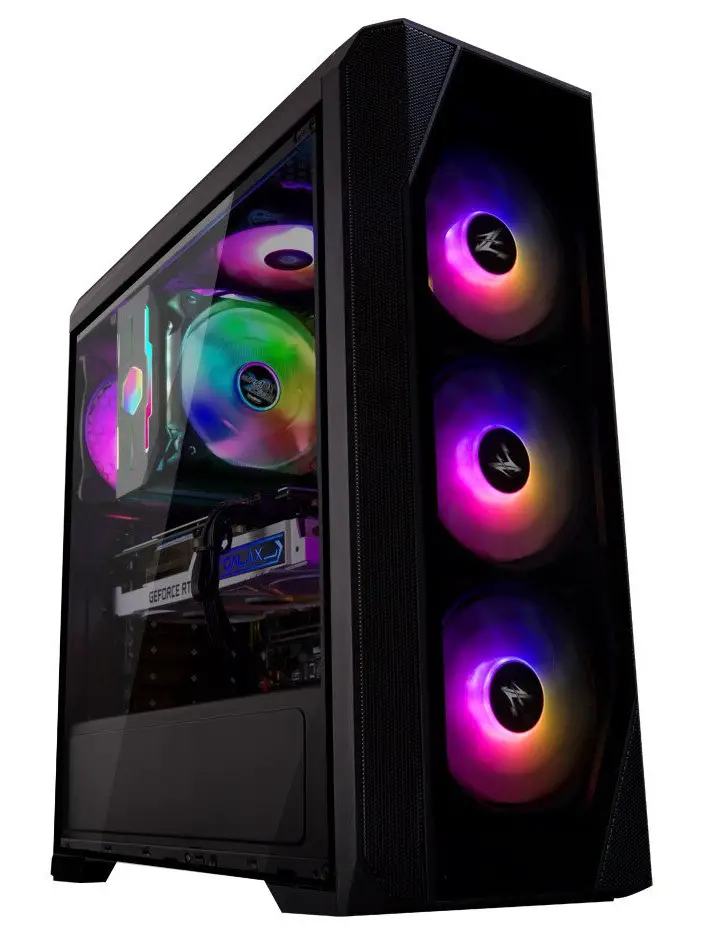

ZALMAN N5 TF ATX Mid Tower Computer Case
Contents hide
Precautions
- Read this manual carefully before installing.
- Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
- Wear gloves to prevent accidents when installing the product.
- Severe damage may occur when mounting the system, so do not apply excessive force.
- Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
- Be careful not to block the ventilation hole of the product when using the system.
- Avoid locations with direct sunlight, water, moisture, oil, and excessive dust.
- Store and use the product in a well-ventilated location.
- Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
- Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
- Store and use the product out of children’s reach.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.
Specifications
| Model | N5 TF | |
| Case Form Factor | ATX Mid-Tower | |

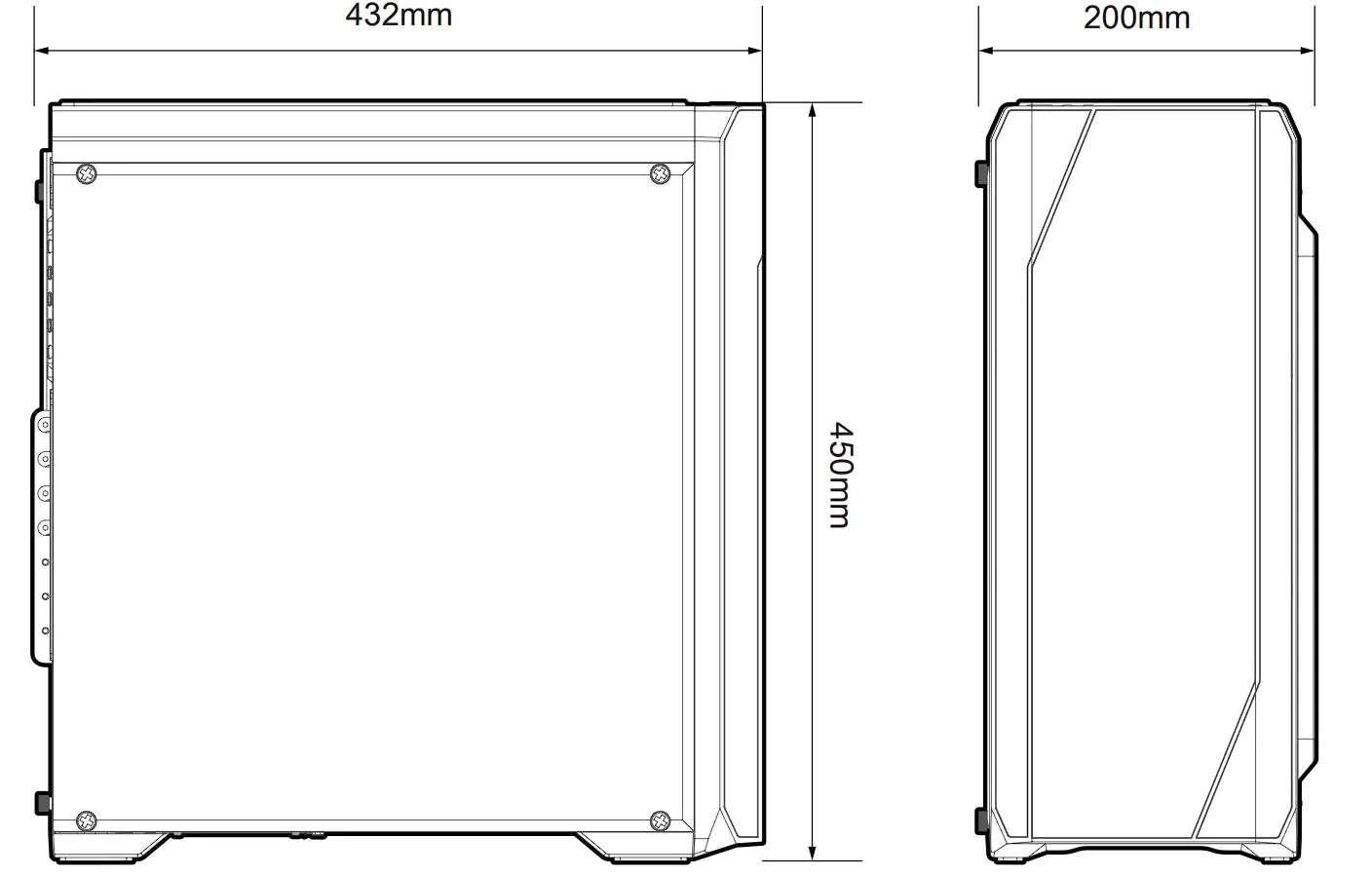

| Dimensions | 432(D) x 200(W) x 450(H)mm | |
| Weight | 3.8kg | |
| Case Materials | Plastic, Steel, Tempered Glass | |
| Motherboard Support | ATX / mATX / Mini-ITX | |
| Maximum VGA Length | 365mm | |
| Maximum CPU Cooler Height | 158mm | |
| Maximum PSU Length | 160mm | |
| PCI Expansion Slots | 7 | |
| Drive Bays | 2 x Combo(3.5” or 2.5”), 4 x 2.5” SSD | |
| Fan Support | Top | 3 x 120mm |
| Front | 3 x 120mm | |
| Rear | 1 x 120mm | |
| Bottom | 2 x 120mm | |
| Fan(s) Inclued | Front | 3 x 120mm (with Spectrum RGB LED Effect) |
| Rear | 1 x 120mm (with Spectrum RGB LED Effect) | |
| Radiator Support | Front | 120mm / 240mm / 360mm |
| Rear | 120mm | |
| I/O Ports | 1 x Headphone, 1 x Mic, 2 x USB 2.0, 1 x USB 3.0, Reset Button, Power Button, Fan Controller(Change Fan Speed & LED Brightness), LED Controller(Change LED Pattern) | |

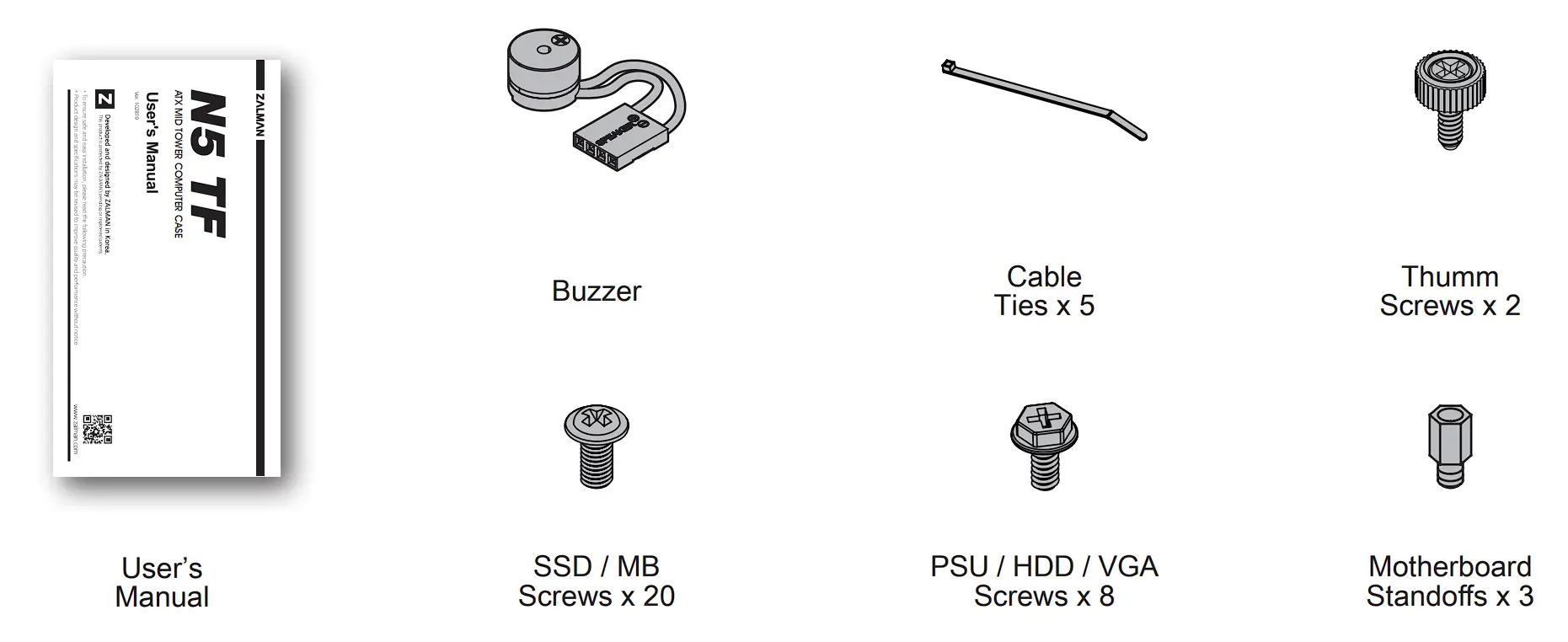

Accessories

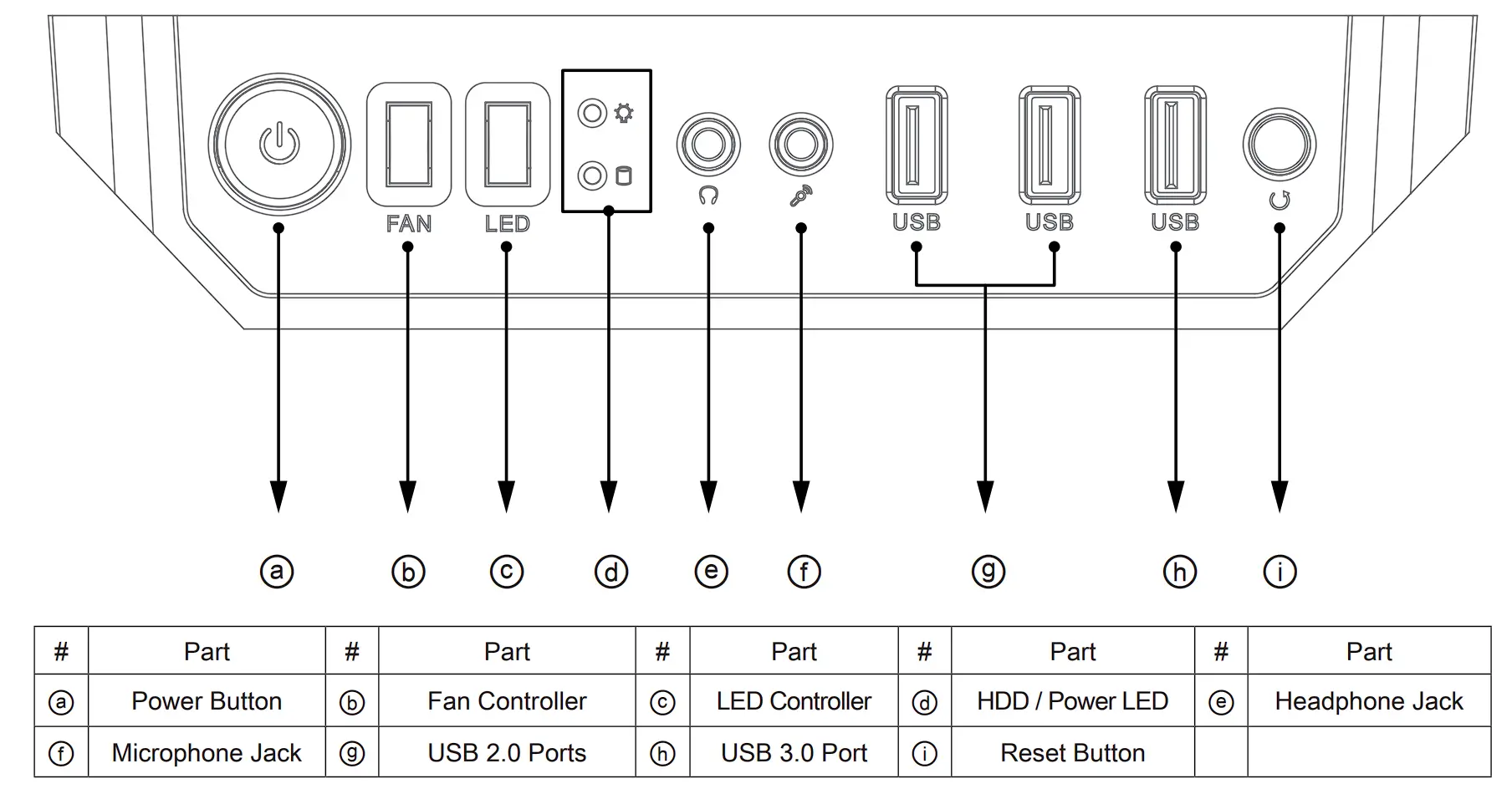

I/O Ports

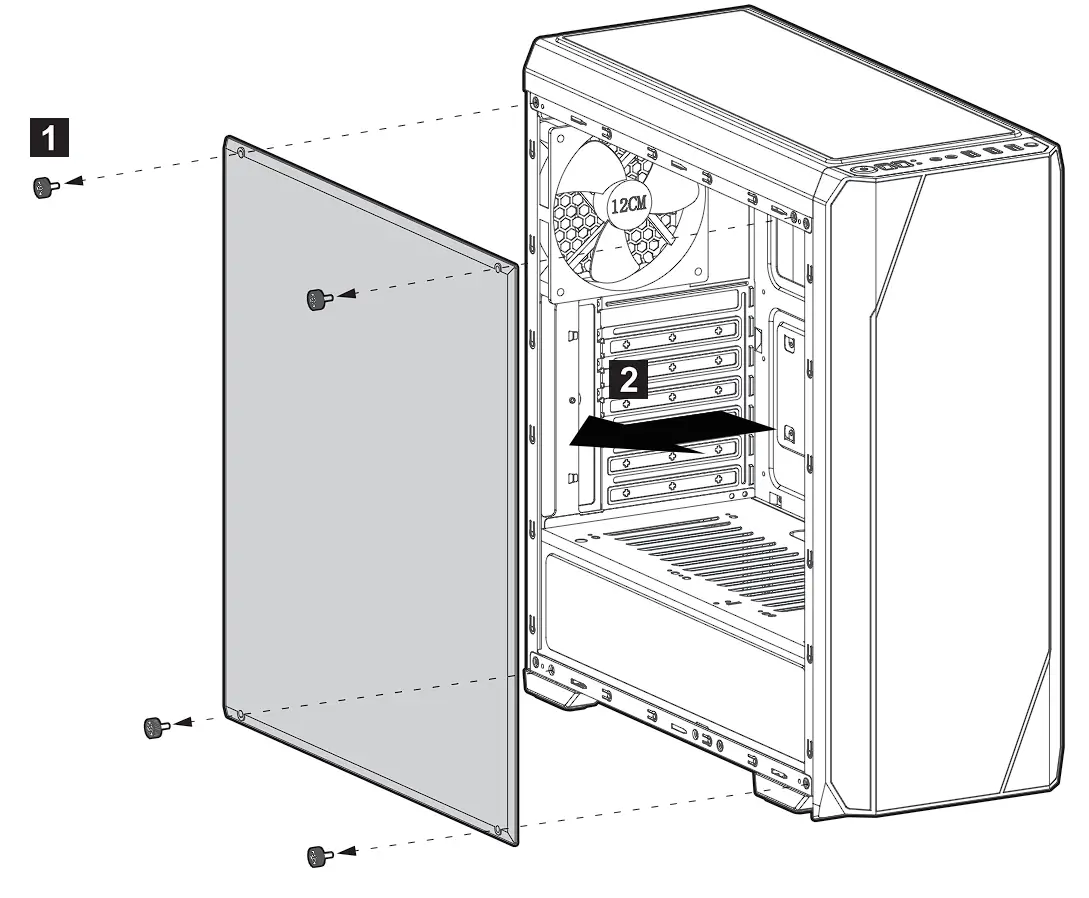

Removing the side panels
- Tempered Glass
- Steel Panel

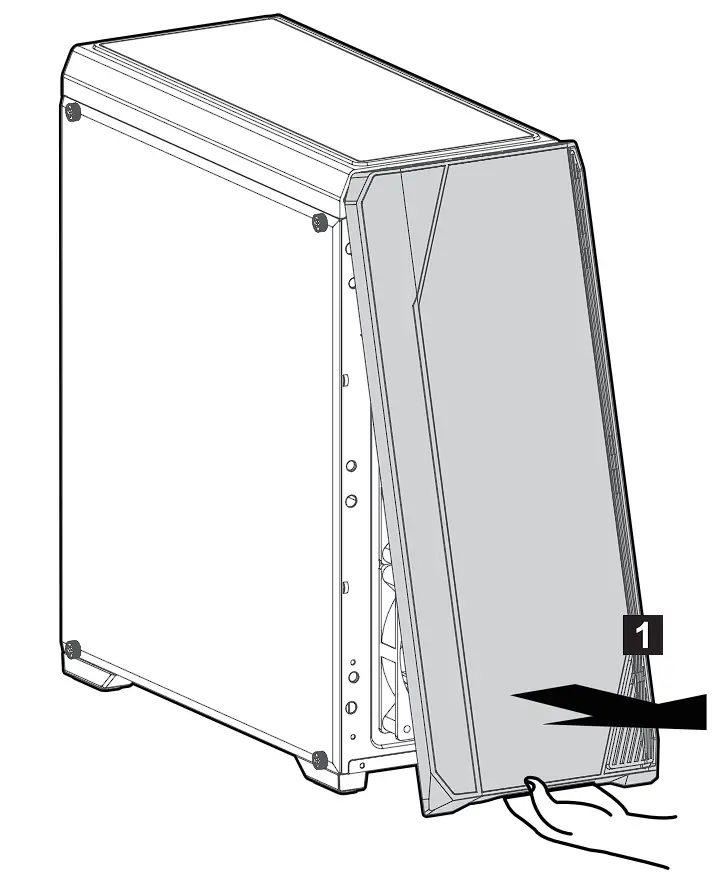

Removing the front panel

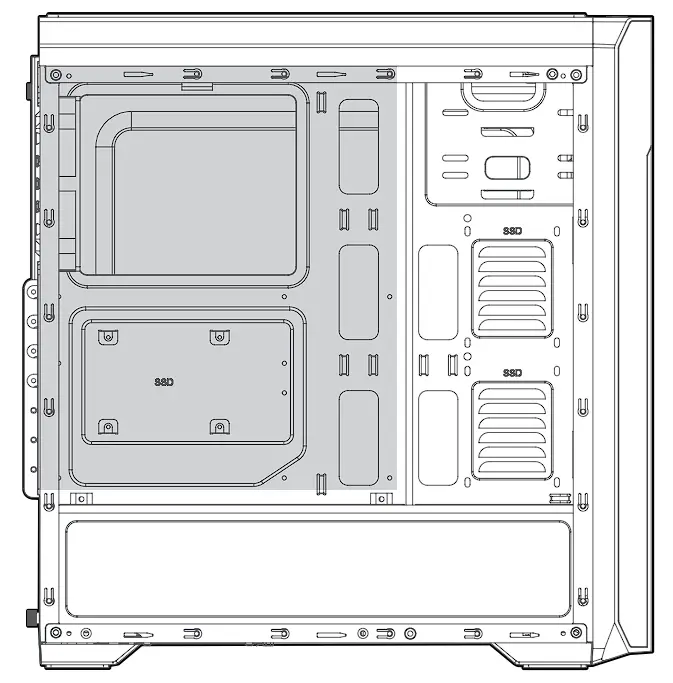

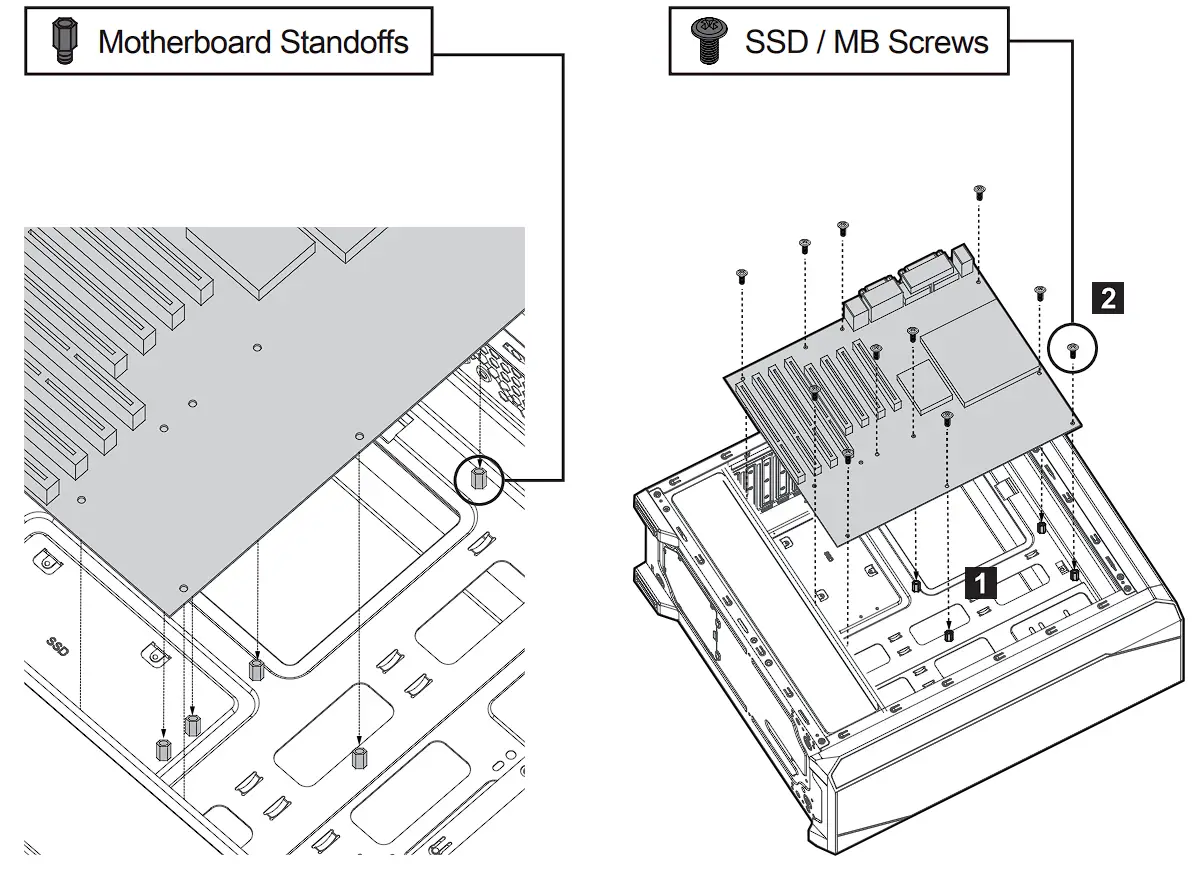

Mounting the motherboard

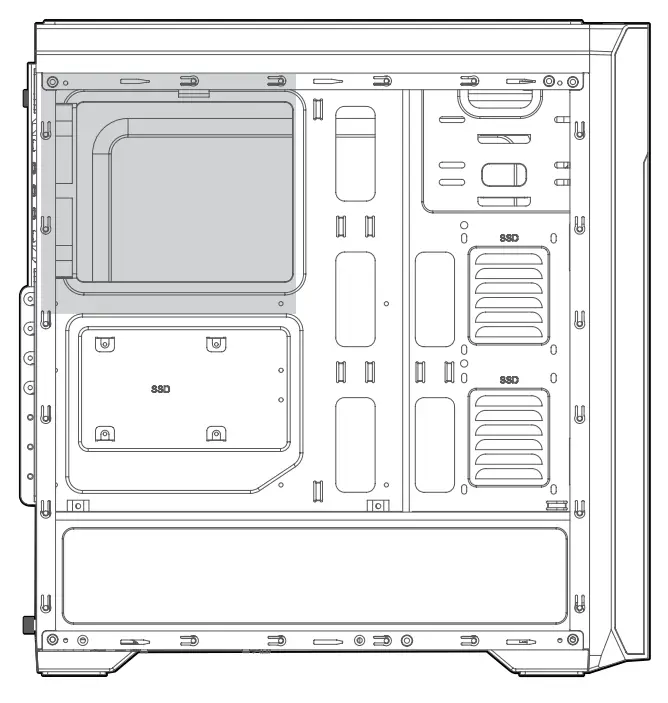

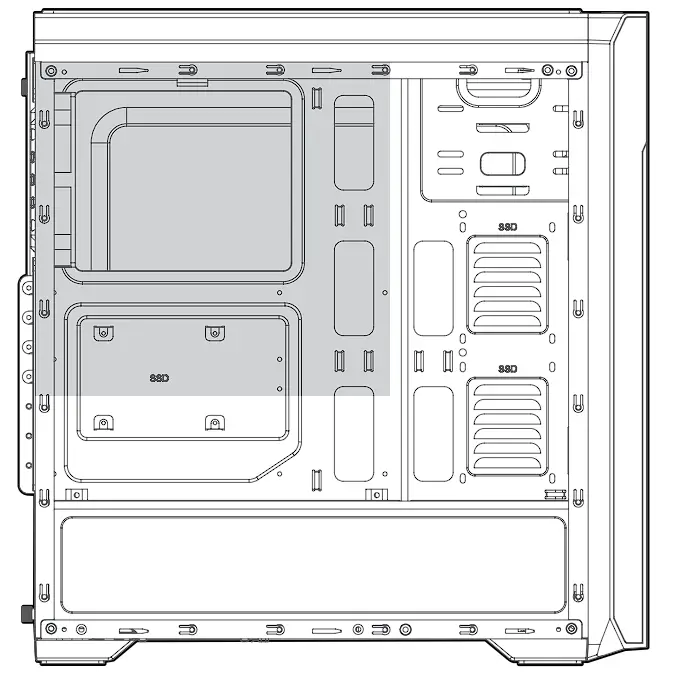

Motherboard size
※ Pick out the 8-Pin auxiliary power cable(CPU power connector) through the groove on top before installing motherboard.
- ATX
- mATX
- Mini-ITX

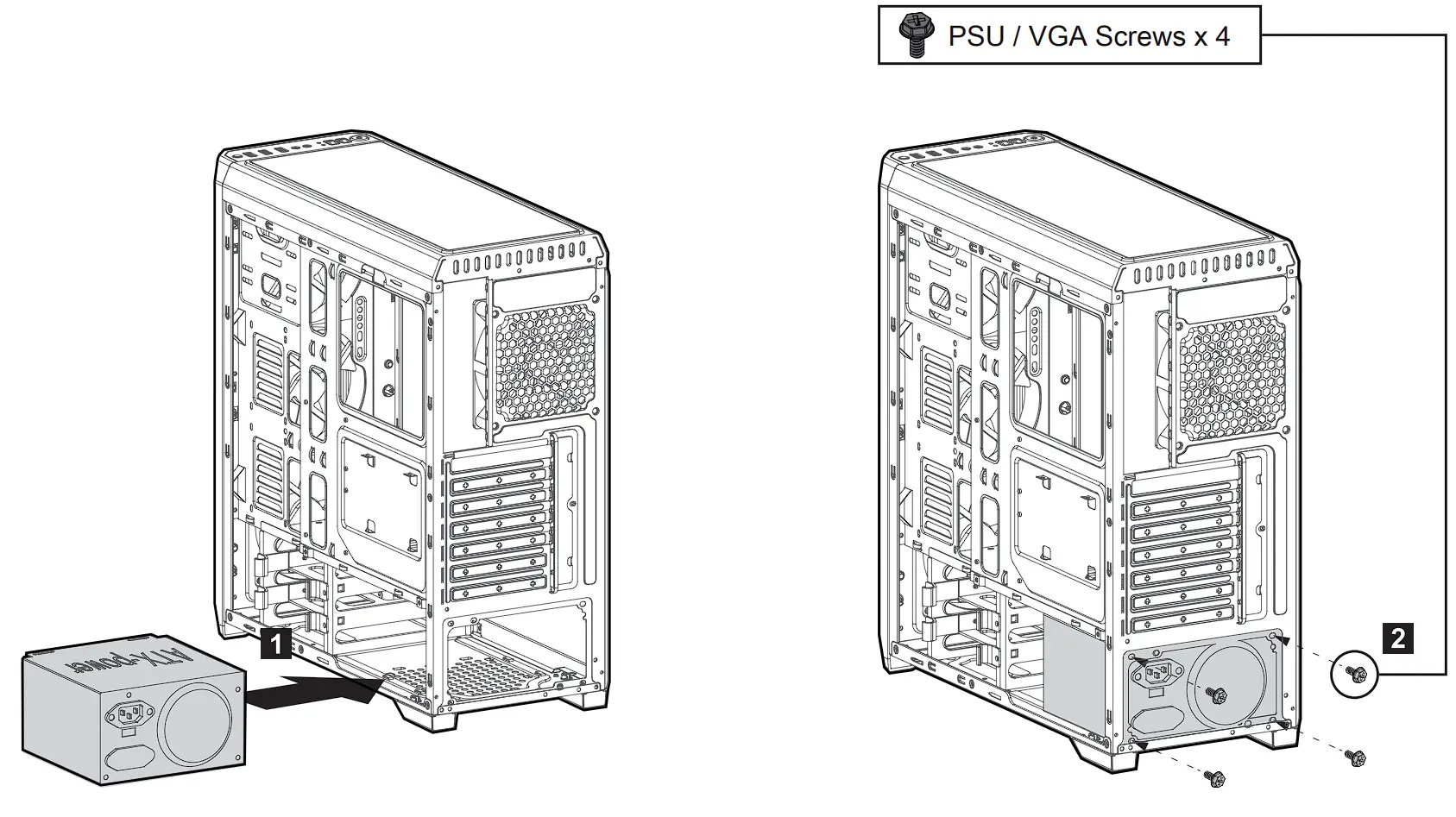

Mounting the PSU

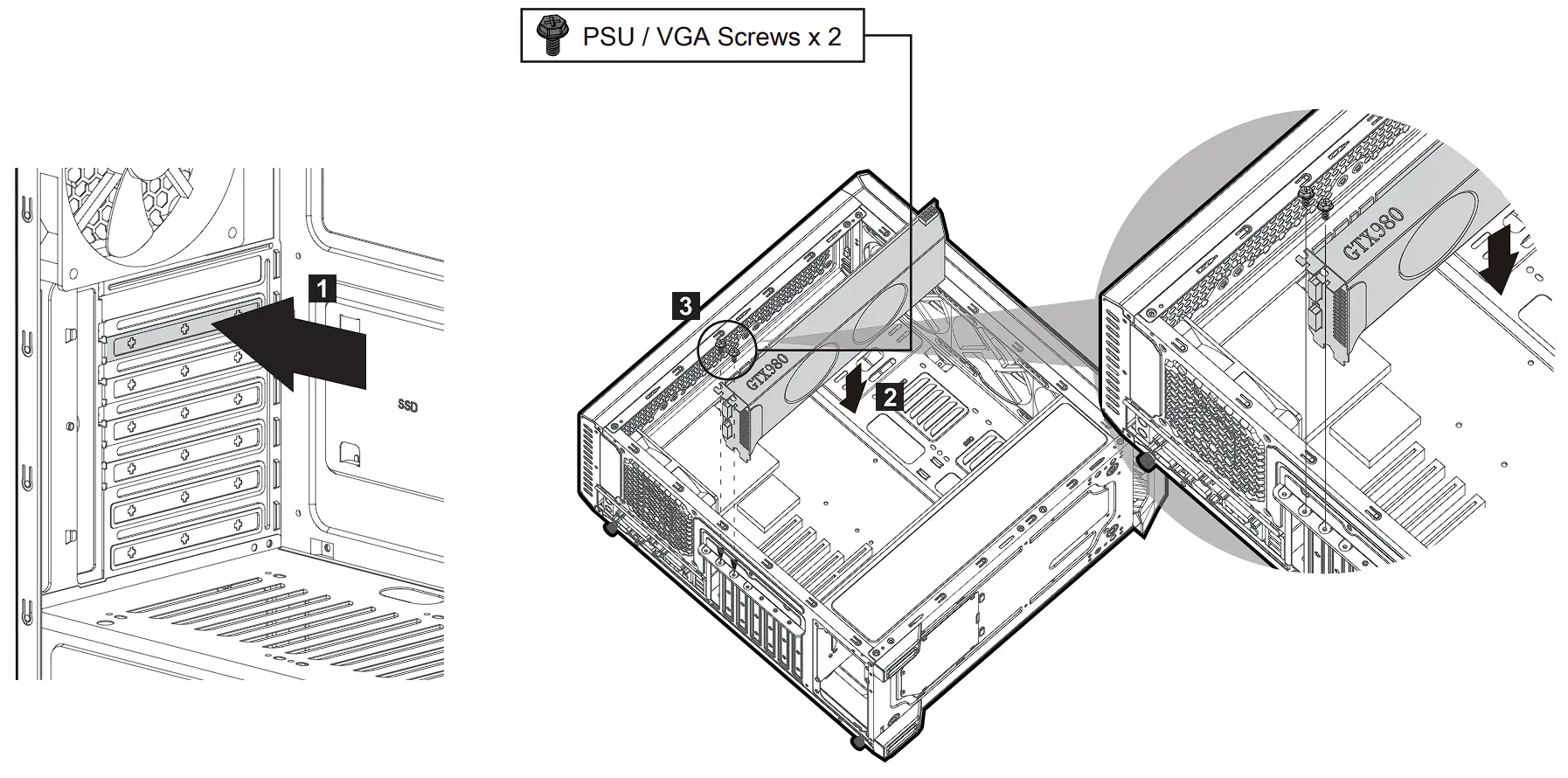

Mounting the PCI-E(VGA) card

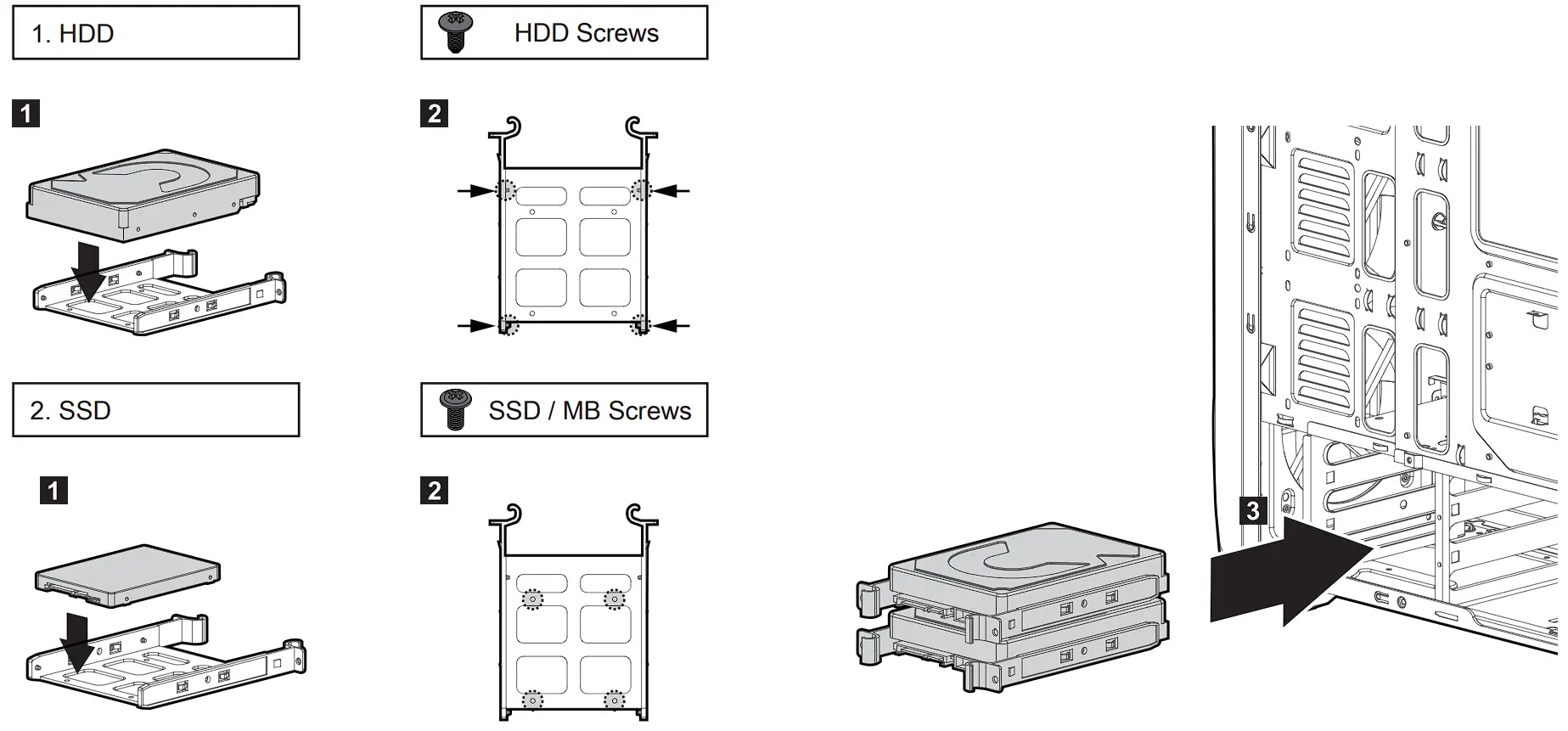

Mounting the 3.5″ and 2.5″ SSD / HDD

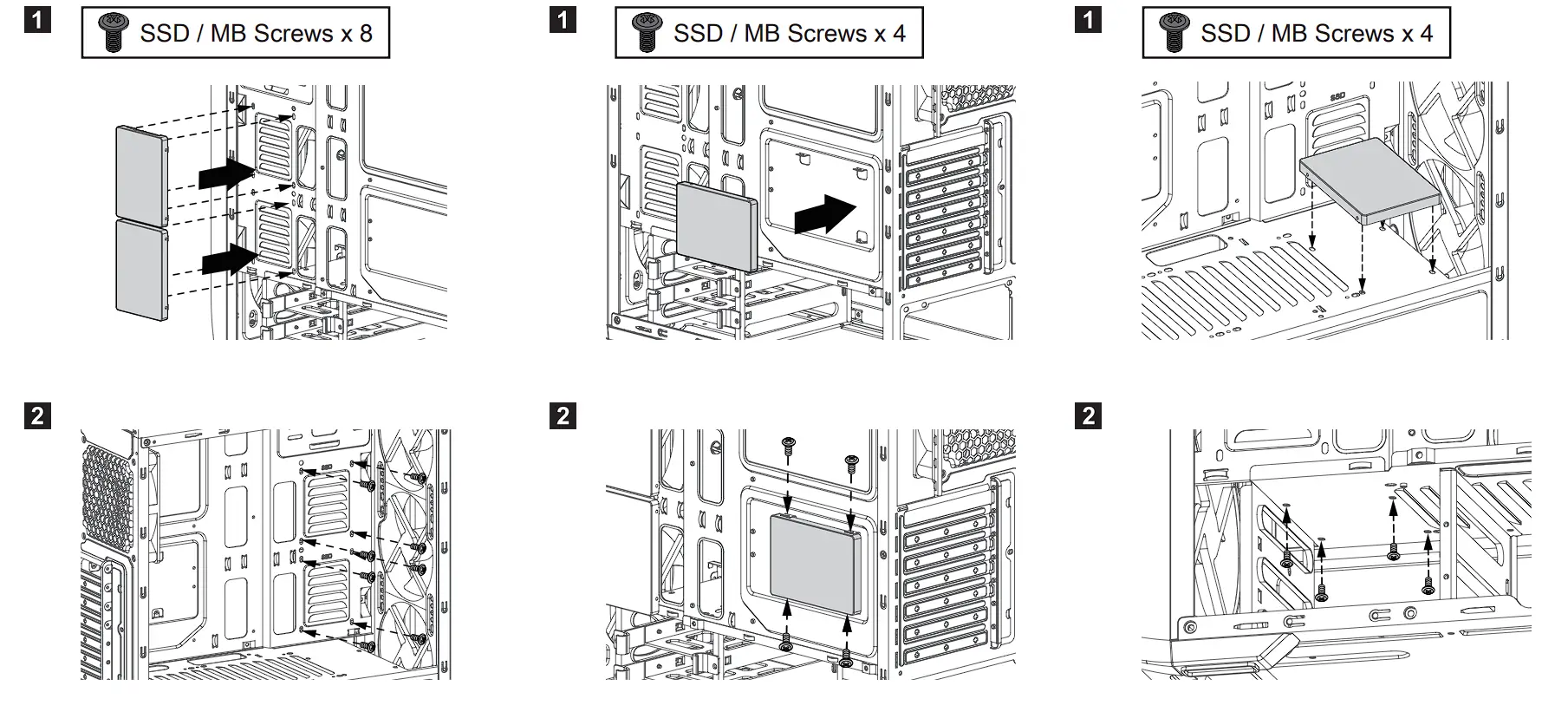

Mounting the 2.5″ SSD / HDD

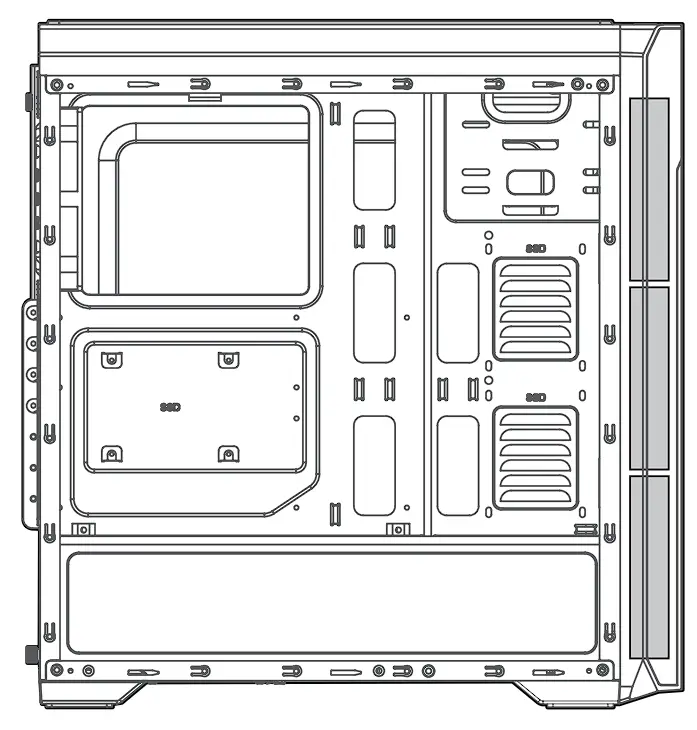

Mounting the fans
- Mounting the top fans
- Mounting the bottom fans
Fan(s) Inclued
- Front : 3 x 120mm Fan
– with Spectrum RGB LED Effects - Rear : 1 x 120mm Fan
– with Spectrum RGB LED Effects
Fan Controller
LED Control
Press : Change LED Pattern
Press Hold 5 seconds : LED Off
3 Control Modes of Fan speed & LED brightness
| Mode | Fan Speed | LED Brightness |
| Mode 1. | High | High |
| Mode 2. | Low | Low |
| Mode 3. | Off | Off |
| ※ LED Patterns can be changed even if the fan is not working. (Push “LED” Button) ※ Caution: shutting off your system fans could cause increase of system temperature. |

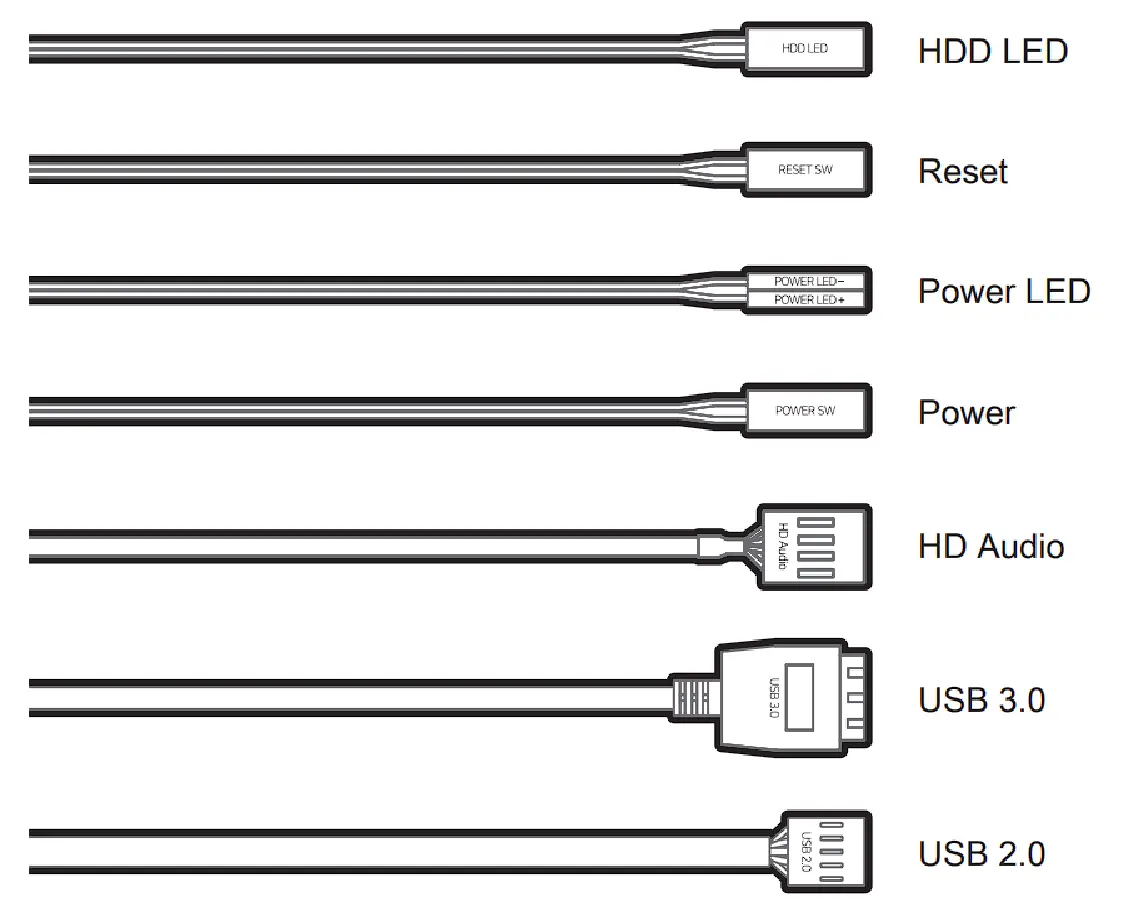

I/O Connectors
Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.
 | Developed and designed by ZALMAN in Korea. This product is protected by ZALMAN’s pending or registered patents. |
* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.
