Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
Wear gloves to prevent accidents when installing the product.
Severe damage may occur when mounting the system, so do not apply excessive force.
Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.
Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Model		T7
Case Form Factor		ATX Mid-Tower

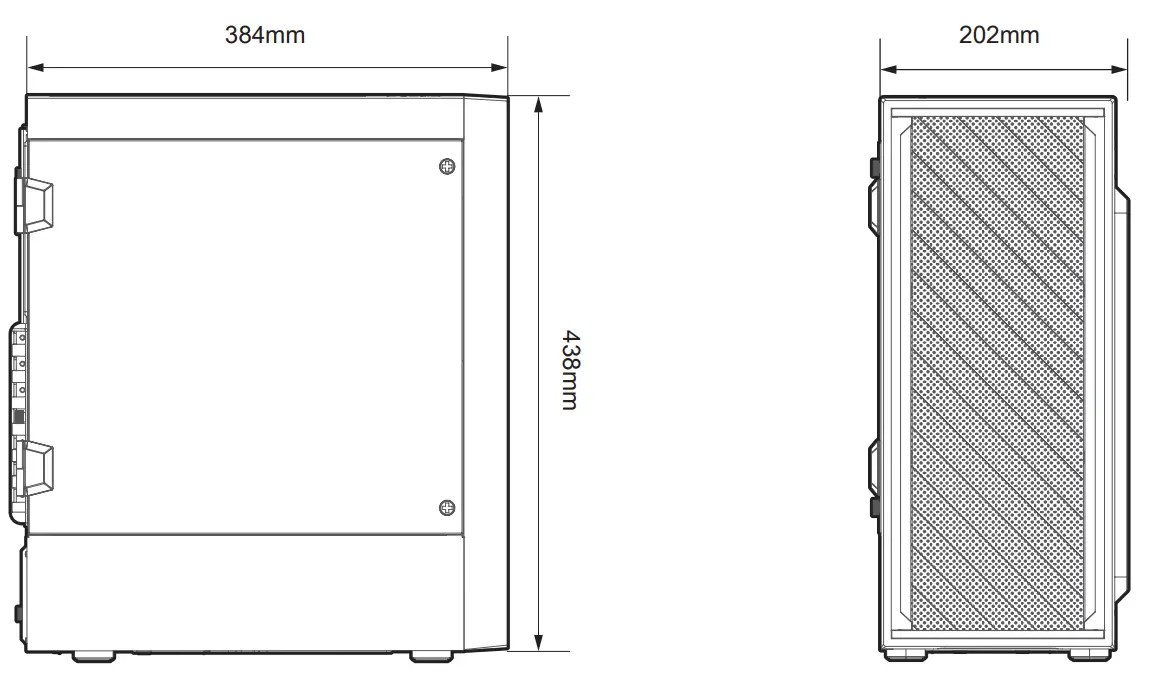

Dimensions		384(D) x 202(W) x 438(H)mm
Weight		3.2kg
Case Materials		Plastic, Steel, Acrylic
Motherboard Support		ATX / mATX / Mini-ITX
Maximum VGA Length		305mm
Maximum CPU Cooler Height		160mm
Maximum PSU Length		150mm
PCI Expansion Slots		7
Drive Bays		2 x Combo(3.5” or 2.5”), 4 x 2.5”
Fan Support	Top	2 x 120mm
	Front	3 x 120mm
	Rear	1 x 120mm
	Bottom	2 x 120mm
Pre-Installed Fan(s)	Front	1 x 120mm
	Rear	1 x 120mm
I/O Ports		1 x Headphone, 1 x Mic, 2 x USB 2.0, 1 x USB 3.0, Reset Button, Power Button

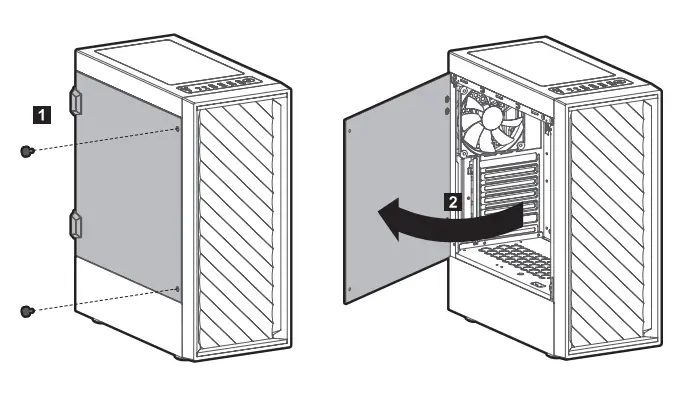

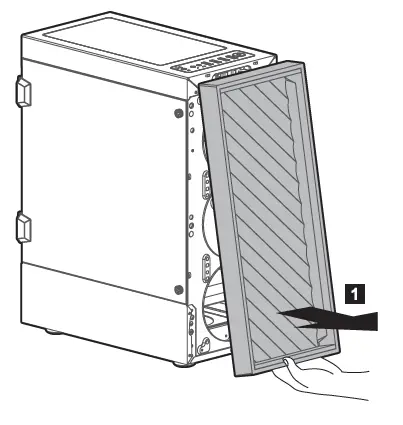

Removing the front panel

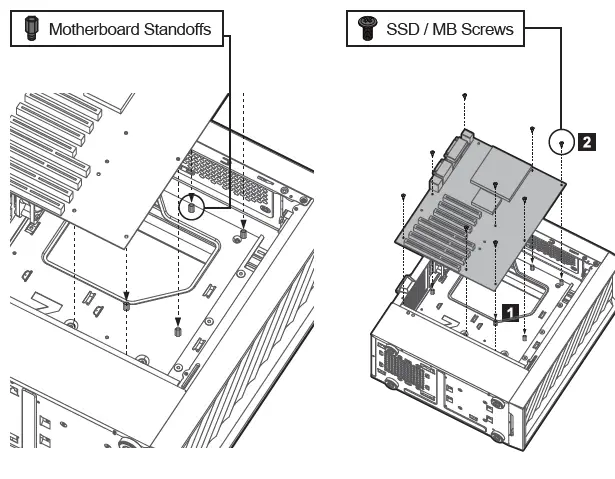

Mounting the motherboard

Motherboard size

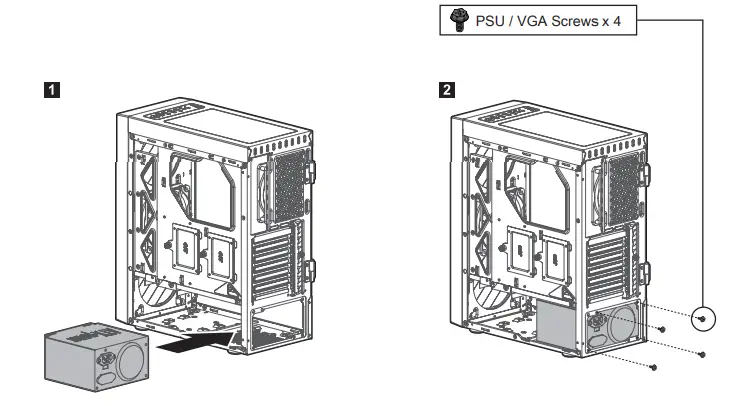

Mounting the PSU

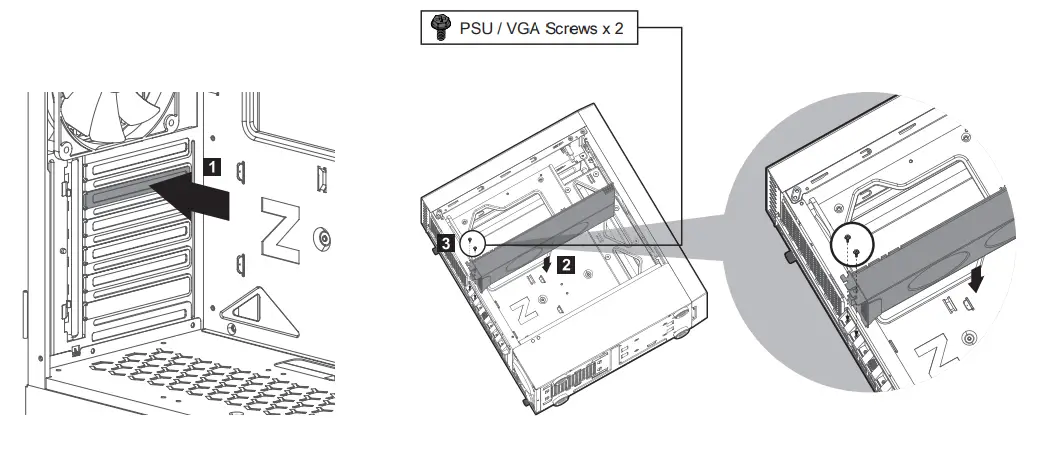

Mounting the PCI-E(VGA) card

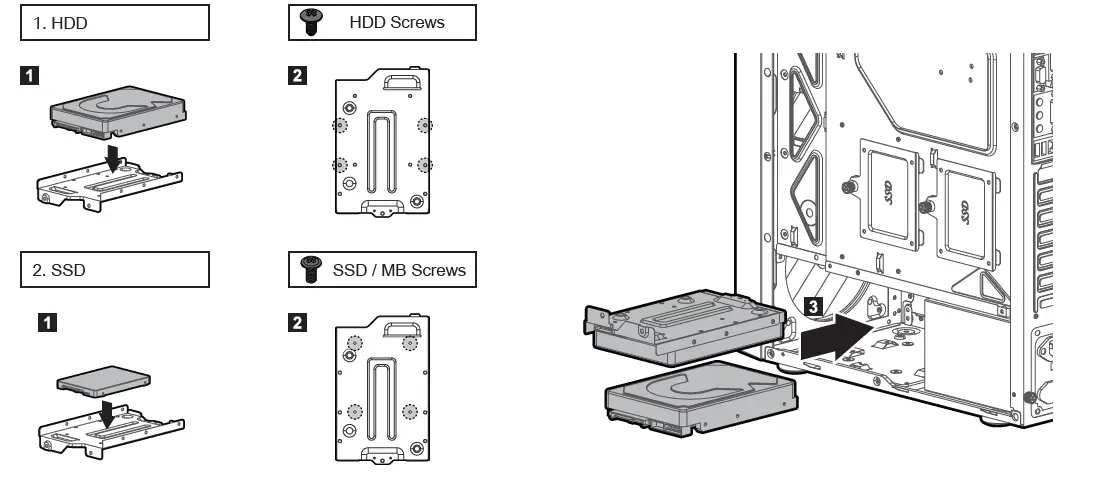

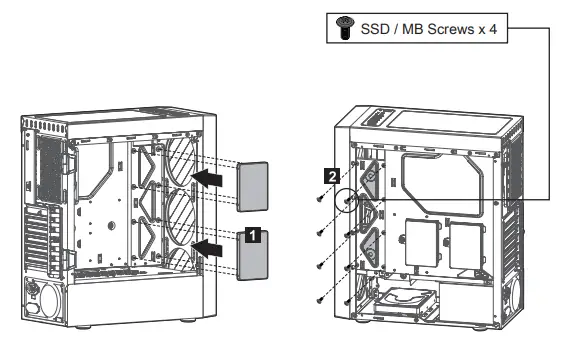

Mounting the 3.5″ and 2.5″ SSD / HDD

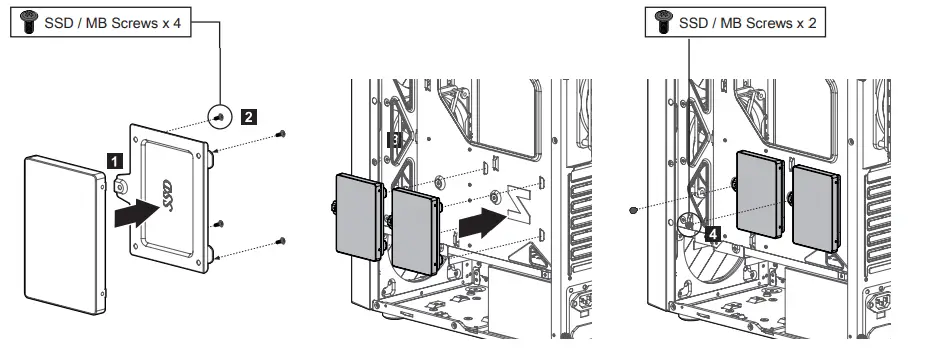

Mounting the 2.5″ SSD / HDD

Fans Included / Specifications

Mounting the fans

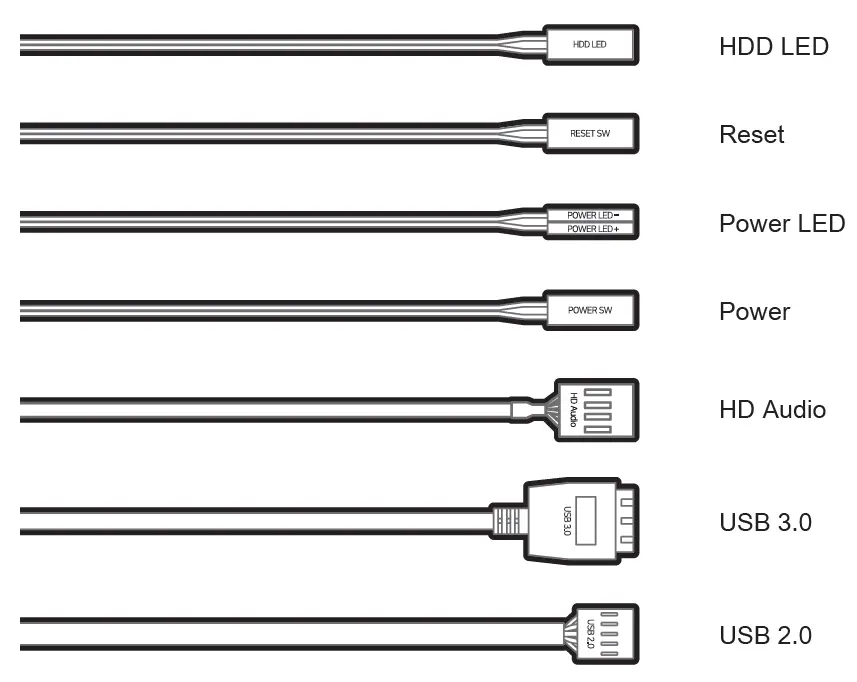

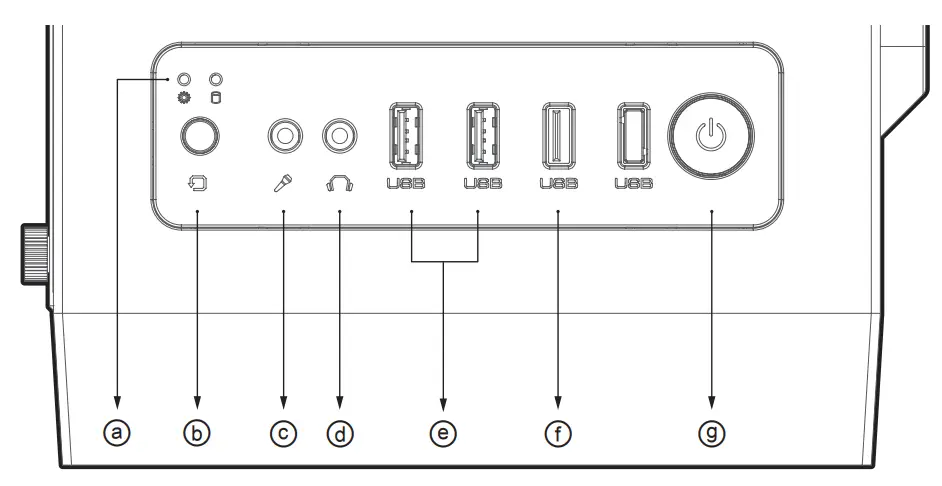

I/O Connectors

To ensure safe and easy installation, please read the following precaution.
Product design and specifications may be revised to improve quality and performance without notice.
