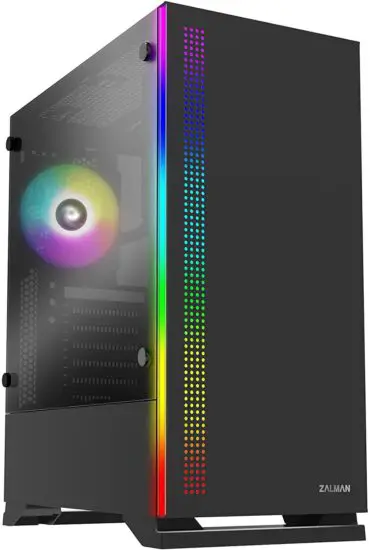

ZALMAN S5 ATX Mid Tower Computer Case User Manual

Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
Wear gloves to prevent accidents when installing the product.
Severe damage may occur when mounting the system, so do not apply excessive force.
Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.
Avoid locations with direct sunlight, water, moisture, oil, and excessive dust.
Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Model		S5
Case Form Factor		ATX Mid-Tower

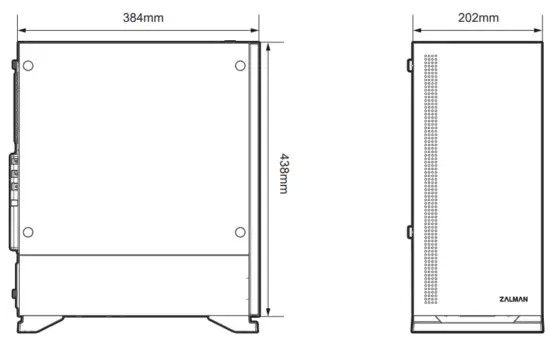

Dimensions		395.5(D) x 212(W) x 465(H)mm
Weight		5.8kg
Case Materials		Steel, Plastic, Tempered Glass

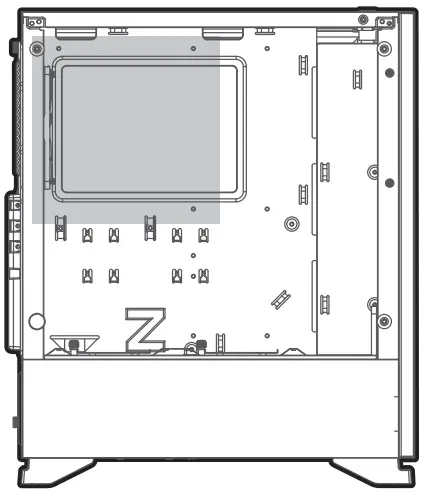

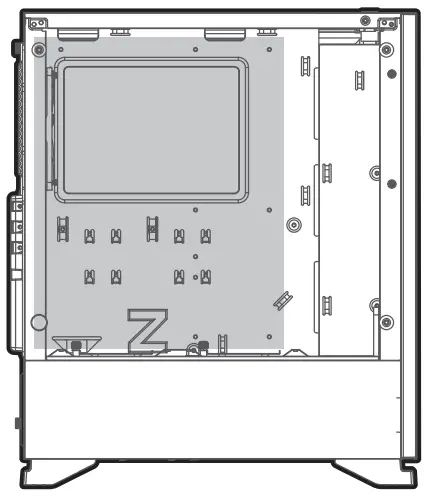

Motherboard Support		ATX / mATX / Mini-ITX
Maximum VGA Length		340mm
Maximum CPU Cooler Height		160mm

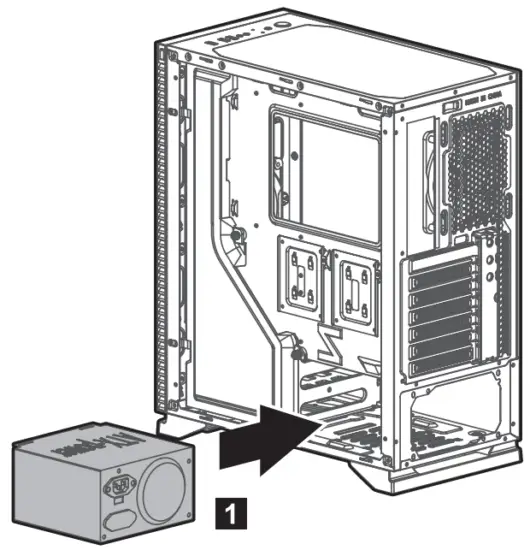

Maximum PSU Length		190mm

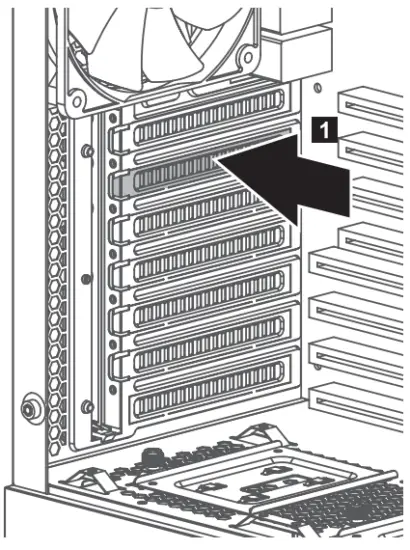

PCI Expansion Slots		7

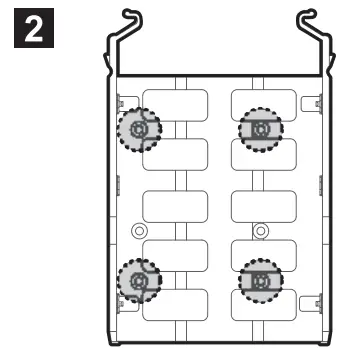

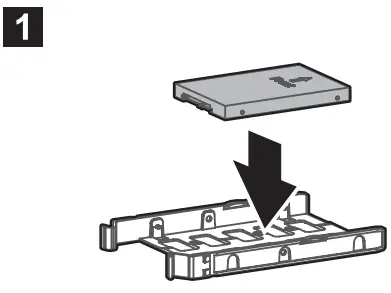

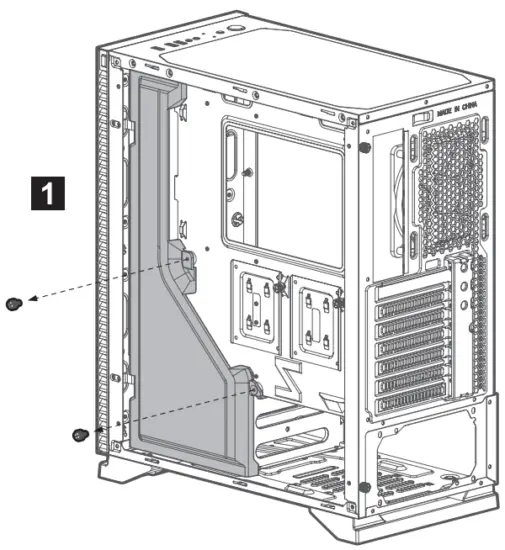

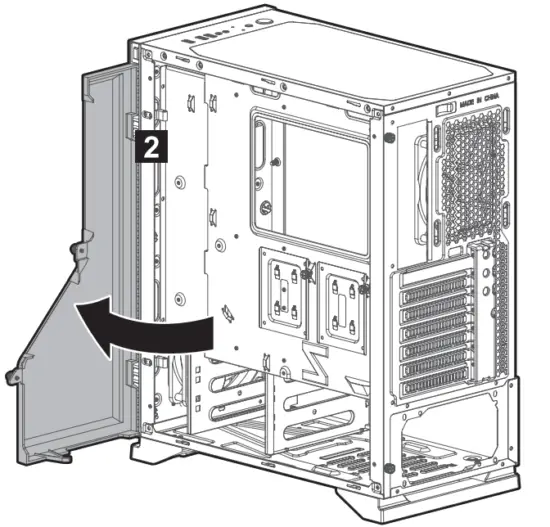

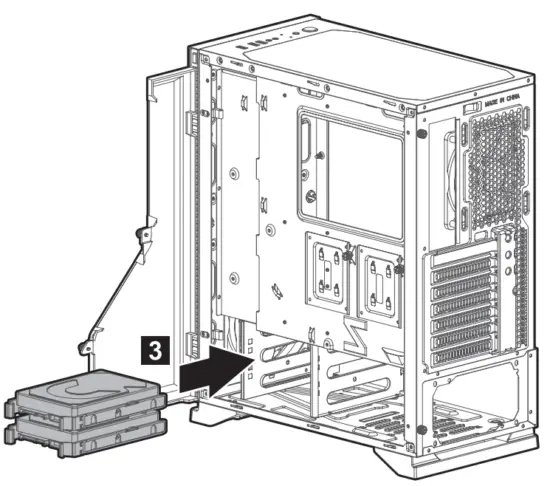

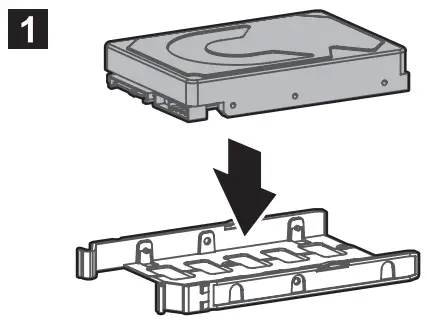

Drive Bays		2 x Combo(3.5” or 2.5”), 4 x 2.5”

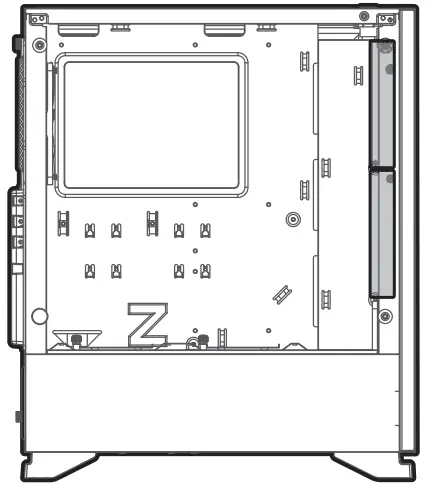

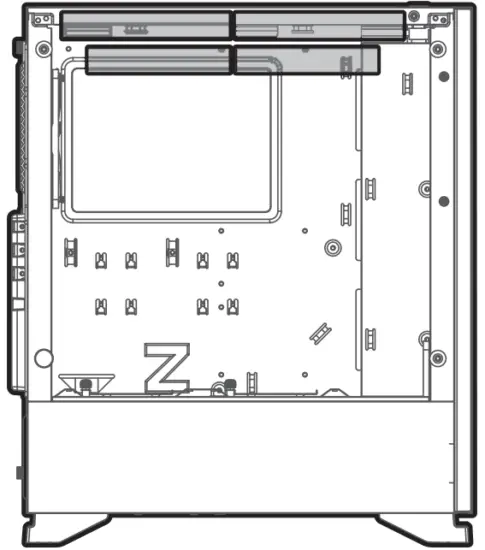

Fan Support	Top	2 x 120mm, 2 x 140mm
	Front	3 x 120mm
	Rear	1 x 120mm

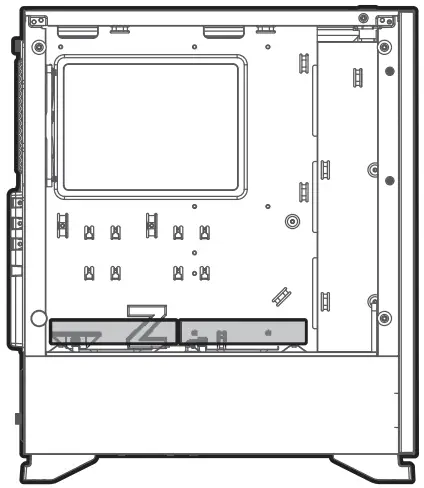

	Bottom	2 x 120mm

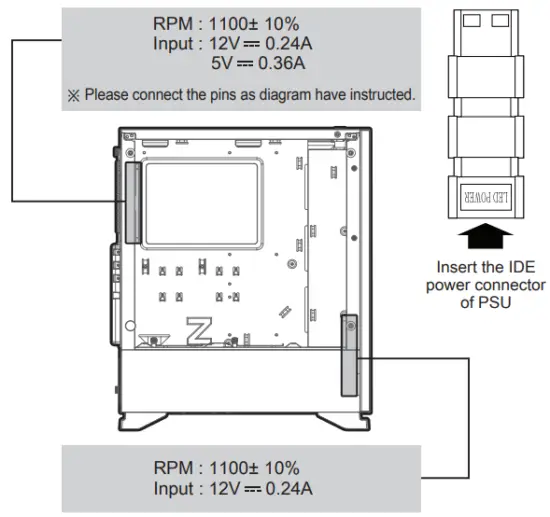

Pre-Installed Fan(s)	Front	1 x 120mm
	Rear	1 x 120mm (with ARGB LED Effect)

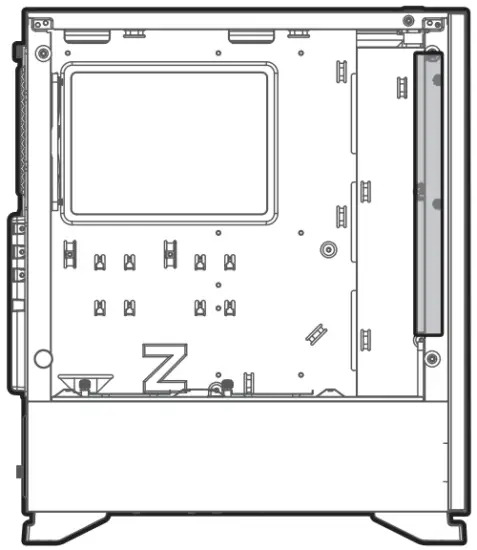

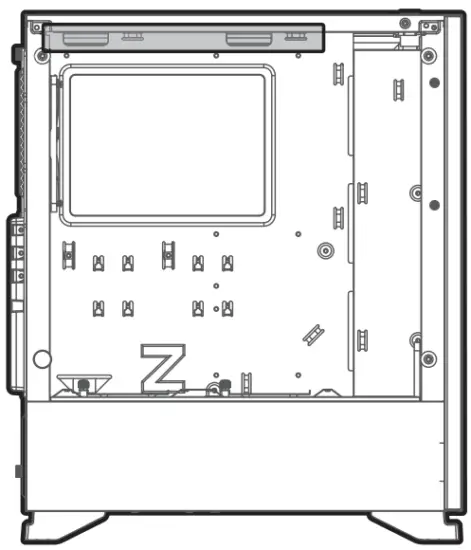

Radiator Support	Top	240mm (RAM 35mm Under)
	Side	240mm (Cooling Guide)

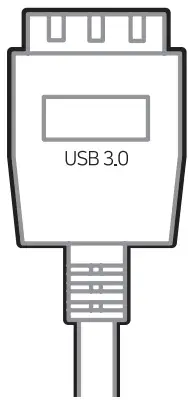

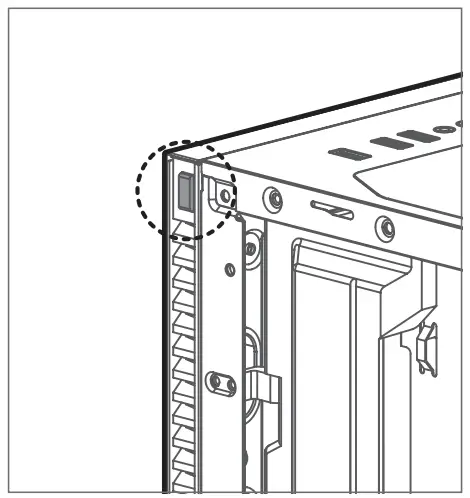

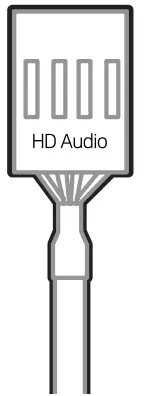

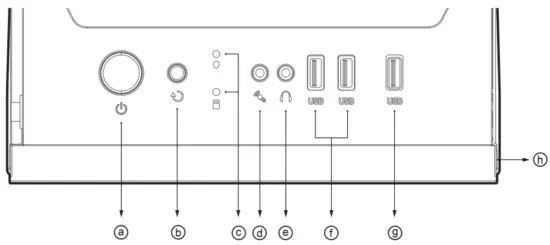

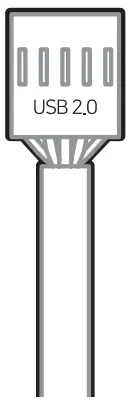

I/O Ports		1 x Headphone, 1 x Mic, 2 x USB 2.0, 1 x USB 3.0, Reset Button, Power Button, LED Control Button(Side)

User’s Manual

Glass Cleaner

Buzzer

PCI Slot Covers

Cable Ties x 5

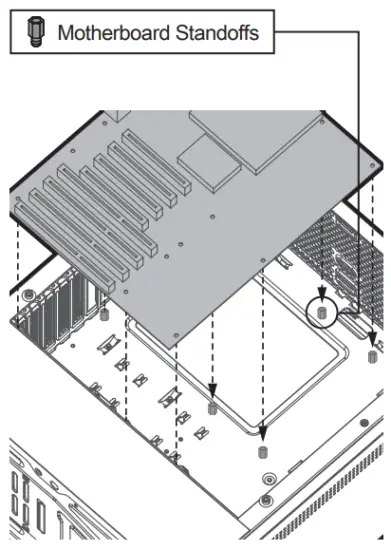

Motherboard Standoffs x 3

Thumm Screws x 2

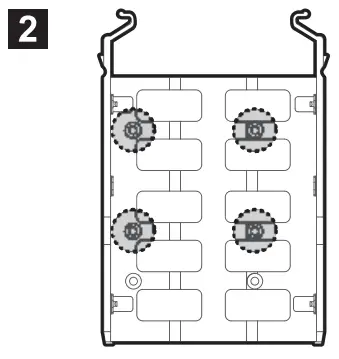

HDD Screws x 20

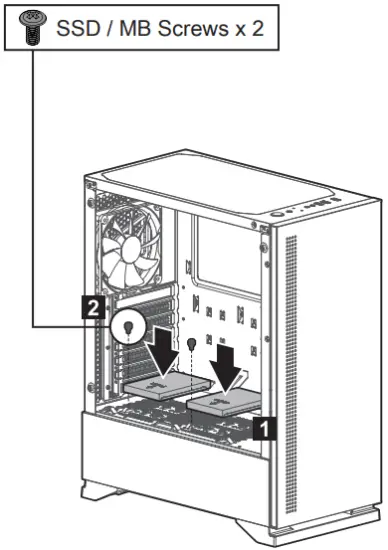

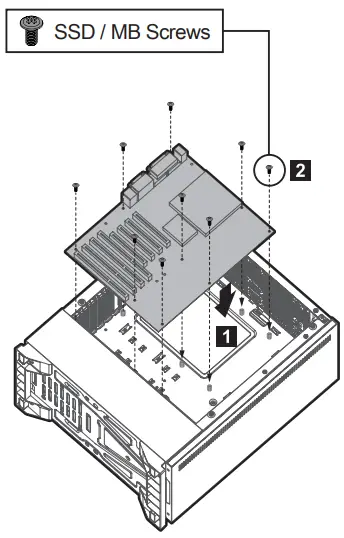

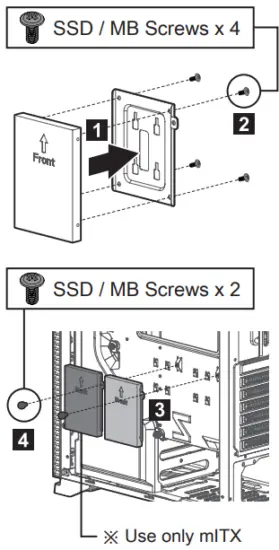

SSD / MB Screws x 25

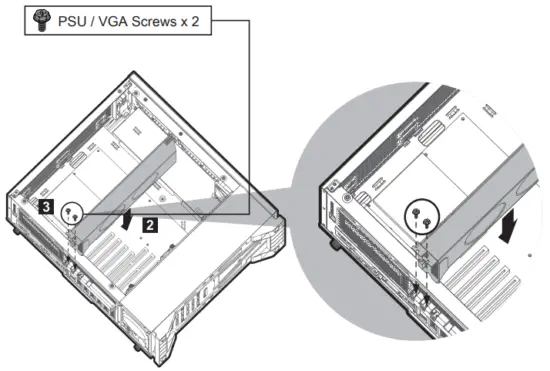

PSU / VGA Screws x 6

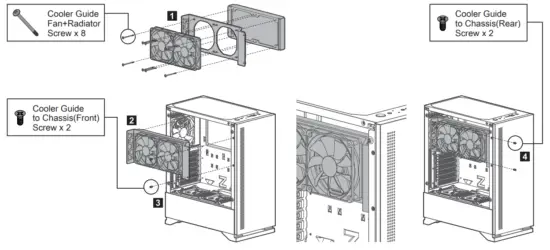

Cooler Guide to Chassis (Front)

Cooler Guide to Chassis (Rear) Screw x 2

Cooler Guide Fan+Radiator Screw x 8
