Zalman S5 Black Atx Mid Tower Gaming Case User Manual (+ PDF)

User’s Manual
Ver. 122319

Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.

* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.

Contents hide

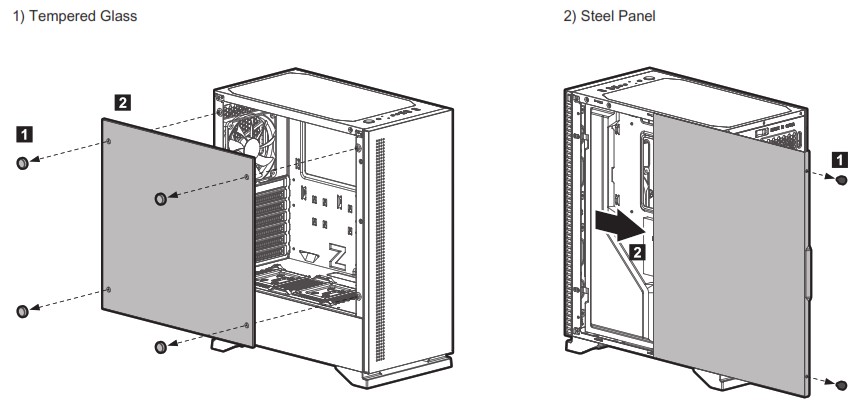

5 Removing the side panels

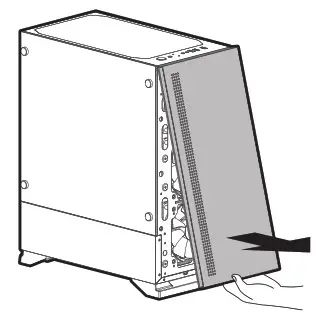

6 Removing the front panel

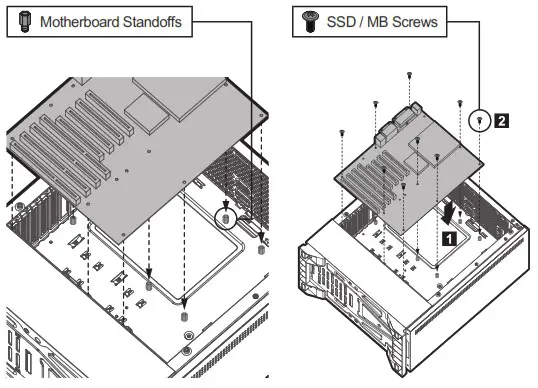

7 Mounting the motherboard

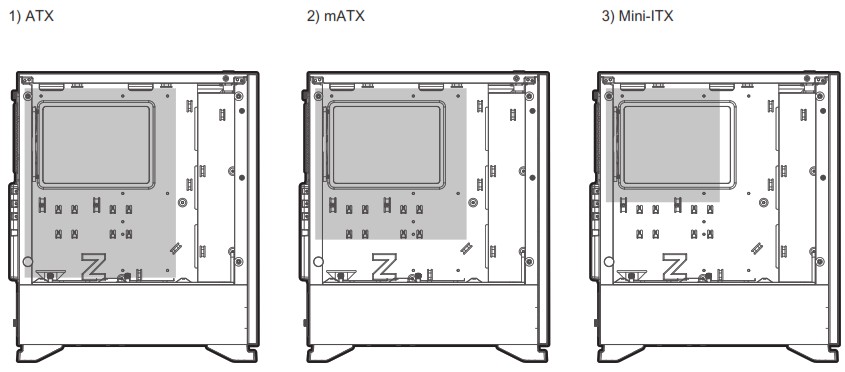

7.1 Motherboard size

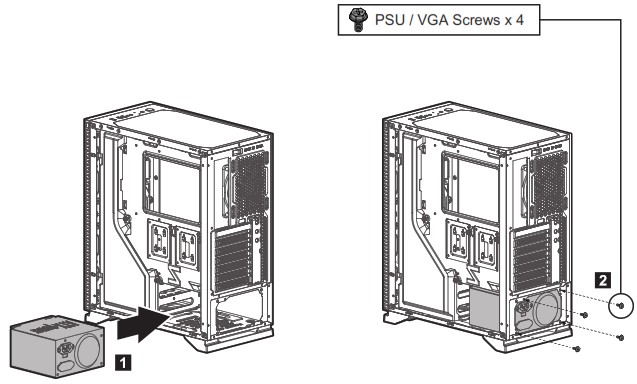

8 Mounting the PSU

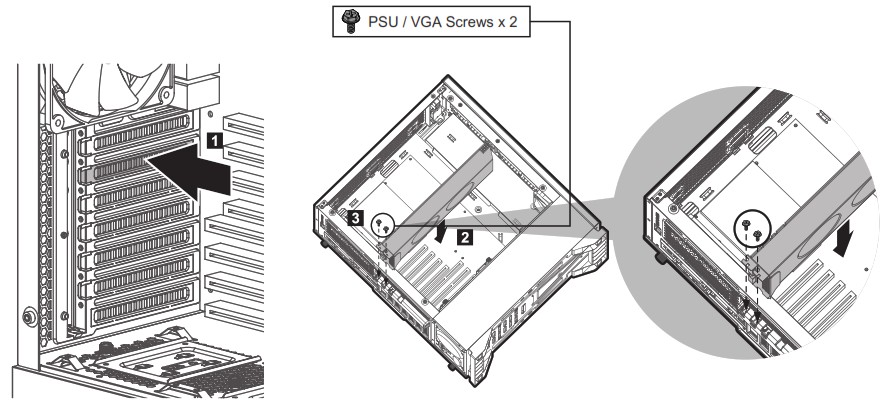

9 Mounting the PCI-E(VGA) card

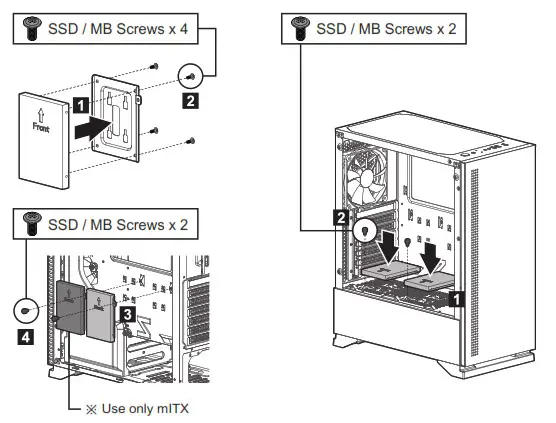

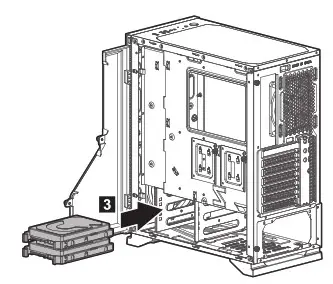

10 Mounting the 3.5″ and 2.5″ SSD / HDD

11 Mounting the 2.5″ SSD / HDD

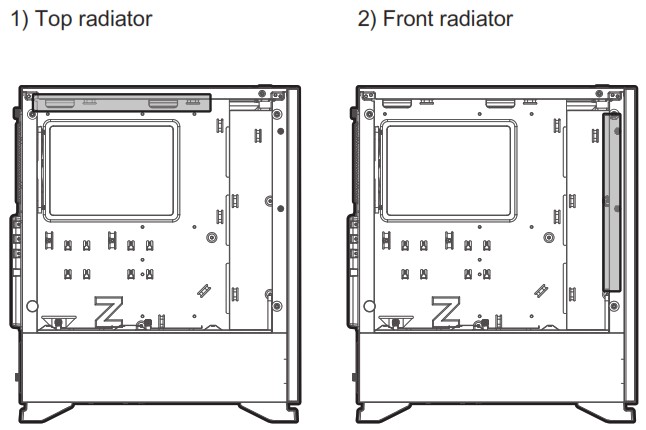

12 Mounting the radiator

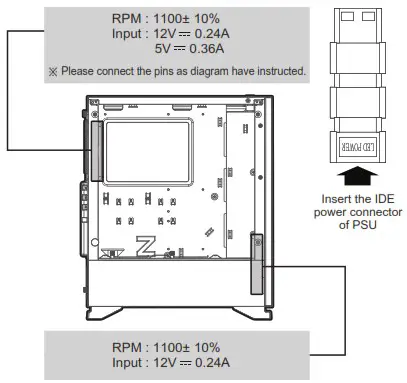

13 Fans Included / Specifications

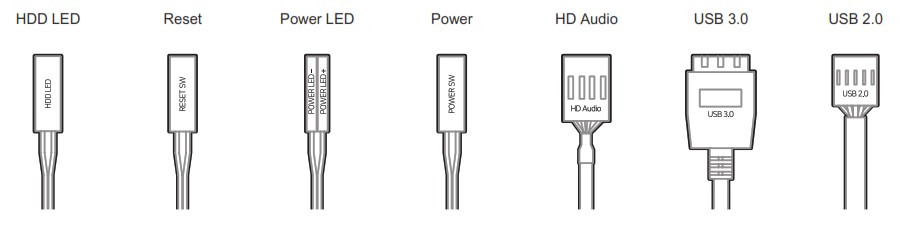

14 I/O Connectors

15 Documents / Resources

15.1 References

16 Related Posts

Precautions

Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
Wear gloves to prevent accidents when installing the product. Severe damage may occur when mounting the system, so do not apply excessive force.
Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.
Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

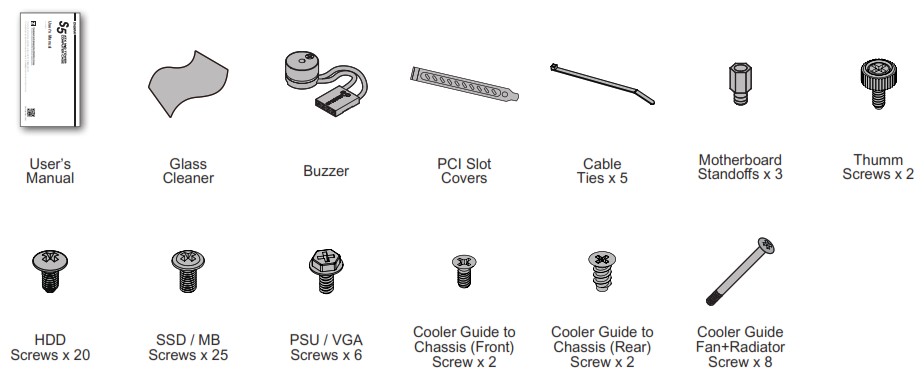

Specifications

Model		55
Case Form Factor		ATX Mid-Tower

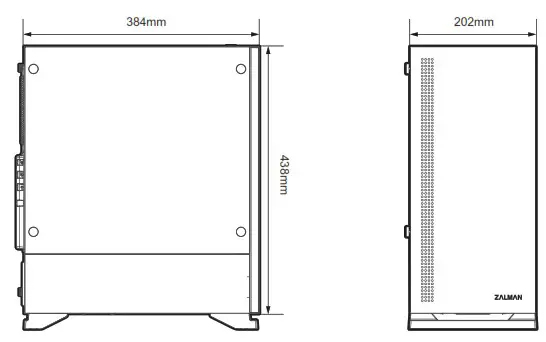

Dimensions		395.5(D) x 212(W) x 465(H)mm
Weight		5.8kg
Case Materials		Steel, Plastic, Tempered Glass
Motherboard Support		ATX / mATX / Mini-ITX
Maximum VGA Length		340mm
Maximum CPU Cooler Height		160mm
Maximum PSU Length		190mm
PCI Expansion Slots		7
Drive Bays		2 x Combo(3.5- or 2.51, 4 x 2.5″
Fan Support	Top	2 x 120mm, 2 x 140mm
	Front	3 x 120mm
	Rear	1 x 120mm
	Bottom	2 x 120mm
Pre-Installed Fan(s)	Front	1 x 120mm
	Rear	1 x 120mm (with ARGB LED Effect)
Radiator Support	Top	240mm (RAM 35mm Under)
	Side	240mm (Cooling Guide)

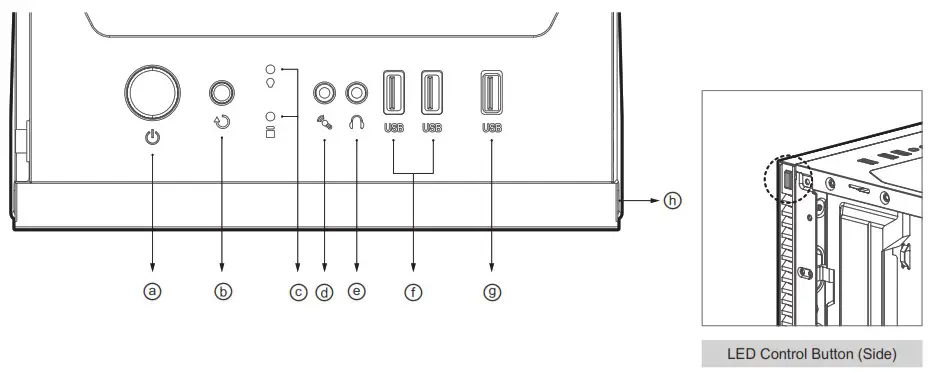

I/O Ports		1 x Headphone, 1 x Mic, 2 x USB 2.0, 1 x USB 3.0, Reset Button, Power Button, LED Control Button(Side)
