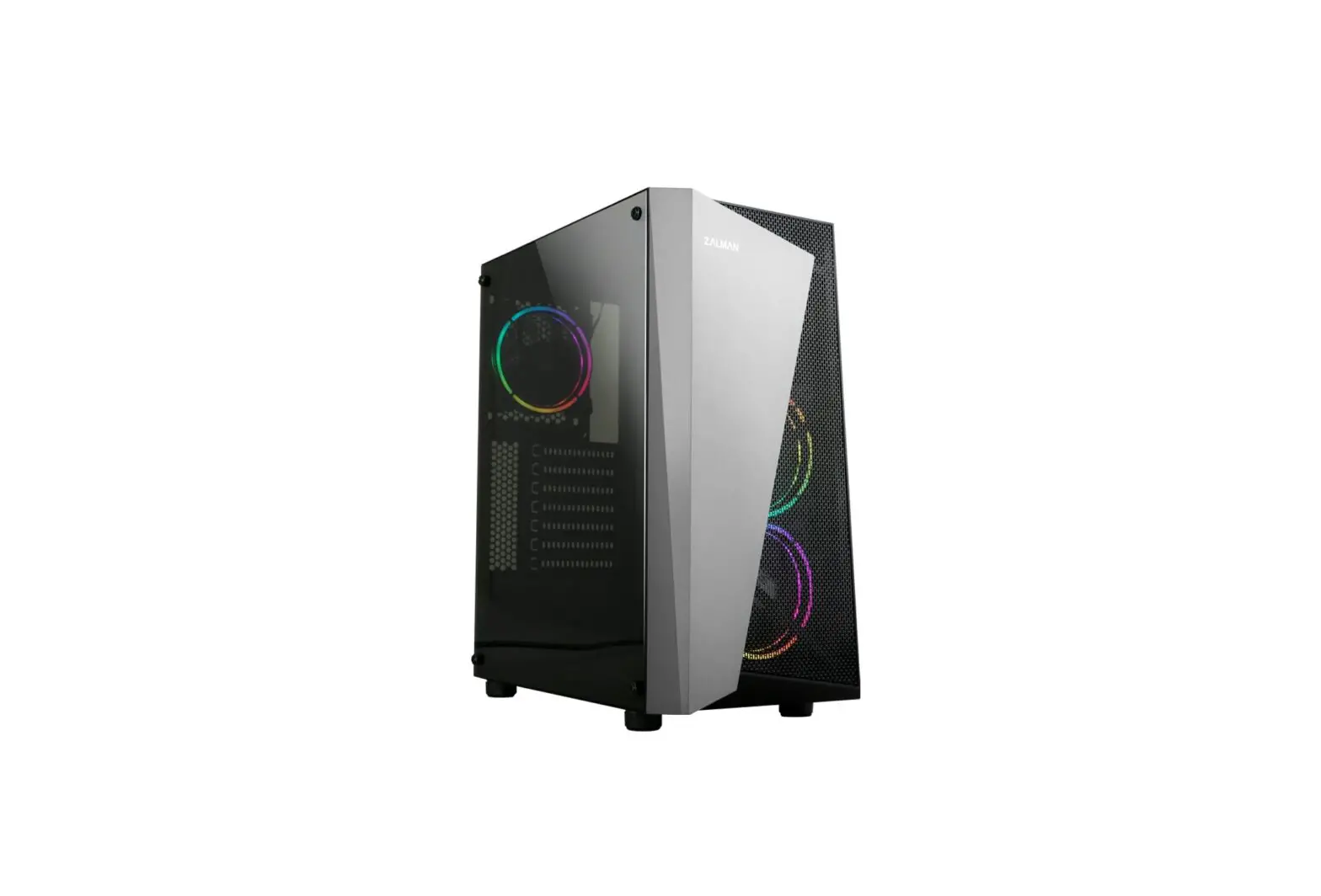

Zalman S4 Plus Atx Mid Tower Computer Case User Manual

S4 Plus ATX MID TOWER
COMPUTER CASE
User’s Manual
Ver. 121919

Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.
* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.

www.zalman.com

Precautions

• Read this manual carefully before installing.
• Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
• Wear gloves to prevent accidents when installing the product.
• Severe damage may occur when mounting the system, so do not apply excessive force.
• Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
• Be careful not to block the ventilation hole of the product when using the system.
• Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
• Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
• Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
• Store and use the product out of children’s reach.
• Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
• The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

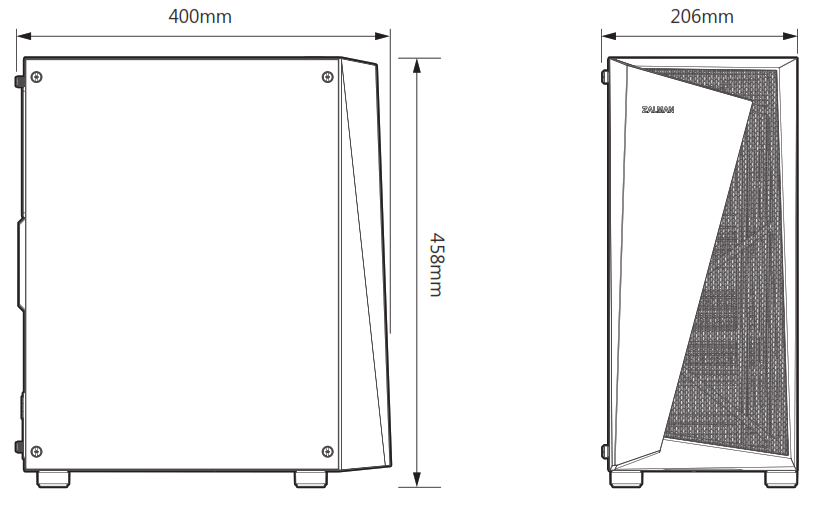

Specifications

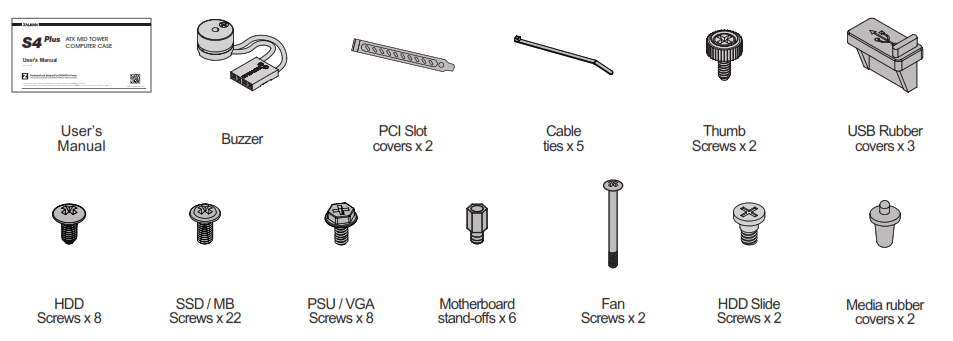

Accessories

I/O Ports

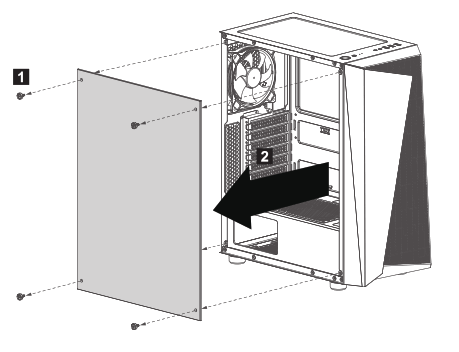

1. Removing the side panels
   1) Acrylic Panel
   2) Steel Panel

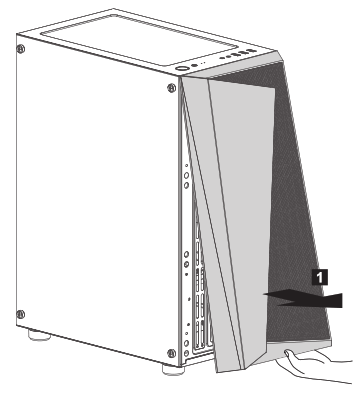

2. Removing the front panel

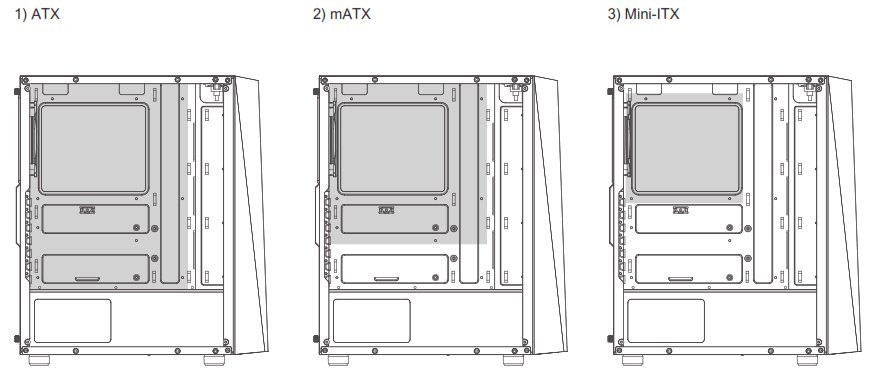

3. Mounting the motherboard3-1. Motherboard size

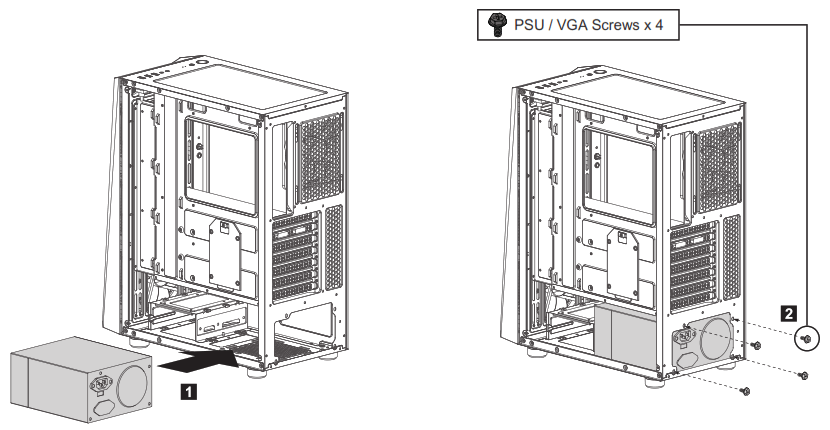

4. Mounting the PSU

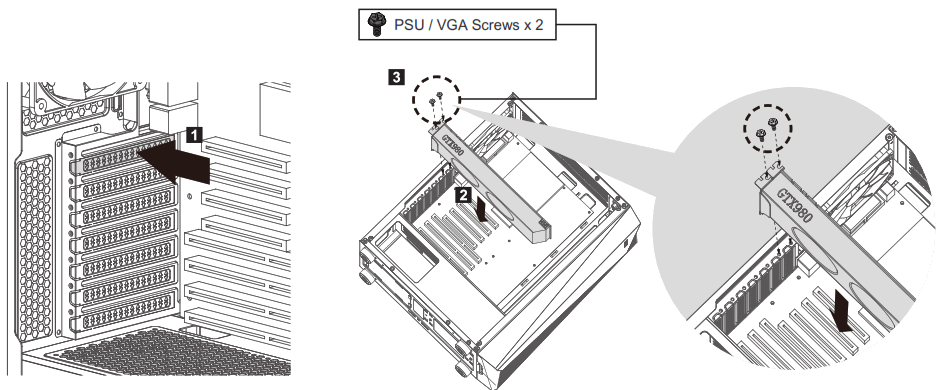

5. Mounting the PCI-E(VGA) card

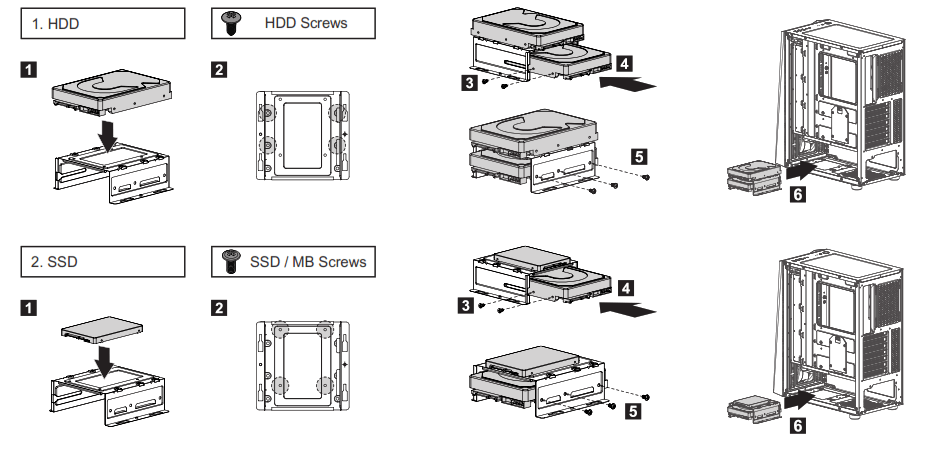

6. Mounting the 3.5″ and 2.5″ SSD / HDD

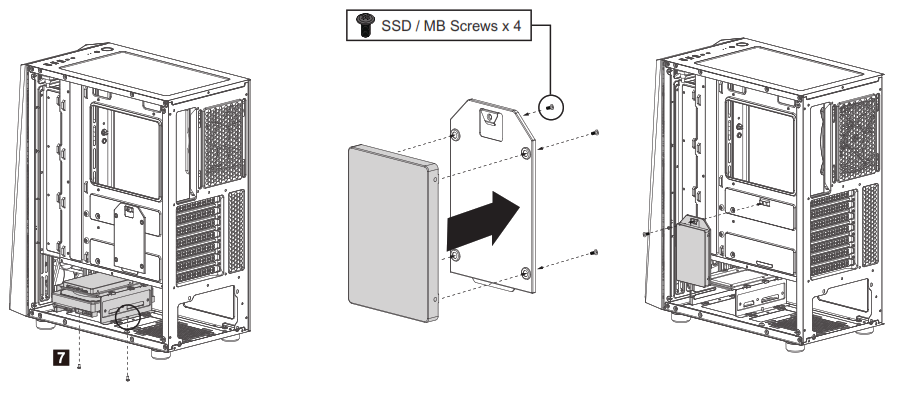

7. Mounting the 2.5″ SSD / HDD
8. Mounting the radiator
   1) Mounting the front radiator Radiator 120mm / 240mm2) Mounting the rear radiator Radiator 120mm
9. Pre-installed fan(s)
   • Pre-Installed rear 120mm RGB fan
   • Pre-Installed front 2 x 120mm RGB fan
10. Mounting the fans
    1) Mounting the top fans
    2) Mounting the front fans3) Mounting the bottom fans
11. I/O Connectors
