Make It Yours.
GD120 ARGB
Cooler Master Gaming Desk
Instruction Manual
SPECIFICATIONS
| Model | GD120 ARGB |
| Position | Upgraded Premium |
| Materials | Chipboard, Aluminum, and Steel |
| Lighting | ARGB (front) |
| Table Length x Width x Height | 120 x 75 x 74 cm (47.2″ x 29.5″ x 29.1″) |
| Max. Load | 100 kg (220.5Ibs) |
| Cable Management Tray | Yes |
| Mouse Mat | Yes, 90 x30 cm (35.4″ x 11.8″) |
| Certifications | •ANSI/BIFMA X5.5-2021 |
| •EN527-1 and EN527-2 | |
| •CE, FCC, and RoHS | |
| •REACH | |
| •ISTA 3A (Package) |

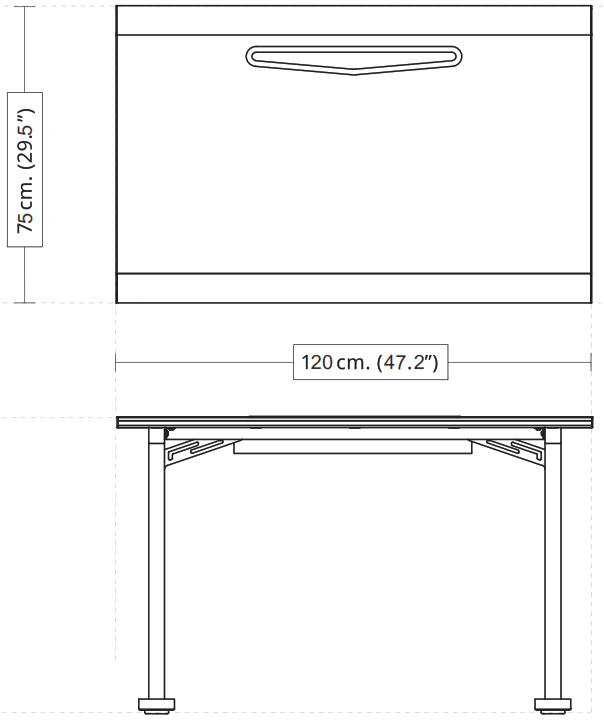

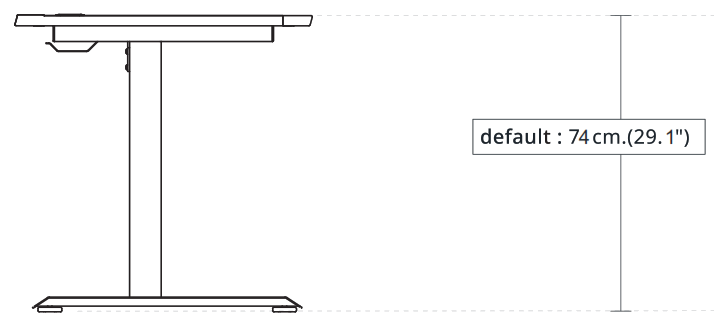

DESK DIMENSIONS

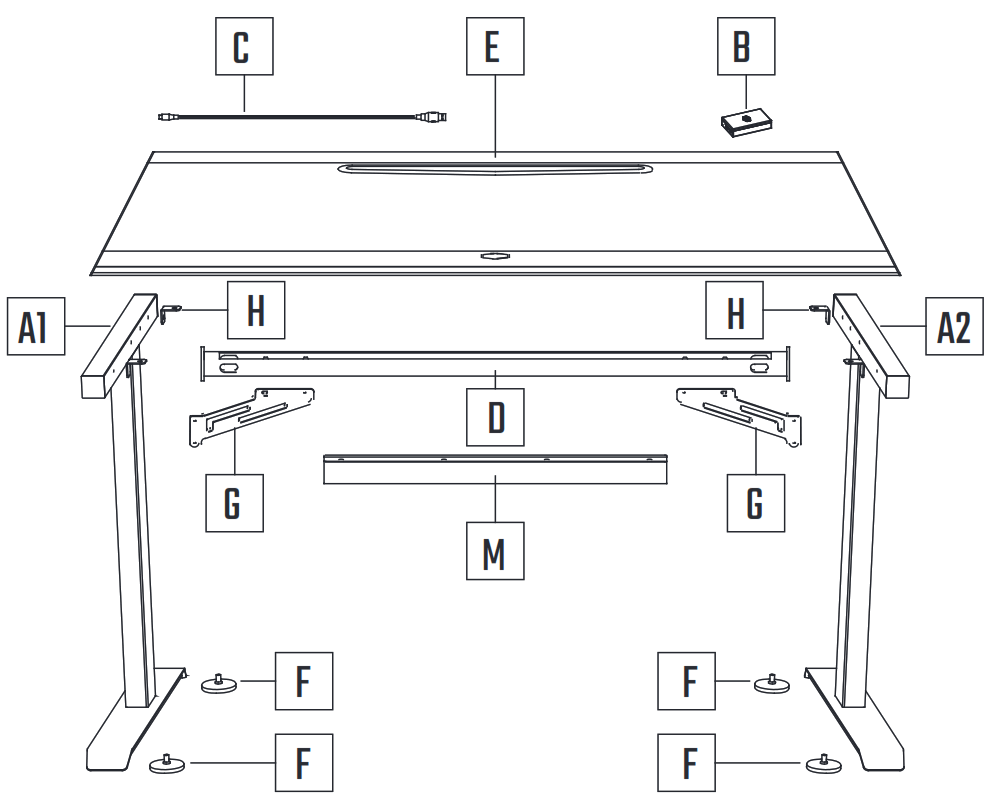

| FIGURE | NAME | QTY | ||

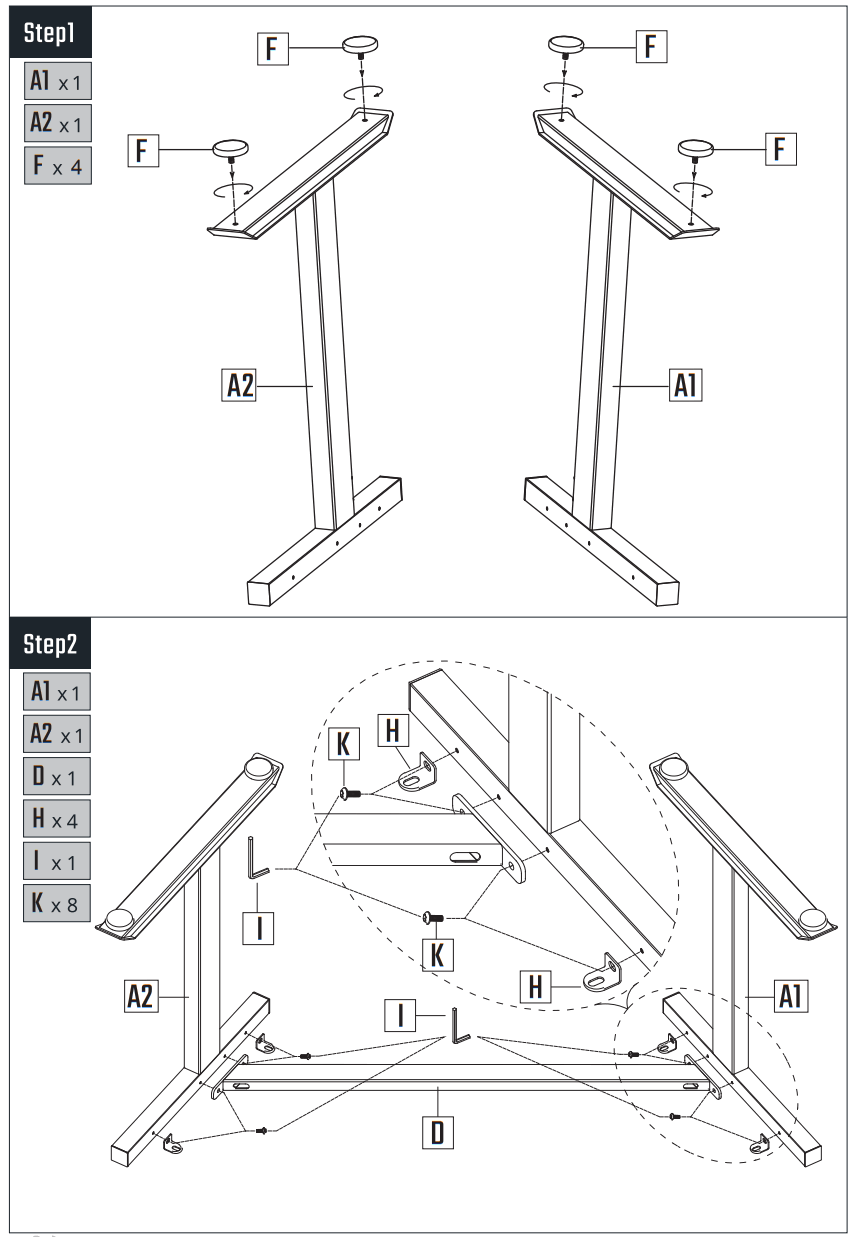

| A | Al |  | Left Leg | 1 |
| A2 |  | Right Leg | 1 | |
| B |  | LED Control Box | 1 | |
| C |  | Micro to USB Cable | 1 | |
| D |  | Connecting Frame | 1 | |
| E |  | Desktop | 1 | |
| F |  | Desk Knobs | 4 | |
| G |  | Support Parts | 2 | |
| H |  | Connecting Parts | 4 | |
| I |  | Hexagon Key | 1 | |

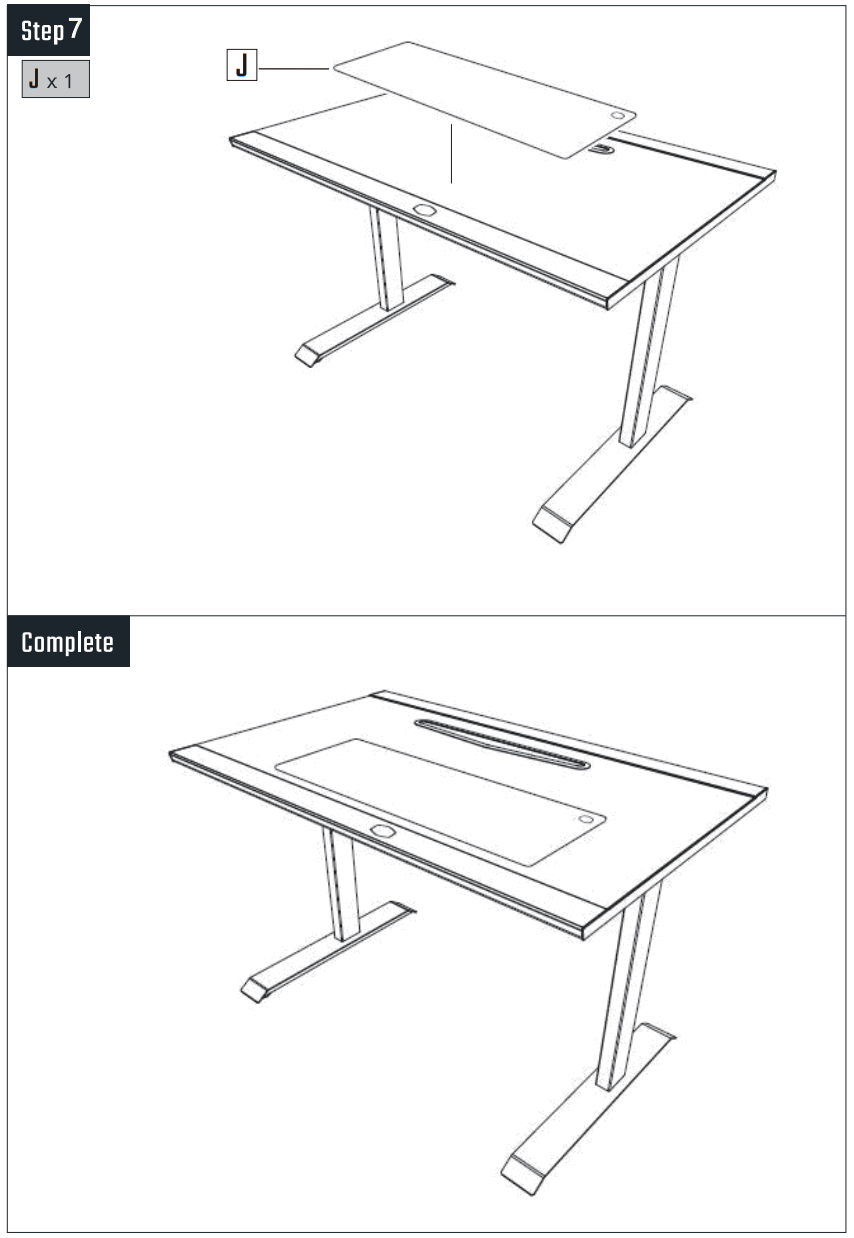

 | Mouse Mat | 1 | ||
| FIGURE | NAME | UPI | |
| K |  | M6 Screws | 16 |
| L |  | M8 Screws | 8 |
| M |  | Cable Management Tray | 1 |
 |  |
 |  |
Cooler Master provides a two-year limited hardware warranty for this device commencing from the date of purchase. Please keep your receipt for proof of purchase. The warranty offered covers normal use. Defects or damage that results from improper operation, misuse, abuse, accidents, or negligence of the product, which is not the fault of Cooler Master, will be excluded from warranty coverage. The warranty is voided by removal or alternation of products or parts identification labels.
- In the case of a conflict between the warranty provided by the country of point of sale and this manual, the warranty of the country of point of sale shall be the prevailing document.
- In the case of a malfunction of electronic components or the needs for purchasing accessories during the warranty period, please return to the original store of purchase.
 |  |  |
| www.coolermaster.com/warronty/ | www.coolermaster.com |
Quantity: 1 pc
NW/GW: 27.3/32.4 kg
CTN size: 129.5 x 82 x 15 cm
