Cooler Master Computer Case User Manual (+ PDF)

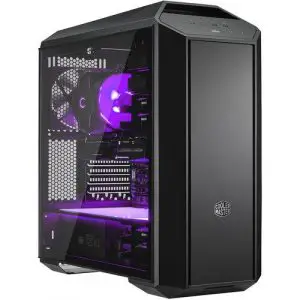

COOLER MASTER Computer Case

PACKAGE CONTENT

Item	Pics	Name	Q’ty	Used for

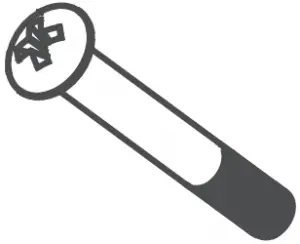

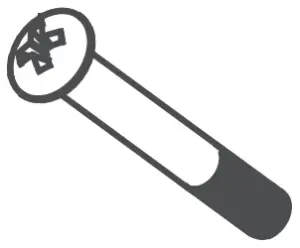

1		#6 – 32*32 Screw	12	360mm Radiator
2		#6 – 32*29 Screw	4	Front Fan

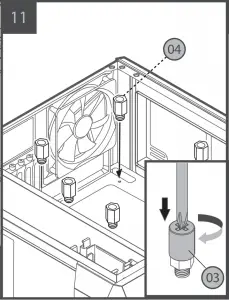

3		Stand-off Socket	1	M / B Tray
4		Stand-off	7	M / B Tray
5		#6 – 32*10 Screw	4	HOD Cage
6		#6 – 32* 5 Screw	15	PSU / Fan Cage / M / B Tray
7		Cleaning Cloth	1	Cleaning Glass
8		#6 – 32*6 Screw	2	HOD Cage
9		Cable Tie	10	Cable Management
10		M3*5 Screw	4	ODD
11		Fan Cage	1	Lock Bracket/360mm Radiator
12		M3*4 Screw	4	Fan Controller Bracket Screw
13		Ø3*6 Screw	4	Fan Controller Bracket Screw
14		Ø3*8 Screw	4	Fan Controller Bracket Screw

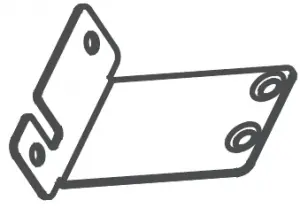

15		5.25″ Bridging Connector	2	Fan Controller Bracket
16		Ø5*10 Screw	8	Top Fan
17		M3*4 Screw	20	2.S”SSD

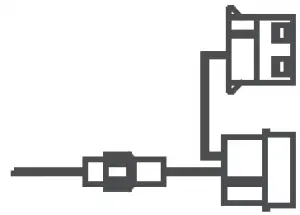

18		3 to 4Cable	3	Connect to Fan

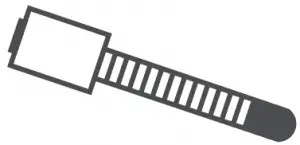

19		Velcro Cab le Management Strap	2	Cable Management

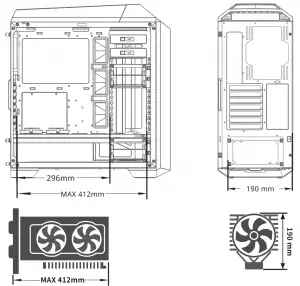

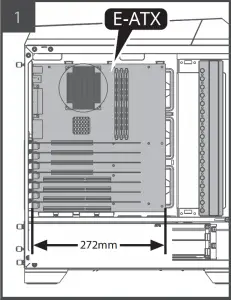

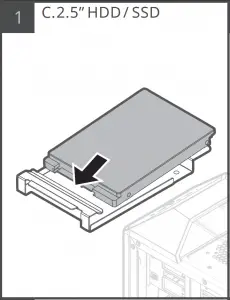

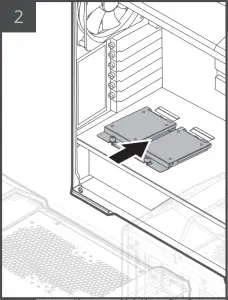

COMPATIBILITY

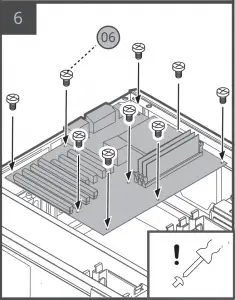

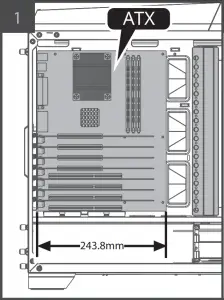

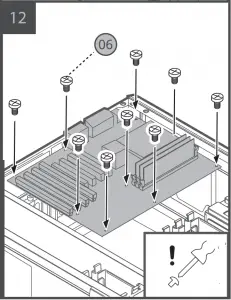

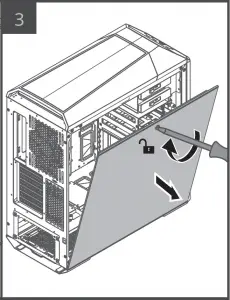

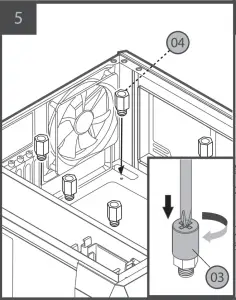

MOTHERBOARD INSTALLATION

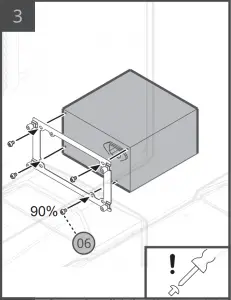

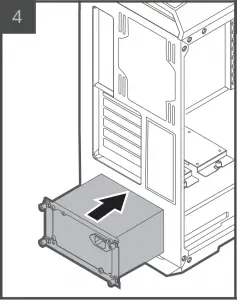

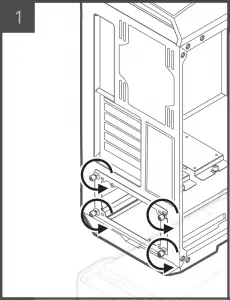

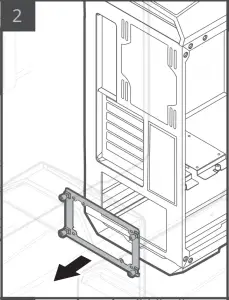

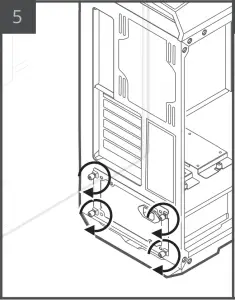

POWER SUPPLY INSTALLATION

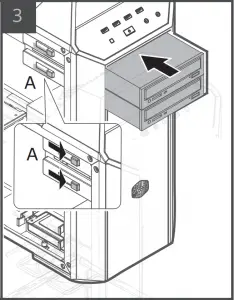

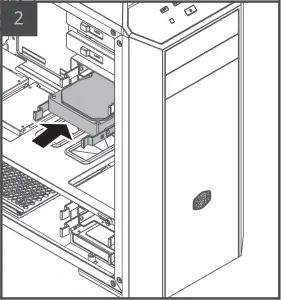

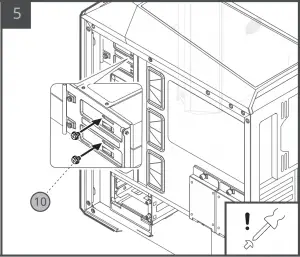

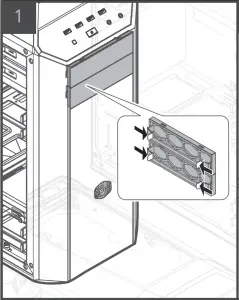

OPTICAL DRIVE INSTALLATION

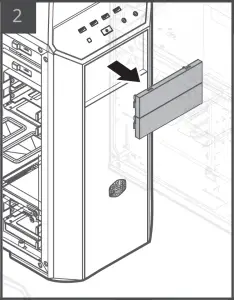

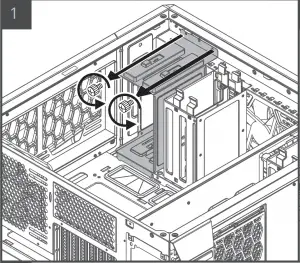

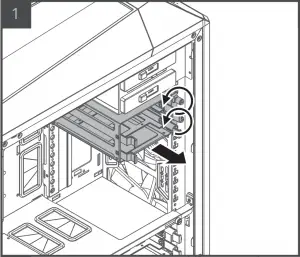

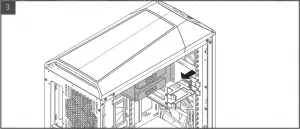

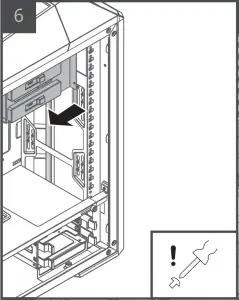

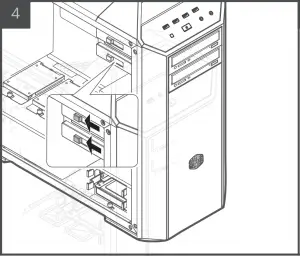

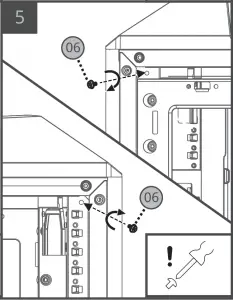

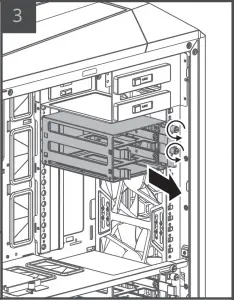

5.25” BAY REMOVAL

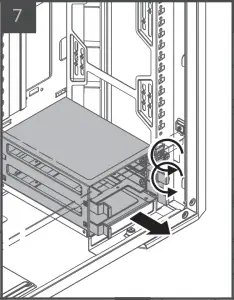

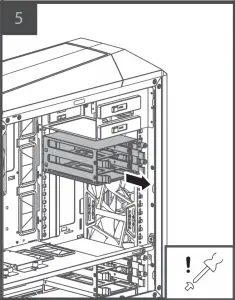

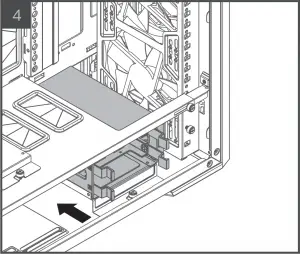

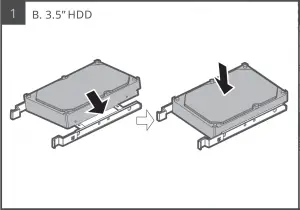

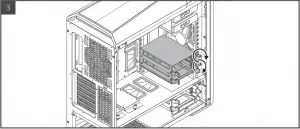

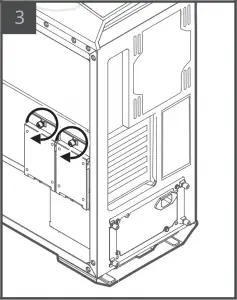

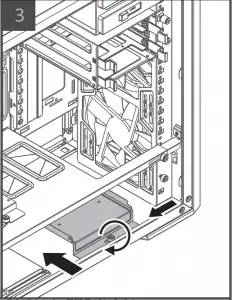

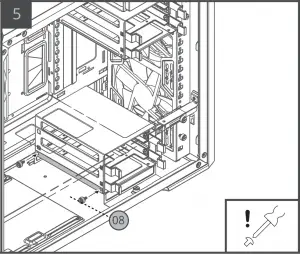

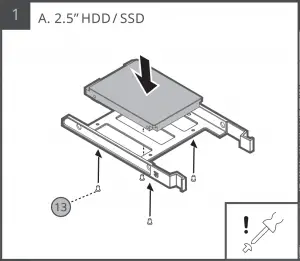

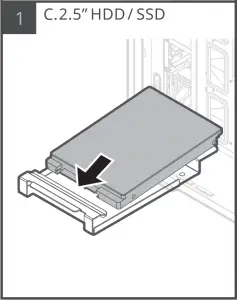

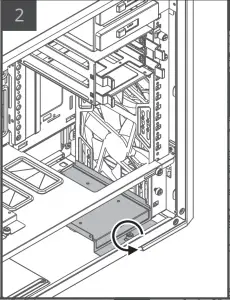

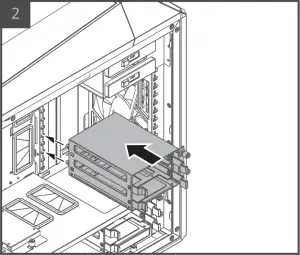

HARD DRIVE CAGE ADJUSTMENT

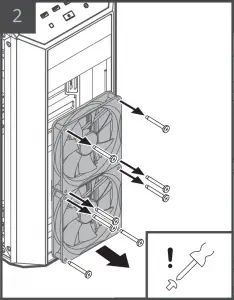

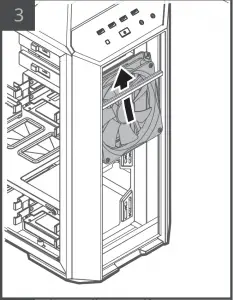

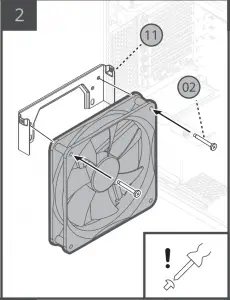

FRONT FAN INSTALLATION

TOP AND REAR FAN INSTALLATION

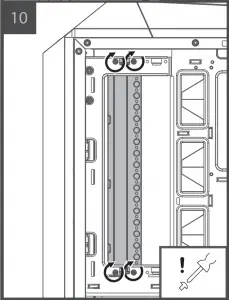

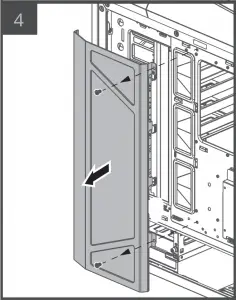

FRONT RADIATOR INSTALLATION (240/280mm)

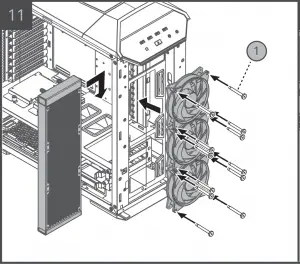

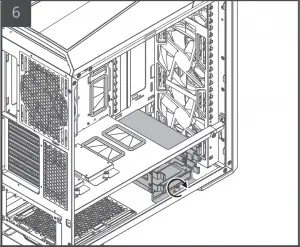

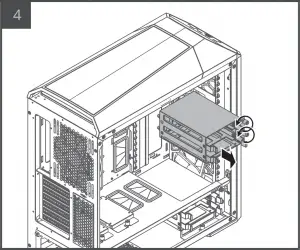

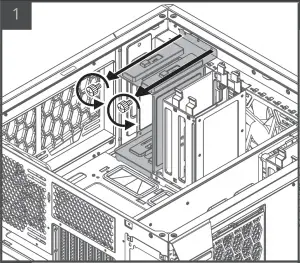

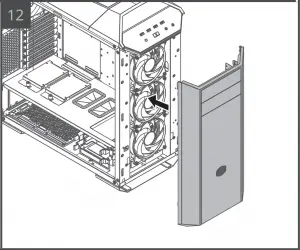

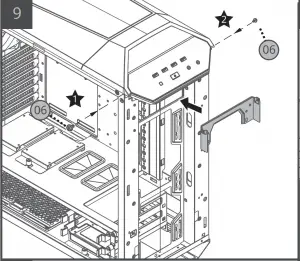

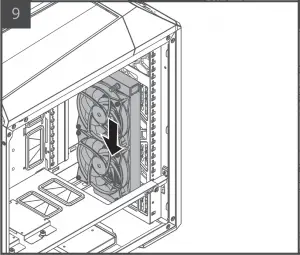

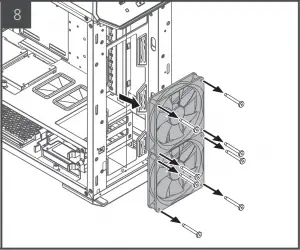

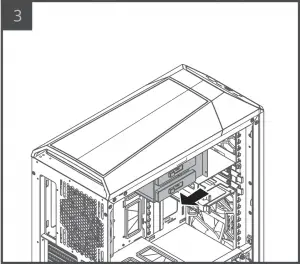

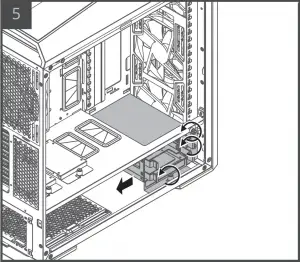

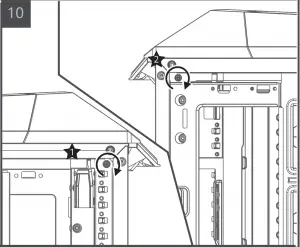

FRONT RADIATOR INSTALLATION (360mm)

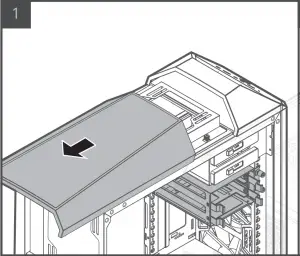

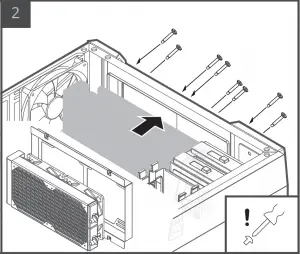

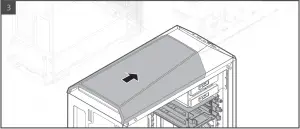

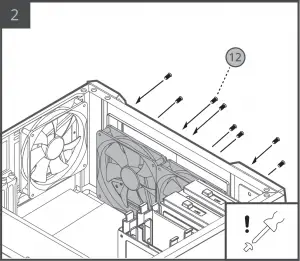

TOP RADIATOR INSTALLATION

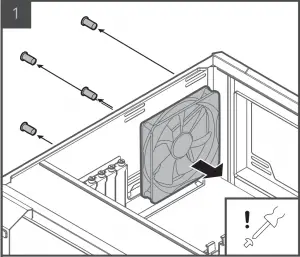

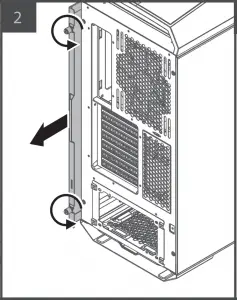

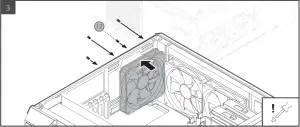

REAR RADIATOR INSTALLATION

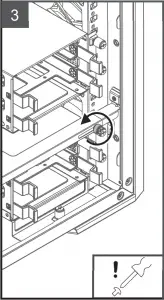

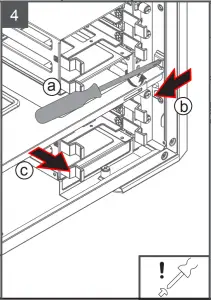

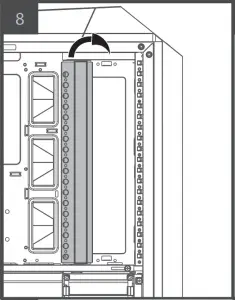

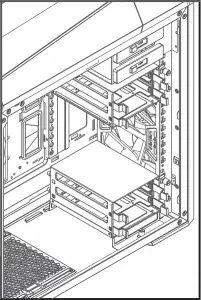

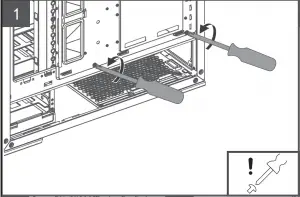

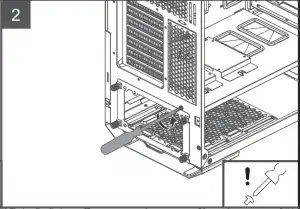

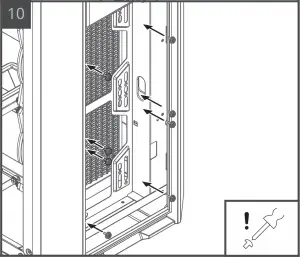

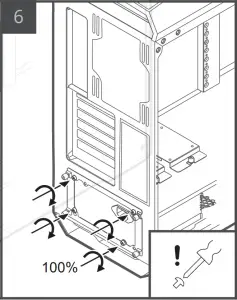

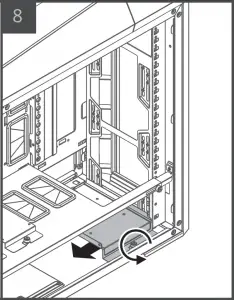

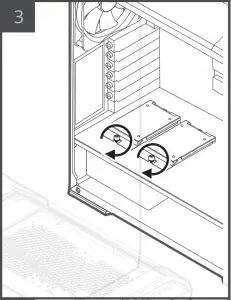

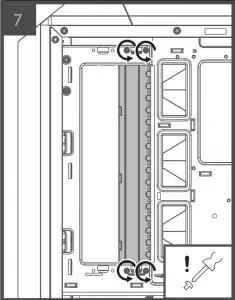

REMOVE PARTITION PLATE

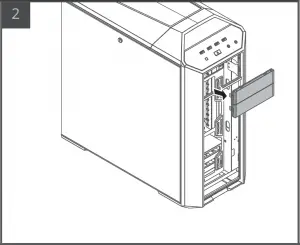

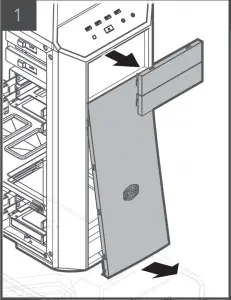

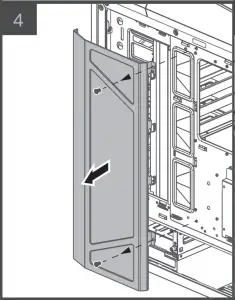

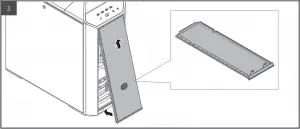

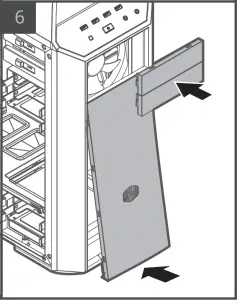

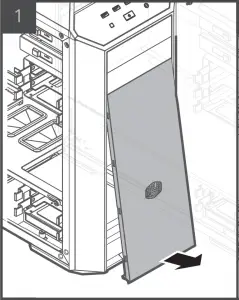

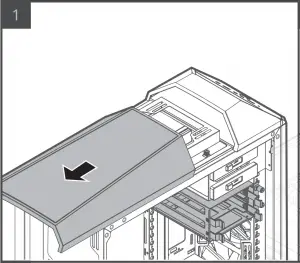

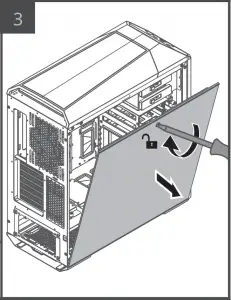

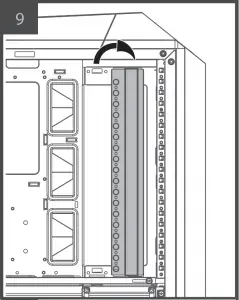

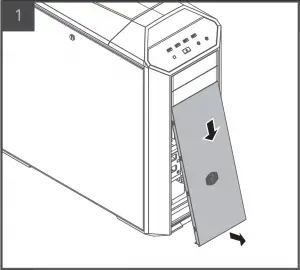

FRONT PANEL CHANGE

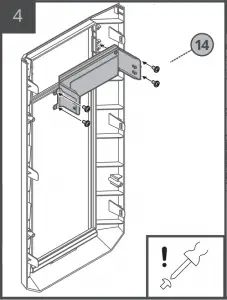

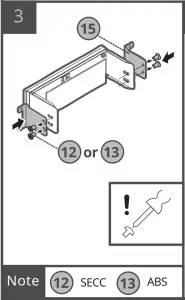

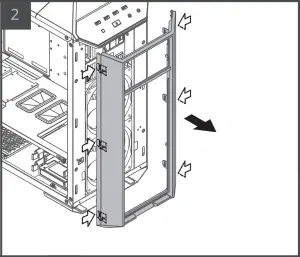

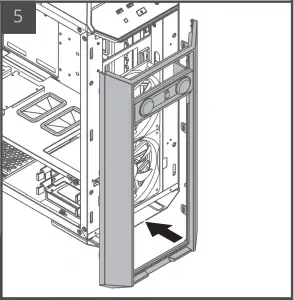

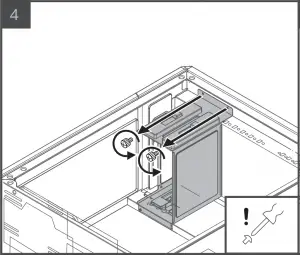

FAN CONTROLLER INSTALLTION
