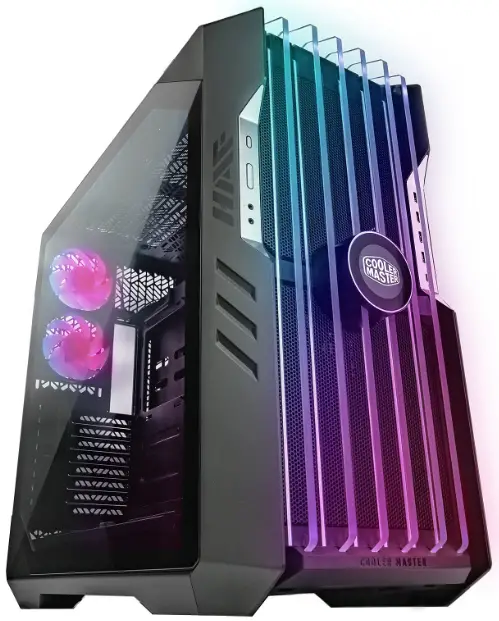

HAF 700 EVO High Airflow PC Case
User Manual
HAF 700 EVO High Airflow PC Case

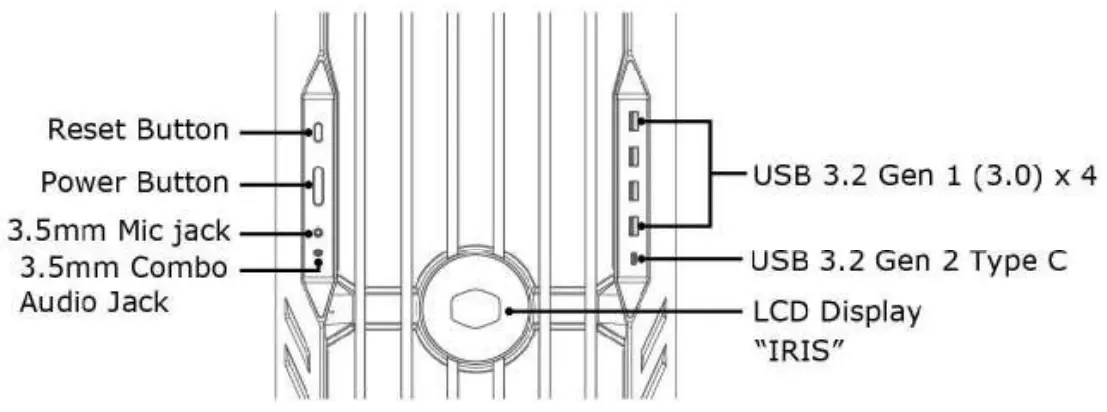

| Net Weight | 24.7kg / 54.51b | |
| Available Color | Titanium Grey, Black | |
| Materials | Exterior: Mesh, Steel, Plastic Left Side Panel: Tempered Glass, Steel, Plastic | |
| Dimensions (LxWxH) | 666 x 291 x 626mm / 26.22 x 11.46 x 24.65inch | |
| Motherboard Support | Mini*ITX, Micro-ATX, ATX, E-ATX ,SSI-CEB, SSI-EEB | |
| Expansion Slots | B | |
| Drive Bays | 2.5/3.5″ | 12 (4*H0D bracket, Ei*Screw+Rubber) |
| I/O Port | USB3.2 Gent x 1 U5B3.2 Gen1(3.0) x 4 3.5mm Headset Jack (Audio+Mic) x 1 3.5mm Mic Jack x 1 | |
| Pre-installed Fan(s) | Front | 200mm PWM Fan x 2 (Speed: 1000RPM / Connector: 4Pin PWM) |
| Rear | 120mm PWM ARGB Fan x 2 (Speed: 1800RPM / Connector: 4Pin PWM) | |
| Bottom radiator bracket | 120mm PWM ARGB Fan x 1 (Speed: 1800RPM / Connector: 4Pin PWM) | |

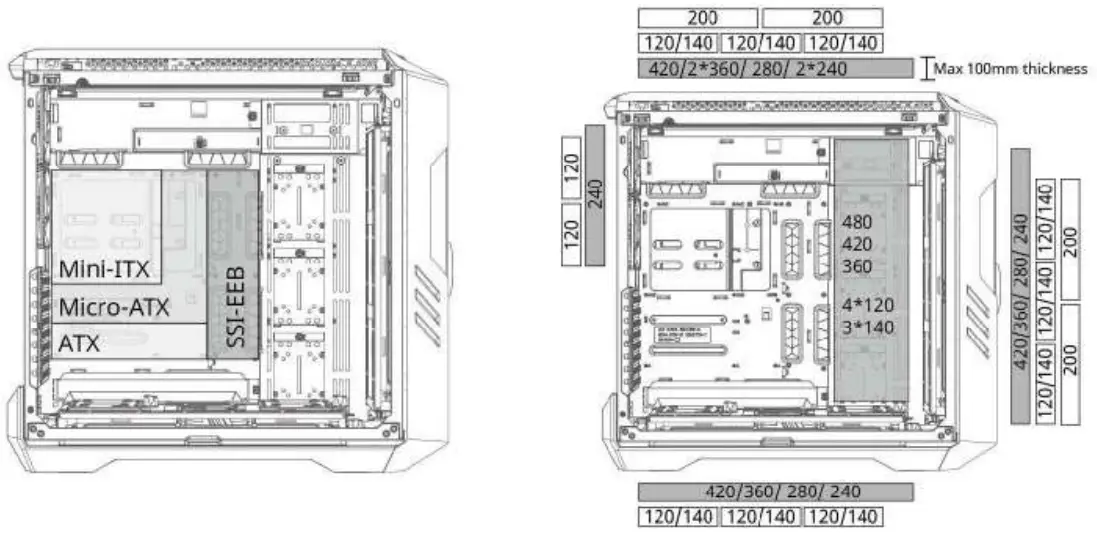

| Fan Support | Top | 2x200mm /3x140mm /6x120mm (remove 480mm radiator racket) |
| Front | 2x200mm | |
| Front radiator bracket | 3x140rnm /3x120mm (remove drive/pump bracket) | |
| Rear | 2x120mm | |
| Button radiator bracket | 3x140mni /3x120mm | |
| MB Tray / side mount | 3x140rnm /4x120mm (remove tempered glass mirror) | |
| Liquid Cooling Support | Front radiator bracket | 120mm, 140mm, 240mm, 280mm, 360mm, 420mm |
| Top | 2x120mm/240mm/360rnm, 1x140mm/280mm | |
| Rear | 120mm, 140mm | |
| Bottom radiator bracket | 120mm, 140mm, 240mm, 280mm, 360mm, 420mm | |
| MB Tray / side mount | 120rnm, 140mm, 240mm, 280mm, 360mm,420mm,480mm(remove Tempered glass mirror) | |

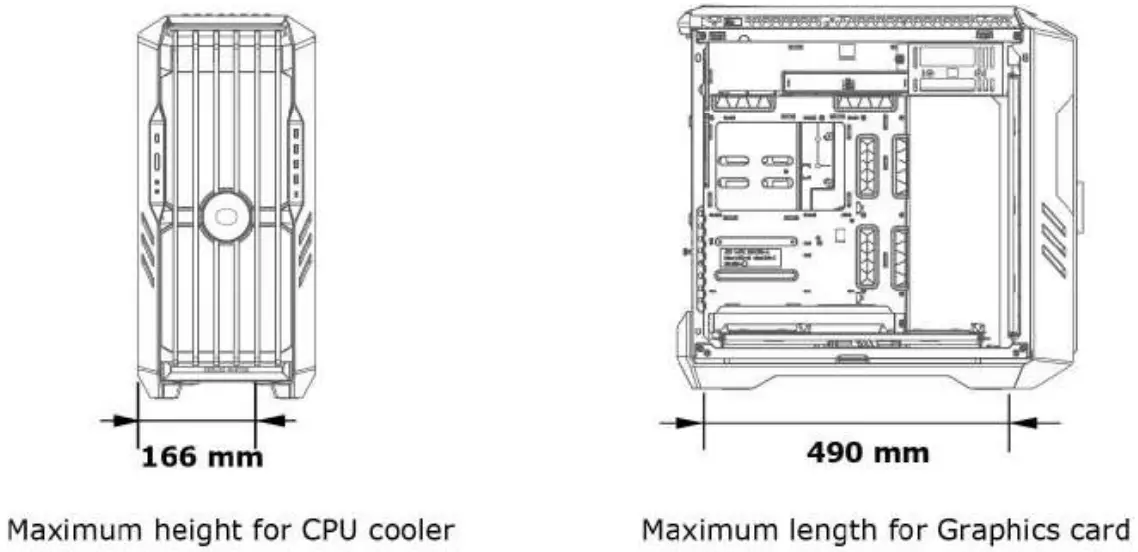

| Clearances | CPU Cooler | 166mm |
| GPU | 490mm | |
| Power Supply Support | ATX PSU | |
Package Content
| Fiume | Name | Qty | Used for | |
| 1 |  | B 6-32`6mrn screw | 23 | Motherboard & other |
| 2 |  | A6-321110mm screw | 4 | Installing 3.5″ HDD |
| 3 |  | m3″4MM screw | 16 | SW / locking In SW pockets |
| 4 |  | HDD screw | 32 | Installing 3.S’ drives and Tempered glass mirror toollessly |
| 5 |  | SSD screw | 32 | Installing SSD toollessly |
| 6 |  | Stard off | 3 | Motherboard tray mATX/SSI-EEB |
| 7 |  | Stard-off socket | 1 | Motherboard stand-off installation |
| 8 |  | ipS*10mm screw | 12 | Installing fans |
| 9 |  | rp3s7mm screw | 1 | Locking Add-in cards with screw |
| 10 |  | Cleaning Cloth | 1 | Cleaning glass |
| 11 |  | Cable Tie | 10 | Cable management |
| 12 |  | VA cro Tie | 3 | Cable management |
| 13 |  | Universal Vertical Graphics Card Holder Kit V2 (PCIe4.0) | 1 | For mounting Graphics card vertically |
| 14 |  | Drive / Pump Bracket | 1 | Installing 3.5″ HDD/SSD/Pump |
Compatibility

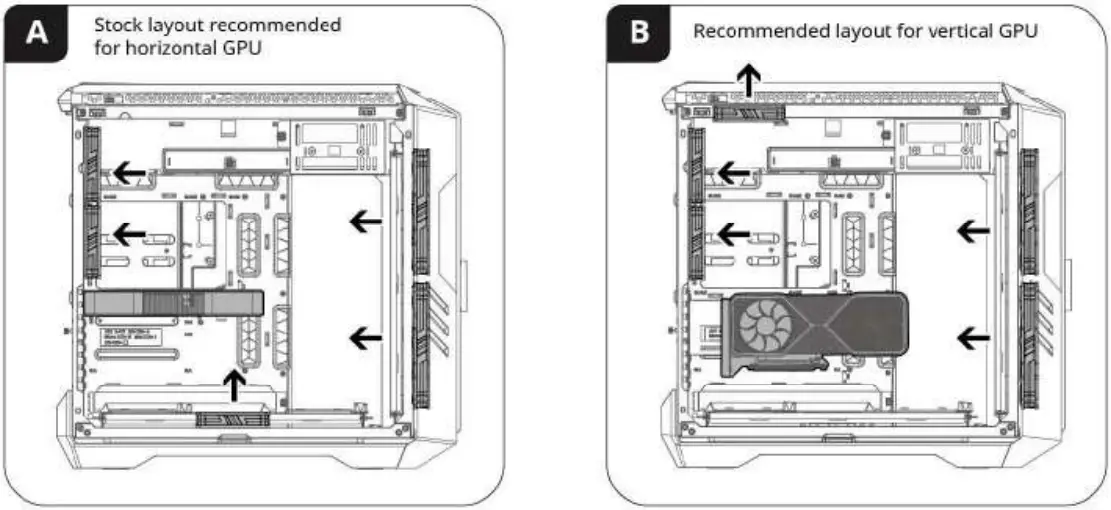

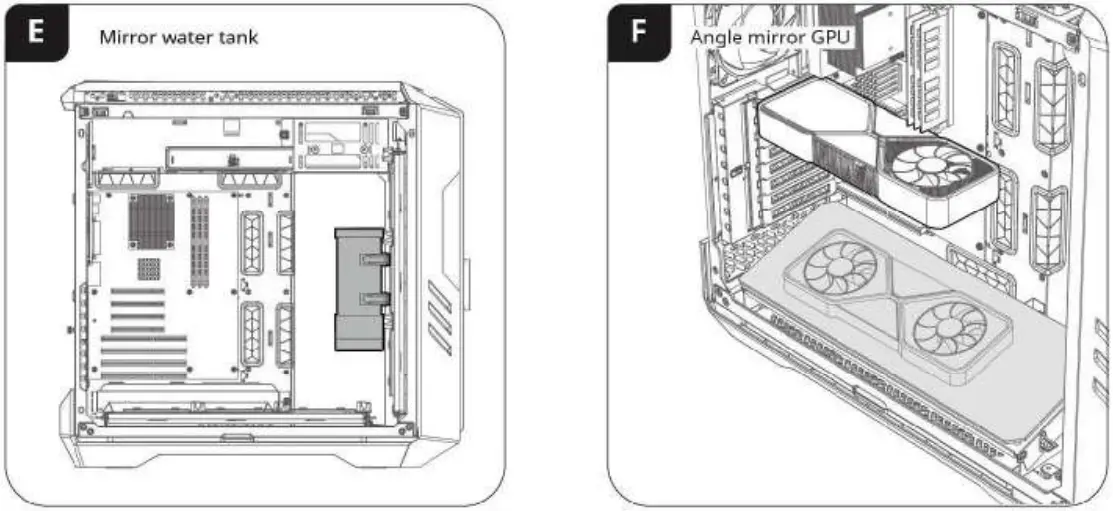

Suggested Builds
Installation Guide

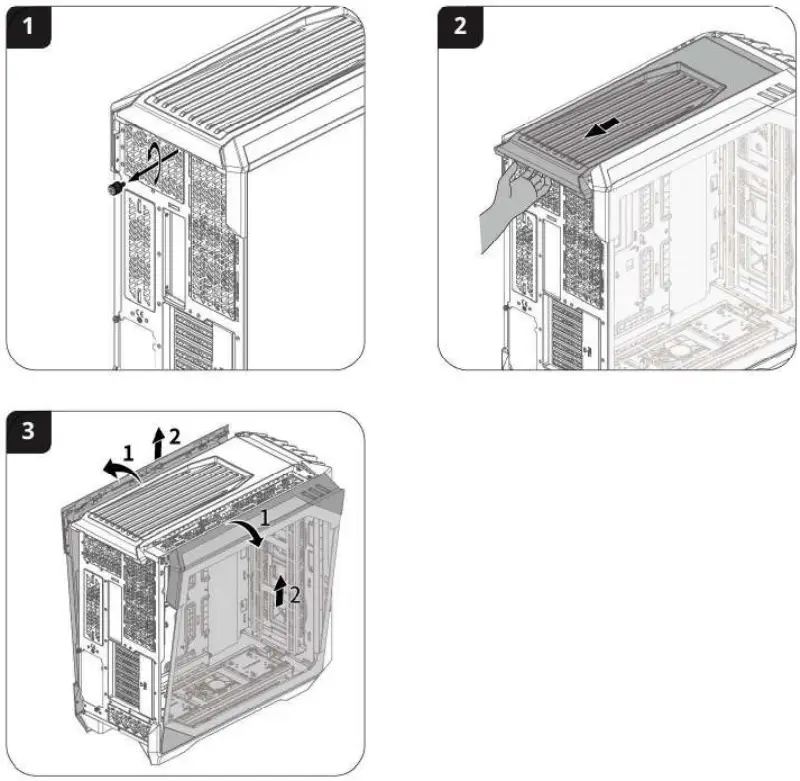

1. Remove side panels

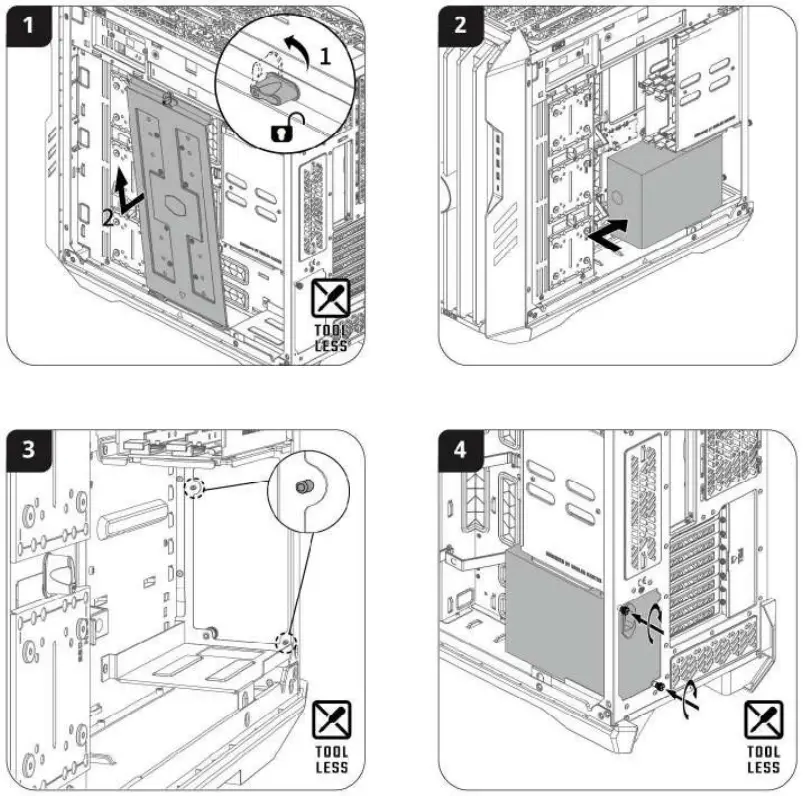

2. Install power supply

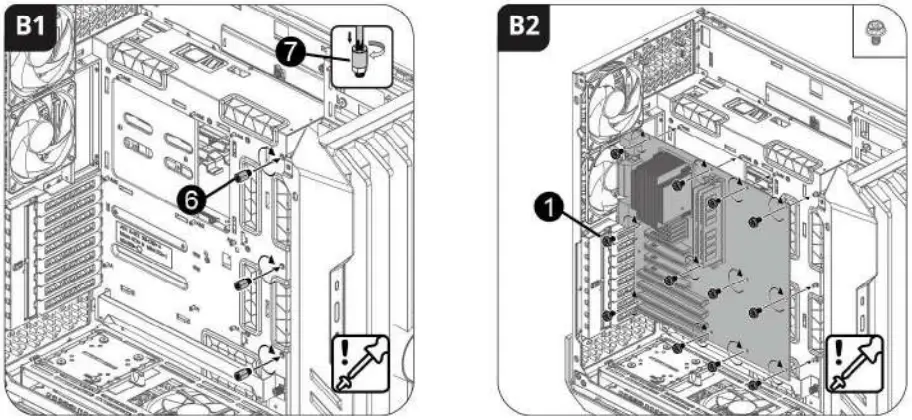

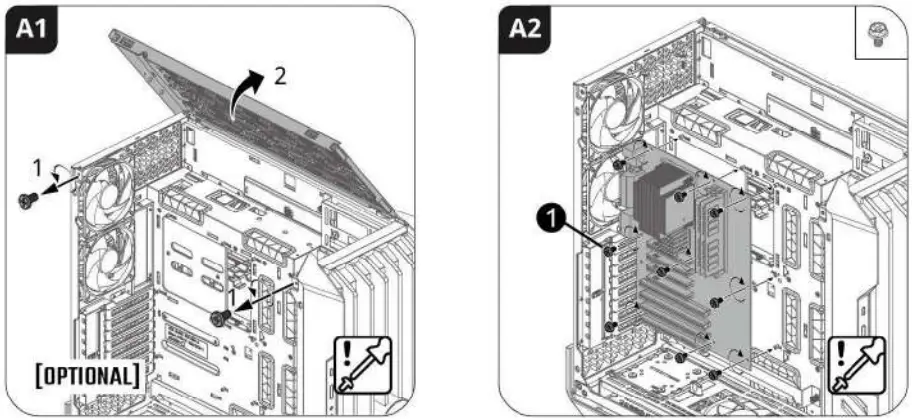

3. Install motherboard
A. Installing ATX motherboard
B. Installing SSI-EEB motherboard

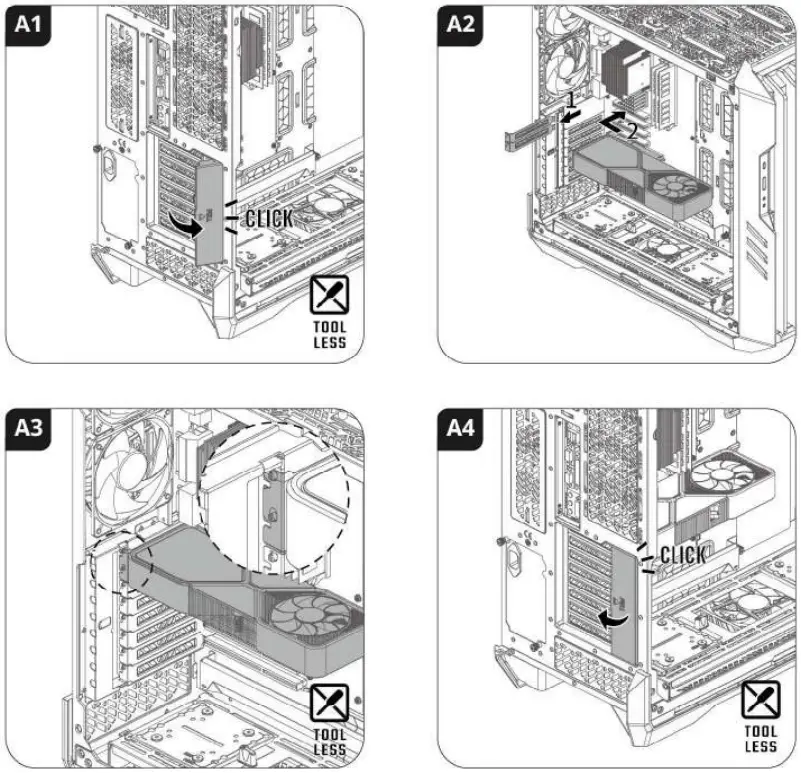

4. Install GPU
A. Regular position

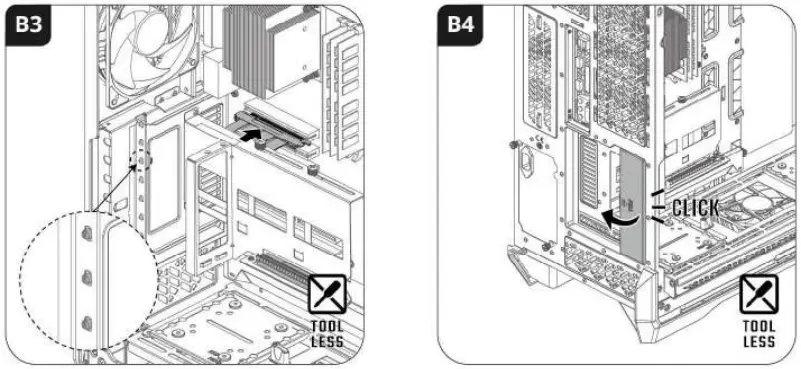

B. Vertical GPU Holder
For locking with screws

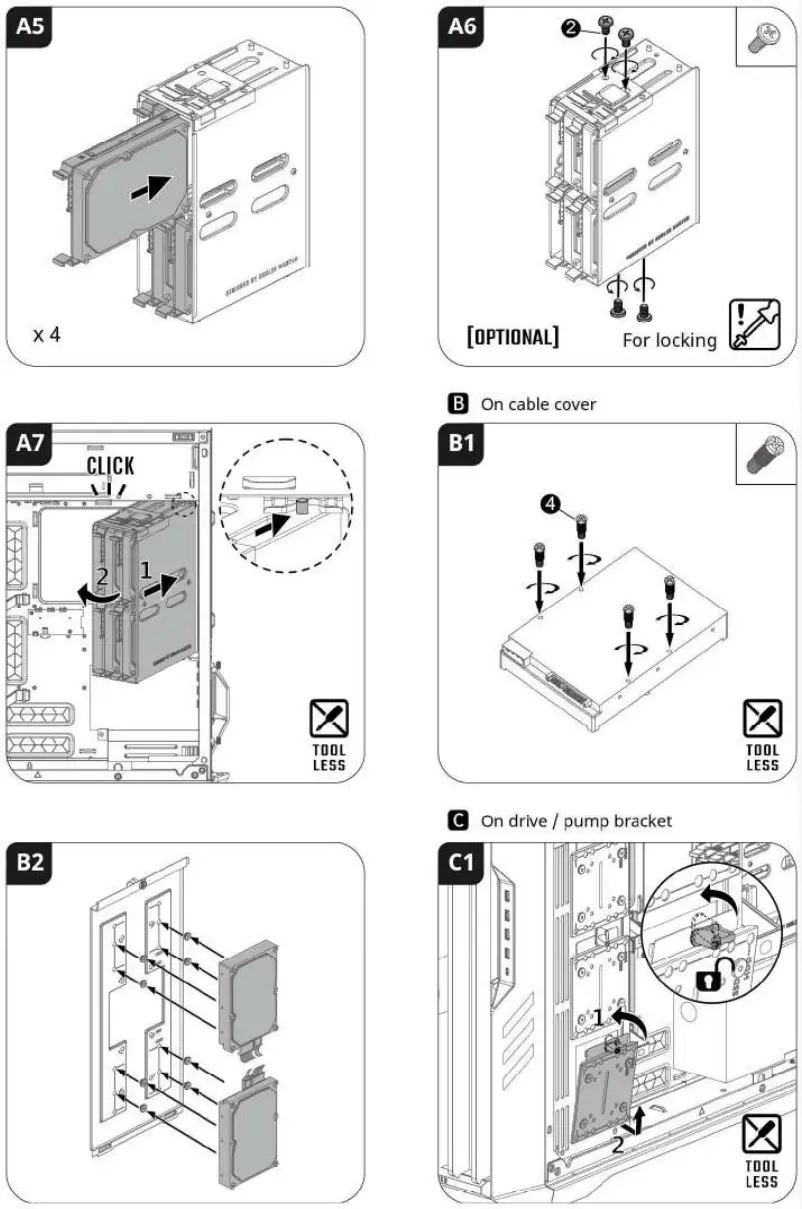

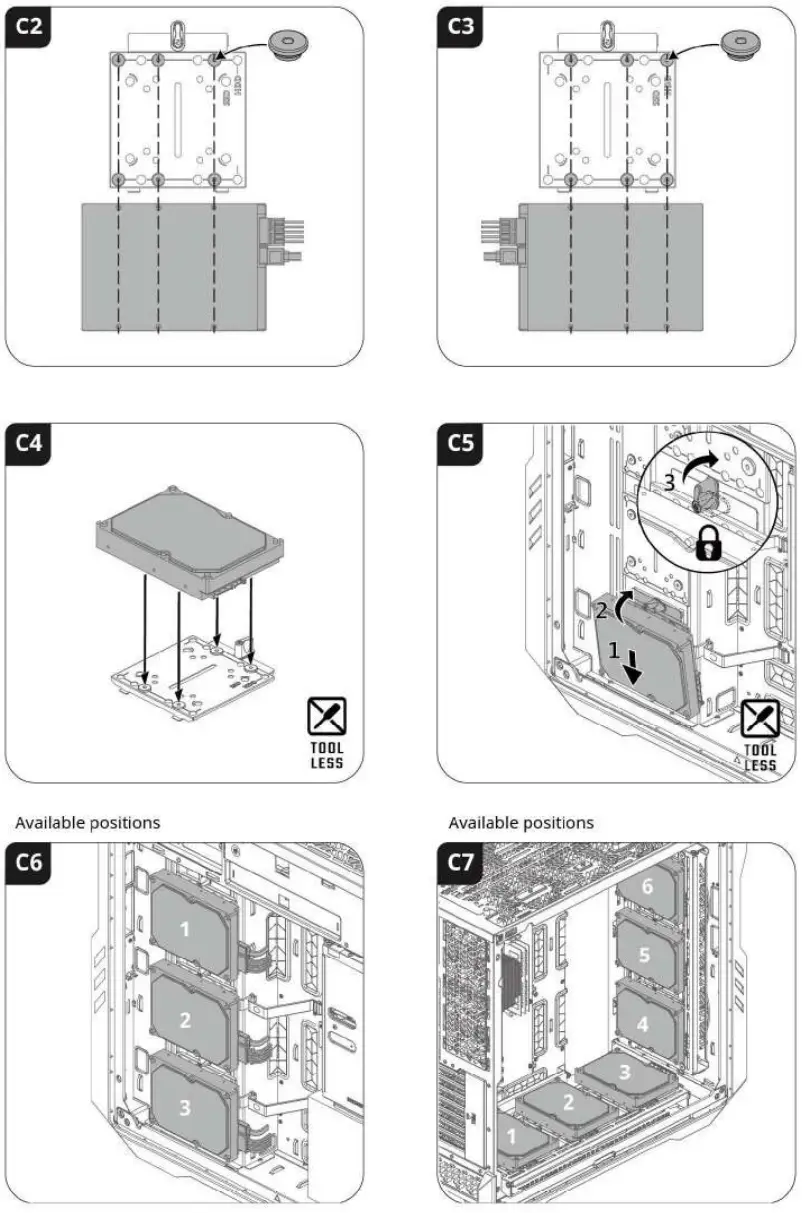

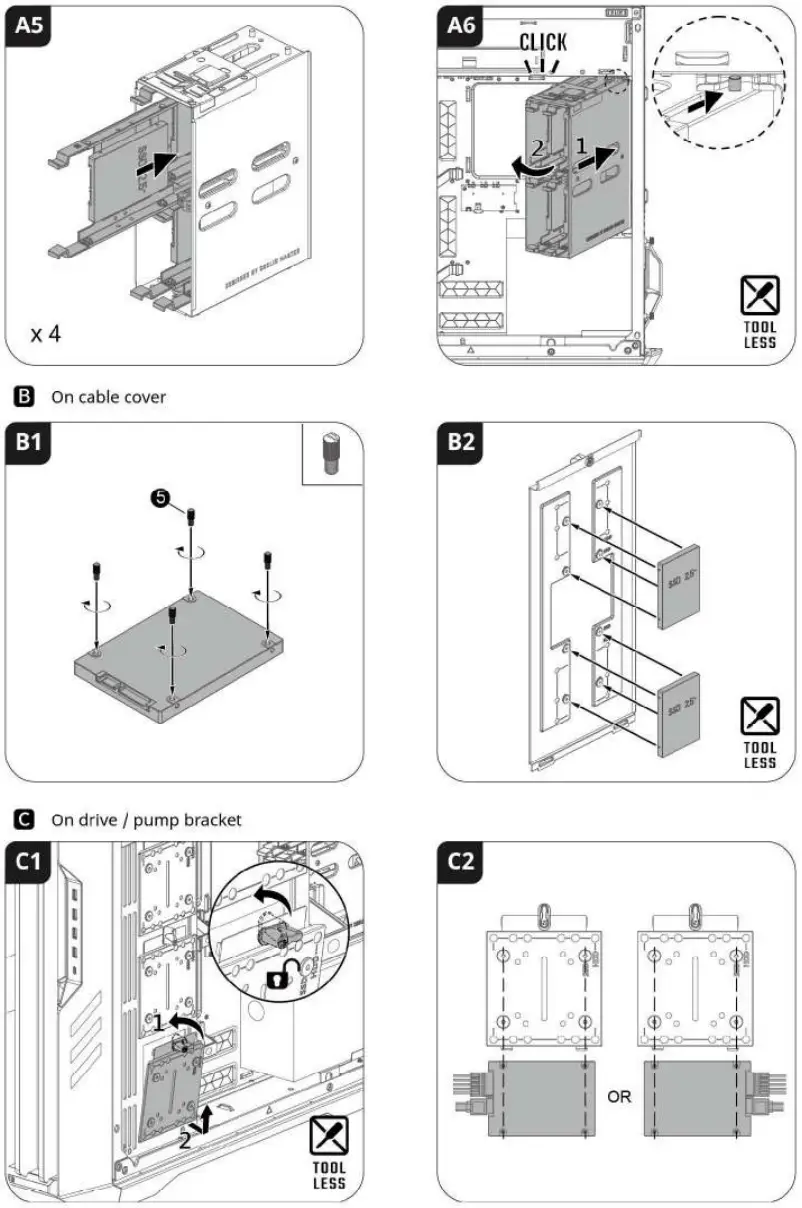

5. Install 3.5″ drives
A. In drive cage

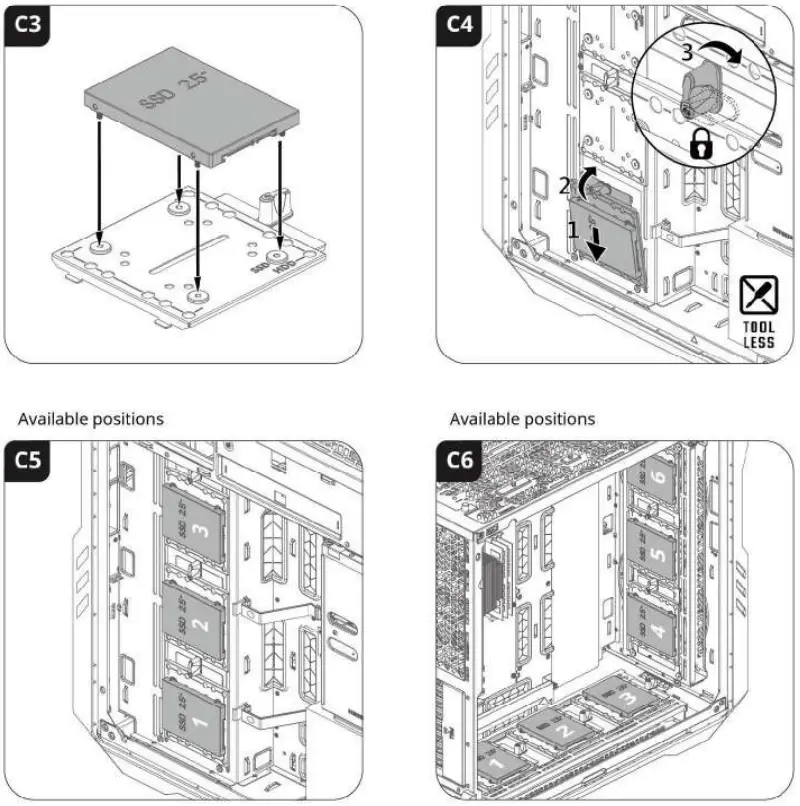

6. Install 2.5″ drives

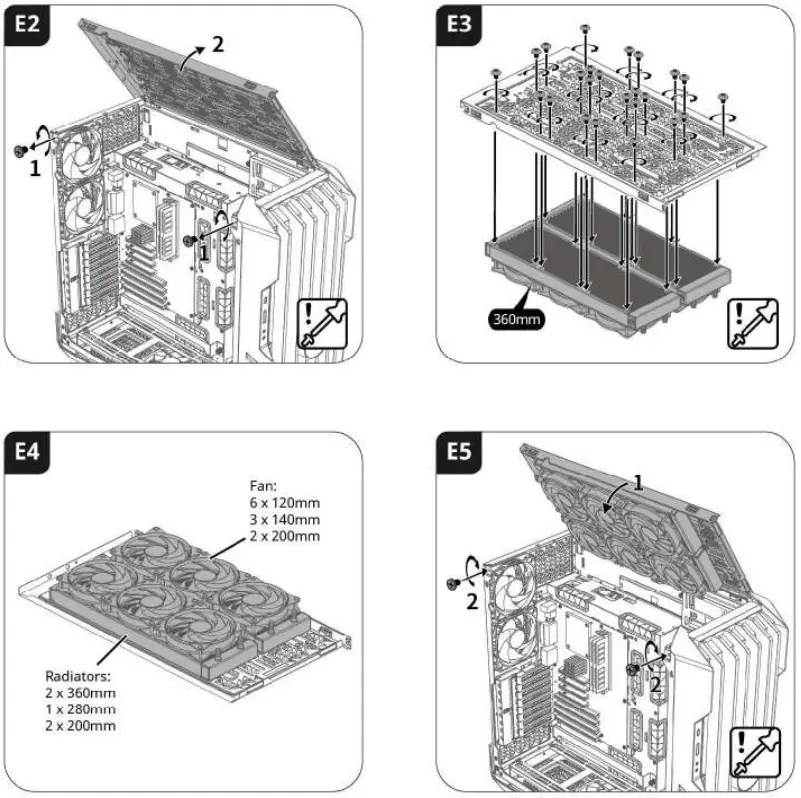

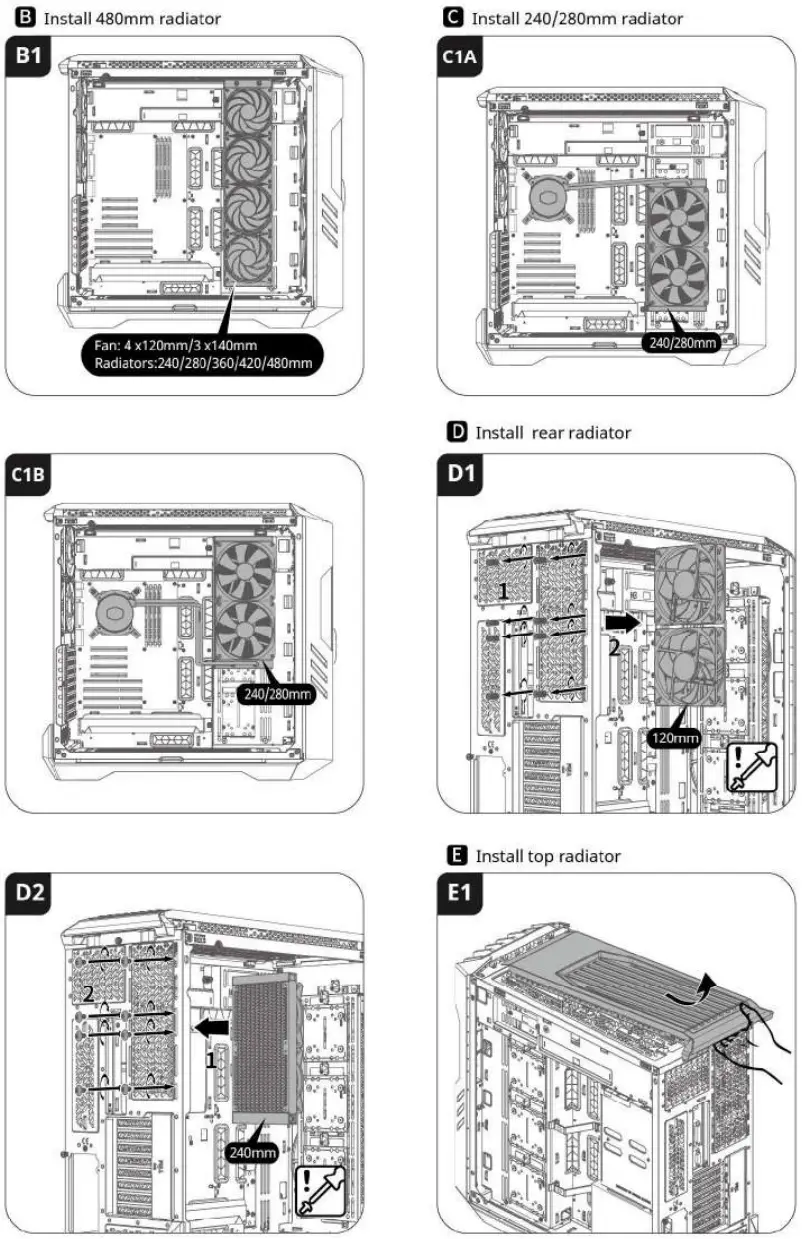

7. Install case fans and radiators

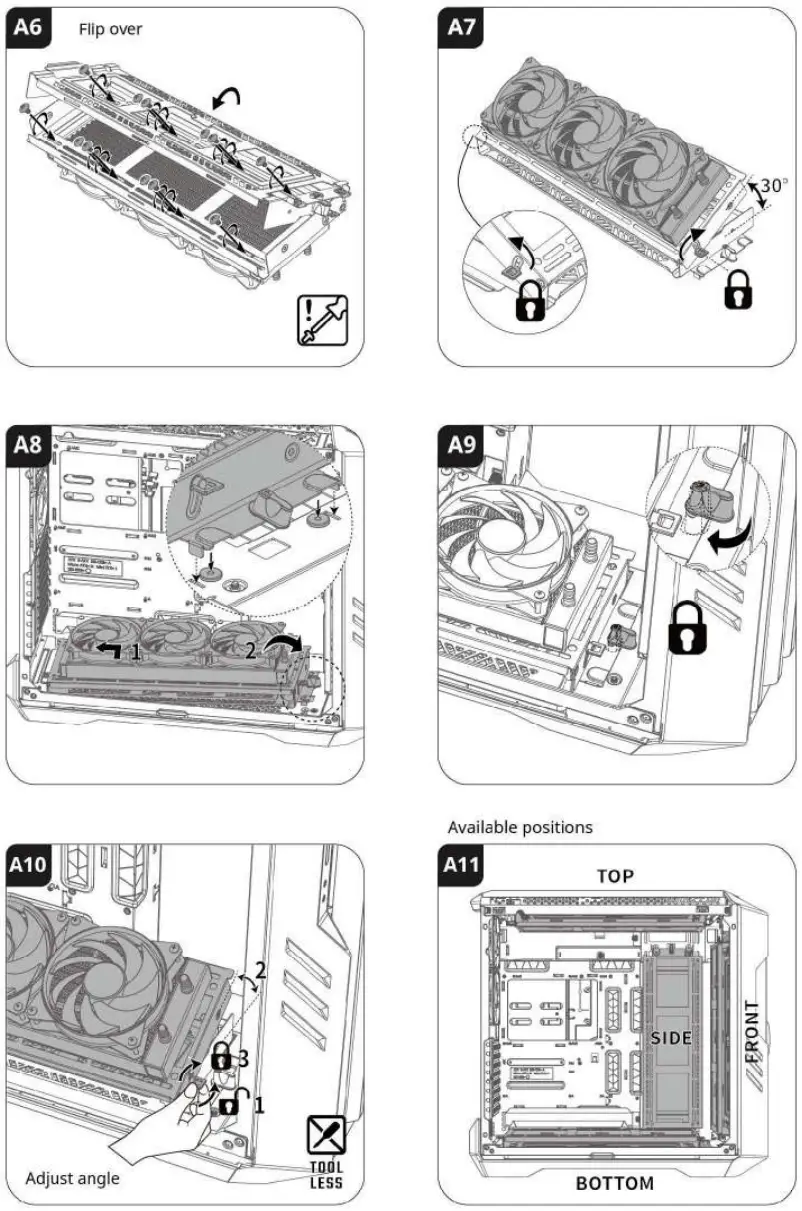

A. Rotatable radiator bracket

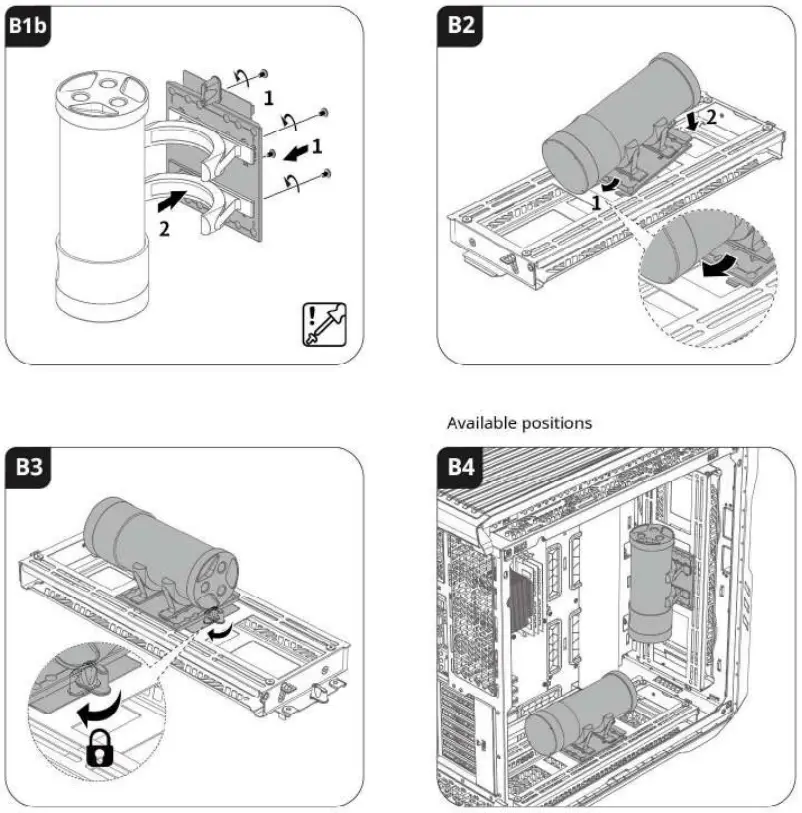

8. Pump Installation

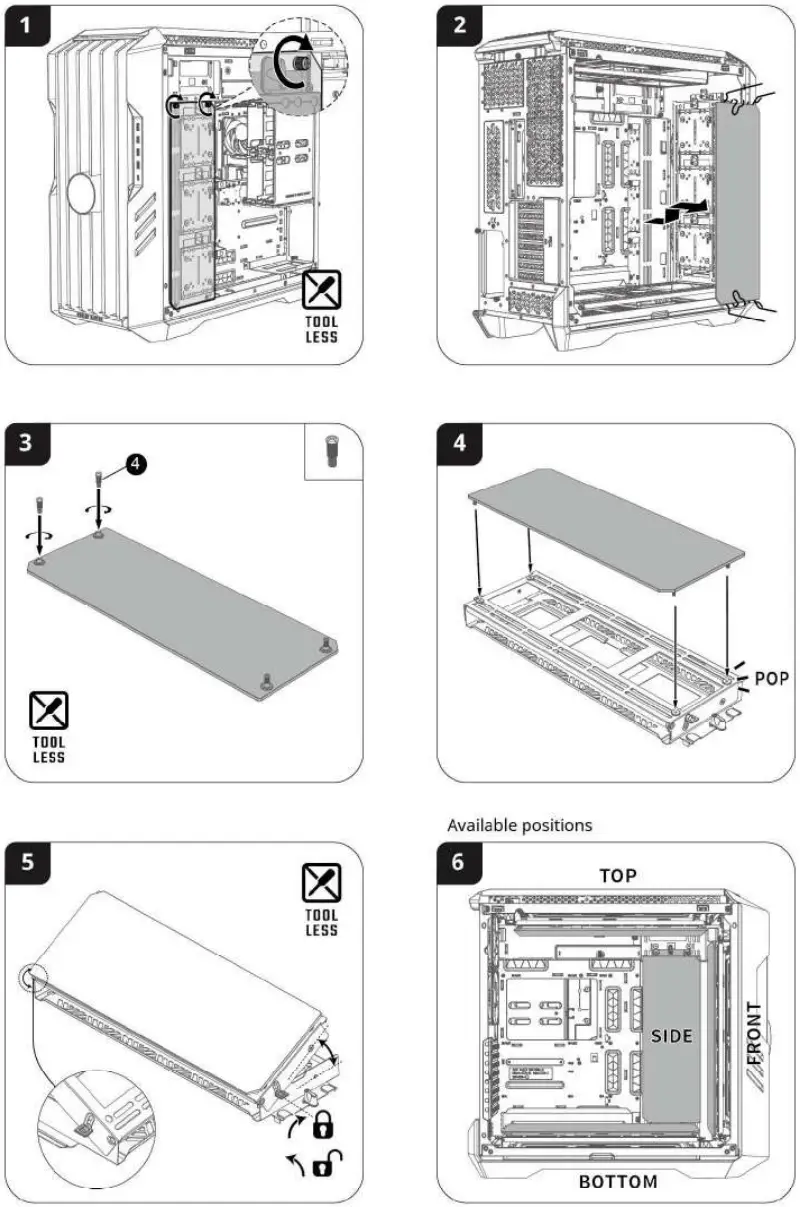

9. Install Infinity Mirror

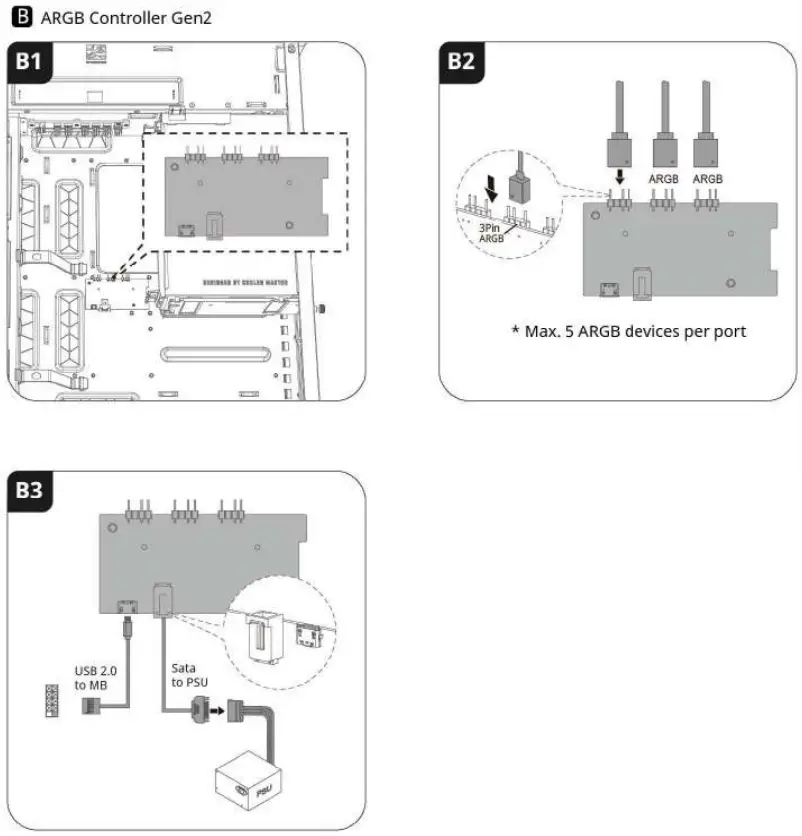

10. Connect IRIS display and ARGB Gen 2 controller

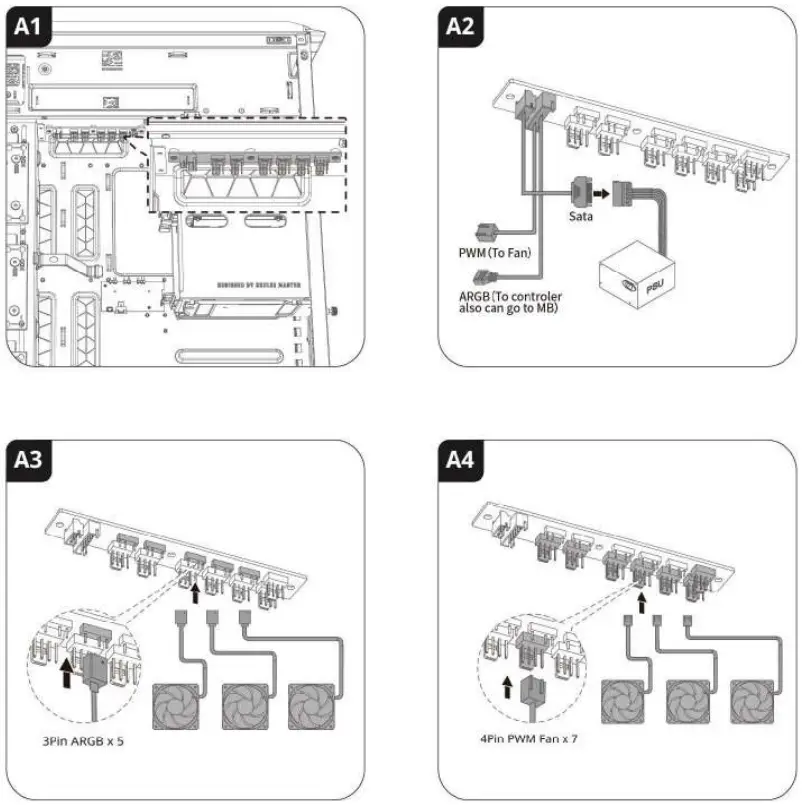

A. Fan/ARGB Hub
Download Master Plus: https://masterplus.coolermaster.com
Master Pius software for controlling ARGB gen 2 lighting and Iris LCD display.

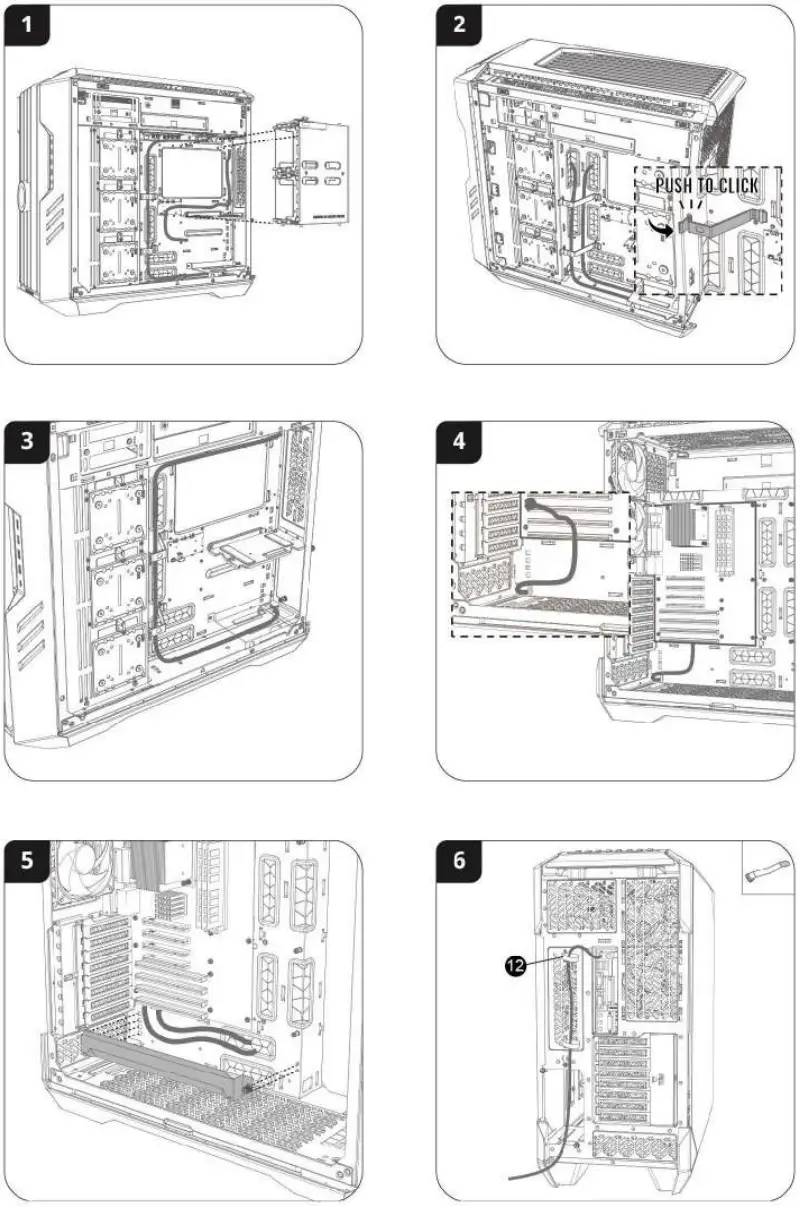

11. Cable Management

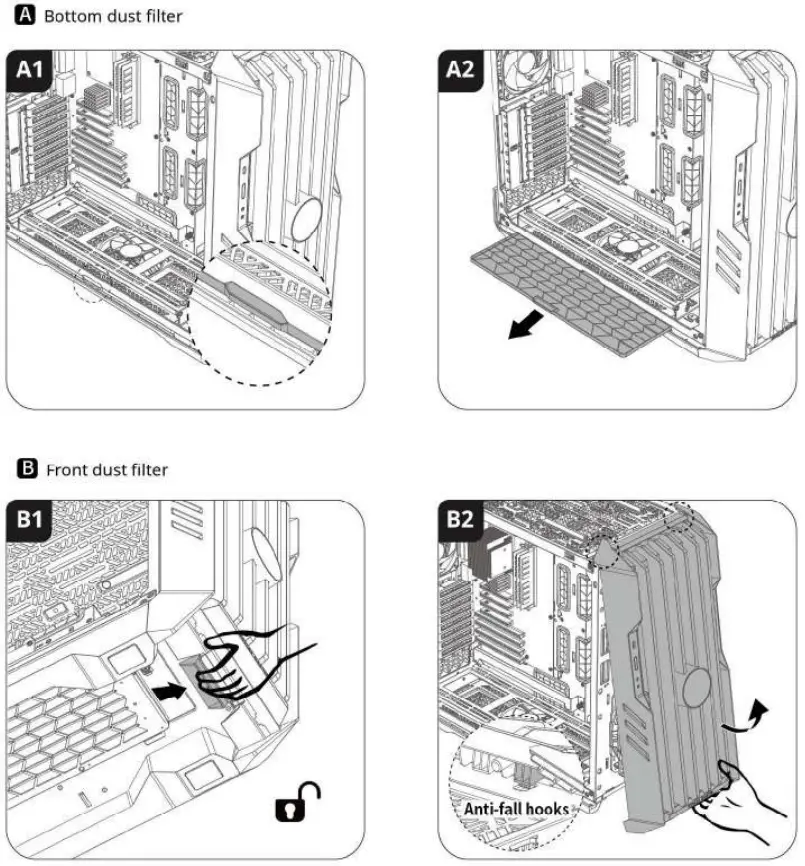

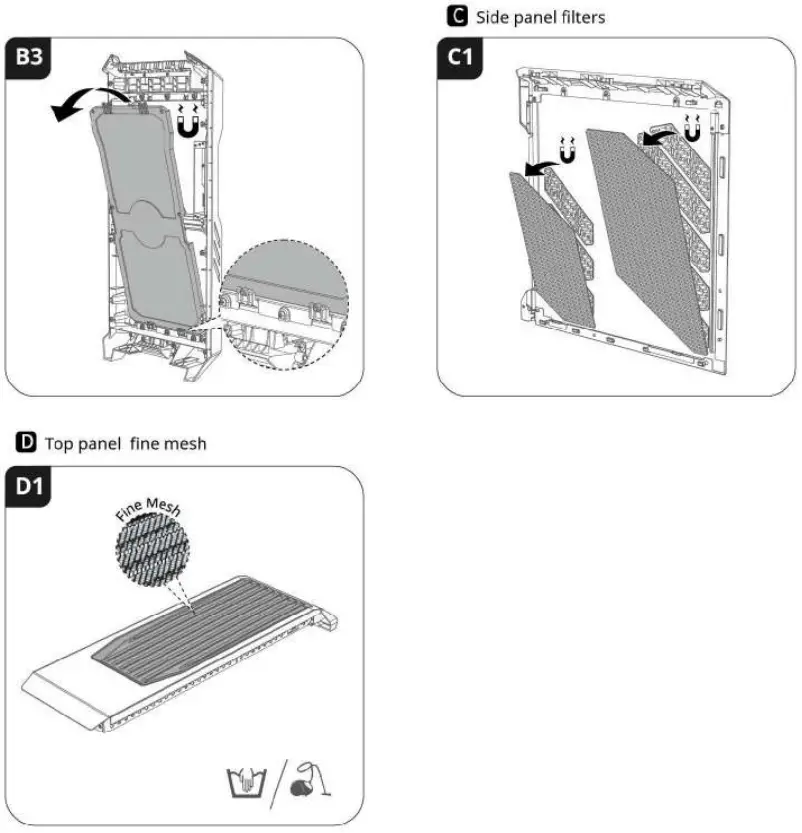

12. Cleaning dust filters
13. Completing installation
