5000D/5000D AIRFLOW
5000D/5000D AIRFLOW
Mid-Tower PC Case

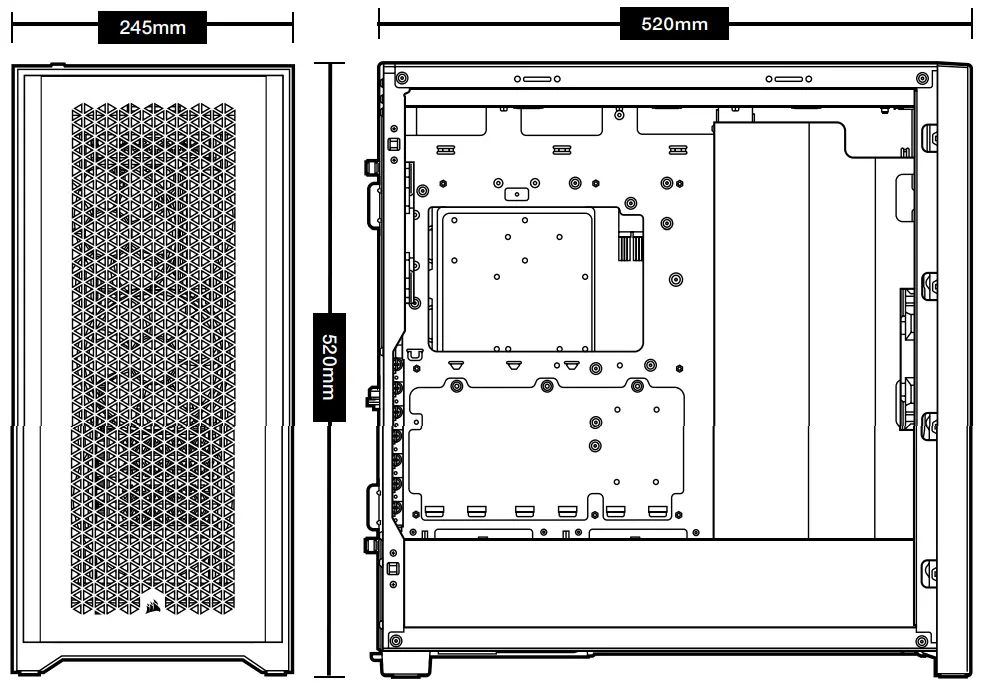

CASE SPECIFICATIONS
Length ……………………………………………………………………………..520mm
Width ……………………………………………………………………………….245mm
Height ………………………………………………………………………………520mm
Maximum GPU length ……………………………………………………..370mm
Maximum CPU height ………………………………………………………170mm
Maximum PSU length………………………………………………………..180mm
Fan locations:
Front ……………….. 3x 120mm / 2x 140mm (1x 120mm included)
Top ………………….3x 120mm / 2x 140mm
Rear …………………. 120mm (1x 120mm included)
Motherboard tray …………3x (120mm) (requires removal of cable cover)
Radiator compatibility:
Front ……………………………….. 360mm / 280mm*
Top ………………………………….. 360mm / 280mm
Rear …………………………………..120mm
Motherboard tray …………….. 360mm*
*Motherboard tray and front 360mm locations can not be used at the same time when installing radiators.
ACCESSORY KIT CONTENTS
CASE FEATURES
| A — TEMPERED GLASS SIDE PANEL | E — 2x HDD TRAYS |
| B — 4x DUST FILTERS | F — SOLID SIDE PANEL |
| C — 2x 120MM FANS | G — FRONT BEZEL |
| D — 3x REMOVABLE SSD TRAYS | H — MOTHERBOARD TRAY FAN BRACKET |

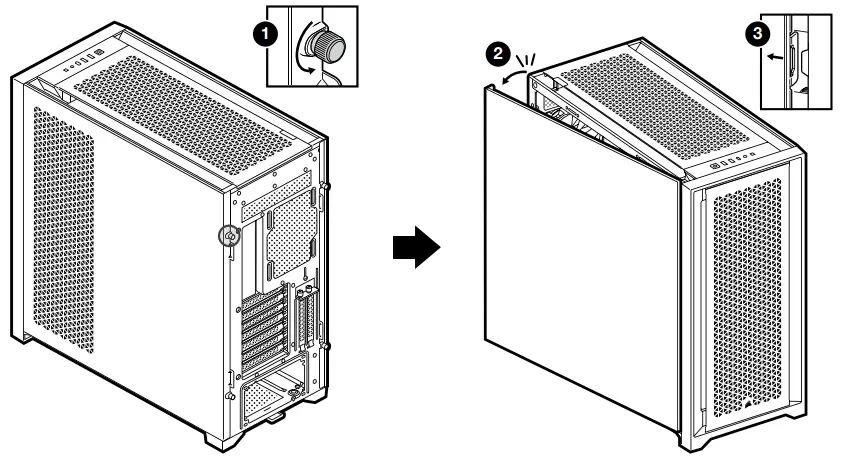

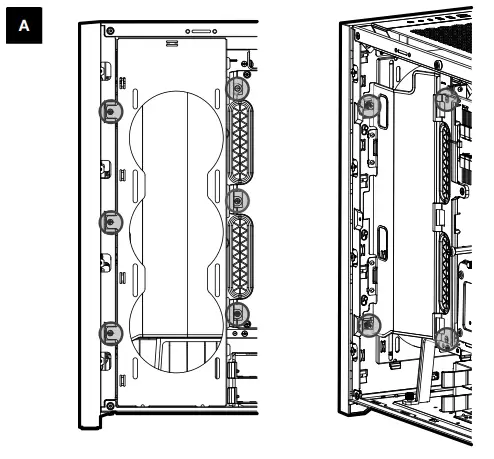

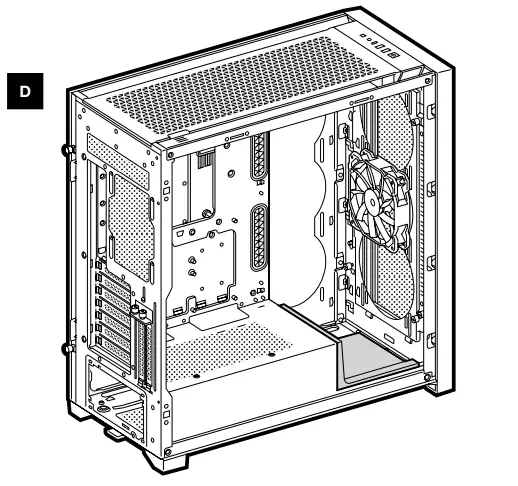

REMOVING THE SIDE PANELS

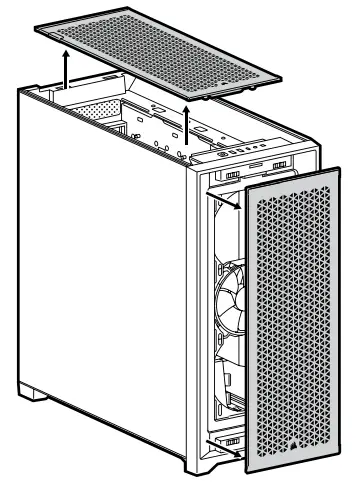

REMOVING THE FRONT AND TOP BEZEL

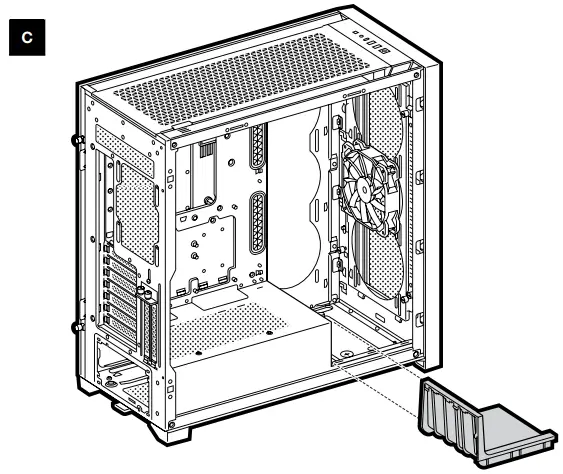

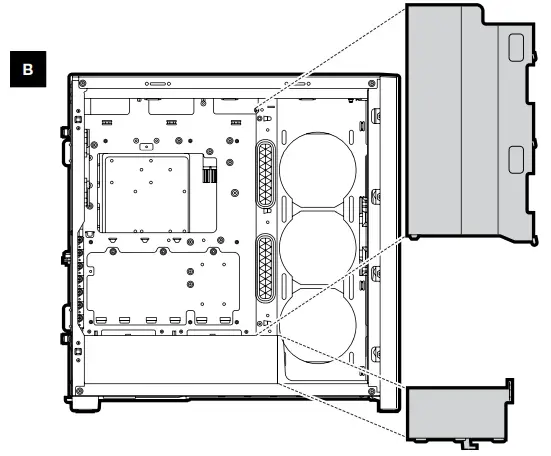

REMOVING THE CABLE BAR
 |  |
 |  |
INSTALLING THE MOTHERBOARD

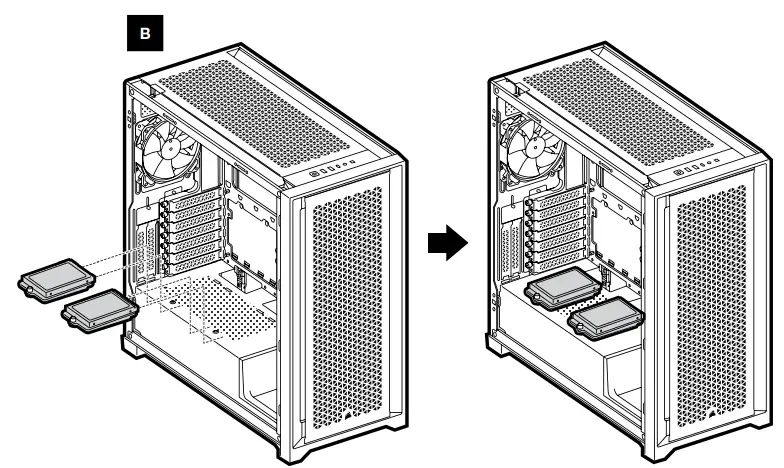

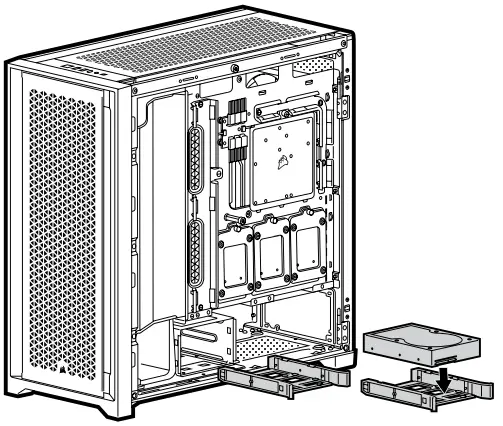

INSTALLING HDDS

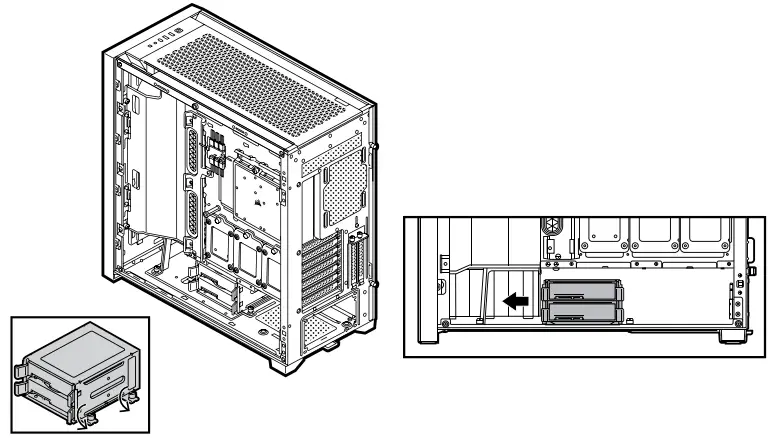

MOVING THE HDD CAGE

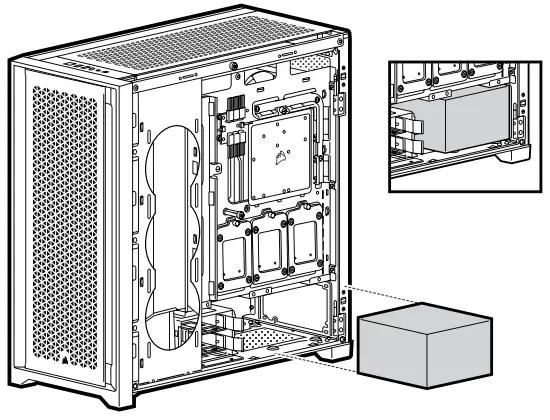

INSTALLING PSU

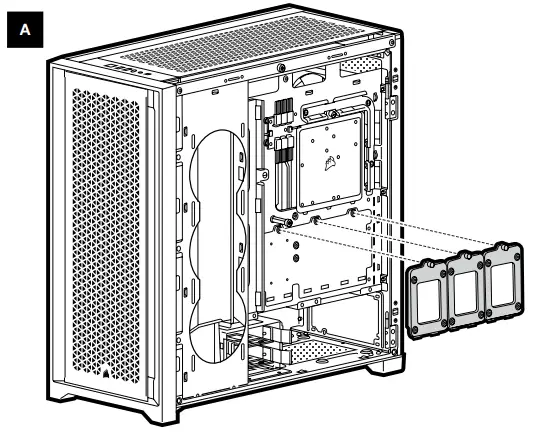

INSTALLING SSDS
 |  |

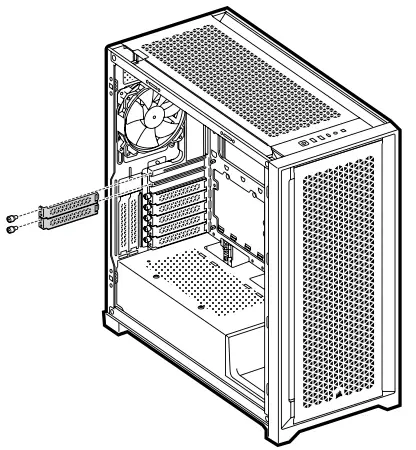

INSTALLING PCI-e CARDS

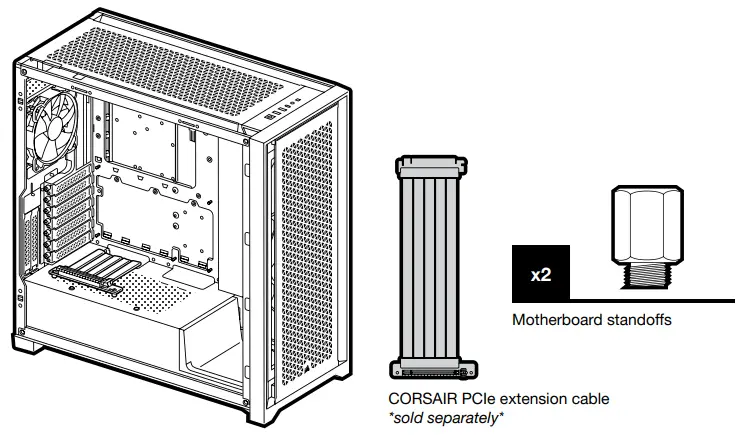

VERTICAL MOUNT GPU

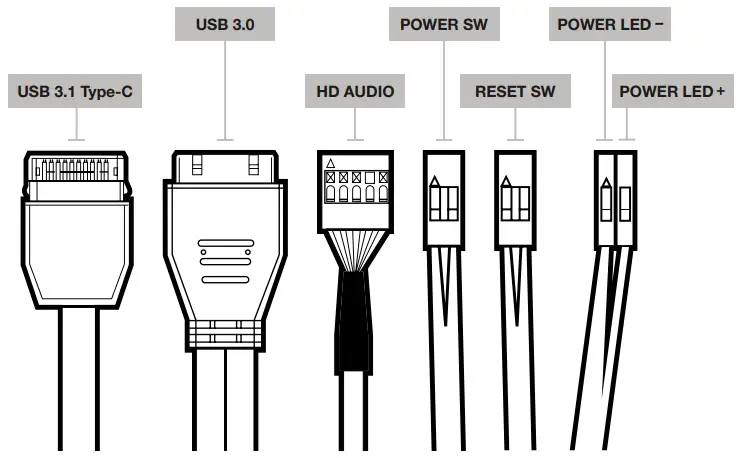

INSTALLING THE FRONT I/O CONNECTORS

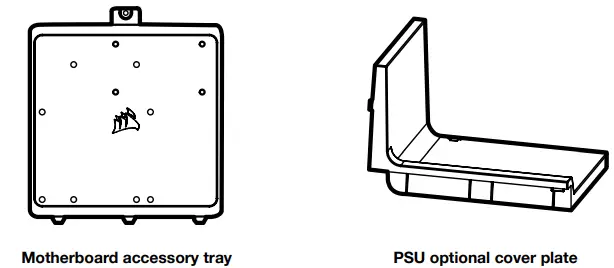

ACCESSORIES
FREQUENTLY ASKED QUESTIONS
- Does the polarity matter with the I/O panel’s power and reset header?
No, only the LED headers. - Who should I contact if I received my case damaged or one of the fans is no longer working?
Please go to support.corsair.com and request an RMA so that we can replace the damaged part(s). - Where can I mount a fan?
Fan mount locations | |
| Front | 3x 120mm / 2x 140mm |
| Top | 3x 120mm / 2x 140mm |
| Rear | 120mm |
| Motherboard tray | 3x 120mm |
To learn more about this case visit the product page at corsair.com.
