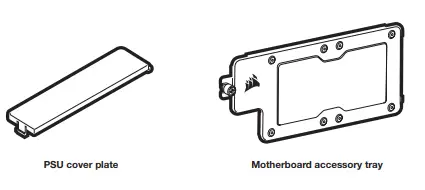

3 ACCESSORY KIT CONTENTS

4 CASE FEATURES

5 INTERCHANGEABLE SIDE PANELS

6 MOVING THE CABLE BAR

7 INSTALLING HDDS

8 INSTALLING SSDS

9 INSTALLING THE FRONT I/O CONNECTORS

10 Documents / Resources

10.1 References

11 Related Posts

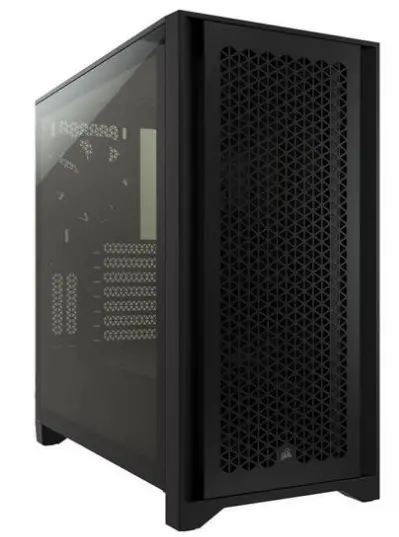

CORSAIR 4000D AIRFLOW Mid-Tower Gaming Case

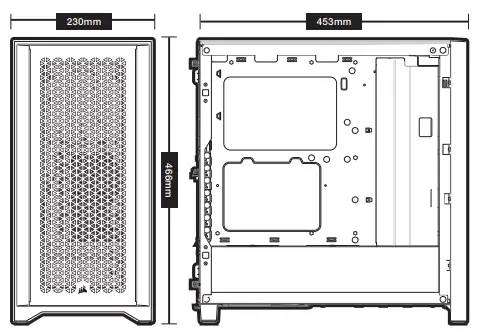

CASE SPECIFICATIONS

Length ………………………………………………………………………………………………………………………………………….453mm
Width ……………………………………………………………………………………………………………………………………………230mm
Height …………………………………………………………………………………………………………………………………………..466mm
Maximum GPU length …………………………………………………………………………………………………………………….360mm
Maximum CPU height …………………………………………………………………………………………………………………….170mm
Maximum PSU length……………………………………………………………………………………………………………………..220mm
Fan locations:
Front ………………………………………………………………………………………. 3x 120mm / 2x 140mm (1x 120mm included)
Top …………………………………………………………………………………………………………………………2x 120mm / 2x 140mm
Rear ……………………………………………………………………………………………………………… 120mm (1x 120mm included)
Radiator Compatibility:
Front ……………………………………………………………………………………………………………………………… 360mm / 280mm
Top ……………………………………………………… 280mm with CORSAIR LPX DRAM / 240mm with all CORSAIR DRAM
Rear ……………………………………………………………………………………………………………………………………………..120mm

ACCESSORY KIT CONTENTS

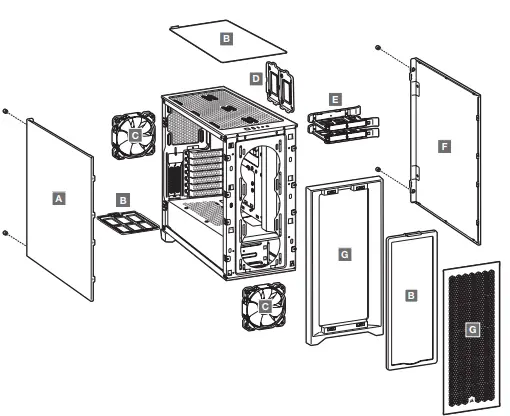

CASE FEATURES

A — TEMPERED GLASS SIDE PANEL
B — 3x DUST FILTERS
C — 2x 120MM FANS
D — 2x SSD TRAYS
E — 2x HDD TRAYS
F — SOLID SIDE PANEL
G — FRONT BEZEL

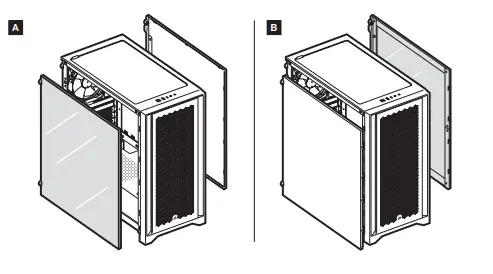

INTERCHANGEABLE SIDE PANELS

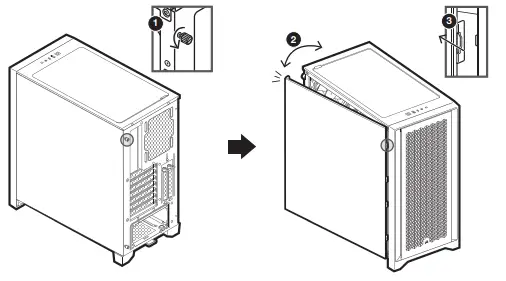

REMOVING THE SIDE PANELS

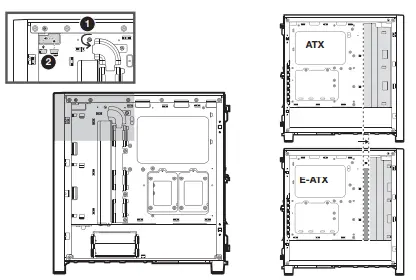

MOVING THE CABLE BAR

INSTALLING THE MOTHERBOARD

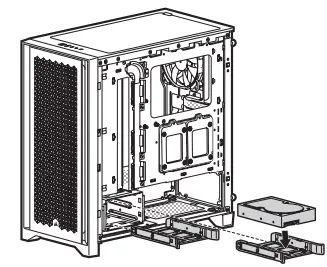

INSTALLING HDDS

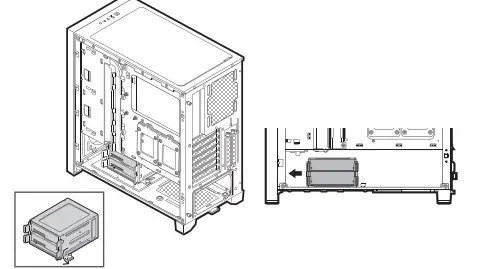

MOVING THE HDD CAGE

INSTALLING SSDS

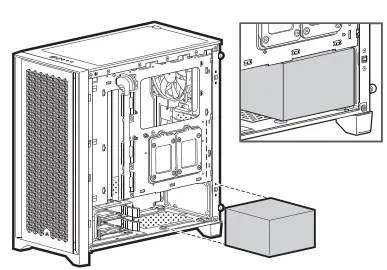

INSTALLING PSU

INSTALLING PCI-e CARDS

REMOVING THE FRONT BEZEL

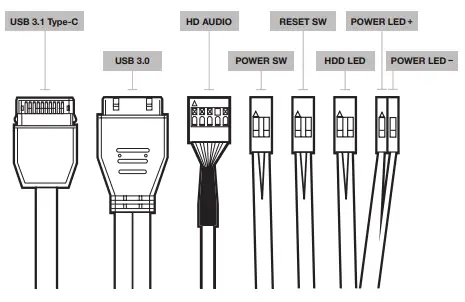

INSTALLING THE FRONT I/O CONNECTORS

ACCESSORIES AVAILABLE FOR PURCHASE

FREQUENTLY ASKED QUESTIONS

Does the polarity matter with the I/O panel’s power and reset header?
No, only the LED headers.
Who should I contact if I received my case damaged or one of the fans is no longer working?
Please go to support.corsair.com and request an RMA so that we can replace the damaged part(s).
Where can I mount a fan?

Fan mount locations
Front	3x 120mm / 2x 140mm
Top	2x 120mm / 2x 140mm
Rear	120mm

WEB: corsair.com
PHONE: (888) 222-4346
WARRANTY: corsair.com/support/warranty

© 2020 CORSAIR MEMORY, Inc. All rights reserved. CORSAIR and the sails logo are registered trademarks in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured. 49-002087 AA
