iCUE 2000D RGB Airflow ITX Tower
Instruction Manual

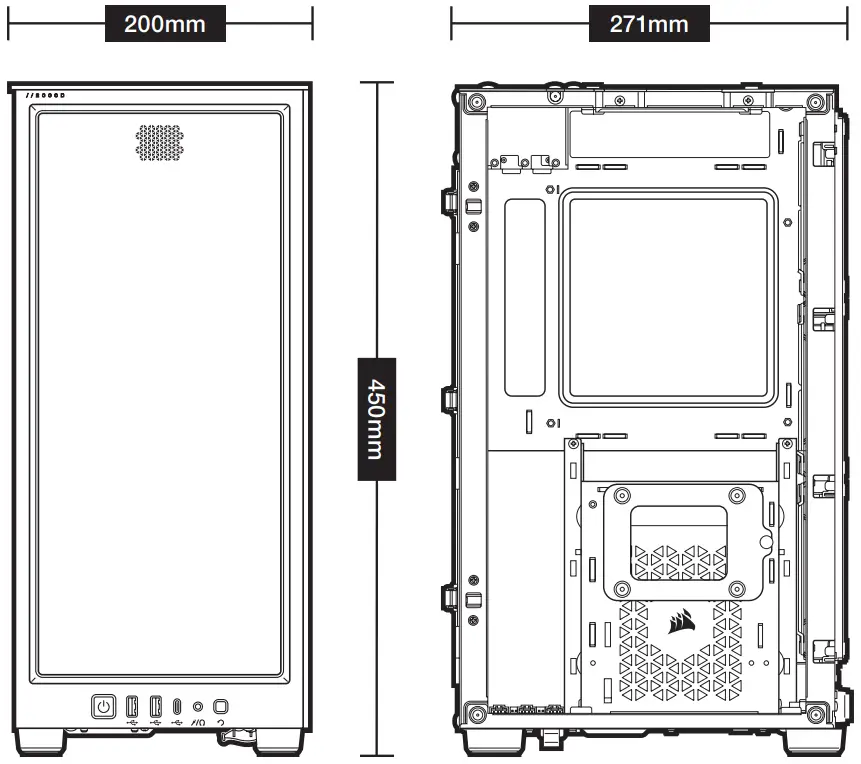

CASE SPECIFICATIONS
| Length | 271mm |
| Width | 200mm |
| Height | 450mm |
| Maximum GPU length | 320mm |
| Maximum CPU height | 90mm |
| Maximum PSU length | 130mm |
| Fan locations: | |
| Front | 3x 120mm (3x 120mm SP RGB Elite included) |
| Top | 1x 120mm slim fan (1x AF120S included) |
| Rear | 2x 120mm* |
| Side | 3x 120mm/2x 140mm |
| Radiator compatibility: | |
| Front | NA |
| Top | NA |
| Rear | 240mm* |
| Side | 360mm/280mm |
*GPU dependent

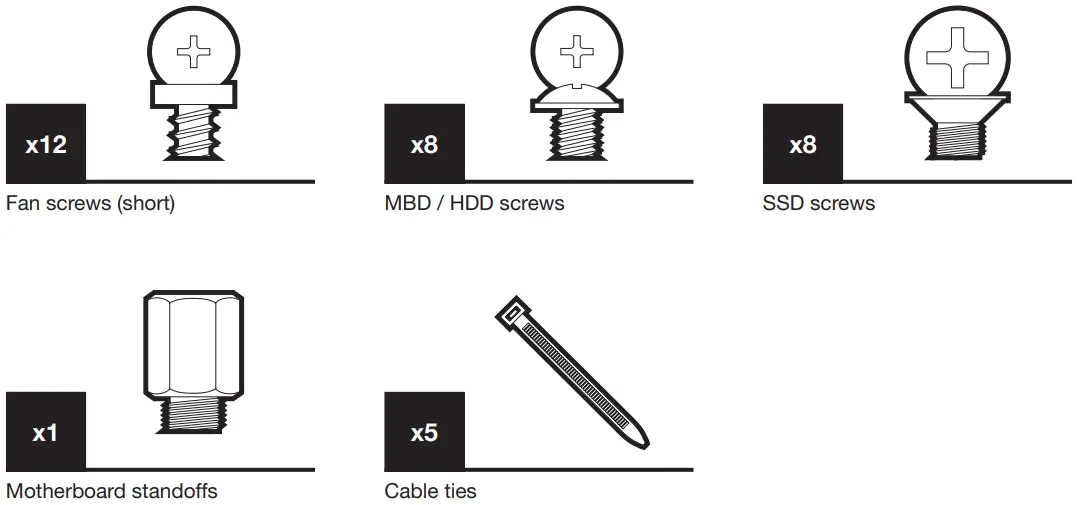

ACCESSORY KIT CONTENTS

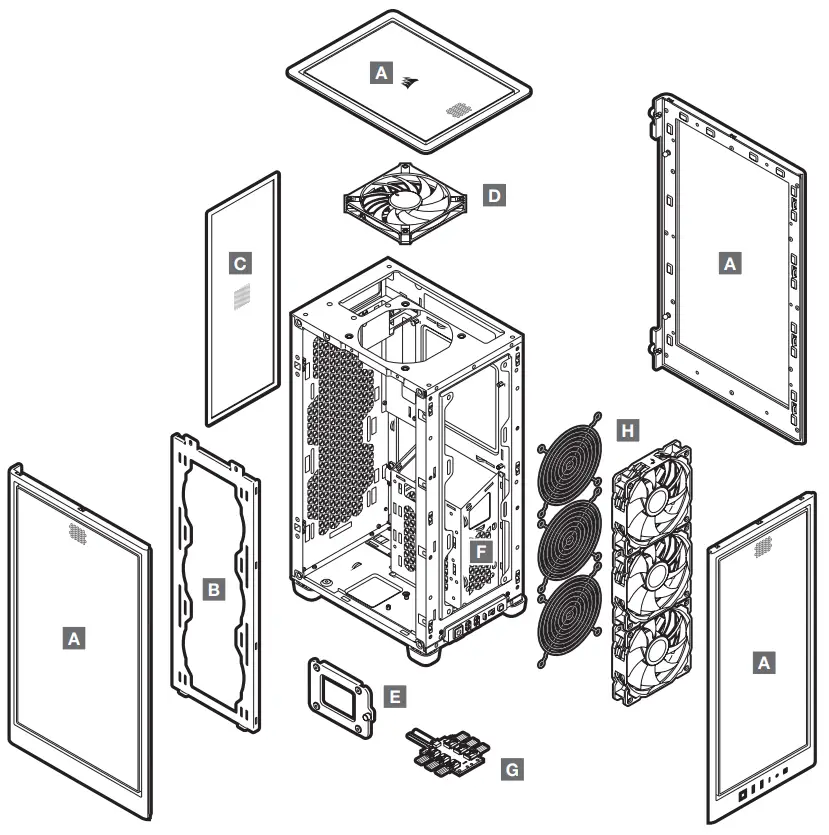

CASE FEATURES
| A — MESH PANELS B — SIDE FAN BRACKET C — REAR DUST FILTER D — 1x AF120S | E — 1x REMOVABLE SSD TRAYS F — REMOVEABLE PSU SHROUD G — LIGHTING NODE CORE H — 3x 120MM SP RGB ELITE & FAN GRILLS |

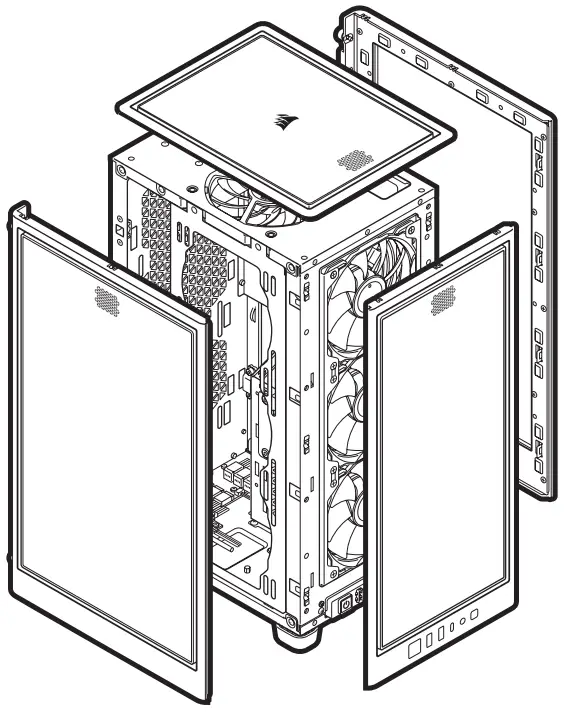

FRONT, TOP & SIDE PANELS ARE REMOVABLE

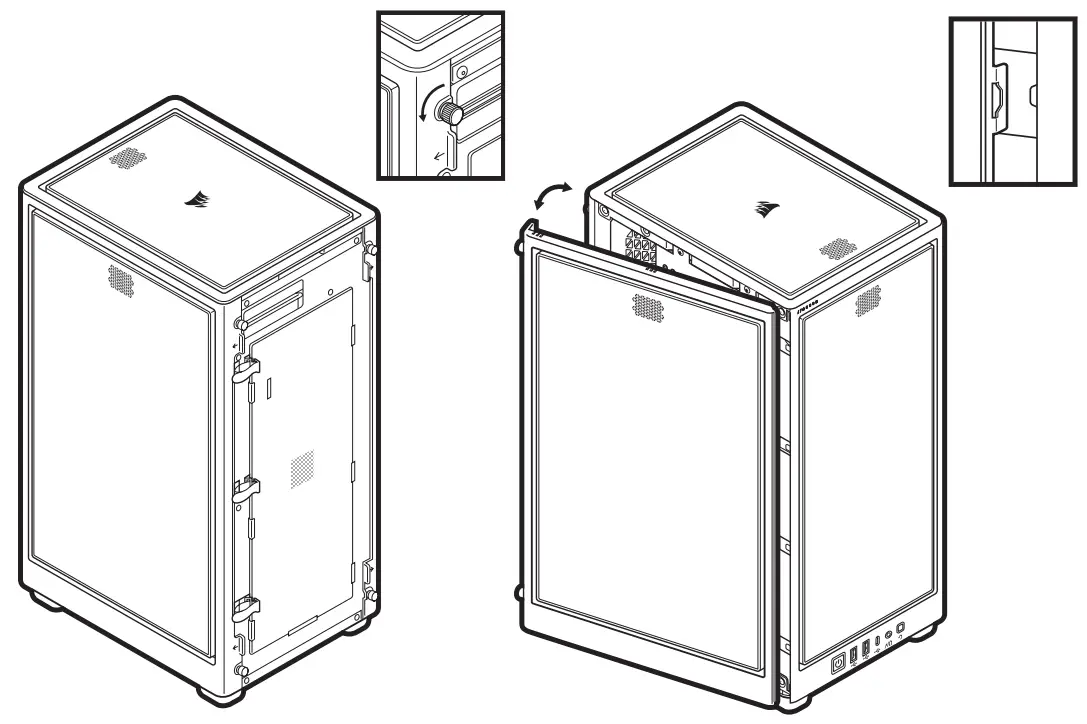

REMOVING SIDE PANELS

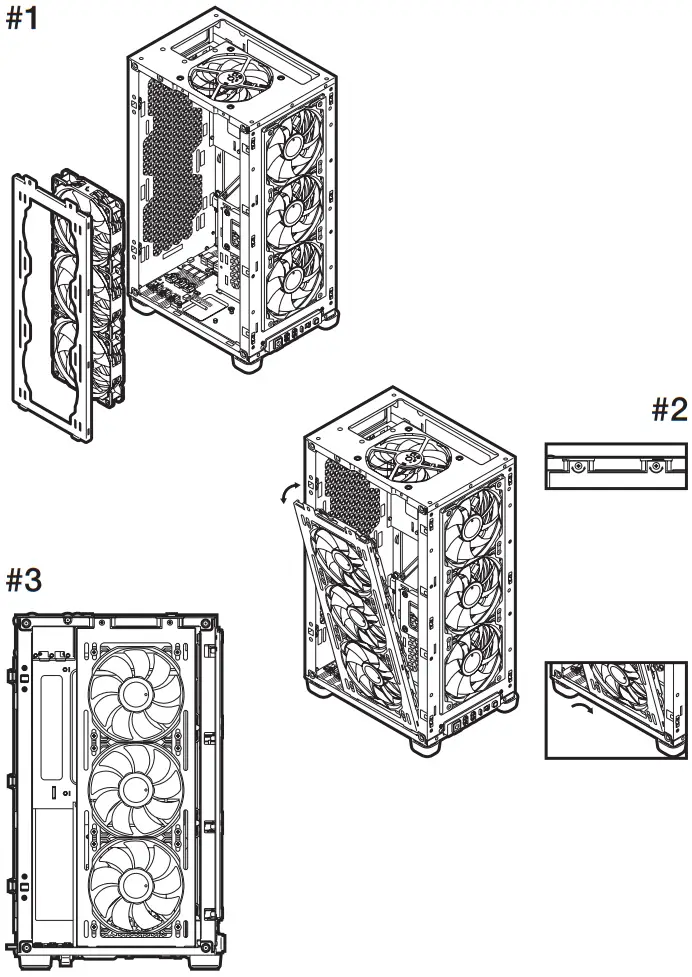

REMOVING & INSTALLING FAN / RAD BRACKET

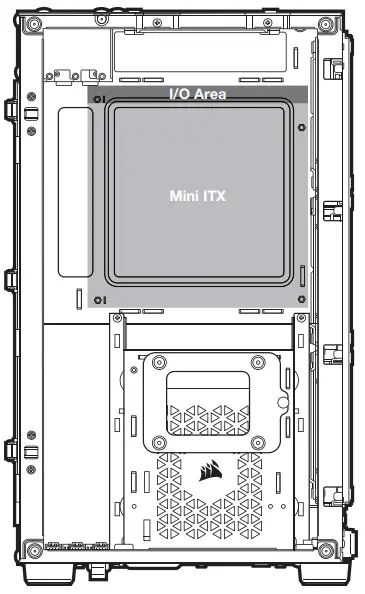

INSTALLING MOTHERBOARD (ITX ONLY)

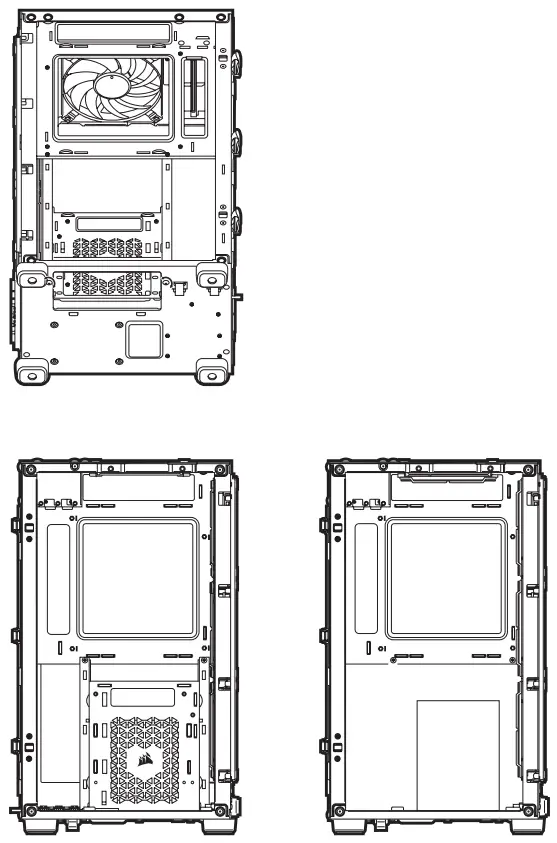

REMOVING PSU SHROUD (SFX & SFX-L ONLY)
REMOVING PSU SHROUD (SFX & SFX-L ONLY)

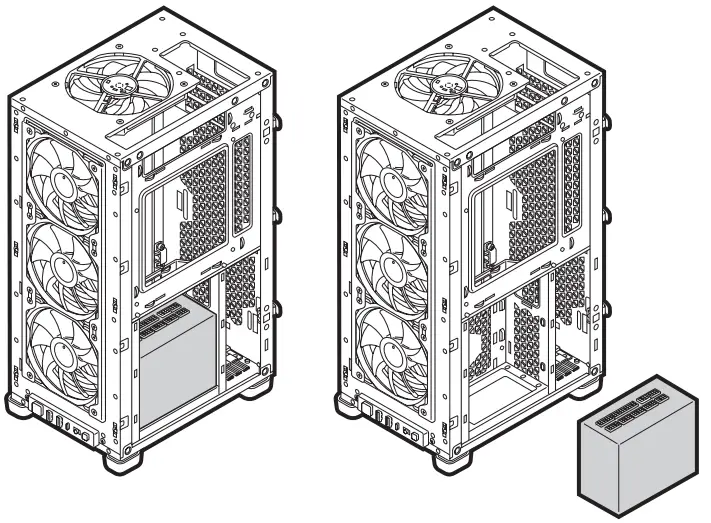

OPTIONAL REMOVAL OF PSU SHROUD (SFX & SFX-L ONLY)

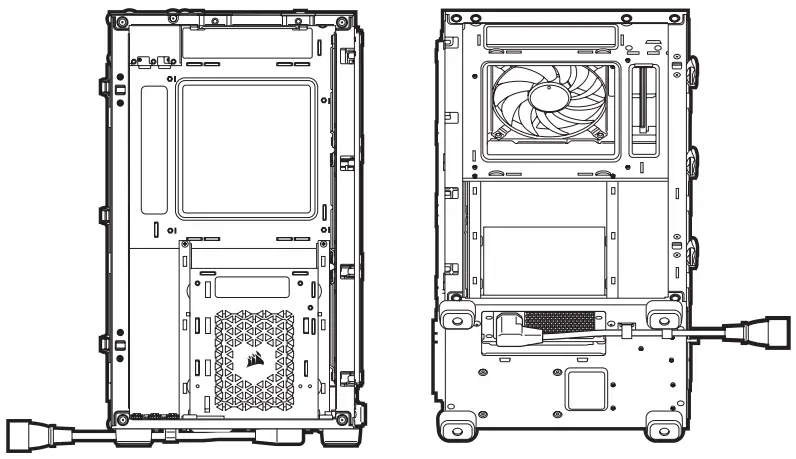

INSTALLING PSU (SFX & SFX-L ONLY)

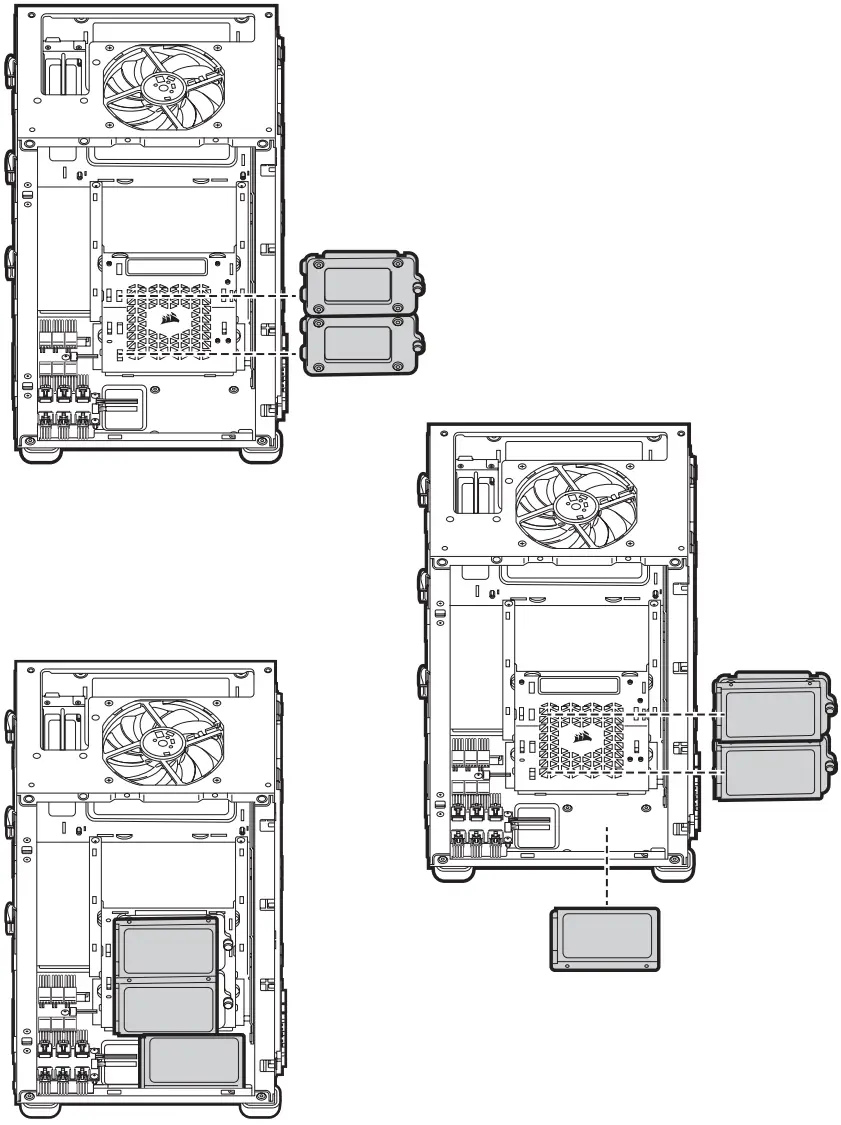

INSTALLING SSD

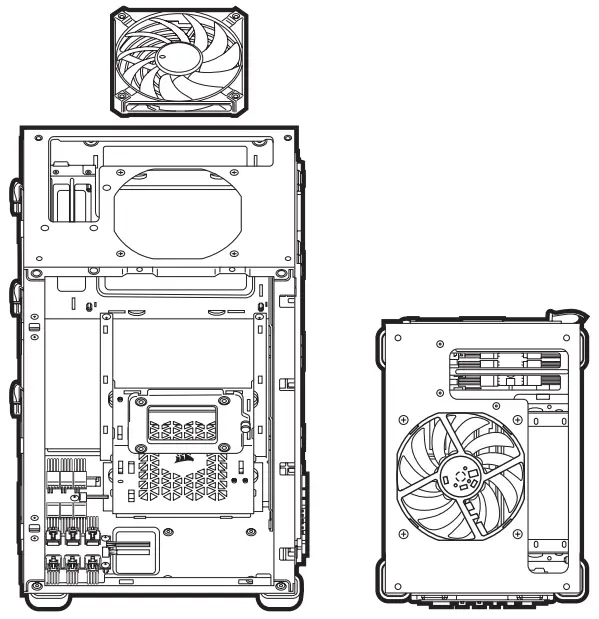

INSTALLING TOP FAN

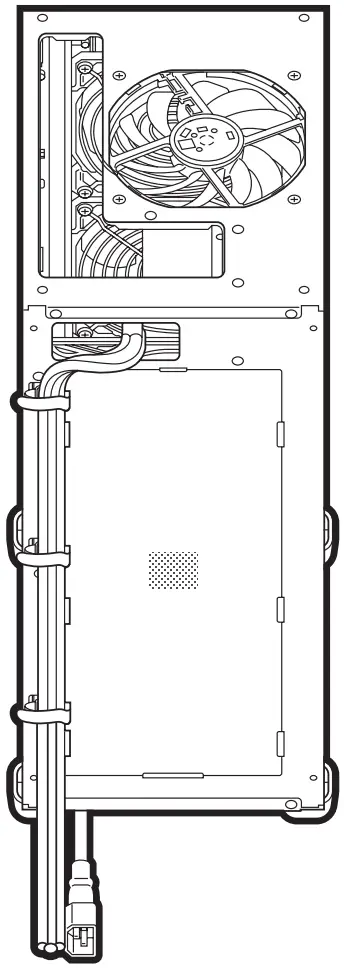

CABLE ROUTING OUT OF THE BACK

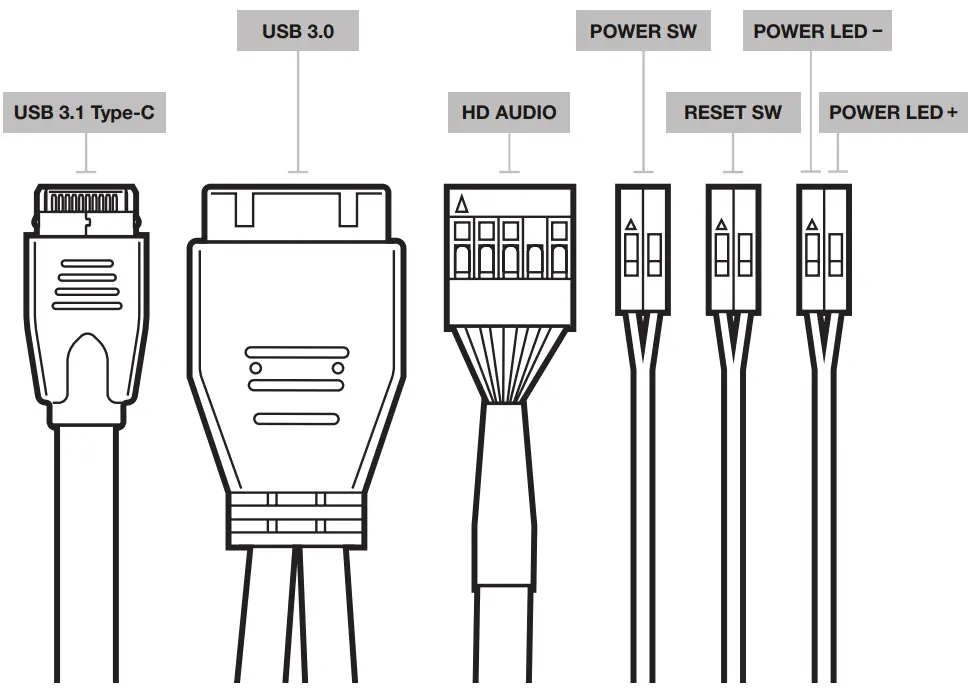

FRONT I/O CONNECTIONS
FAQ
1. Does the polarity matter with the I/O panel’s power and reset header? No, only the LED headers. 2. Who should I contact if I received my case damaged or one of the fans is no longer working? Please go to support.corsair.com and request an RMA so that we can replace the damaged part(s). 3. Where can I mount a fan?. Fan mount locations Front 3x 120mm Top 1x 120mm slim fan Rear 2x 120mm (GPU dependent) Side 3x 120mm / 2x 140mm
Web: corsair.com
Phone: (888) 222-4346
Warranty: corsair.com/support/warranty
Support: support.corsair.com
Blog: corsair.com/blog
Forum: forum.corsair.com
YouTube: youtube.com/corsairhowto
© 2022 CORSAIR MEMORY, Inc. All rights reserved. CORSAIR and the sails logo are registered trademarks of CORSAIR in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured.
49-002584 AA
