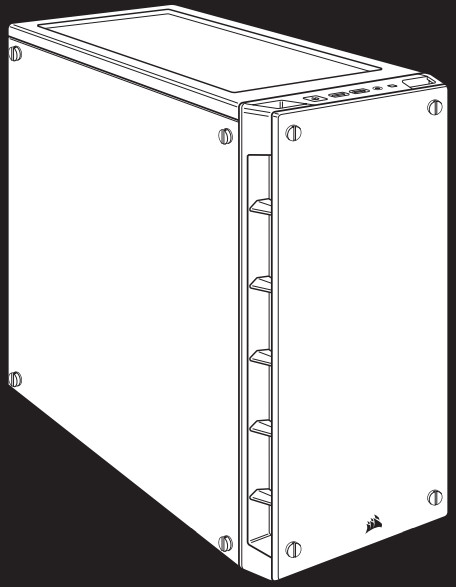

iCUE 465X RGB Mid Tower Smart Case
User Guide
CASE SPECIFICATIONS
Length ………………………………………………………………………………………………………………………………………….467mm
Width ……………………………………………………………………………………………………………………………………………216mm
Height …………………………………………………………………………………………………………………………………………..455mm
Maximum GPU length …………………………………………………………………………………………………………………….370mm
Maximum CPU height …………………………………………………………………………………………………………………….170mm
Maximum PSU length……………………………………………………………………………………………………………………..180mm
Fan locations:
Front …………………………………………………………………………………………. 3x120mm / 2x140mm (3x120mm included)
Top …………………………………………………………………………………………………………………………..2x120mm / 1x140mm
Rear ……………………………………………………………………………………………………………………………………………..120mm
Radiator compatibility:
Front ……………………………………………………………………………………………………………………………… 360mm / 280mm
Top ……………………………………………………………………………………………………………………………………………….240mm
Rear ……………………………………………………………………………………………………………………………………………..120mm
ACCESSORY KIT CONTENTS

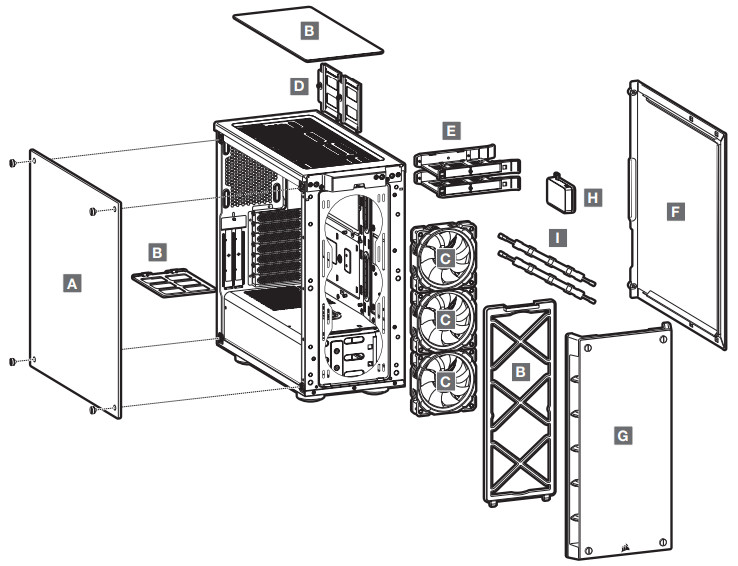

CASE FEATURES
| A — TEMPERED GLASS SIDE PANEL B — DUST FILTERS C — 3x SP120 RGB PRO FANS D — REMOVABLE SSD TRAYS E — HDD TRAYS | F — SOLID SIDE PANEL G —FRONT BEZEL H — LIGHTING NODE PRO I — 2x RGB LED LIGHT STRIPS |

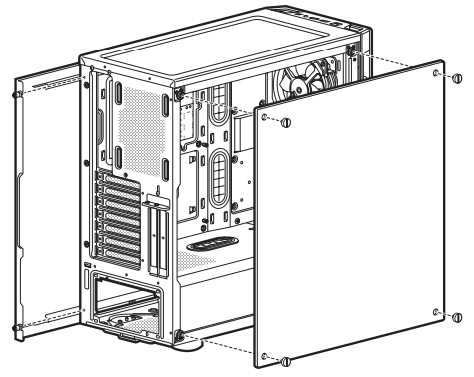

REMOVING THE SIDE PANELS

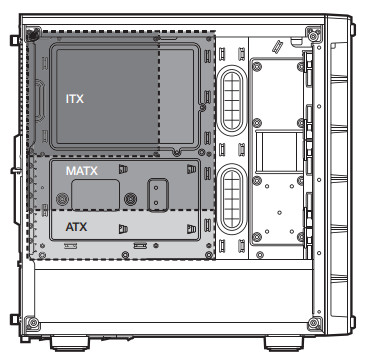

INSTALLING THE MOTHERBOARD

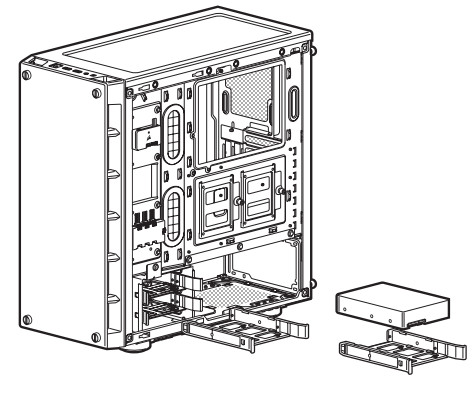

INSTALLING HDDS

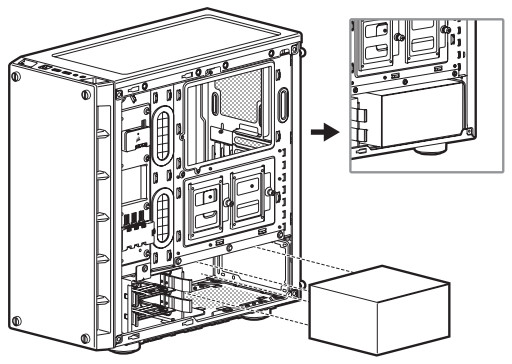

INSTALLING PSU
INSTALLING SSDS

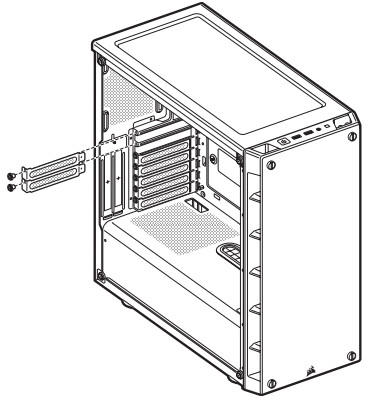

INSTALLING PCI-e CARDS

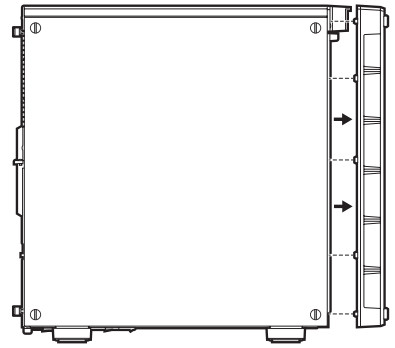

REMOVING THE FRONT BEZE

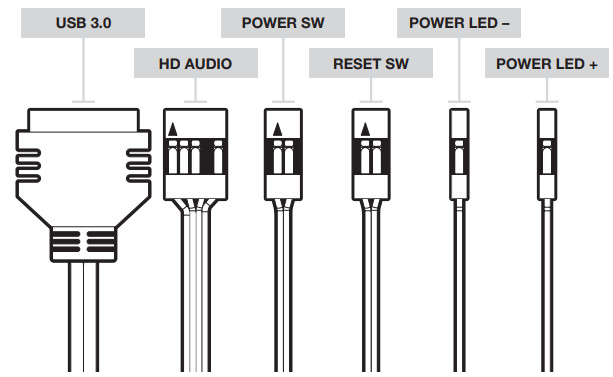

INSTALLING THE FRONT I/O CONNECTORS
FREQUENTLY ASKED QUESTIONS
- Does the polarity matter with the I/O panel’s power and reset header?
No, only the LED headers. - Who should I contact if I received my case damaged or one of the fans is no longer working?
Please go to support corsair.com and request an RMA so that we can replace the damaged part(s). - Where can I mount a fan?
Fan mount locations Front 3x120mm / 2x140mm Top 2x120mm / 1x140mm Rear 120mm To learn more about this case visit the product page at corsair.com.
© 2020 CORSAIR MEMORY, Inc. All rights reserved.
