CORSAIR iCUE 5000X RGB User Guide
CASE SPECIFICATIONS
Length ….520mm
Width …248mm
Height …..520mm
Maximum GPU length ….380mm
Maximum CPU height ….170mm
Maximum PSU length……..225mm

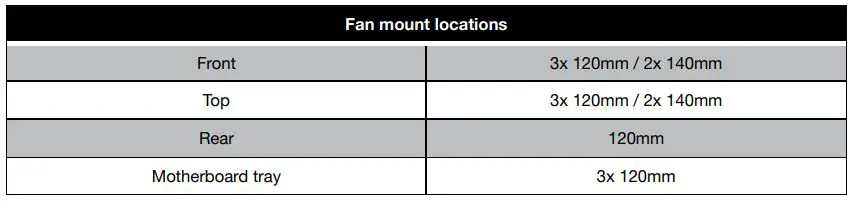

Fan locations:
Front …. 3x 120mm / 2x 140mm (3x 120mm included)
Top……3x 120mm / 2x 140mm
Rear …..120mm
Motherboard tray……3x (120mm) (requires removal of cable cover)
Radiator compatibility:
Front ….. 360mm / 280mm*
Top…… 360mm / 280mm
Rear …..120mm
Motherboard tray……. 360mm*
*Motherboard tray and front 360mm locations can not be used at the same time when installing radiators.

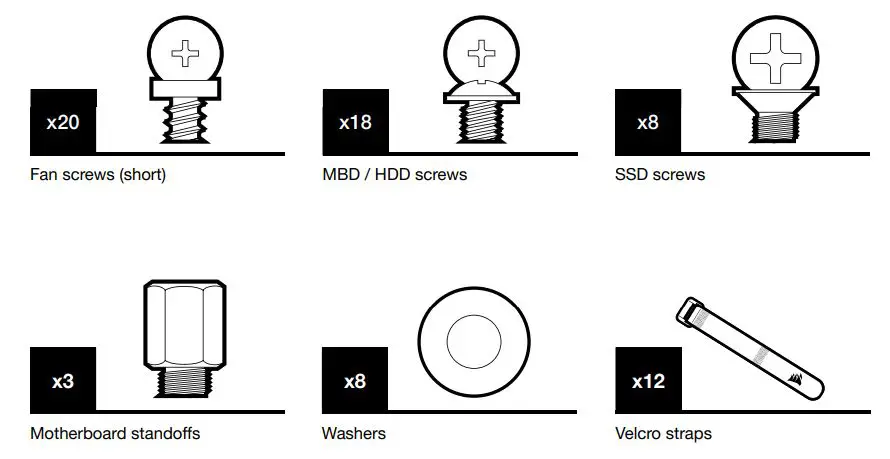

ACCESSORY KIT CONTENTS

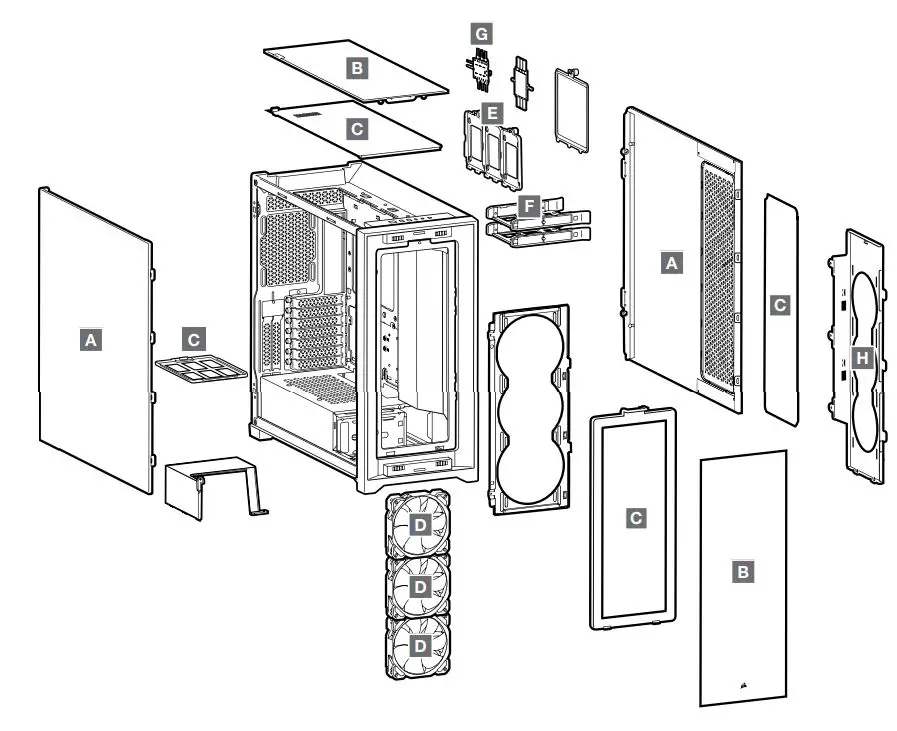

CASE FEATURES
- A TEMPERED GLASS SIDE PANELS
- B TEMPERED GLASS FRONT AND TOP PANELS
- C 4x DUST FILTERS
- D 3x 120MM RGB FANS
- E 3x REMOVABLE SSD TRAYS
- F 2x HDD TRAYS
- G LIGHTING NODE CORE
- H MOTHERBOARD TRAY FAN BRACKET
REMOVING THE SIDE PANELS

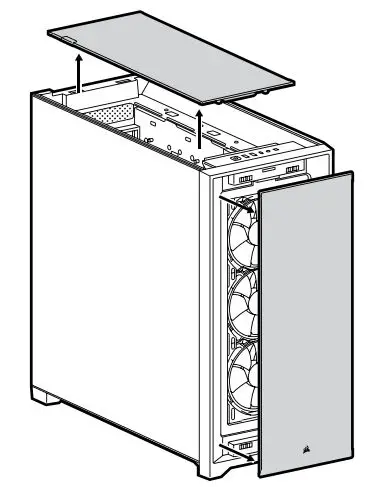

REMOVING THE FRONT AND TOP BEZEL

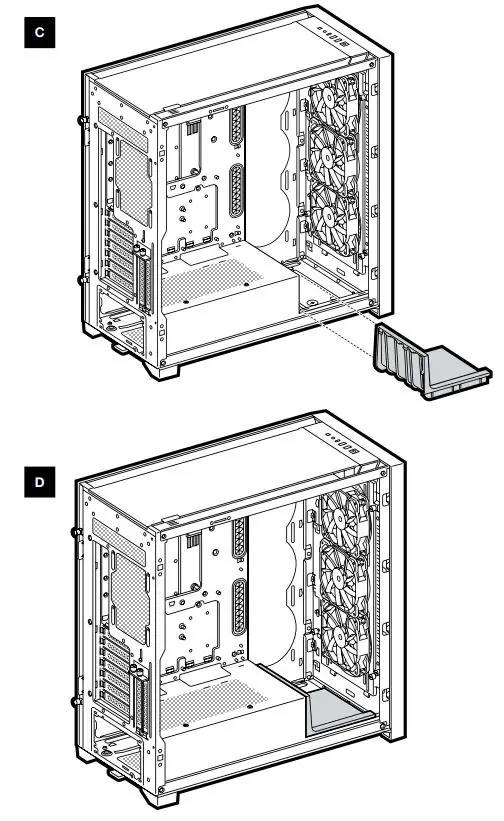

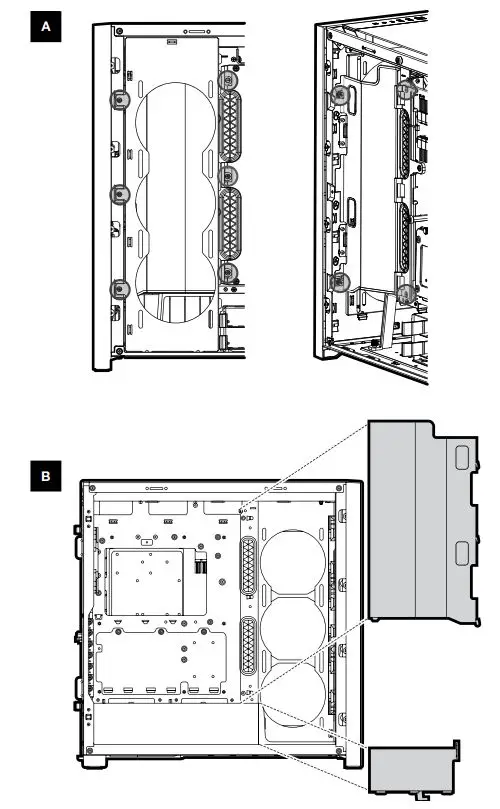

REMOVING THE CABLE BAR

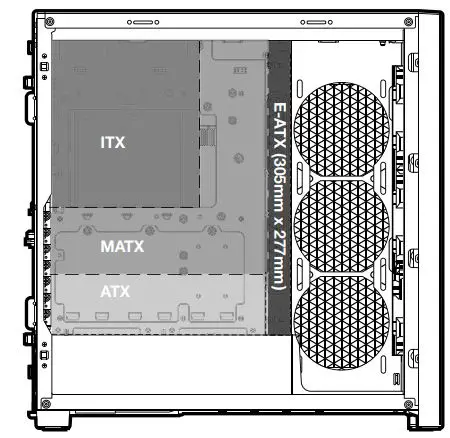

INSTALLING THE MOTHERBOARD
INSTALLING HDDS

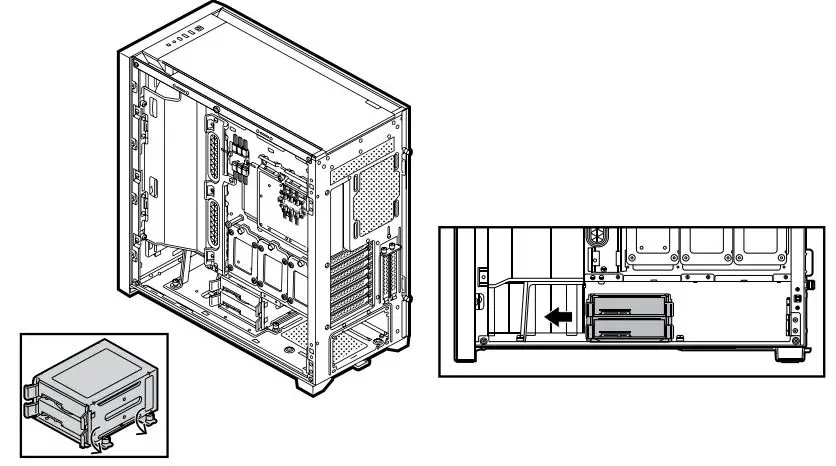

MOVING THE HDD CAGE

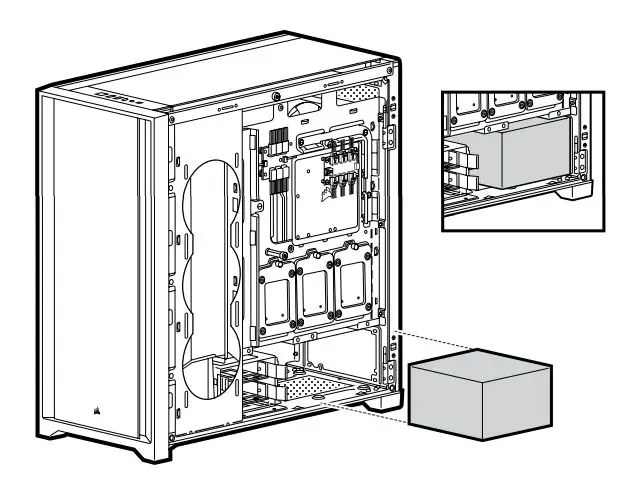

INSTALLING PSU

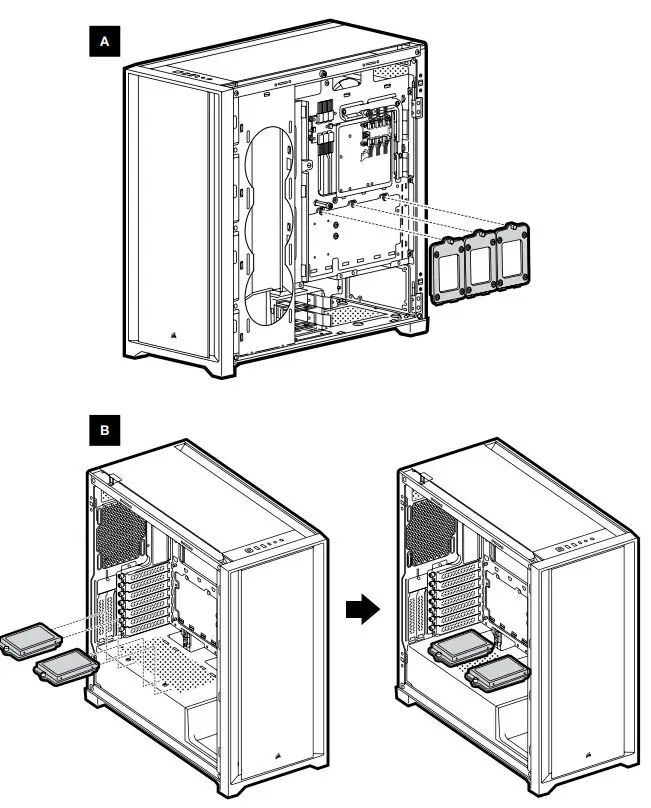

INSTALLING SSDS

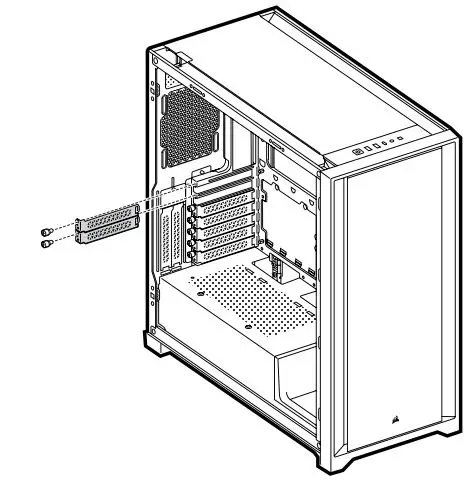

INSTALLING PCI-e CARDS

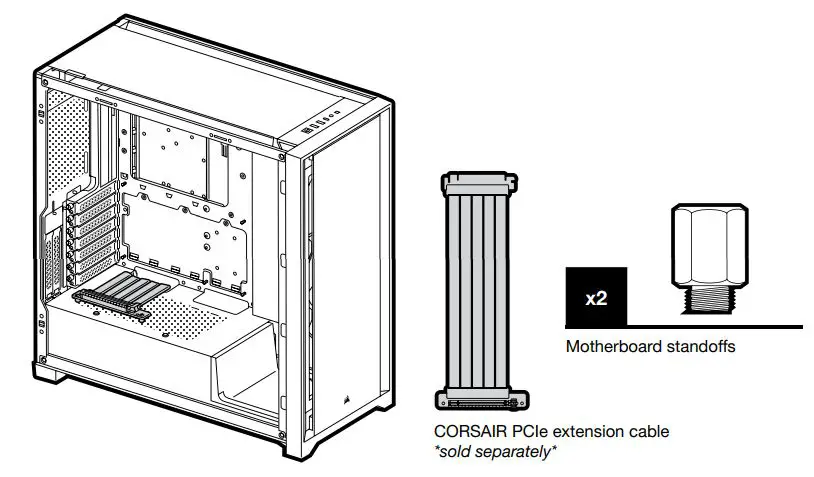

VERTICAL MOUNT GPU

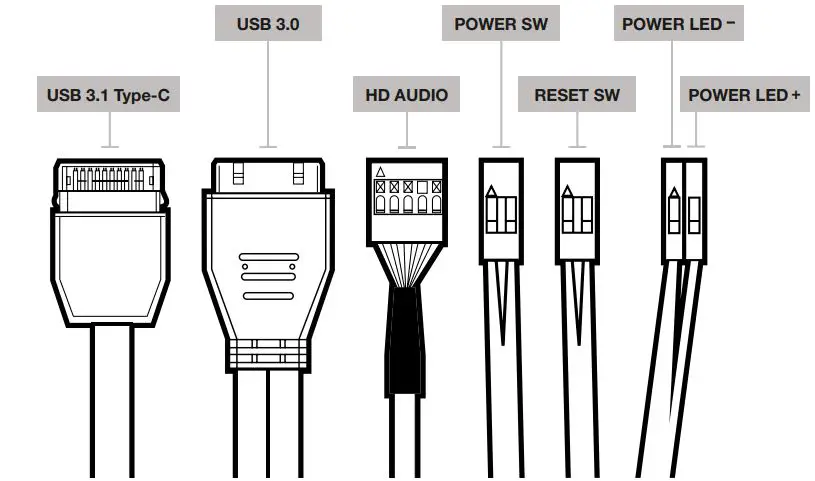

INSTALLING THE FRONT I/O CONNECTORS

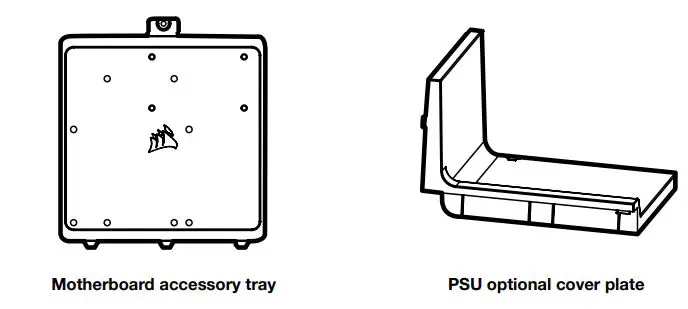

ACCESSORIES
FREQUENTLY ASKED QUESTIONS
- Does the polarity matter with the I/O panel’s power and reset header?
No, only the LED headers. - Who should I contact if I received my case damaged or one of the fans is no longer working?
Please go to support.corsair.com and request an RMA so that we can replace the damaged part(s). - Where can I mount a fan?
