CORSAIR Mid Tower Smart Case User Manual

CASE SPECIFICATIONS

Length..                                                         467mm
Width.                                                           216mm
Height.                                                          455mm
Maximum GPU length.                                .370mm
Maximum CPU height.                               .170mm
Maximum PSU length.                                 180mm
Fan locations:
Front                                                          3x120mm / 2x140mm (3x120mm included)
Top.                                                           .2x120mm / 1x140mm
Rear.                                                          120mm
Radiator compatibility:
Front..                                                       360mm / 280mm
Top                                                           240mm
Rear                                                          120mm

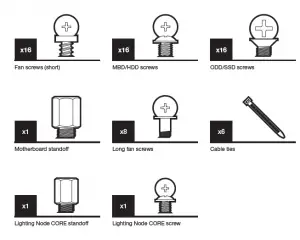

ACCESSORY KIT CONTENTS

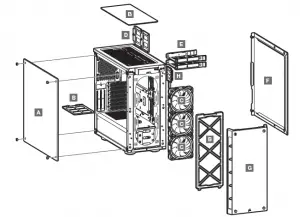

CASE FEATURES

A — TEMPERED GLASS SIDE PANEL
B — DUST FILTERS
C — 3x 120mm RGB FANS
D — REMOVABLE SSD TRAYS
E — HDD TRAYS
F — SOLID SIDE PANEL
G — FRONT BEZEL
H — iCUE LIGHTING NODE CORE

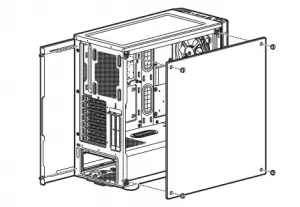

REMOVING THE SIDE PANELS

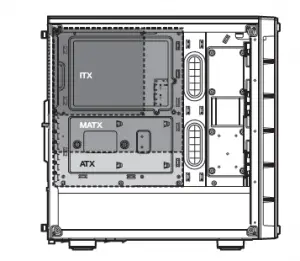

INSTALLING THE MOTHERBOARD

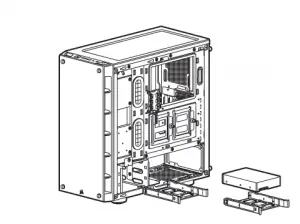

INSTALLING HDDS

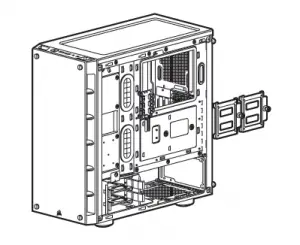

INSTALLING SSDS

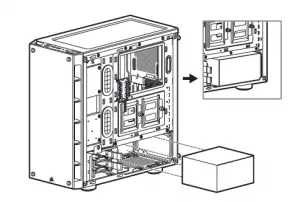

INSTALLING PSU

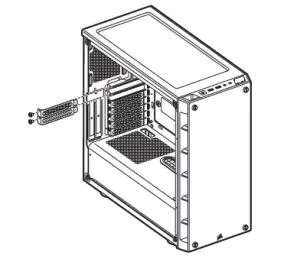

INSTALLING PCI-e CARDS

REMOVING THE FRONT BEZEL

CHANGING LOCATION OF THE iCUE LIGHTING NODE CORE

FREQUENTLY ASKED QUESTIONS

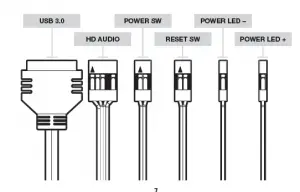

1. Does the polarity matter with the I/O panel’s power and reset header? No, only the LED headers.
2. Who should I contact if I received my case damaged or one of the fans is no longer working? Please go to support corsair.com and request an RMA so that we can replace
   the damaged part(s).
3. Where can I mount a fan?

Fan mount locations
