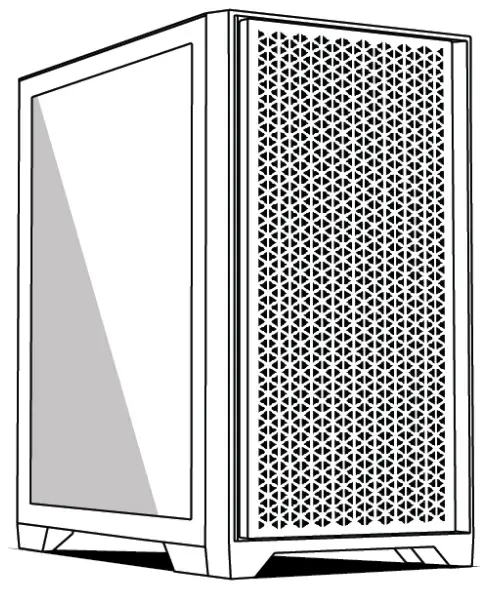

Neo M2 Mid Tower ARGB Case
Quick Start Guide
Specifications
| Type | Specification |
| Motherboard Support | ITX, mATX |
| Dimensions | 365(L) x 216(W) x 405(H) mm |
| 3.5″ HDD Drive Bay | 2 |
| 2.5″ SSD Drive Bay | 2 |
| Expansion Slots | 4 |
| Maximum GPU Length | 330mm |
| Maximum PSU Length | 160mm |
| Maximum CPU Cooler Height | 175mm |

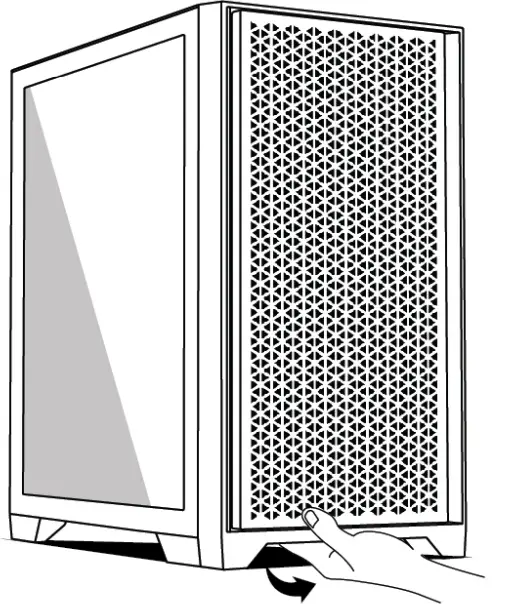

Front Cover
Open the front cover by pulling outwards to the right.
Front Panel I/O Connections
BUTTONS AND ACTIVITY LIGHTS
These cables are connected to the motherboard for the power button ( power sw ), reset button, HDD LED, and power LED ( P+ / P- ).

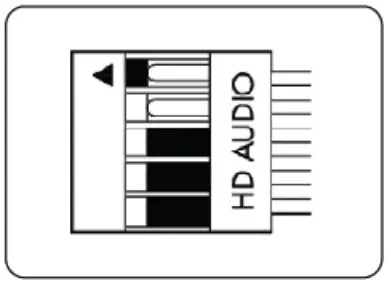

HD AUDIO
This connector attaches to your sound card or motherboard and is used to provide the front panel mic input and headphone output.

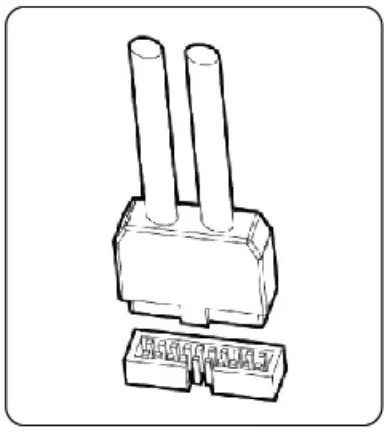

USB 3.0 CONNECTOR
This cable connects to the USB 3.0 header on the motherboard to enable the front USB 3.0 ports.
Component List
| VISUAL | ITEM | QTY | APPLICATION |
 | Motherboard & SSD screw | 23 | Motherboard and 2.5 hard drive installation |
 | Motherboard standoff | 3 | Motherboard installation |
 | HDD mount screw | 8 | 3.5 hard drive installation |
 | PSU & Rear expansion slot screw | 7 | Power supply installation Mounting of GPU and other expansion cards |
 | Radiator Fan Screw | 8 | Radiator/Fan Installation |
 | Cable Tie | 6 | Cable management |

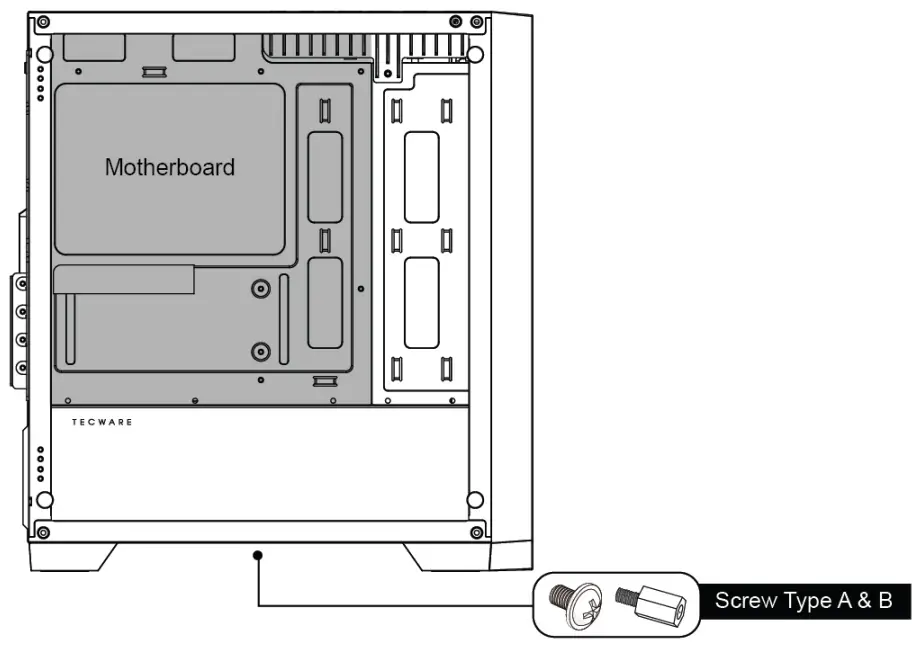

Motherboard Installation

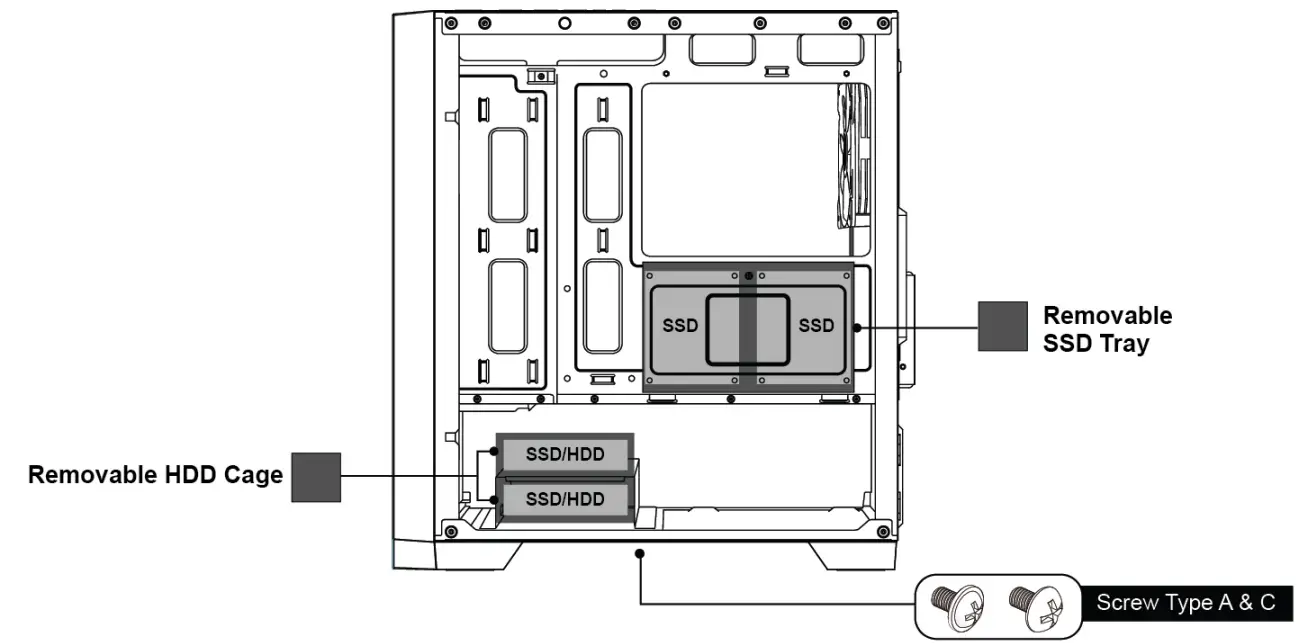

SSD Installation

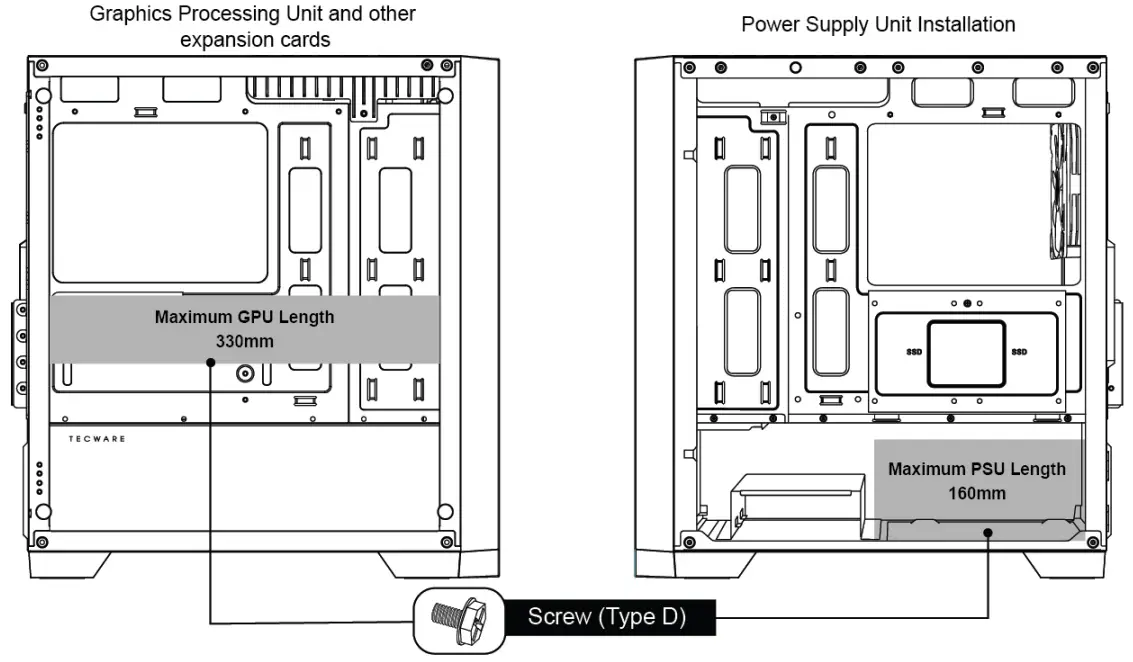

GPU & PSU Installation

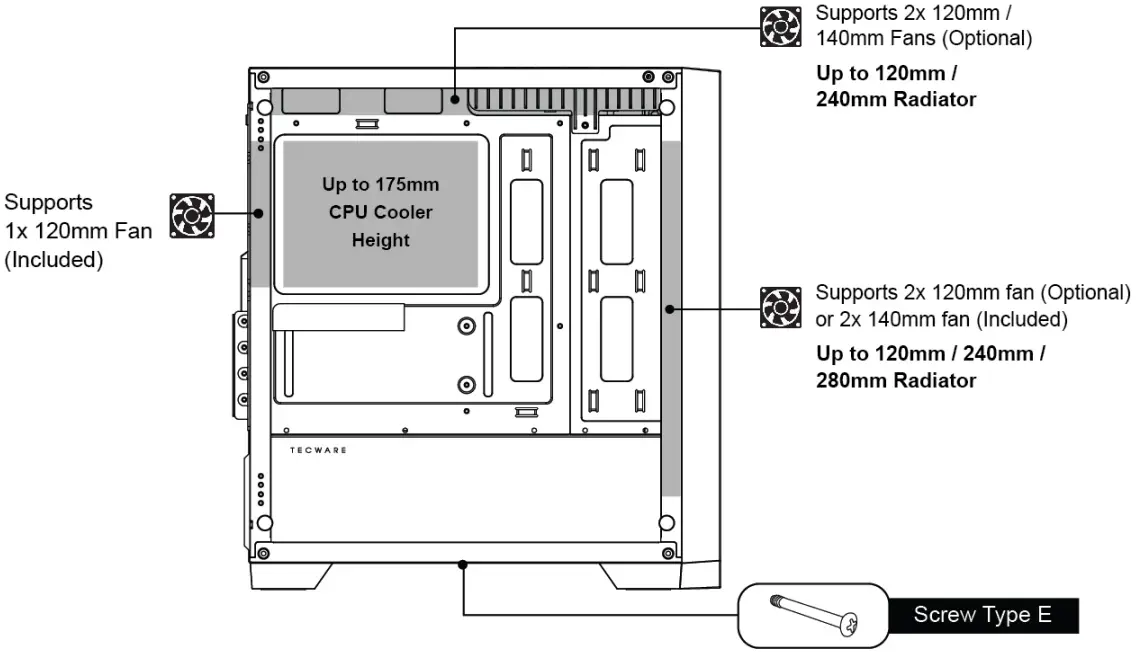

CUP Cooler / Fan & Radiator Installation
Package Contents
- 1 x TECWARE Neo M2 Case
- 1 x Accessories Box
Warranty
- 1 Year. Please contact your local distributor for support.
