Zalman Z3 Neo Atx Mid Tower Gaming Case Instruction Manual

Mid Tower Gaming Case
Instruction Manual

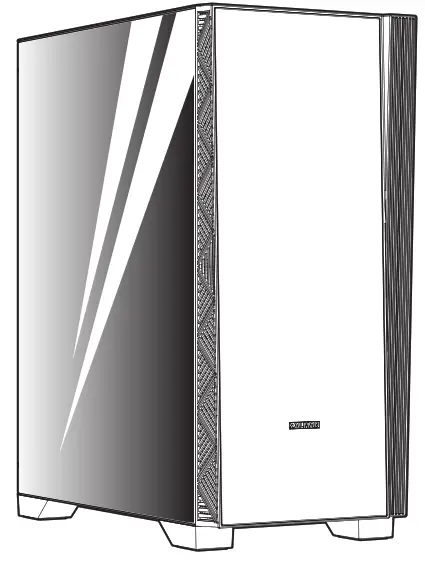

Z3 NEO ATX Mid Tower Gaming Case

※ RAZER CHROMA can be compatible with Z3 NEO through Z-Sync or H/W supported.
※ Product design and specifications may be revised to improve quality and performance without notice.

Z Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.

www.zalman.com

Precautions

• Read this manual carefully before installing.
• Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
• Wear gloves to prevent accidents when installing the product.
• Severe damage may occur when mounting the system, so do not apply excessive force.
• Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
• Be careful not to block the ventilation hole of the product when using the system.
• Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
• Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
• Do not insert your hand or another object into the product during operation, as this may injure your hand or damage the object.
• Store and use the product out of children’s reach.
• Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
• The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

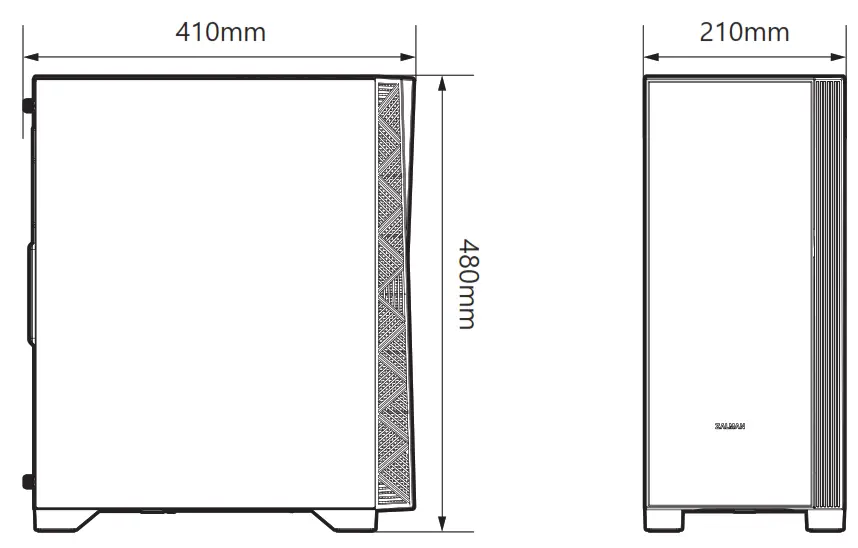

Specifications

Accessories component

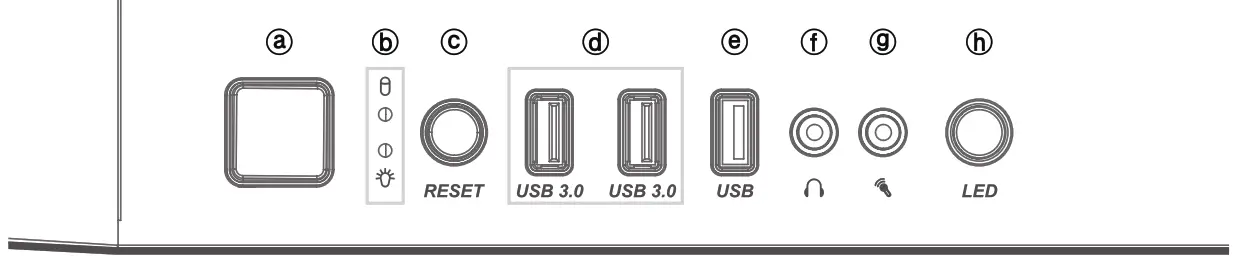

I/O Ports

※ Caution: Please do not connect ARGB fans more than 8pcs, otherwise it may cause malfunction.
※ How to control RGB LED
– LED colors & patterns can be changed by pressing the LED Button on I/O ports.
– Long pressing on the LED Button for 6 seconds, RGB LED will be turned off after blinking twice in white.
– Long pressing on the LED Button for 3 seconds, RGB will be synchronized with the motherboard after blinking once in white.
Press the LED Button again to desynchronize with the motherboard.

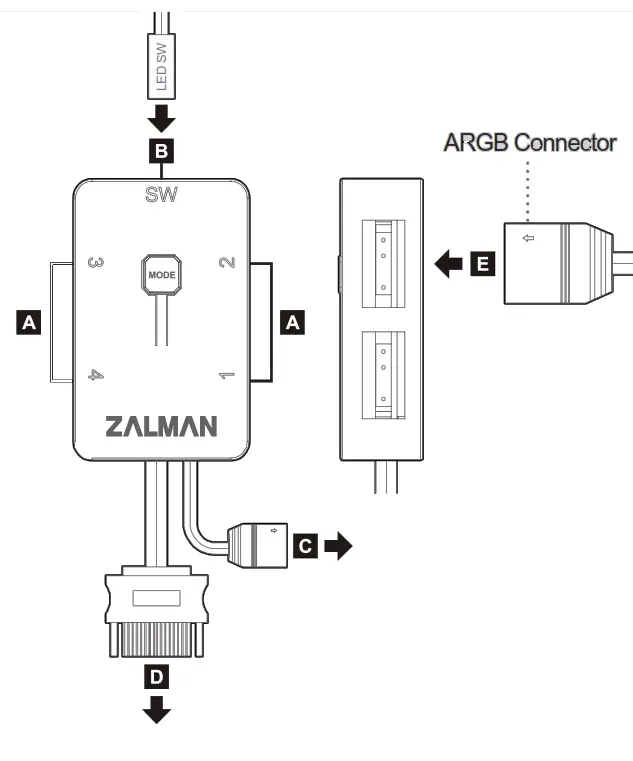

A  ARGB LED 1~4 / 3-Pin

B ARGB LED Control Button / 2-Pin
– Connector to ARGB LED Control Button
C Other Motherboards Sync / 3-Pin
– Connector to Motherboard
– Requires Motherboard that Supports RGB Sync

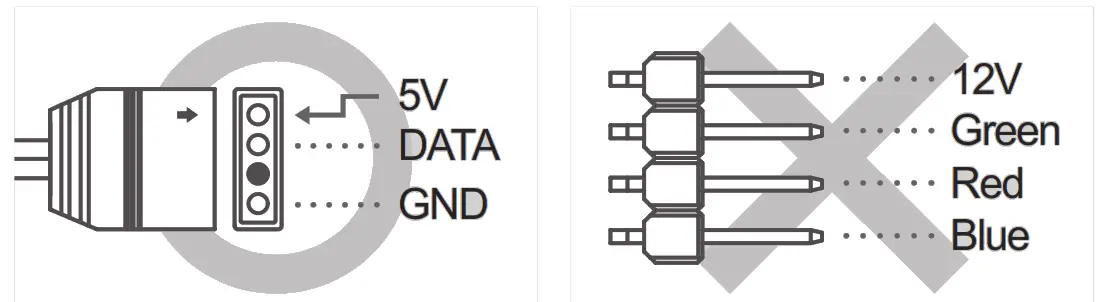

※ Caution: if Addressable 3 Pin connects to a 12V header instead of a 5V header improperly, It may cause fatal damages to the product by the overvoltage.

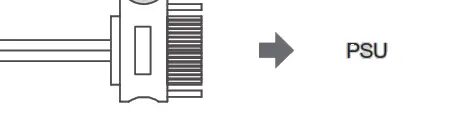

D SATA Power / 15-Pin
– Connector to PSU
– Input: 5V

E Connect the ARGB connector to the RGB hub

1. Removing the side panels

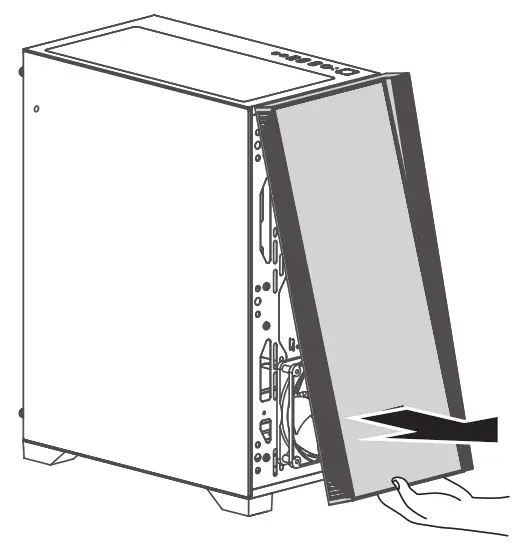

2. Removing the front panel

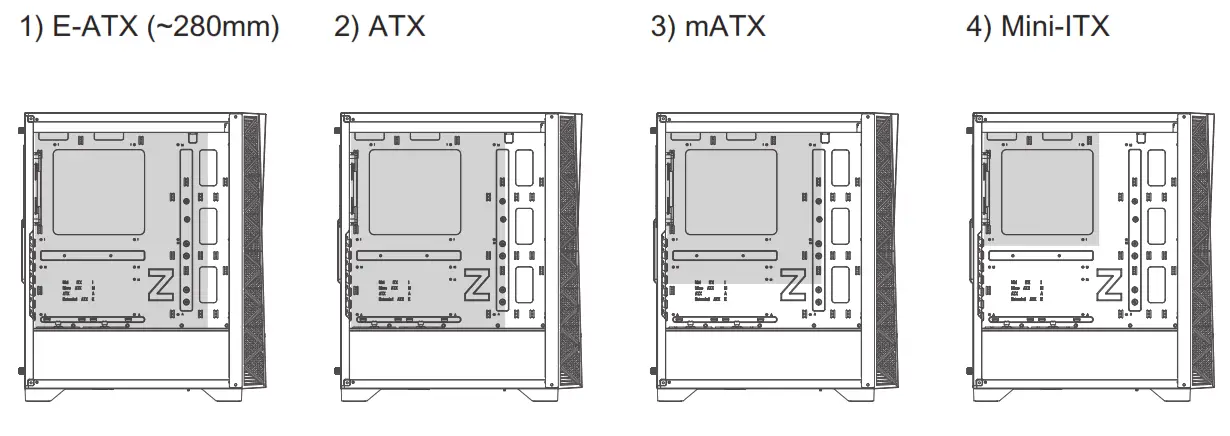

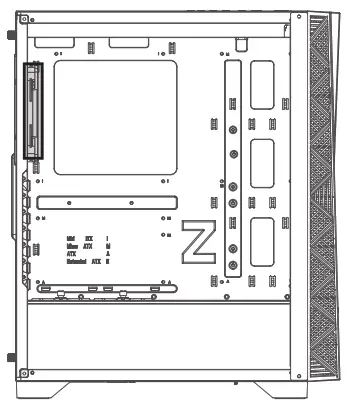

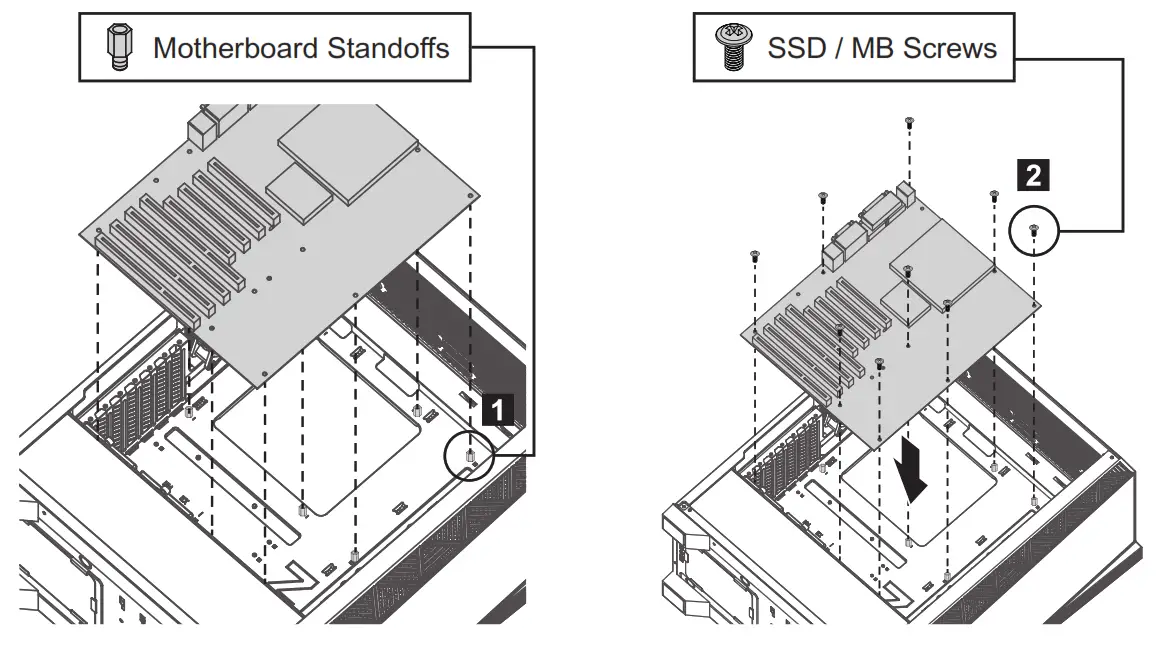

3. Mounting the motherboard3-1. Motherboard size

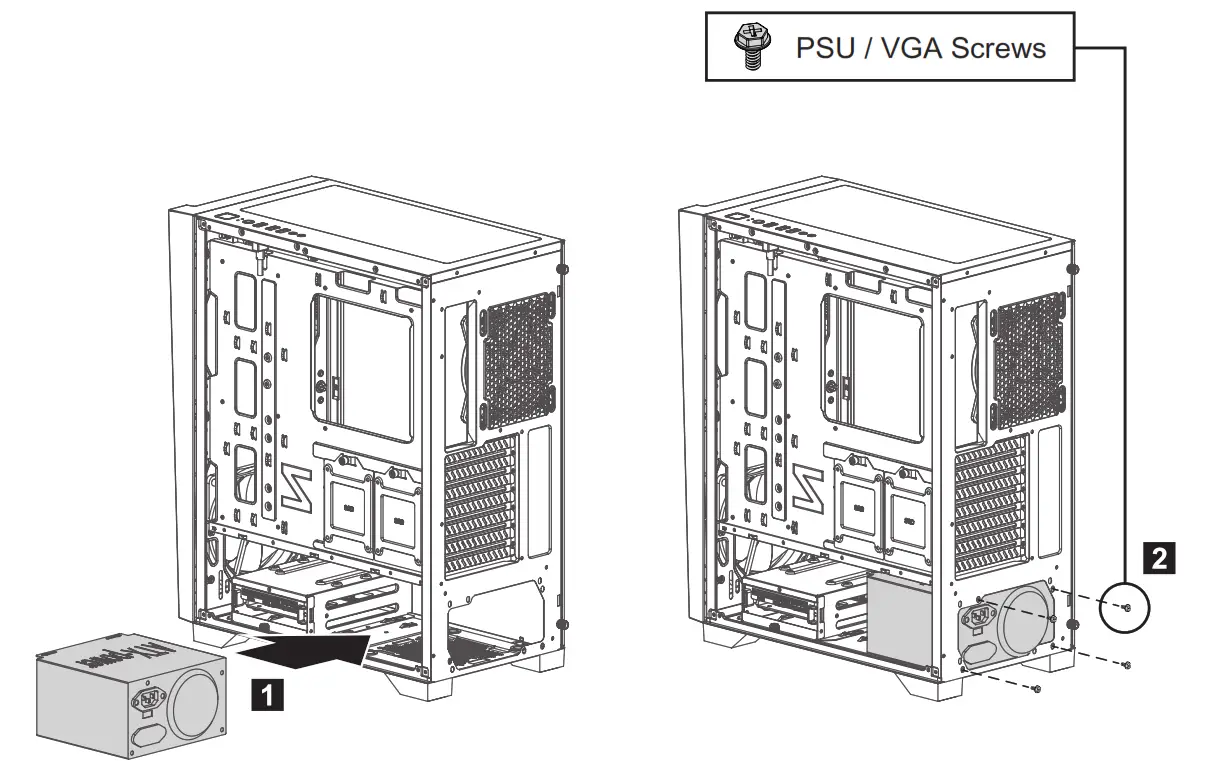

4. Mounting the PSU

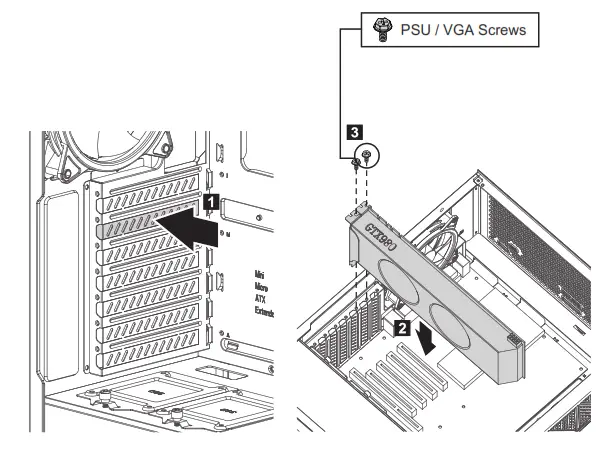

5. Mounting PCI-E(VGA) card

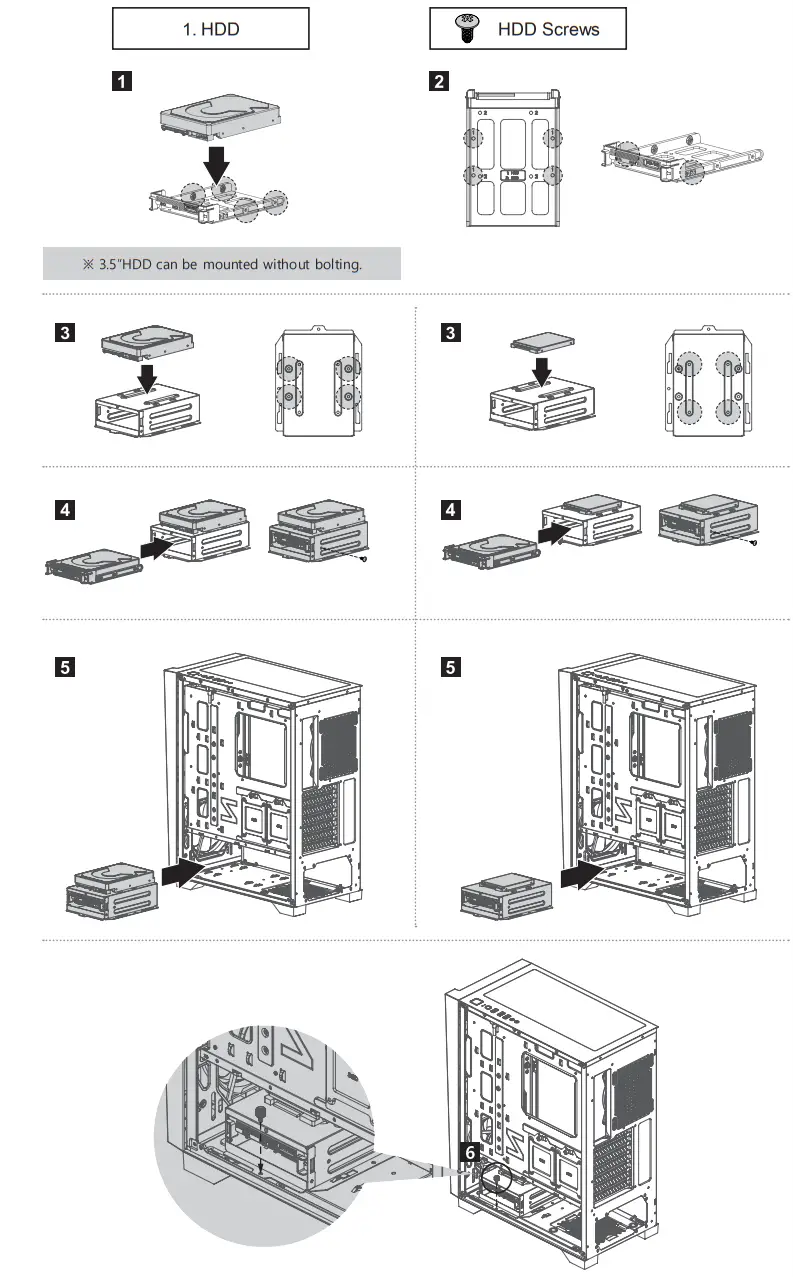

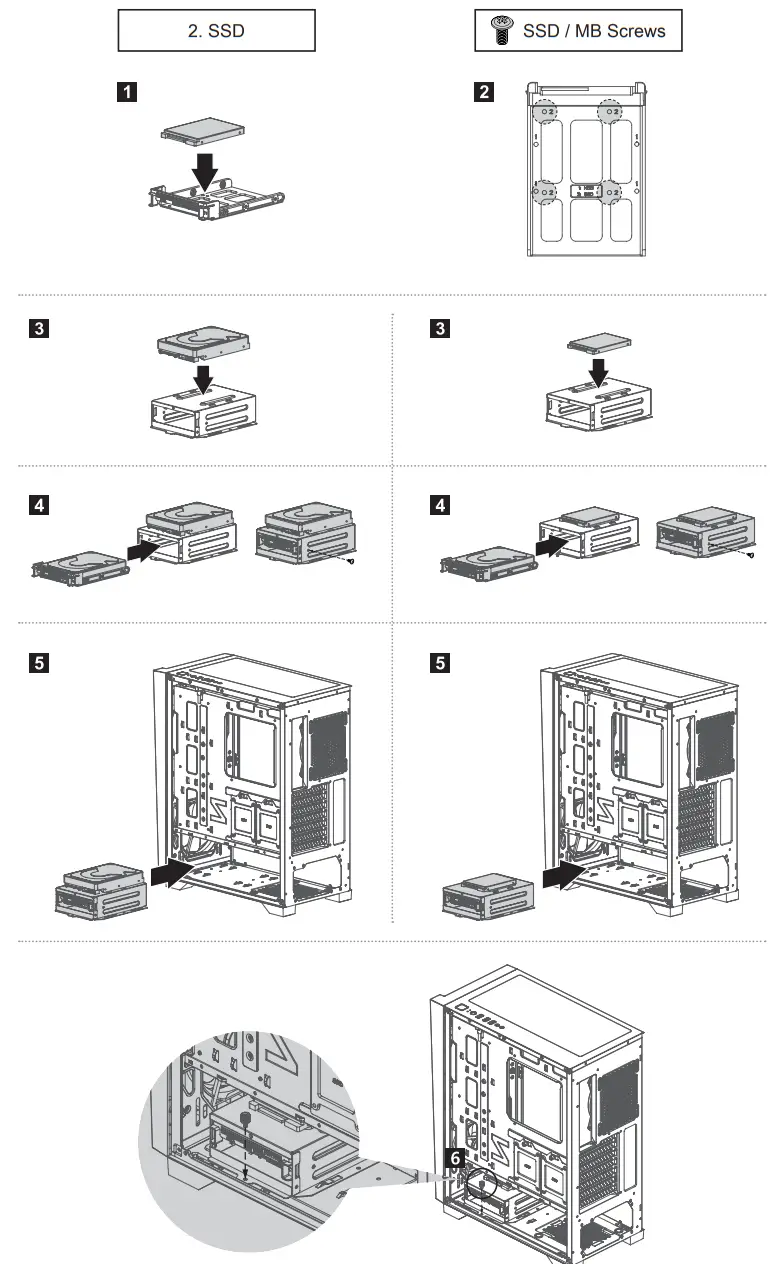

6. Mounting the 3.5″ and 2.5″ SSD / HDD

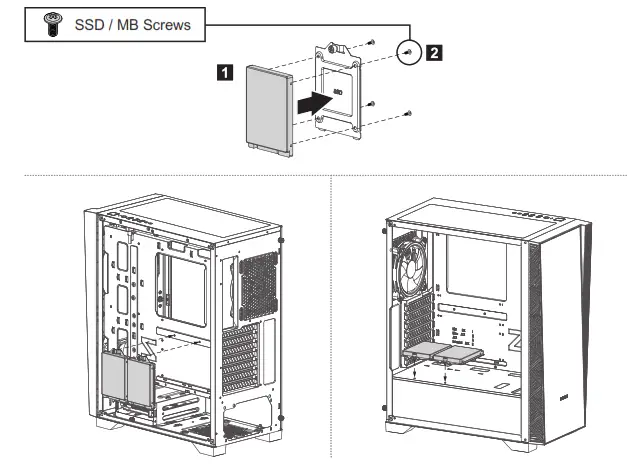

7. Mounting the 2.5″ SSD
8. Mounting the 2.5” SSD
9. Mounting the radiator

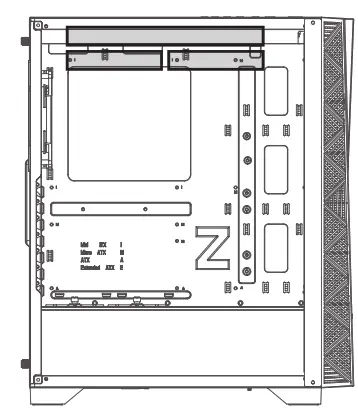

   1) Mounting the front radiator ・120mm / 240mm / 280mm / 360mm	2) Mounting the top radiator ・120mm / 240mm

   3) Mounting the rear radiator
   ・120mm

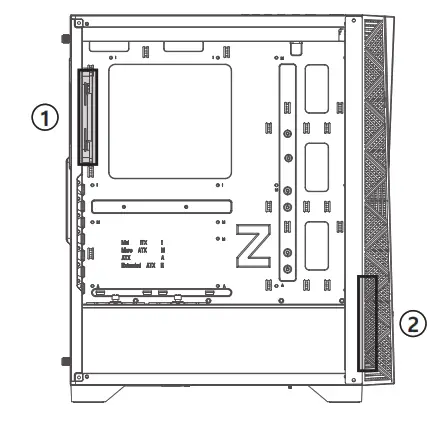

10. Fan(s) Included / Fan Specifications
    1 Addressable RGB LED FAN
    – FAN : 12V 0.18A
    – LED : 5V 0.72A
    – Hydraulic Bearing
    2 Standard FAN
    – FAN : 12V 0.16A
    – Sleeve Bearing

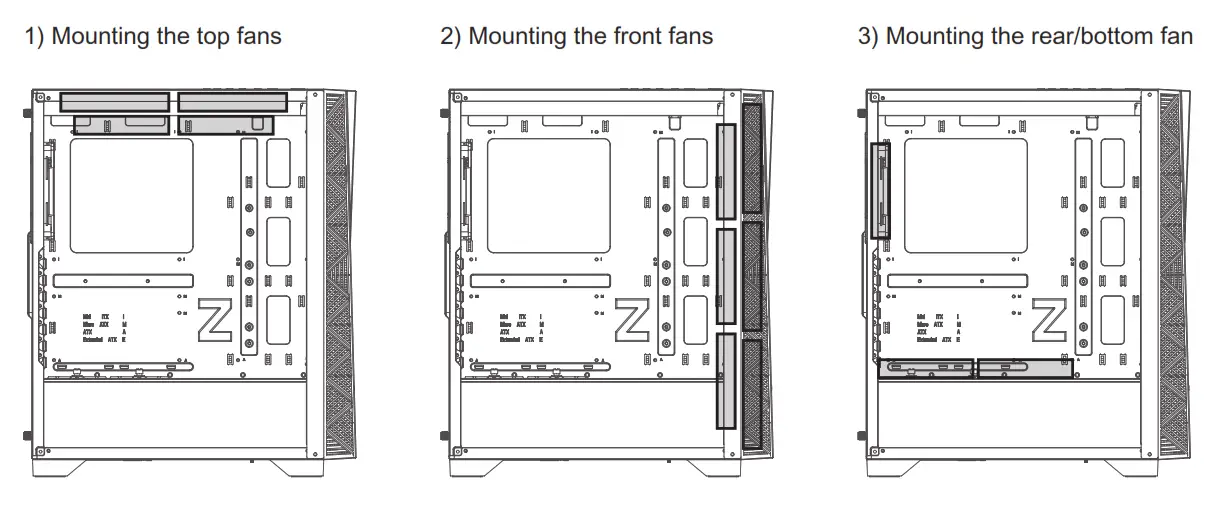

11. Mounting the fans

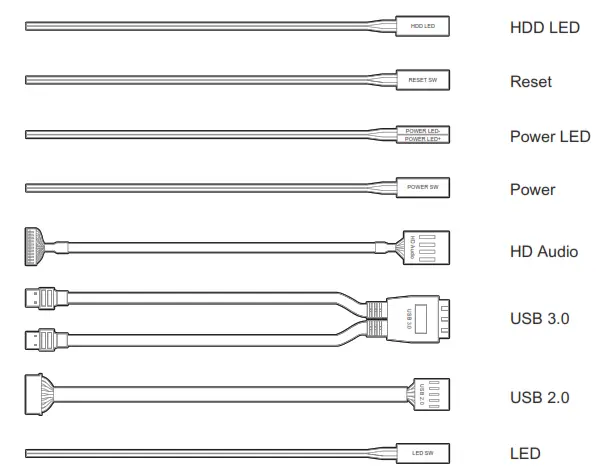

12. I/O Connectors

Certification

ROHS,
This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS
(Restriction of Hazardous Substances) Directive.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems) COOL INNOVATIONS
www.zalman.com
