Zalman S3 Atx Mid Tower Gaming Case User Manual (+ PDF)

User Manual

S3 ATX MID TOWER COMPUTER CASE
KOR
S3 TG ATX MID TOWER COMPUTER CASE
Ver. 070720

Contents hide

1 S3 ATX Mid Tower Gaming Case

2 Precautions

3 Specifications

4 Accessories Component

5 Separating the side panel

6 Mounting the motherboard

7 Mounting the 3.5″ and 2.5″ SSD / HDD

8 Mounting 2.5″ SSD / HDD

9 Mounting PCI-E(VGA) card

10 Mounting the top fan

11 Mounting the bottom fan

12 Mountain the front fan and front radiator

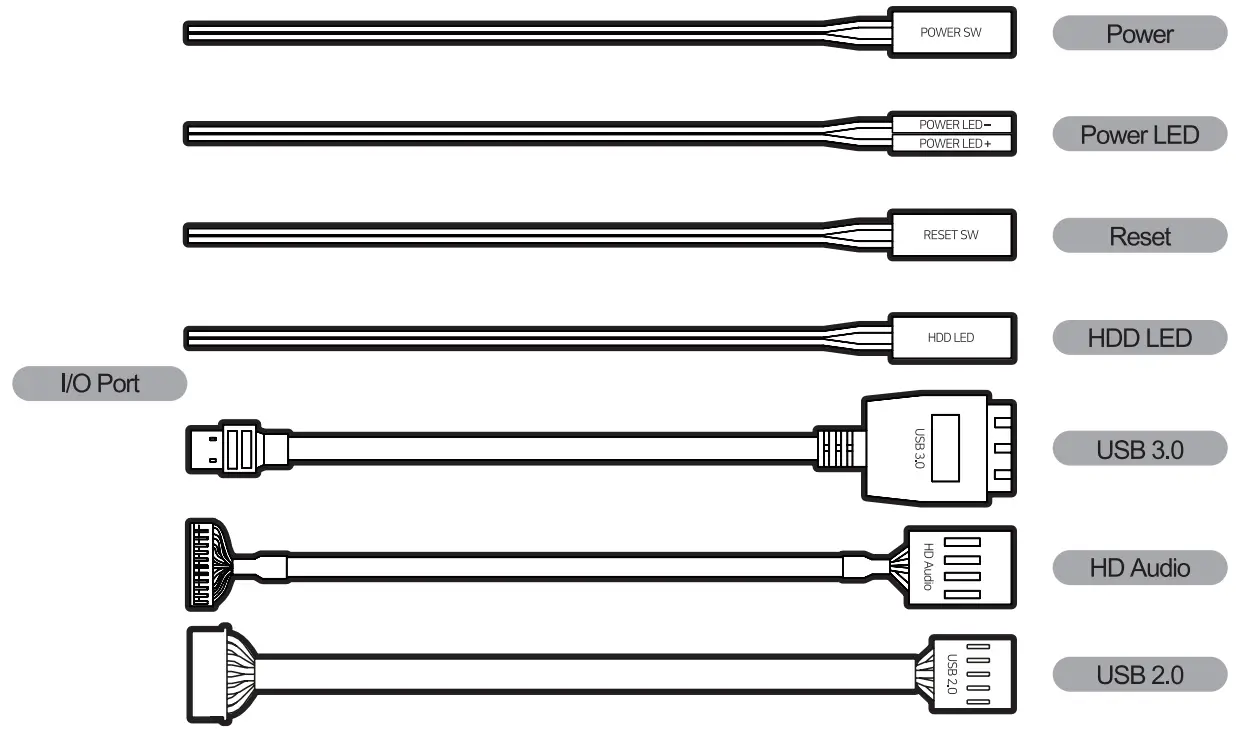

13 Cable Connection

14 Warranty

15 Documents / Resources

15.1 References

16 Related Posts

S3 ATX Mid Tower Gaming Case

To ensure safe and easy installation, please read the following precaution.
Product design and specifications may be revised to improve quality and performance without notice.

Developed and designed by ZALMAN in Korea.
Th6 product 6 is protected by ZAIMAN’s pending or registered patents.

www.zalman.com

Precautions

Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
Wear gloves to prevent accidents when installing the product.
Severe damage may occur when mounting the system, so do not apply excessive force.
Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.
Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
Do not insert your hand or another object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Specifications

Model		S3	I S3(KOR)	I S3 TG
Case Form Factor		ATX Mid-Tower

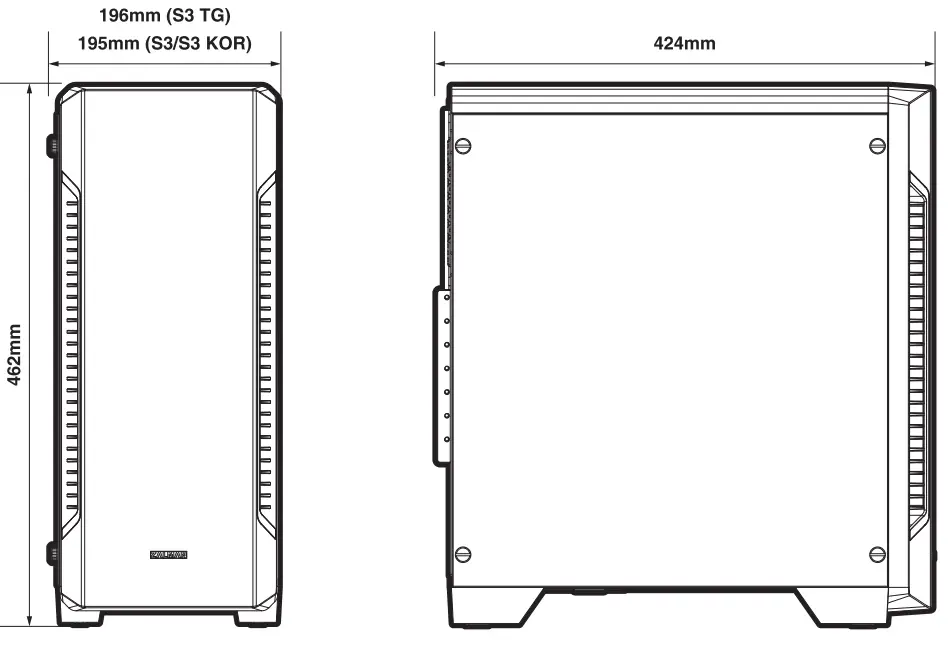

Dimensions		424(D) x 195(W) x 462(H)mm		424(D) x 196(W) x 462(H)mm
Weight		3.7kg	I 3.8kg	4.8kg
Case Materials		Steel, Plastic, Acrylic		Steel, Plastic, Tempered glass
Motherboard Support		ATX / mATX / Mini-ITX
Maximum VGA Length		330mm
Maximum CPU Cooler Height		156mm
Maximum PSU Length		180mm
PCI Expansion Slots		7
Case Drive Bays		2 x 3.5″, 2 x 2.5″
Fan Support	Front	3 x 120mm
	Top	2 x 120mm
	Rear	1 x 120mm
	Bottom	2 x 120mm
Fan(s) Included	Front		2 x 120mm
	Rear	1 x 120mm	1 x 120mm
Radiator Support	Front	1 x 120mm
	Rear	1 x 120mm
I/O Ports		1 x Headphone, 1 x Mic, 2 x USB 2.0, 1 x USB 3.0

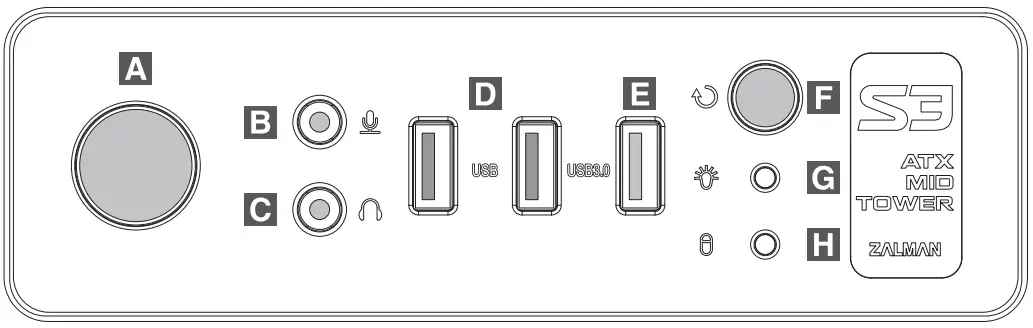

I/O Part

#	Part	#	Part	#	Part	#	Part
A	Power button	B	Microphone jack	C	Headphone jack	D	USB 2.0
E	USB 3.0	F	Reset button	G	Power LED	H	HDD LED

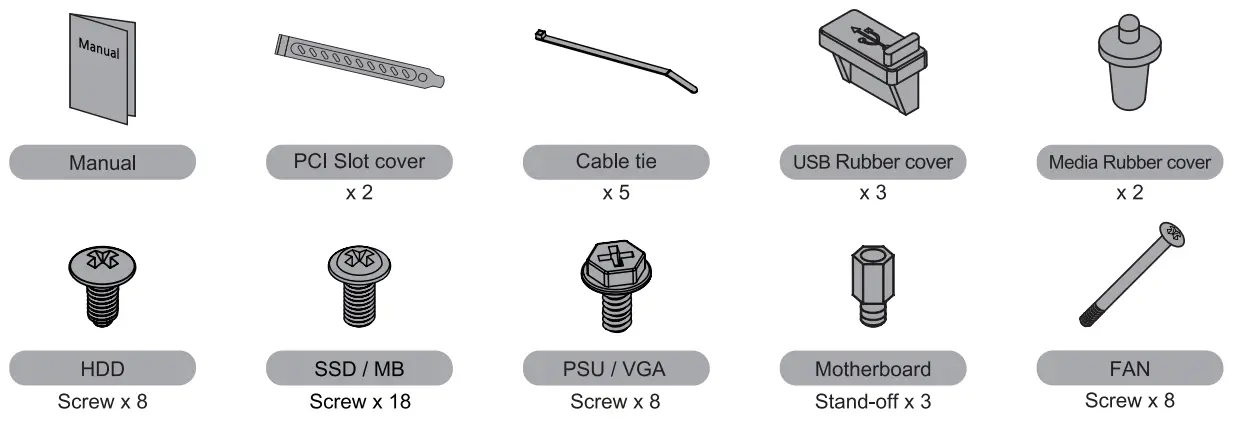

Accessories Component

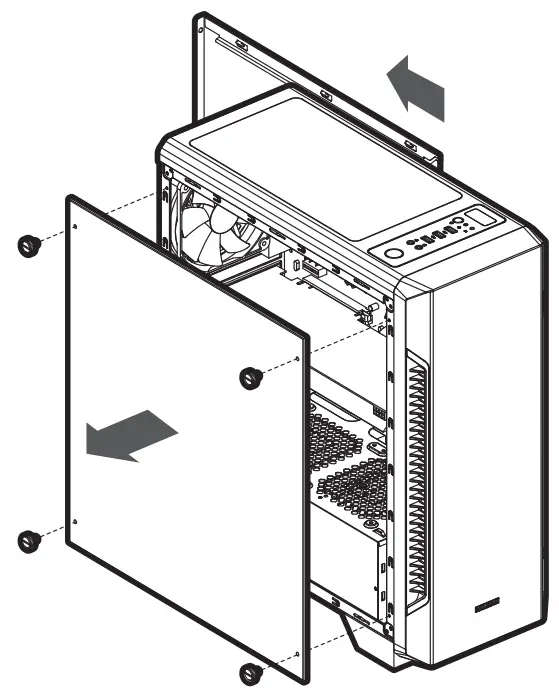

Separating the side panel

Side Panel Removal

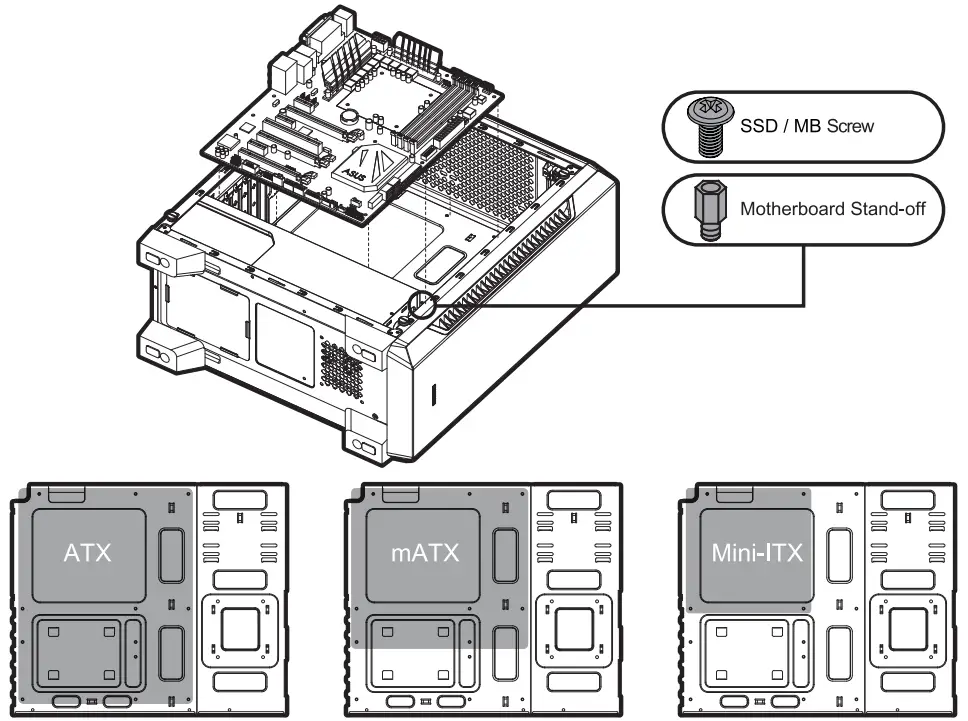

Mounting the motherboard

As 6 stand-offs are mounted by default, insert an additional stand-off according to the type of motherboard by referring to the mounting position of the main board, and mount the motherboard on the case.

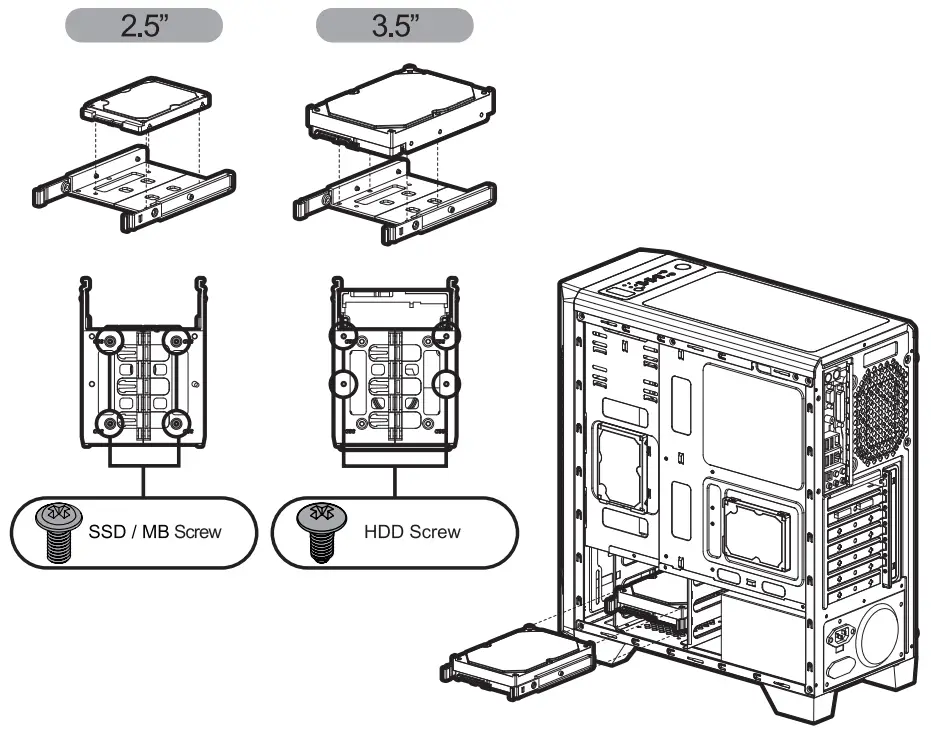

Mounting the 3.5″ and 2.5″ SSD / HDD

Separate the 2.5° and 3.5″ combo HDD guide and assemble the HDD or SSD. Mount the assembled HDD on the slot.

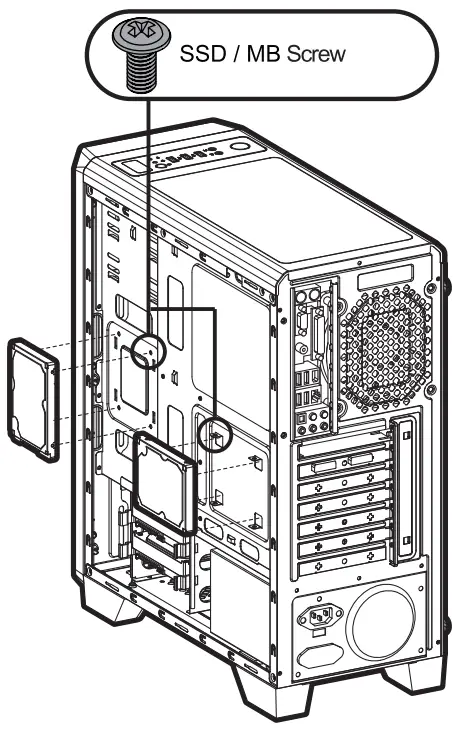

Mounting 2.5″ SSD / HDD

2.5° SSD and HDDs can be installed on the right side of the case as shown in the diagram below.

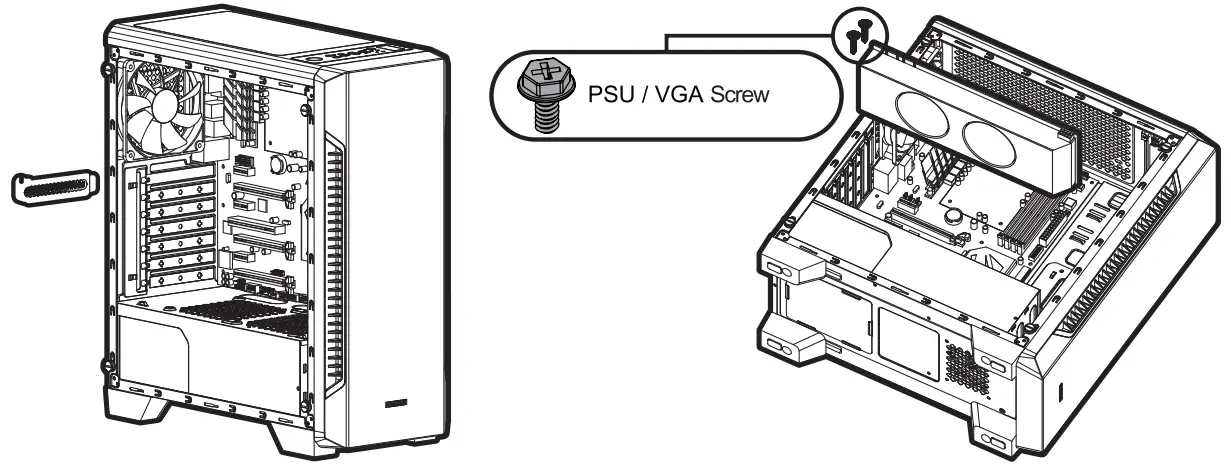

Mounting PCI-E(VGA) card

Loosen the screw, separate the PCI cover, mount the graphic card, and fix it using the screw.

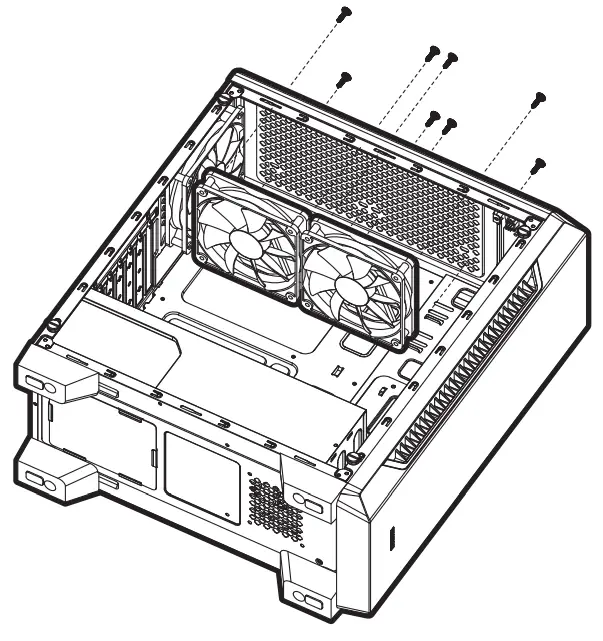

Mounting the top fan

As shown in the picture, install the fan on the top of the case using bolts

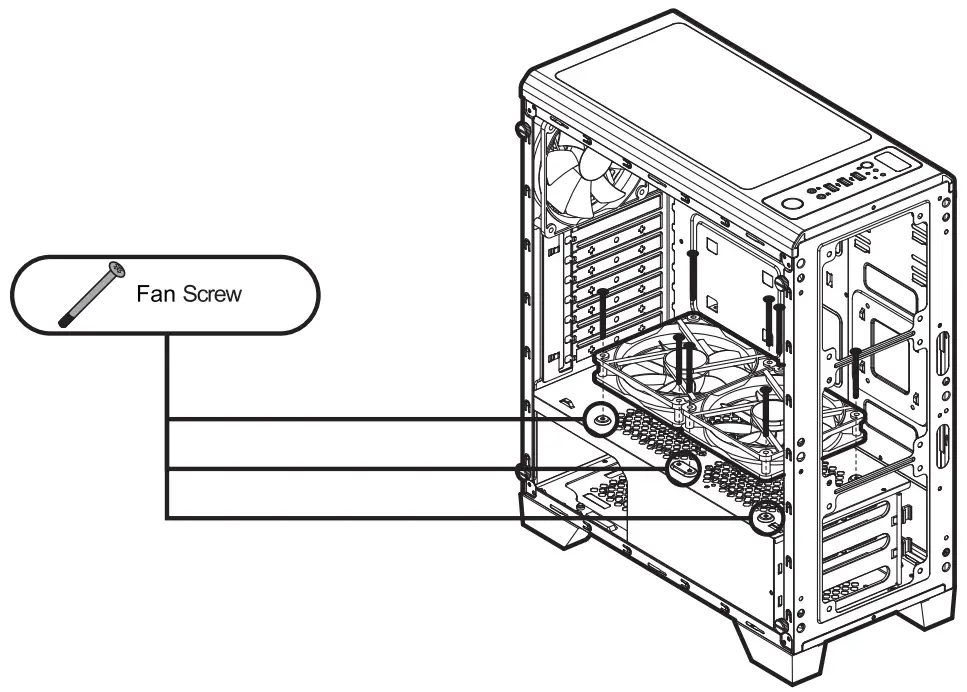

Mounting the bottom fan

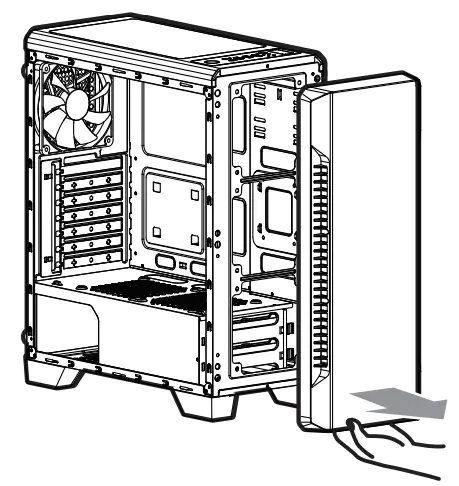

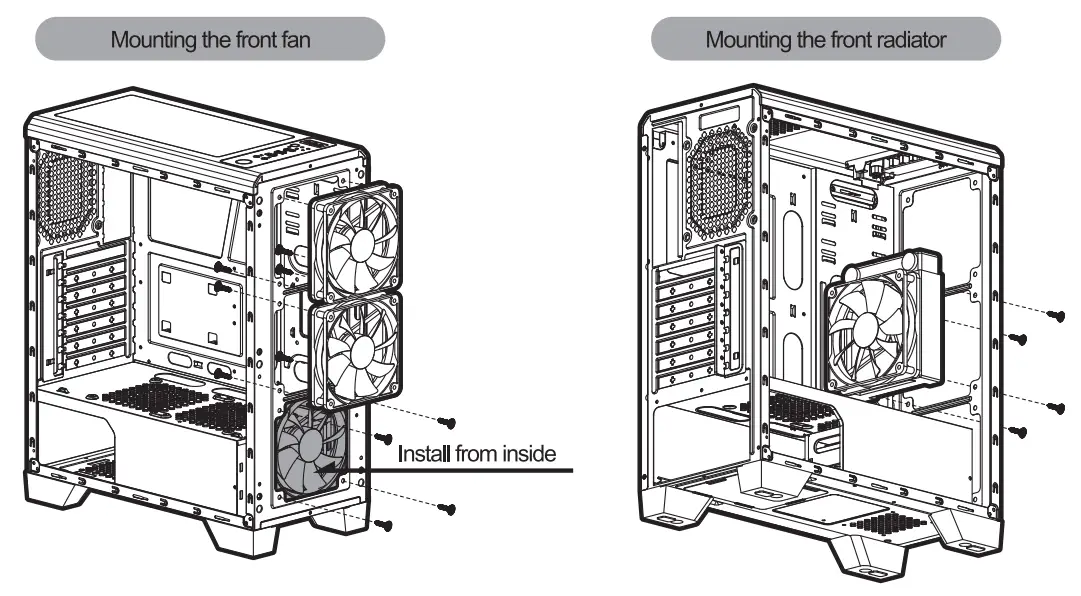

Mountain the front fan and front radiator

After Front Cover Removal Mount the fan or the radiator on the mounting hole in the front as shown in the figure. (For liquid coolers, only products with a hose length of 240 mm or more can be installed)
