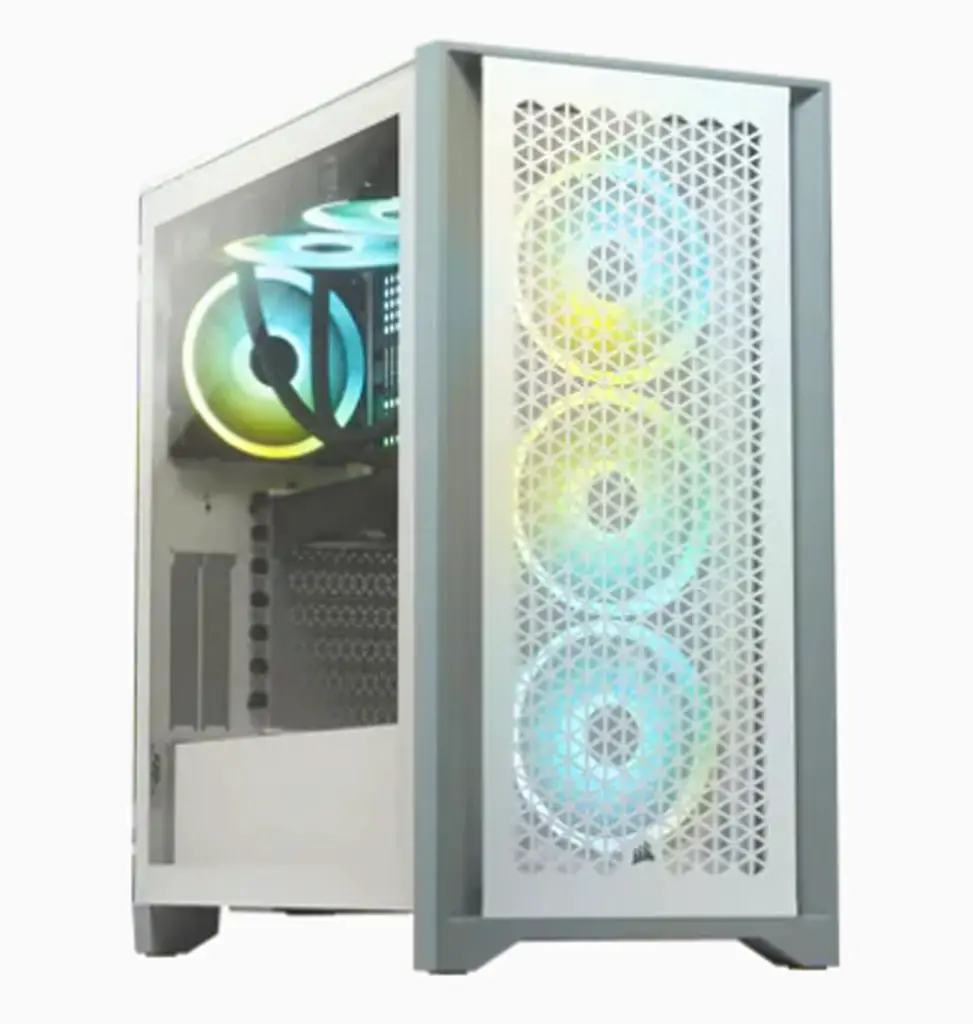

Corsair Mid-Tower PC Case

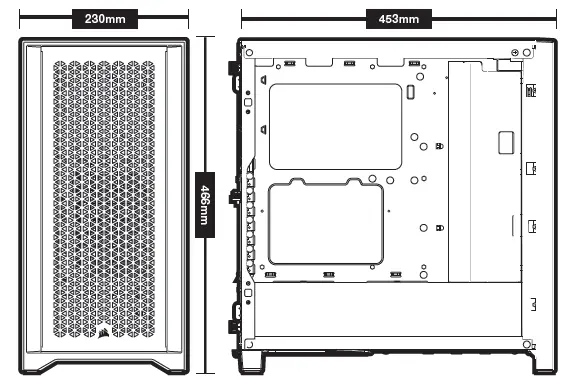

CASE SPECIFICATIONS
Length……………………………………………………………………………………………………………..453mm
Width……………………………………………………………………………………………………………….230mm
Height……………………………………………………………………………………………………………466mm
Maximum GPU length………………………………………………………………………………….360mm
Maximum CPU height………………………………………………………………………………….170mm
Maximum PSU length…………………………………………………………………………………..220mm
Fan locations:
Front…………………………………………………………………..3x 120mm / 2x 140mm (1x 120mm included)
Top………………………………………………………………………2x 120mm / 2x 140mm
Rear……………………………………………………………………..120mm (1x 120mm included)
Radiator compatibility:
Front…………………………………………………….360mm / 280mm
Top………………………………………………………. 280mm with CORSAIR LPX DRAM / 240mm with all CORSAIR DRAM
Rear………………………………………………………120mm

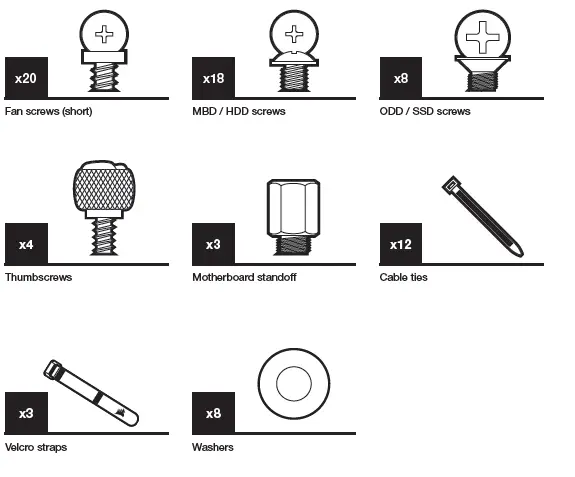

ACCESSORY KIT CONTENTS

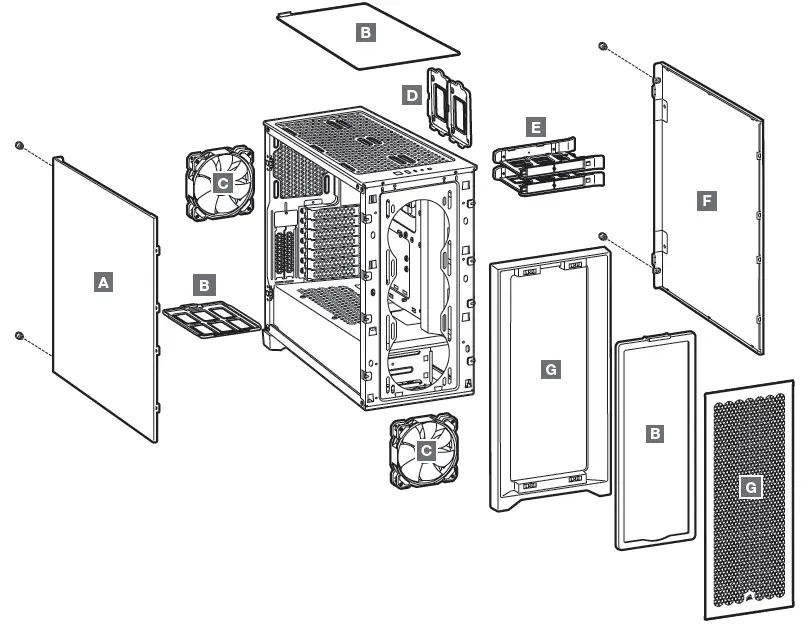

CASE FEATURES
- A — TEMPERED GLASS SIDE PANEL
- B — 3x DUST FILTERS
- C — 2x 120MM FANS
- D — 2x SSD TRAYS
- E — 2x HDD TRAYS
- F — SOLID SIDE PANEL
- G — FRONT BEZEL

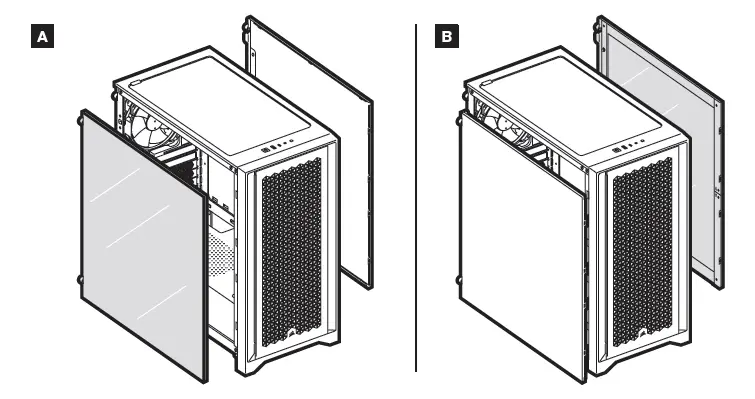

INTERCHANGEABLE SIDE PANELS

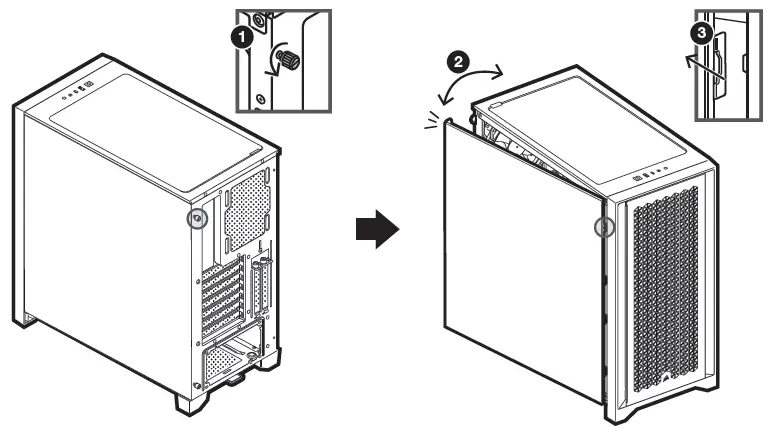

REMOVING THE SIDE PANELS
MOVING THE CABLE BAR

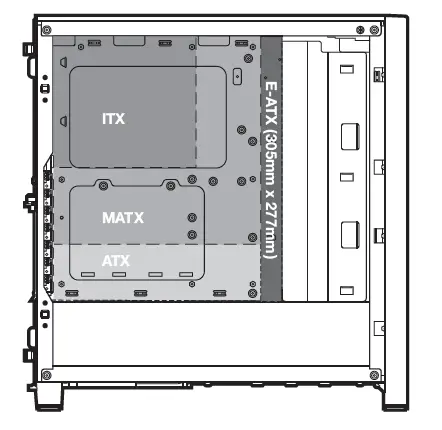

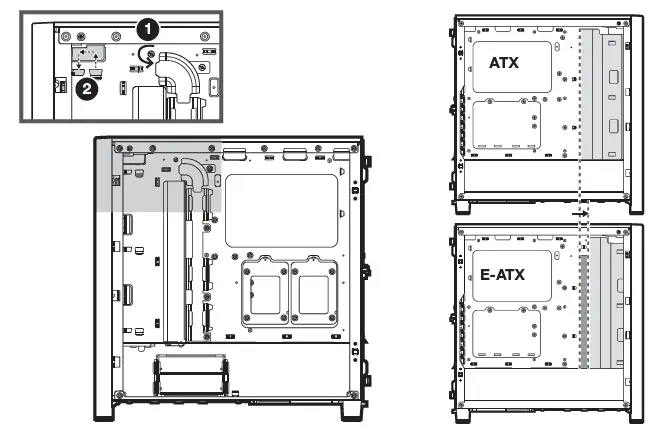

INSTALLING THE MOTHERBOARD

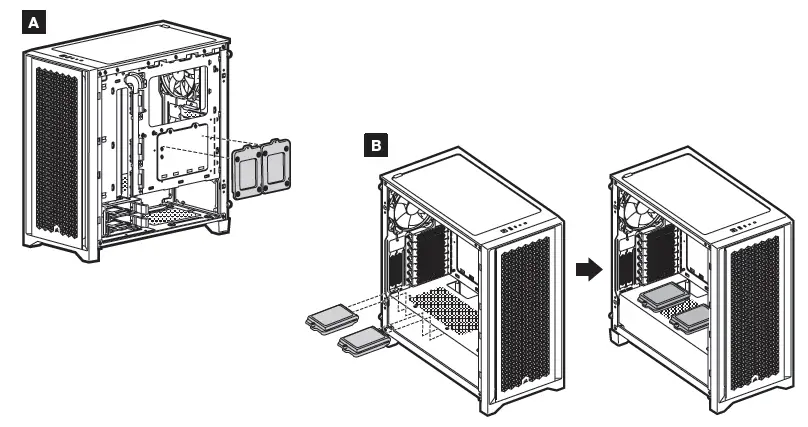

INSTALLING HDDS

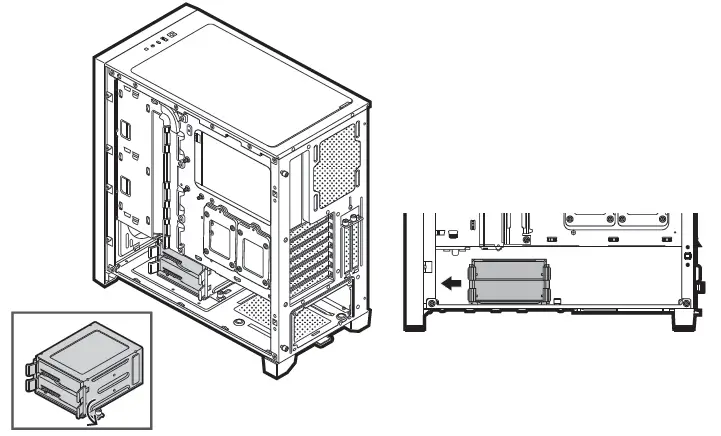

MOVING THE HDD CAGE
INSTALLING SSDS

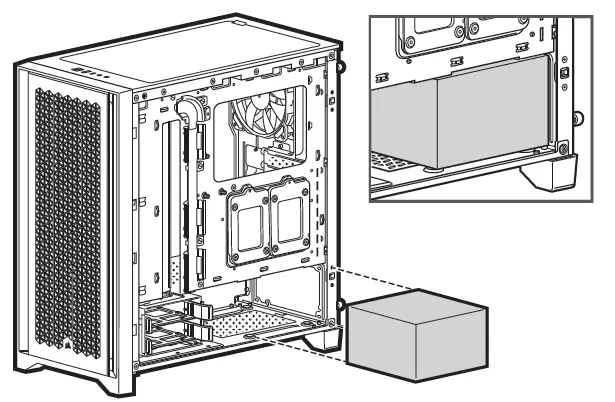

INSTALLING PSU

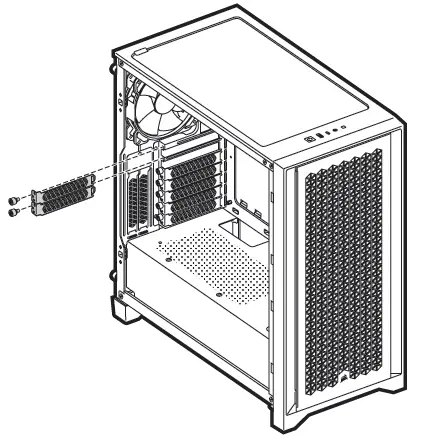

INSTALLING PCI-e CARDS

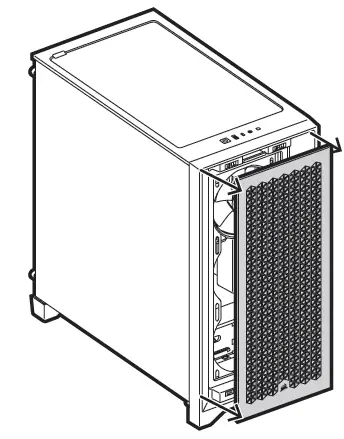

REMOVING THE FRONT BEZEL

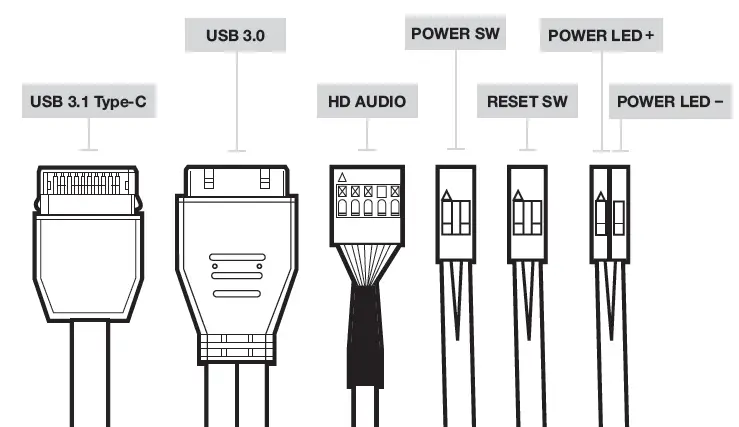

INSTALLING THE FRONT I/O CONNECTORS

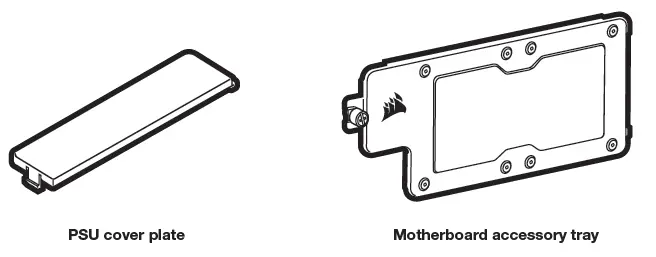

ACCESSORIES AVAILABLE FOR PURCHASE
FREQUENTLY ASKED QUESTIONS
- Does the polarity matter with the I/O panel’s power and reset header?
No, only the LED headers. - Who should I contact if I received my case damaged or one of the fans is no longer working?
Please go to support.corsair.com and request an RMA so that we can replace the damaged part(s). - Where can I mount a fan?
Fan mount locations Front 3x 120mm / 2x 140mm Top 2x 120mm / 2x 140mm Rear 120mm To learn more about this case visit the product page at corsair.com
