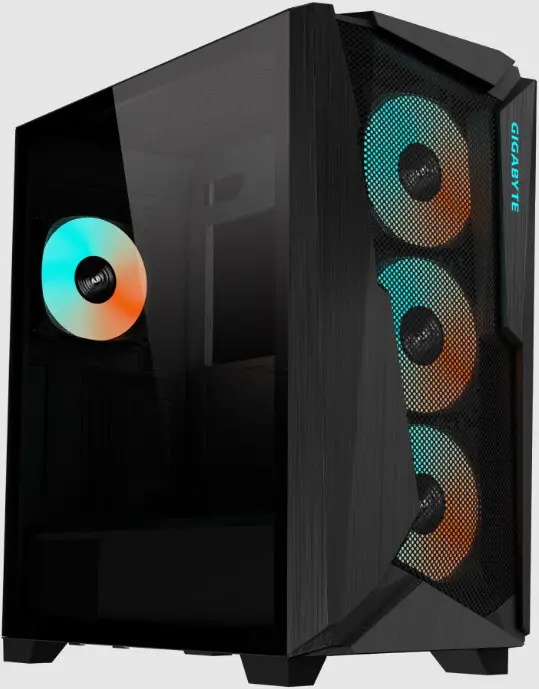

GIGABYTE C301 Glass V2 ATX Mid-Tower PC Case Installation Guide
FITTING PACK
| Figure | Part’s Name Qty | Used For | |
 | Screw A | 15 | PSU (4) / VGA holder kit (2) / HDD (8) / PCI Slot Cover (1) |
 | Screw B | 21 | Motherboard (9) / PCI-E Riser Cable (2) / SSD (8) / Backup(2) |
 | Screw C | 12 | Fan |
 | Standoff — 6.5mm | 12 | Motherboard(9, pre-installed), M-ATX Motherboard (3) |
 | Standoff — 20.3mm | 2 | VGA holder kit |
 | Nut setter | 1 | Standoff Installation |
 | Cable Tie | 4 | Cable management |
 | VGA holder kit A | 1 | Vertical VGA installation |
 | VGA holder kit B | 1 | |

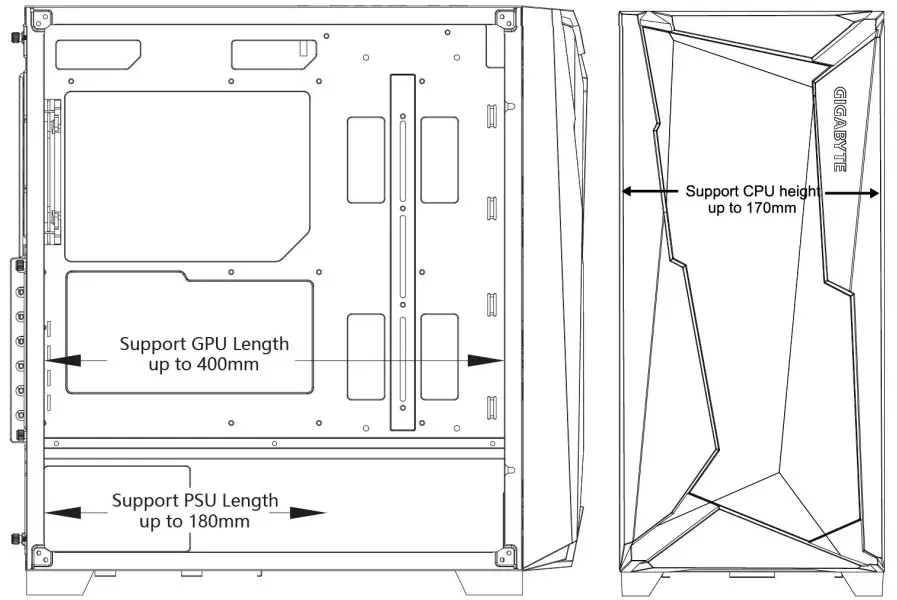

Max CPU Height : 1770mm
Max GPU Length : 400mm
Max PSU Length : 180mm
THE I/O0 CONNECTORS AND RGB LIGHTING POWER

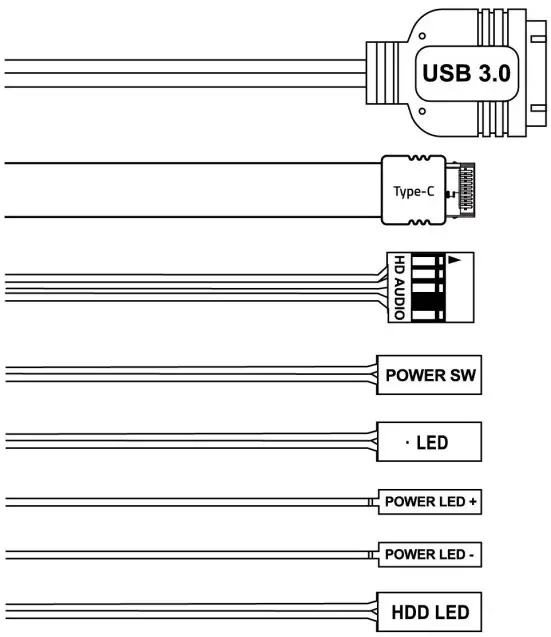

1/0 Connectors

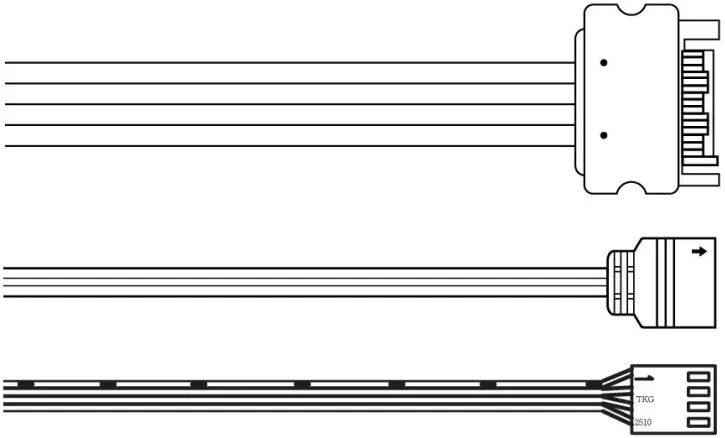

RGB Lighting & Fan Splitter Cable
INSTALLATION

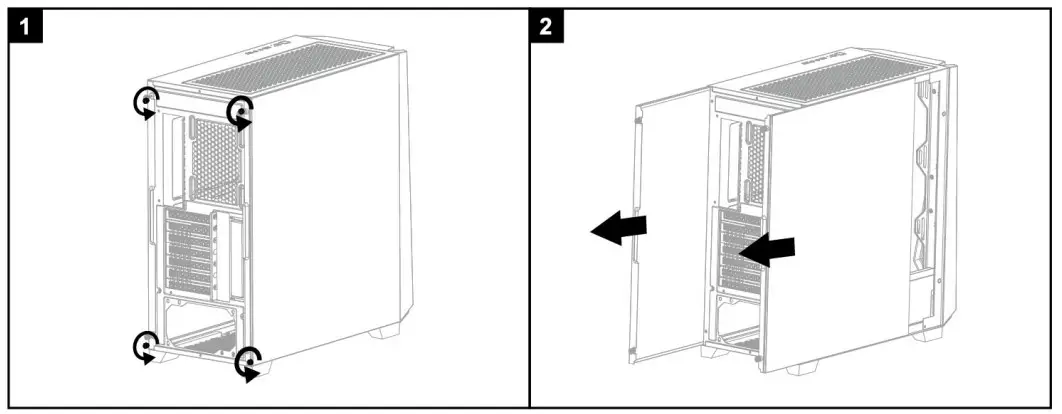

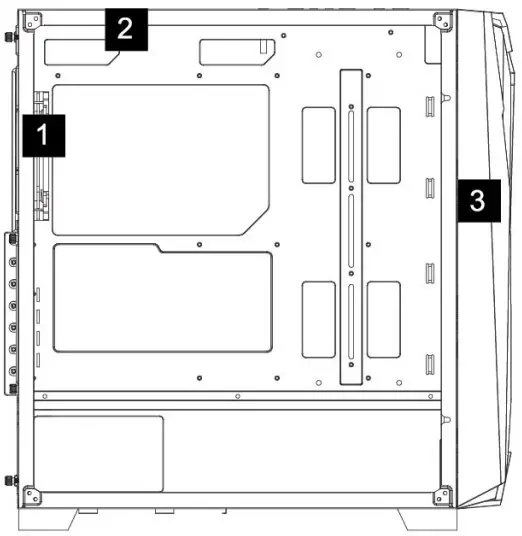

Remove both side panels
*Be careful when handling the tempered glass panel.

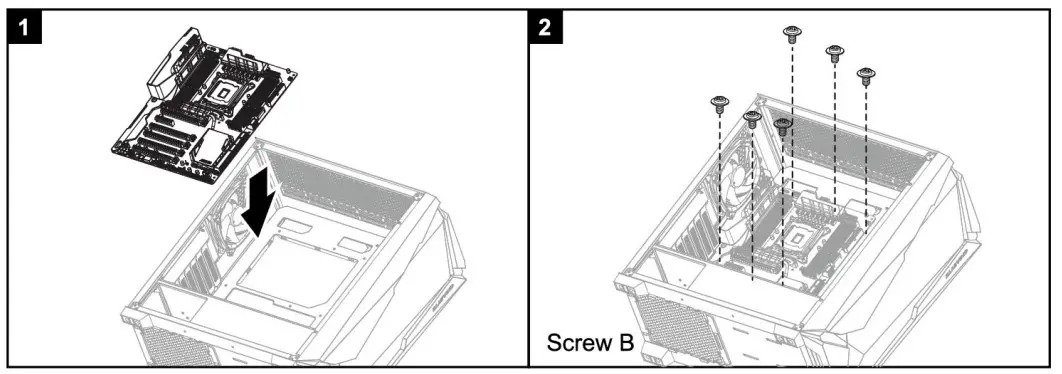

Install the motherboard
*The quantity of standoff 6.5mm depends on motherboard’s type.

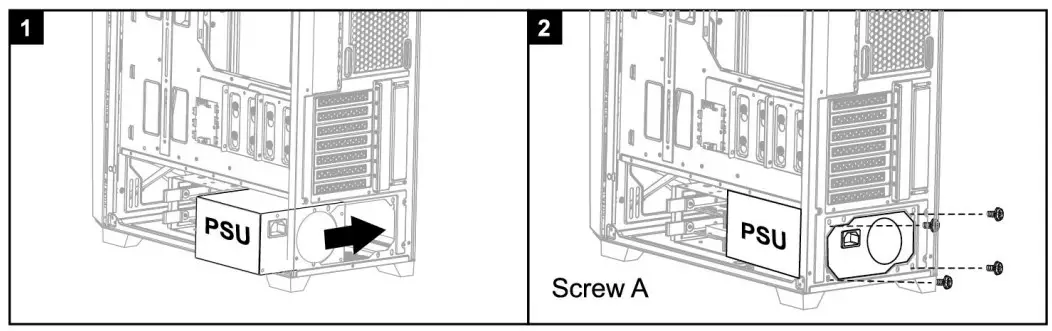

Install the power supply

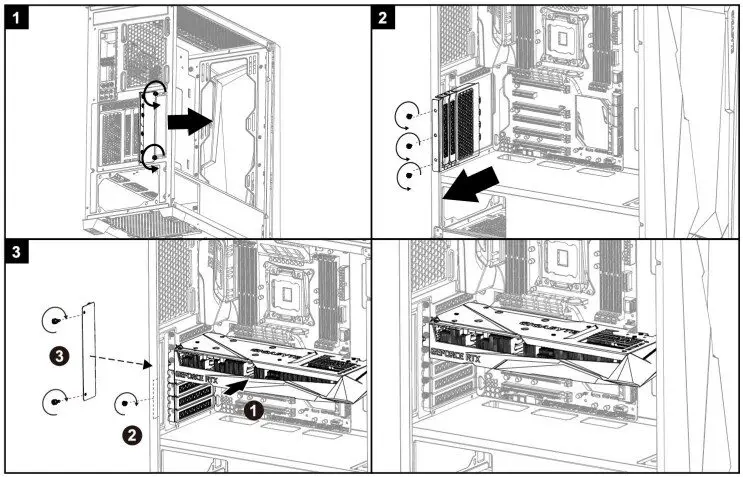

Install the add-on cards

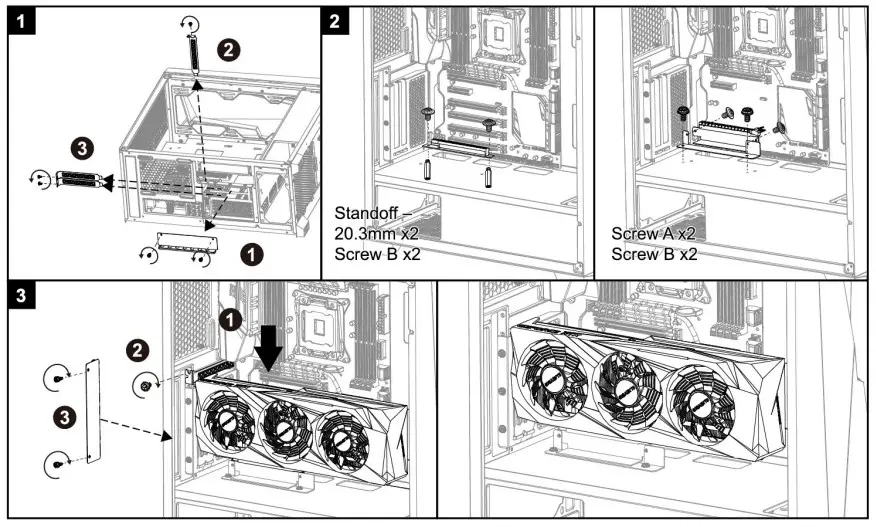

- Horizontal VGA card installation
- Vertical VGA card installation (requires optional PCI-E x16 riser cable)

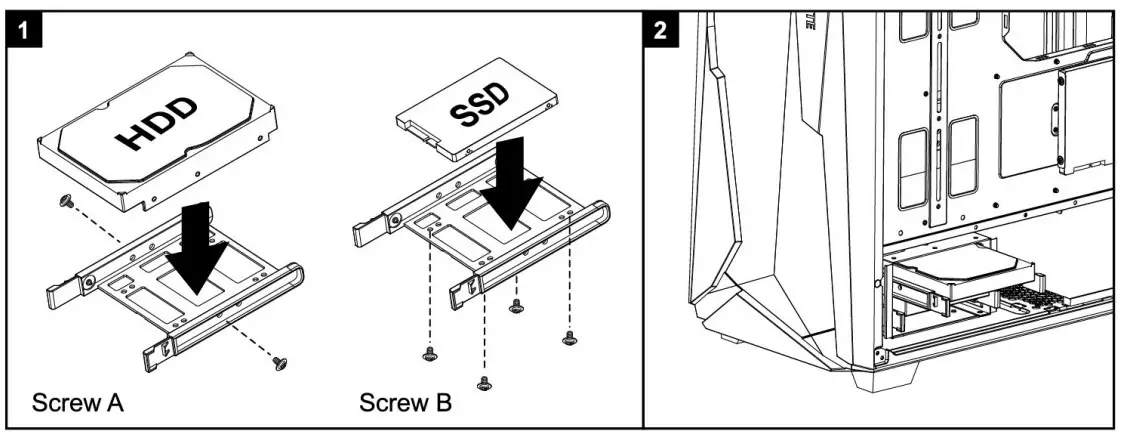

Install the hard drive
- For 3.5″ cage

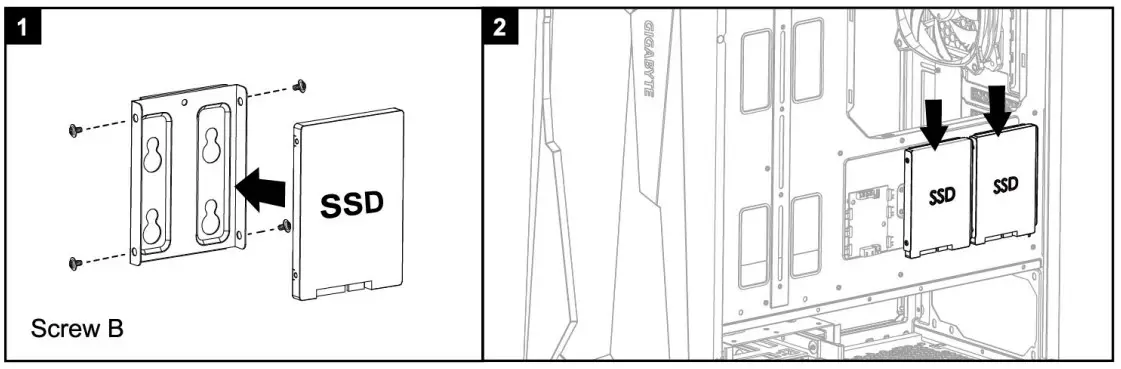

- For 2.5″ cage
- Remove the 3.5″Cage
*The 3.5″cage can be disassembled when the users need more space for installing the PSU.

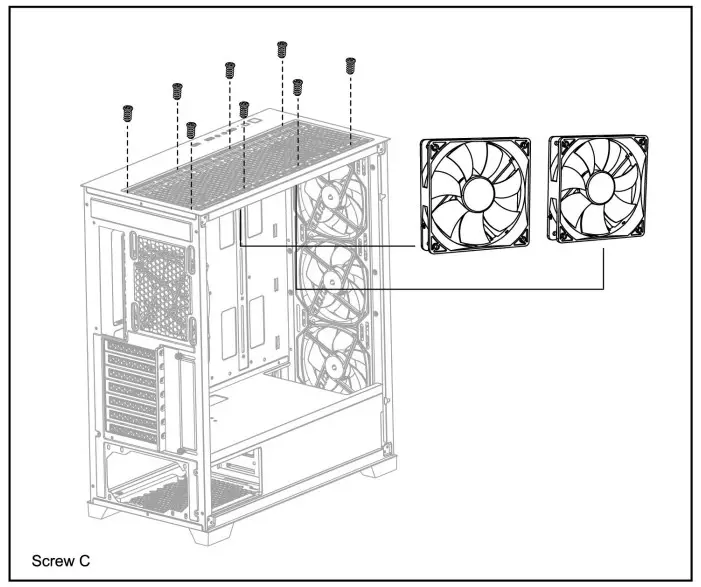

Install the additional system fan(not included)
Cooling System Support
Fan
- Rear : 120mm x1
- Top :120mm x3 / 140mm x2
- Front : 120mm x3 / 140mm x3
Radiator
- Rear : 120mm x1
- Top :120mm x3 / 140mm x2 / 240mm x1 / 280mm x1/360mm x1
- Front: 120mm x3 / 140mm x2 / 240mm x1 / 280mm x1/ 360mm x1
Warranty
Gigabyte provides limited product warranty. For the latest and current terms of the Limited Product Warranty, please visit http://www.gigabyte.com/support-downloads/customer-service.aspx .
WEEE Information
This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of ts life separately from your household waste.
There are separate collection systems for recycling in the EU. For more information, please contact the local authority o your retailer where you purchased the product.
