C500 Glass PC Case
Installation Guide

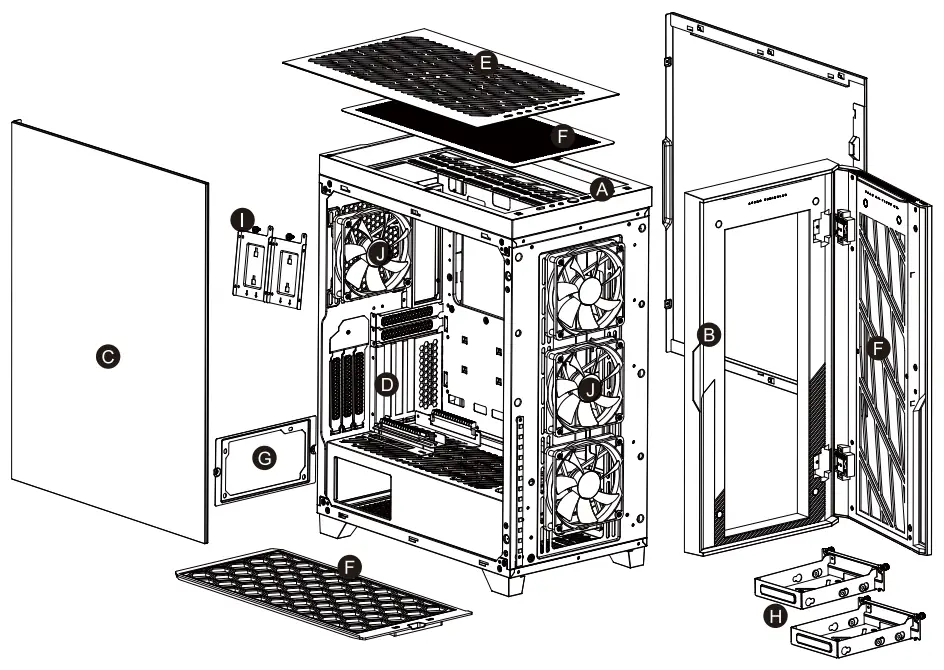

Assembly Drawing
- I/O panel
- Front panel
- Tempered glass side panel
- Vertical and horizontal graphics card Installation ( PCI-E Riser Cable not included )
- Top panel
- Detachable dust filter
- PSU mounting plate
- 3.572.5″ drive bays
- 2.5″ drive bays
- ARGB & PWM fans (Pre-installed 120mm*4)

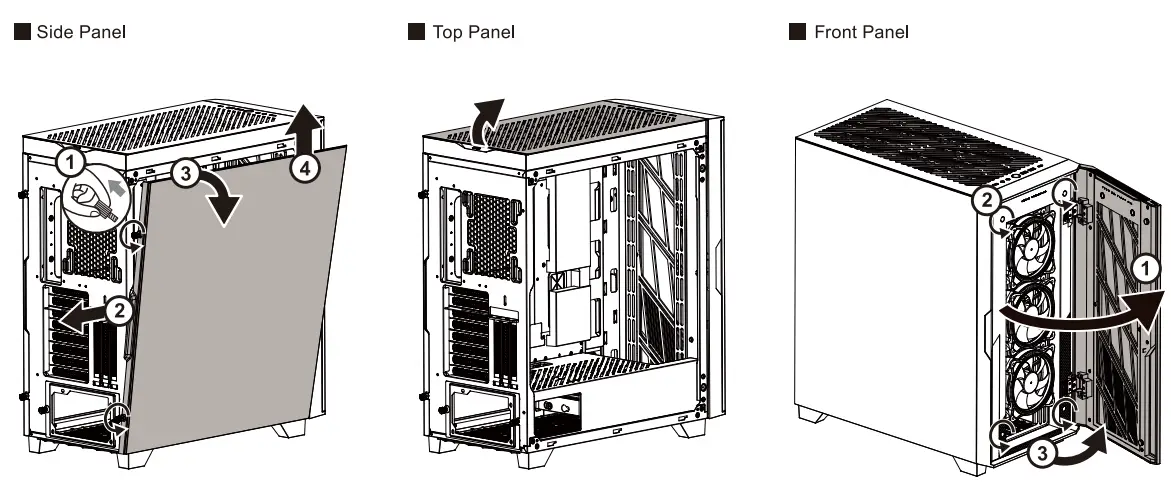

Remove the panels
- Be careful when handling the tempered glass panel.
- Install the fans or the radiators without removing the front panel.

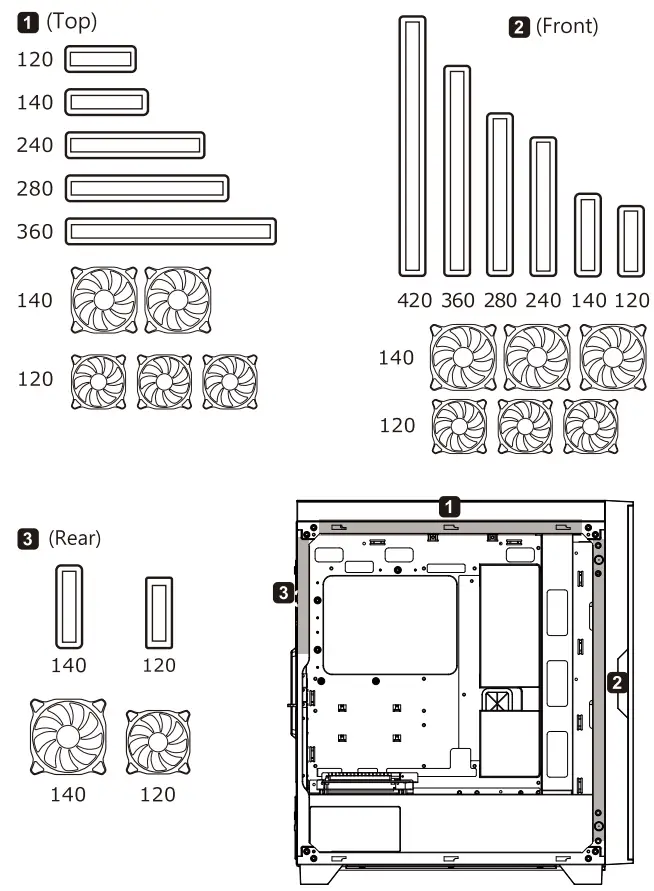

Install water cooling radiators & cooling fans

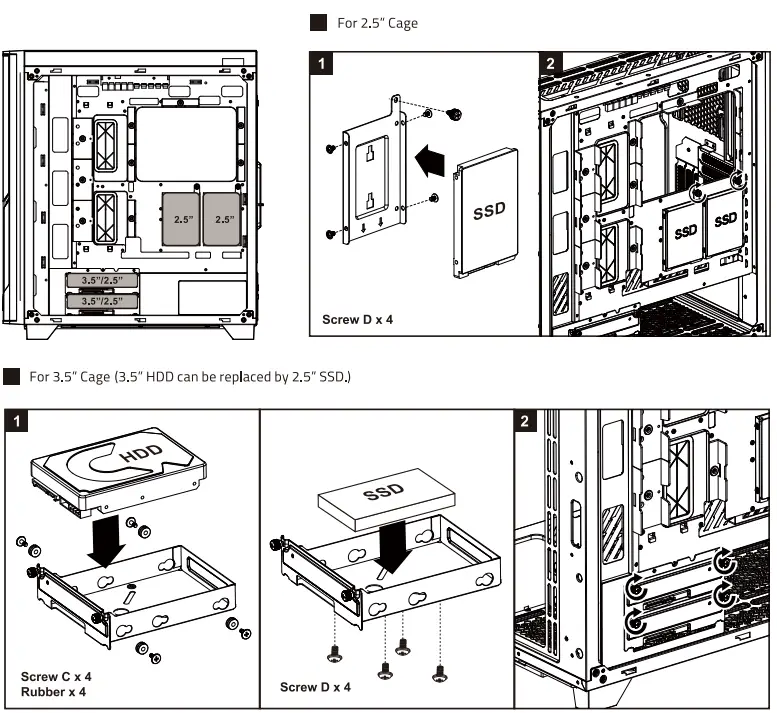

Install the internal 2.5″ SSDs & 3.5″ HDDs

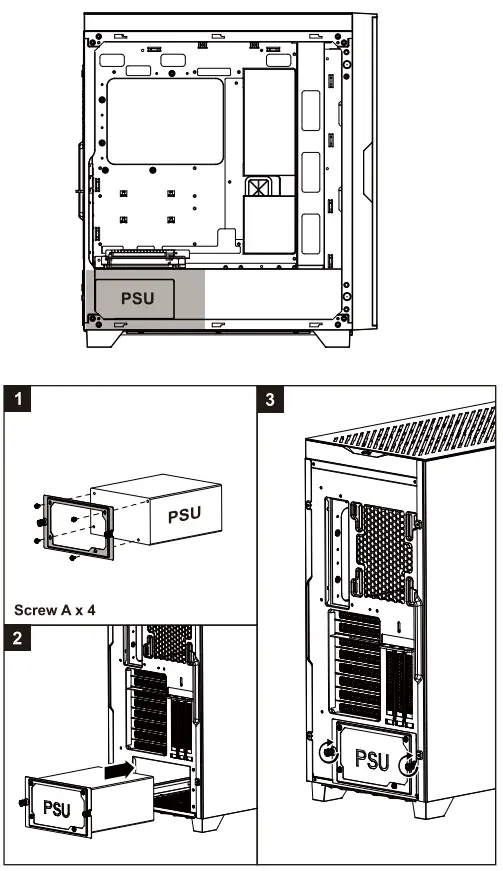

Install the power supply

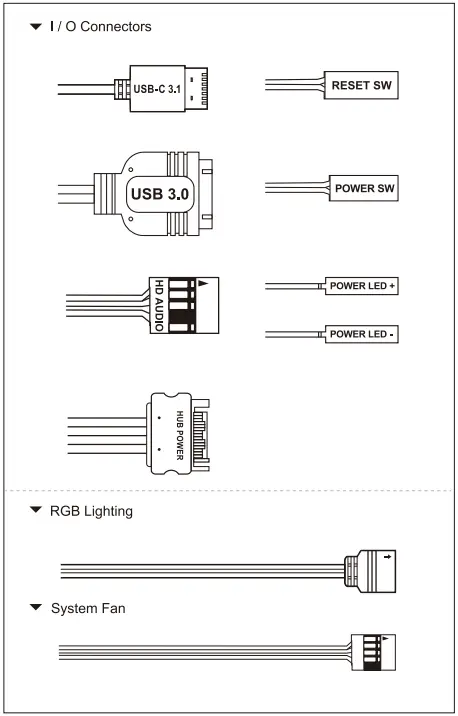

RGB & Fan control system
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

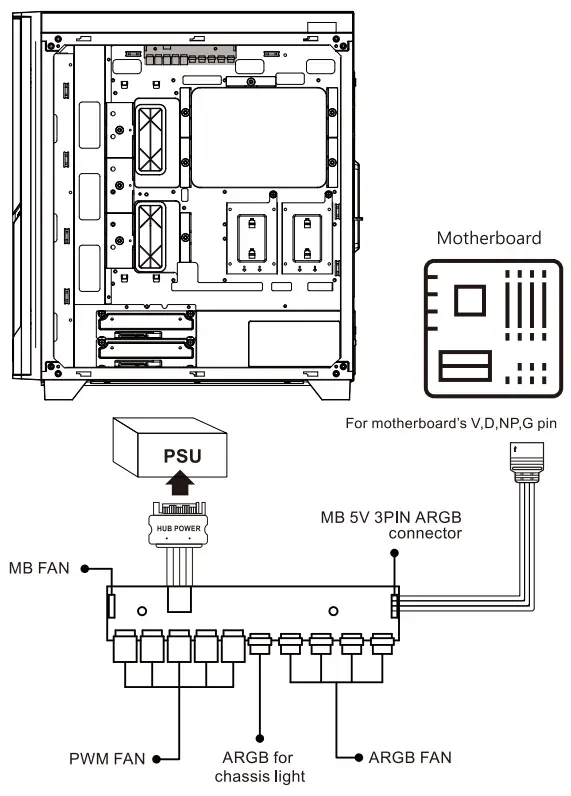

- Please use the included hub (refer the below image) to connect the ARGB and PWM fans.

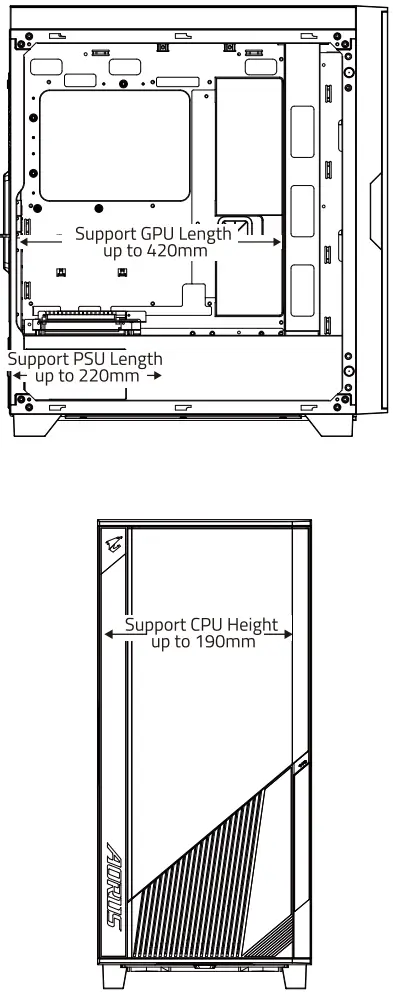

Maximum Compatibility and Accessory Kit
| Figure | Part’s Name | Qty | Used Fo |
 | Screw A | 5 | PSU (4) |
 | Screw B | 18 | Motherboard (9) / VGA holder kit (2) / PCI Slot Cover (6) |
 | Screw C | 10 | 3.5″ HDD Tray (8) |
 | Screw D | 18 | 2.5″ SSD (16) / VGA holder kit (2) |
 | Standoff 6.5mm | 5 | VGA holder kit (2) / Motherboard(8, pre-installed) |
 | Standoff 16.8m | 2 | VGA holder kit |
 | VGA holder kit | 1 | Vertical VGA installation |
 | Nut setter | 1 | Standoff Installation |
 | Cable Tie | 10 | Cable management |
 | PCI Slot Cover | 6 | PCI Expansion Slot |
 | Shock Absorption Rubber | 10 | 3.5″ HDD Tray (8) |

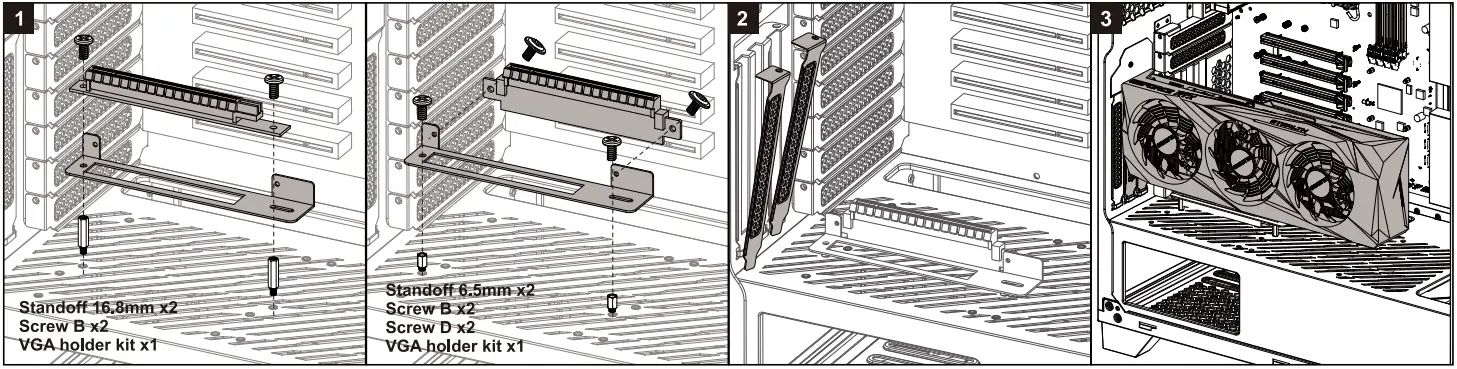

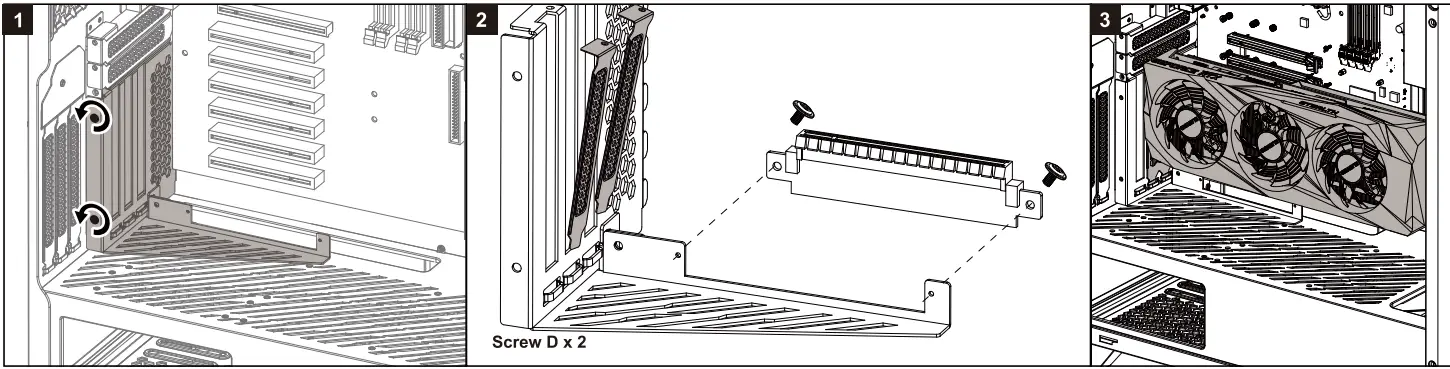

Install the vertical graphics card
- Provides two ways (A&B) for VGA installation depending on VGA height and mechanism.
- Requires the PCIE riser cable (not included). Plug the PCI-E riser cable before installing the graphics card.
- The Type A holder bracket has been pre-installed in the chassis, which can be removed by unscrewing it for horizontal graphics card installation.

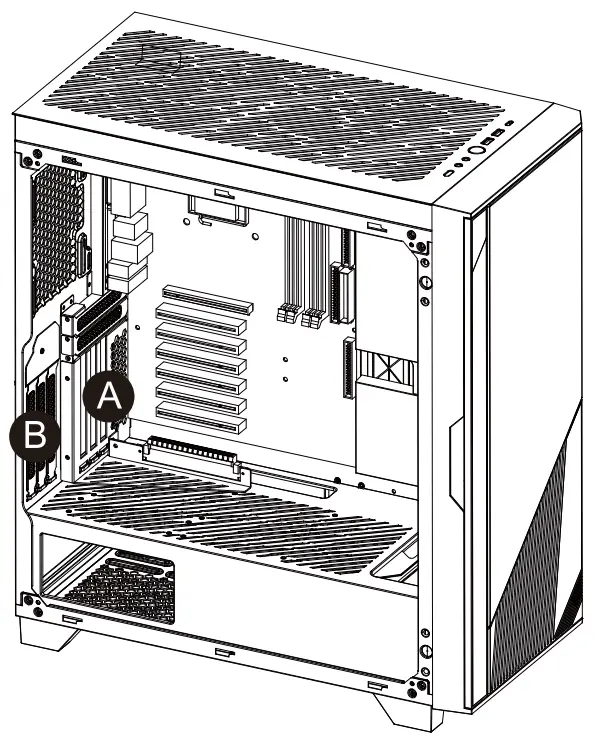

A. Supports up to 8 Slot (<160mm total clearance) Graphics card
B. Supports up to 3.5 Slot (<73mm total clearance) Graphics card
