GAMDIAS TALOS-E2 Elite Mid Tower PC Case Installation Guide

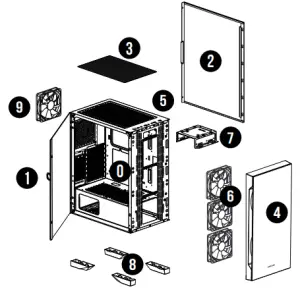

EXPLODED VIEW PARTS

PARTS

1. Chassis Body
2. Tempered Glass Side Panel
3. Right Side Panel
4. Top Dust Filters
5. Tempered Glass Front Panel
6. IO Port
7. 12CM ARGB FAN
8. HDD Cage
9. Rubber Foot
10. 120 MM Fan

ACCESSORY

Figure	Parts Name	Qty	Used for
	Stand-off 4.75 x 9.5 x 6.5mm	3	Motherboard
	Screw #6 x 6 mm	6	PSU
	Screw #6 x 5 mm	9	HDD
	Screw M3 x 5 mm	18	2.5″ HDD/Motherboard/ODD
	CableTie	5	Cable Management

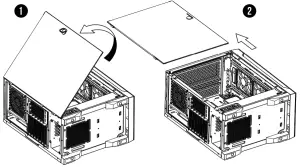

SIDE PANEL REMOVAL

Remove the side panel

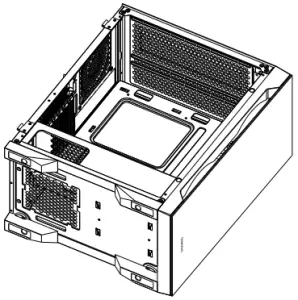

MOTHERBOARD INSTALLATION

Lay down the chassis
Install the motherboard in proper location and secure it with screws

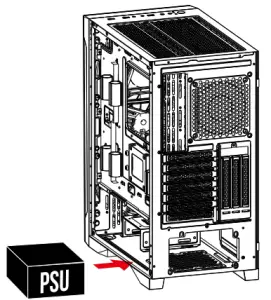

PSU INSTALLATION

Place the PSU in proper location

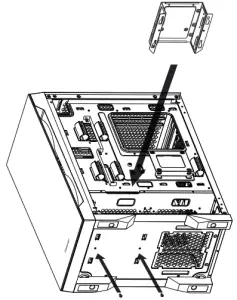

3.5″ 2.5″ HDD INSTALLATION

3.5″ HDD

2.5″ SSD

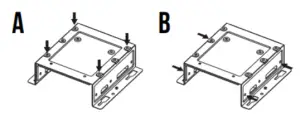

A. 3.5″ HDD
Align the HDD into the mounting holes and screw in.
B. 2.5″ SSD
Align the SSD into the mounting holes and screw in.

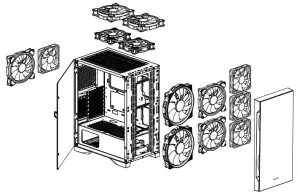

AIR COOLING COMPATIBILITY

• Top: 2 x 120mm or 2 x 140mm
• Front: 3 x 120mm or 2 x 140mm or 2 x 200mm
• Rear: 1 x 120mm or 1 x 140mm

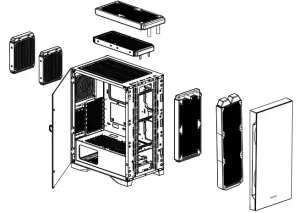

RADIATOR COMPATIBILITY

• Top: 280 mm or 240 mm
• Front: 360 mm or 280 mm
• Rear: 140 mm or 120 mm

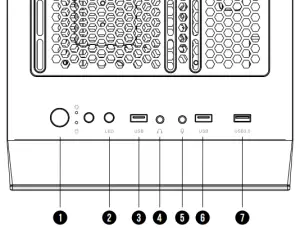

I/O PORTS

1. Power Button
2. Fan LED Control
3. USB 2.0
4. Headphone
5. Mic
6. USB 2.0
7. USB 3.0

Sync With Motherboard : Press and Hold the Fan LED Control Button for 3 Seconds.

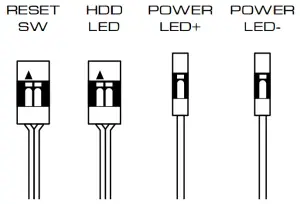

I/O CONNECTORS

See your motherboard’s manual for front panel header locations and pin-outs.

SPECIFICATIONS

• SERIES: TG Series
• Product Name: TALOS E2 Elite
• Case Type: MID Tower
• Dimension (L x W x H): 392 x 230 x 467 mm
  15.4 x 9 x 18.3 inch
• Chassis Dimension (L x W x H): 350 x 230 x 445 mm
  13.7 x 9 x 17.5 inch
• Motherboard Support: ATX, Micro-ATX,Mini-ITX
• Expansion Slots: 7+3
• Mabterial: SPCC , ABS , Tempered glass
• Window: Front , Left
• Radiator Support:
  Top: 280 mm, 240mm
  Front: 360 mm , 280 mm
  Rear: 140 mm, 120mm
• Fan Support:
  Top: 2 x 120mm , 2 x 140mm
  Front: 3 x 120mm , 2 x 140mm, 2 x 200mm
  Rear: 1 x 120mm, 1 x 140mm
• Pre-installed Fans:
  Front: 3 x 120mm ARGB Fans
  Rear: 1 x 120mm Fan
• Pre-installed Control BOX: NO
• Motherboard Sync: 5V 3-Pin Addressable Header
• Drive Bays: 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 3 x 2.5″
• Clearance:
  CPU cooler height limitation: 190mm
  VGA length limitation: 340mm
  PSU length limitation: 180mm
• I/O Port: USB 3.0 x1, USB 2.0 x2,
  HD Audio x1, Fan LED Control x1
