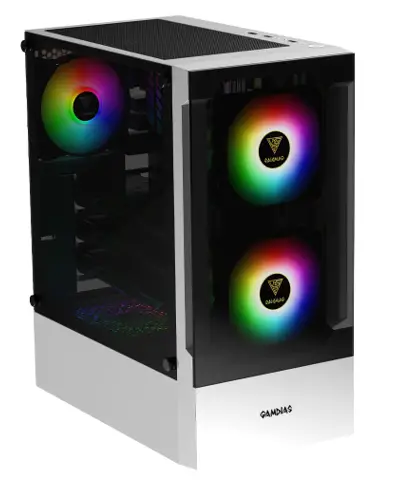

TALOS E3 Mid Tower Case
Installation Guide
SPECIFICATIONS
| SERIES | TG Series |
| Product Name | TALOS E3 / TALOS E3 WH |
| Case Type | MID Tower |
| Dimension (L x W x H) | 363 x 210 x 447 mm 14.3 x 8.3 x 17.6 inch |
| Chassis Dimension (L x W x H) | 330 x 210 x 430 mm 13 x 8.3 x 16.9 inch |
| Motherboard Support | ATX, Micro-ATX,Mini-ITX |
| Expansion Slots | 7 |
| Material | SPCC , ABS , Tempered glass |
| Window | Front , Left |
| Radiator Support | Top: 240mm Front: 360 mm (The removement of HDD cage is suggested) , 280 mm Rear: 120mm |
| Fan Support | Top: 2 x 120mm Front: 3 x 120mm , 2 x 140mm Rear: 1 x 120mm Bottom: 2 x 120mm |
| Pre-installed Fans | Front: 2 x 120mm ARGB Fans Rear: 1 x 120mm ARGB Fan |
| Pre-installed Control BOX | NO |
| Motherboard Sync | 5V 3-Pin Addressable Header |
| Drive Bays | 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 2 x 2.5″ |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 300mm PSU length limitation: 150mm |
| I/O Port | USB 3.0 x1, USB 2.0 x2, HD Audio x1, Fan LED Control x1 |

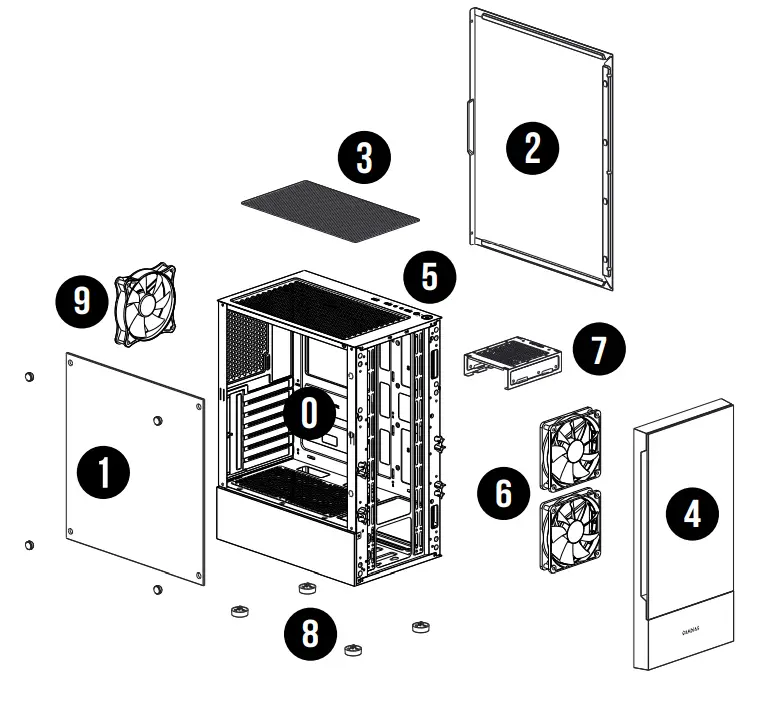

EXPLODED VIEW PARTS
PARTS
| 0 | Chassis Body | 5 | IO Port |
| 1 | Tempered Glass Side Pane & Screw | 6 | 120MM ARGB FAN |
| 2 | Right Side Panel | 7 | HDD Cage |
| 3 | Top Dust Filters | 8 | Rubber Foot |
| 4 | Tempered Glass Front Panel | 9 | 120MM ARGB Fan |
ACCESSORY
| Figure | Parts Name | Qty | Used for |
 | Stand-off 4.75 x 9.5 x 6.5mm | 3 | Motherboard |
 | Screw #6 x 6 mm | 6 | PSU |
 | Screw #6 x 5 mm | 9 | HDD |
 | Screw M3 x 5 mm | 18 | 2.5″ HDD/Motherboard/ODD |
 | CableTie | 5 | Cable Management |

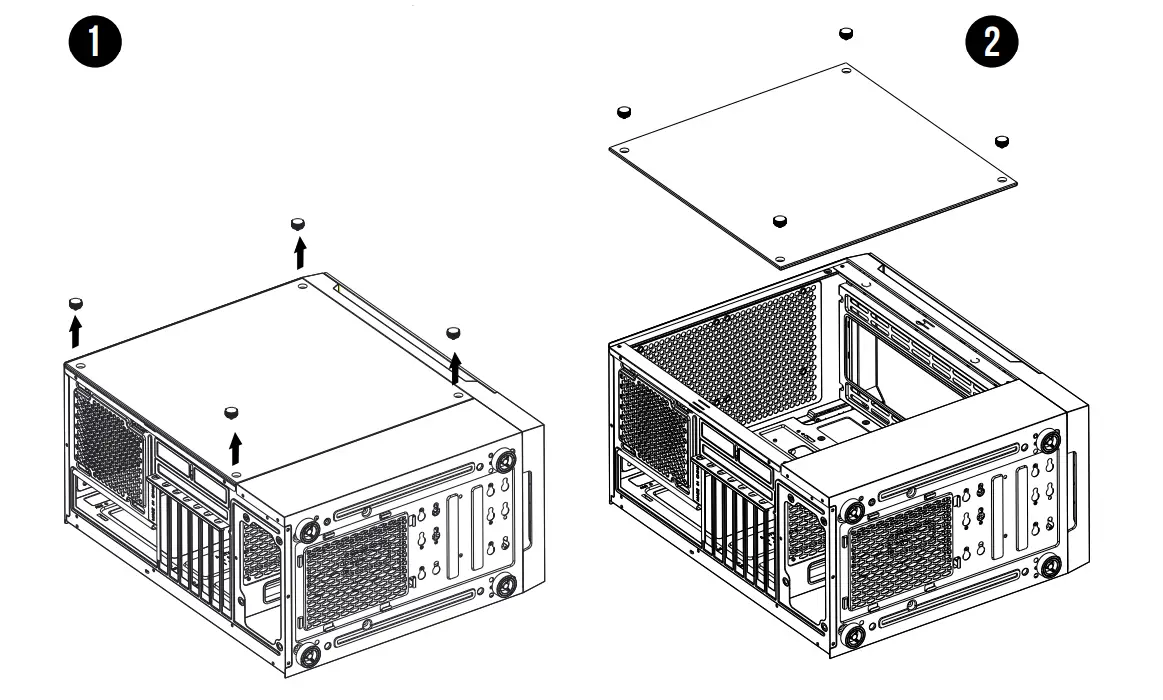

SIDE PANEL REMOVAL
Remove the side panel

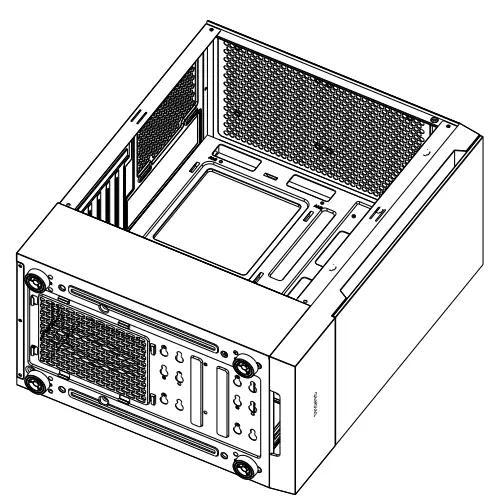

MOTHERBOARD INSTALLATION
Lay down the chassis Install the motherboard in proper location and secure it with screws

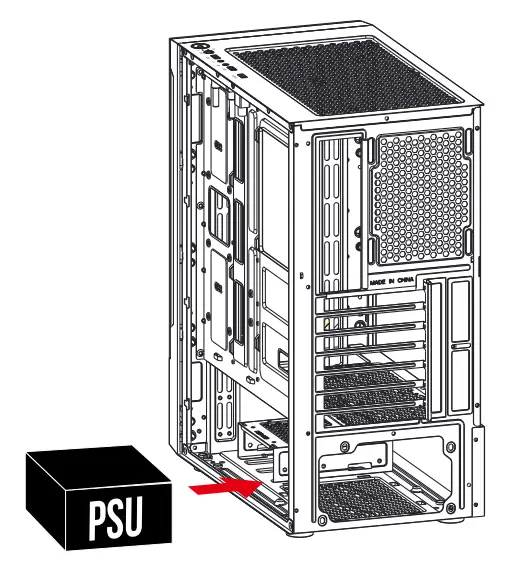

PSU INSTALLATION
Place the PSU in proper location

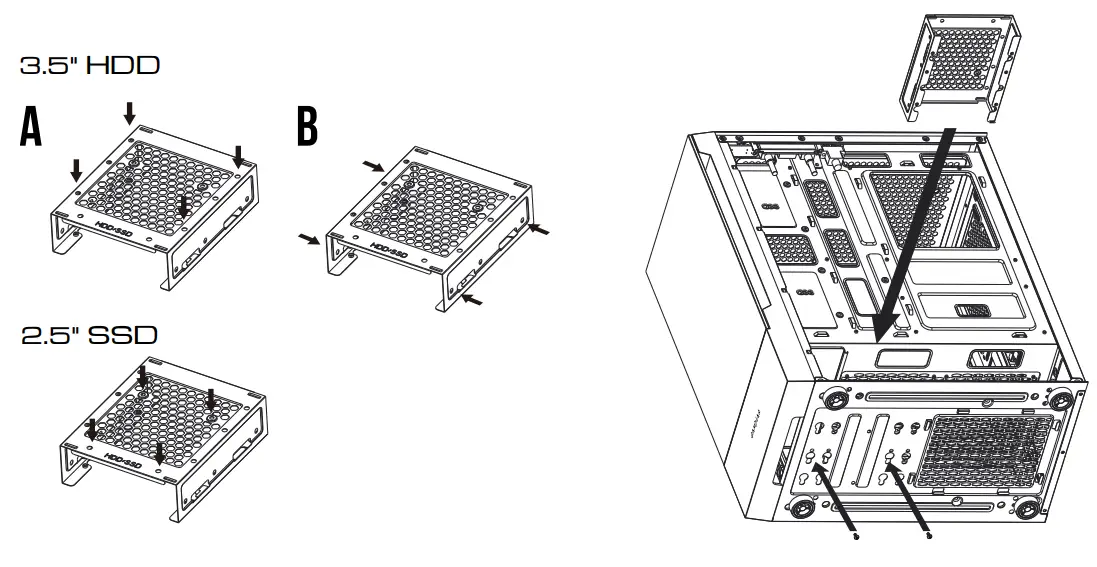

3.5″ 2.5″ HDD INSTALLATION
A. 3.5″ HDD
Align the HDD into the mounting holes and screw in.
B. 2.5″ SSD
Align the SSD into the mounting holes and screw in.

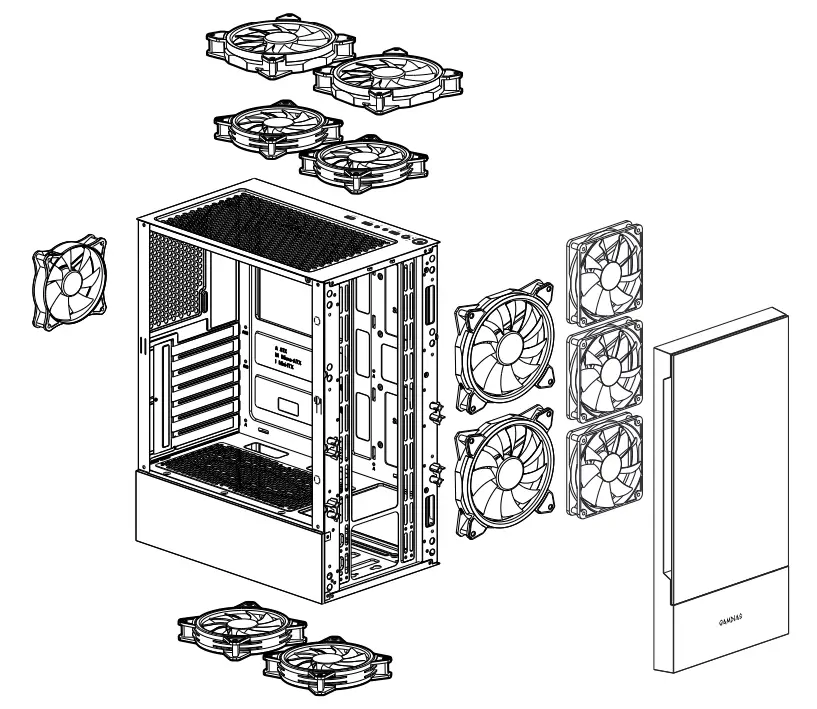

AIR COOLING COMPATIBILITY
| Top | 2 x 120mm |
| Front | 3 x 120mm or 2 x 140mm |
| Rear | 1 x 120mm |
| Bottom | 2 x 120mm |

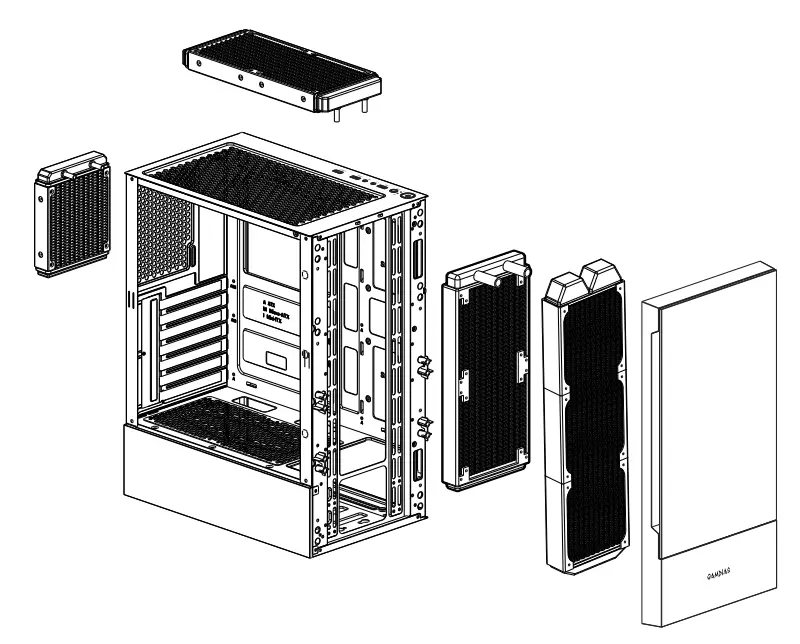

RADIATOR COMPATIBILITY
I/O PORTS
| 1 | Power Button | 5 | Mic |
| 2 | Fan LED Control | 6 | USB 2.0 |
| 3 | USB 2.0 | 7 | USB 3.0 |
| 4 | Headphone |
1.Sync With Motherboard : Press and Hold the Fan LED Control Button for 3 Seconds.
I/O CONNECTORS
See your motherboard’s manual for front panel header locations and pin-outs.
