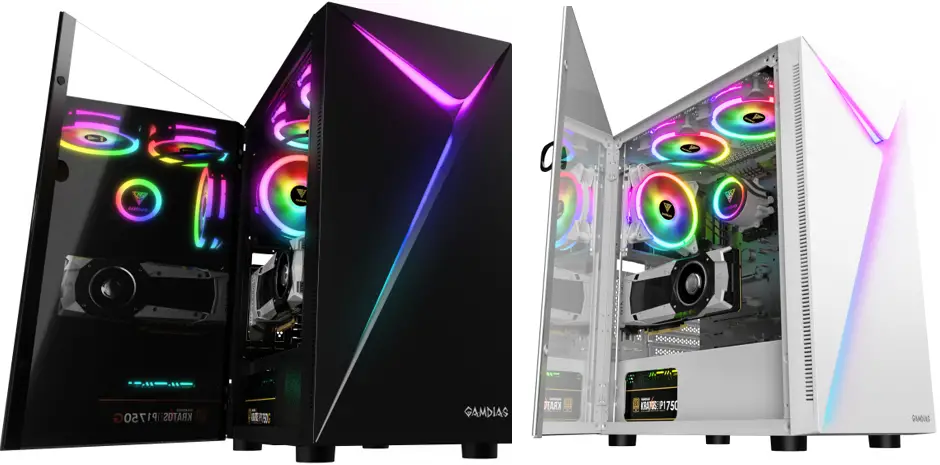

ARGUS E4 Elite Mid Tower PC Case
Installation Guide
SPECIFICATIONS
| SERIES | LED Strips Series |
| Product Name | ARGUS E4 Elite ARGUS E4 Elite WH |
| Case Type | MID Tower |
| Dimension (L x W x H) | 393 x 230 x 460 mm 15.4 x 9 x 18.1 inch |
| Chassis Dimension (L x W x H) | 350 x 230 x 445 mm 13.7 x 9 x 17.5 inch |
| Motherboard Support | ATX, Micro-ATX,Mini-ITX |
| Expansion Slots | 7+3 |
| Material | SPCC , ABS , Tempered glass |
| Window | Left |
| Radiator Support | Top: 280 mm, 240mm Rear: 140 mm, 120mm |
| Fan Support | Top: 2 x 120mm , 2 x 140mm Rear: 1 x 120mm, 1 x 140mm |
| Pre-installed Fans | Rear: 1 x 120mm ARGB Fan |
| Pre-installed Control BOX | NO |
| Motherboard Sync | 5V 3-Pin Addressable Header |
| Drive Bays | 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 3 x 2.5″ |
| Clearance | CPU cooler height limitation: 190mm VGA length limitation: 340mm PSU length limitation: 180mm |
| I/O Port | USB 3.0 x1, USB 2.0 x2, HD Audio x1, LED Control x1 |
EXPLODED VIEW PARTS
PARTS
| 0 | Chassis Body |
| 1 | Tempered Glass Side Panel |
| 2 | Right Side Panel |
| 3 | Top Dust Filters |
| 4 | Front Panel |
| 5 | IO Port |
| 6 | HDD Cage |
| 7 | Rubber Foot |
| 8 | 120 MM Fan |

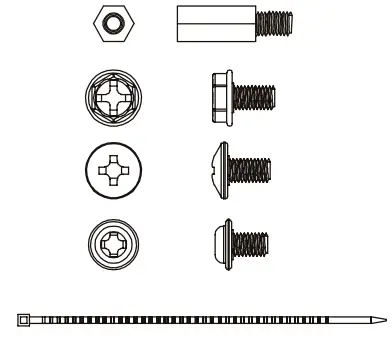

ACCESSORY
| Figure | Parts Name | Qty | Used for |
 | Stand-off 4.75 x 9.5×6.5mm | 3 | Motherboard |
| Screw #6 x 6 mm | 6 | PSU | |
| Screw #6 x 5 mm | 9 | HDD | |
| Screw M3 x 5 mm | 18 | 2.5″ HDD/Motherboard/ODD | |
| CableTie | 5 | Cable Management |

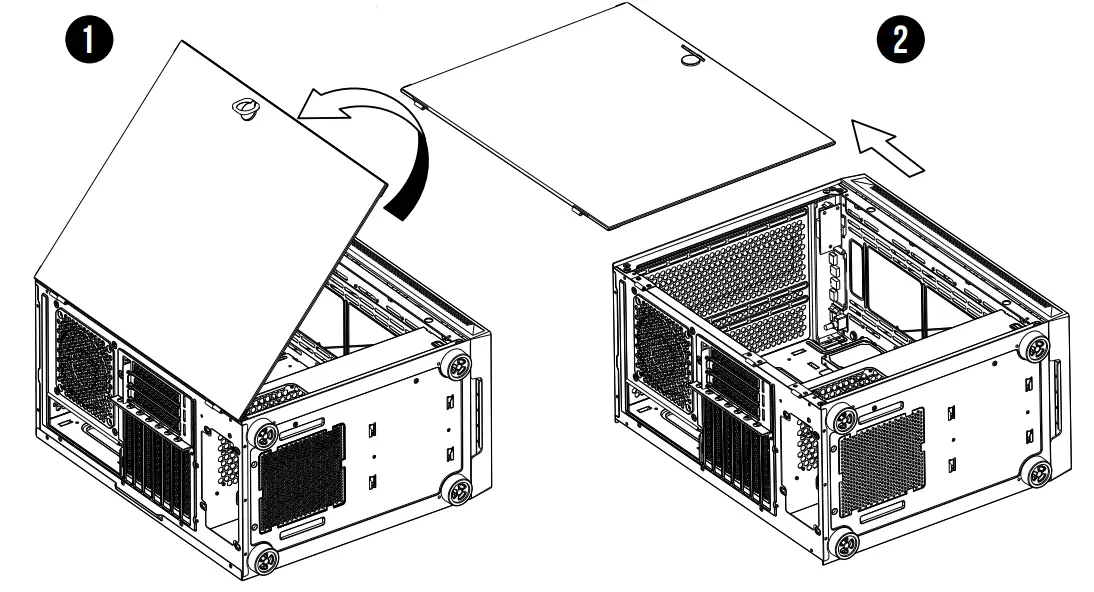

SIDE PANEL REMOVAL
Remove the side panel

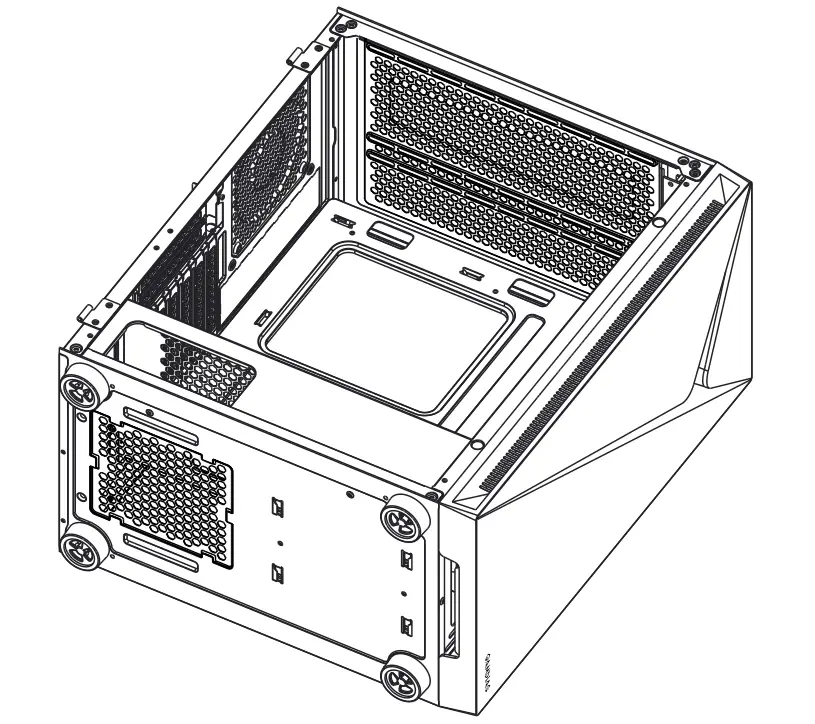

MOTHERBOARD INSTALLATION
Lay down the chassis
Install the motherboard in the proper location and secure it with screws

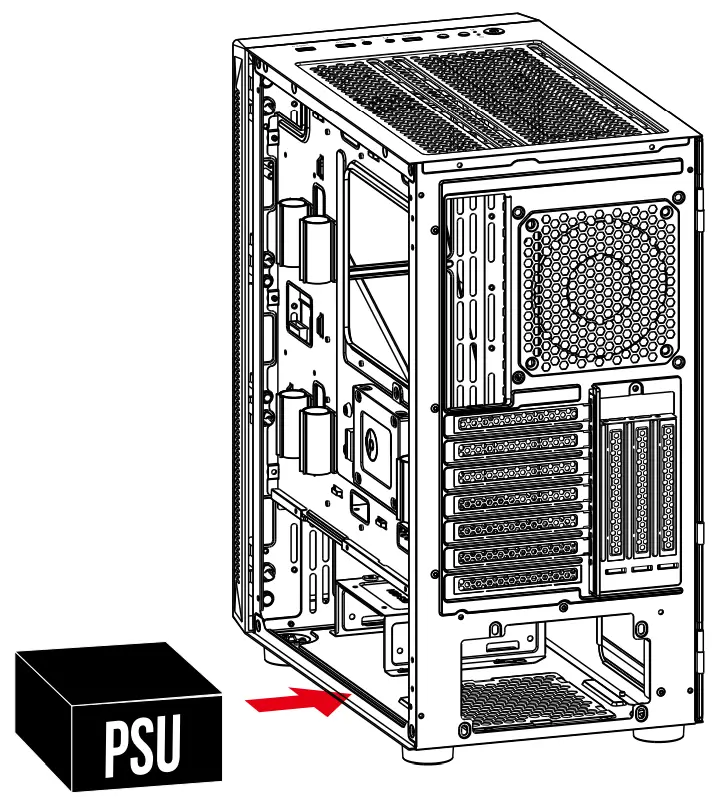

PSU INSTALLATION
Place the PSU in proper location

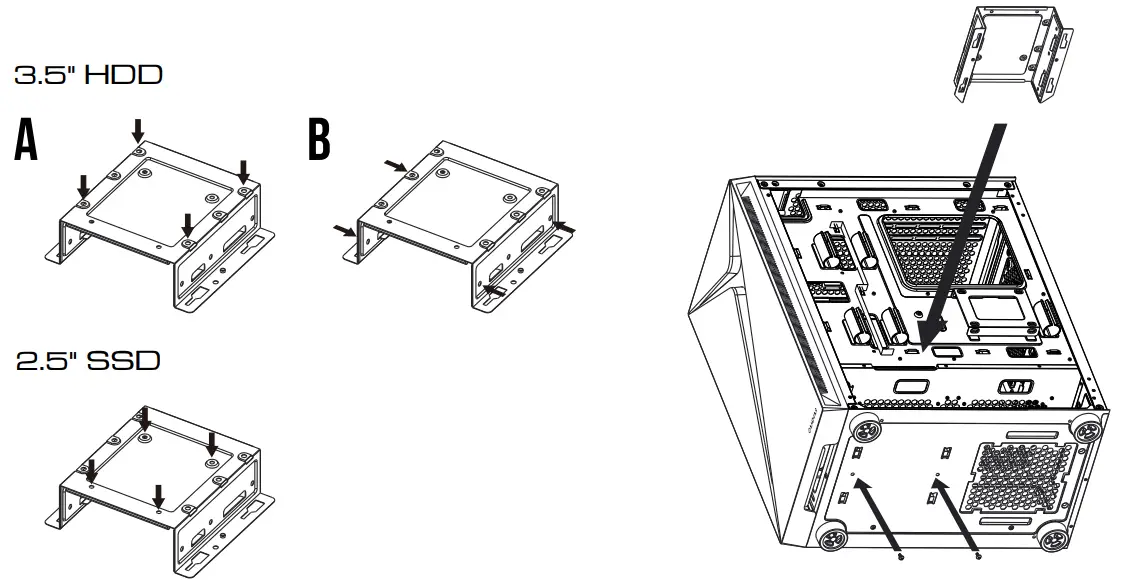

3.5″ 2.5″ HDD INSTALLATION
A. 3.5″ HDD
Align the HDD into the mounting holes and screw in.
B. 2.5″ SSD
Align the SSD into the mounting holes and screw it in.

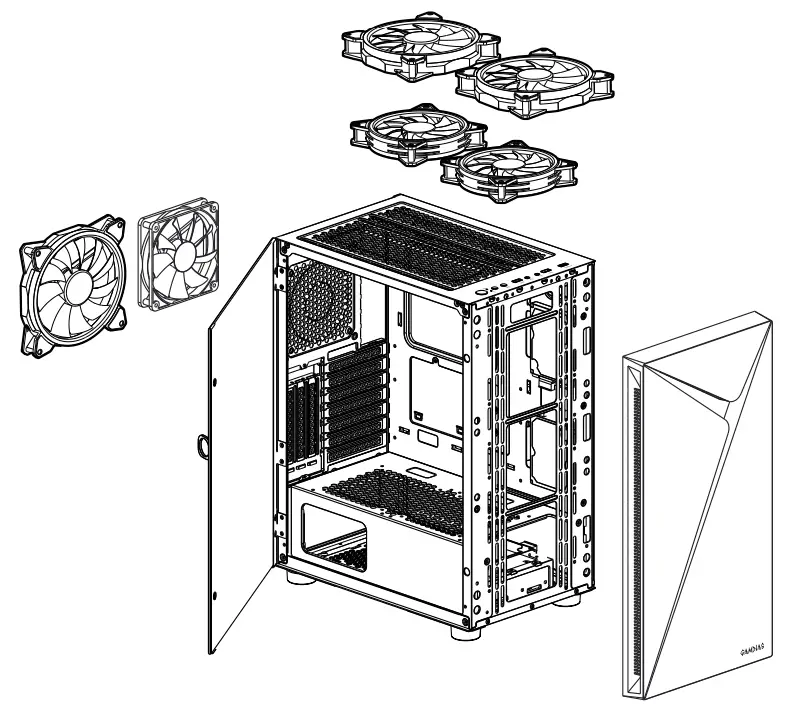

AIR COOLING COMPATIBILITY
Top………………………………………2 x 120mm or 2 x 140mm
Rear…………………………… 1 x 120mm or 1 x 140mm

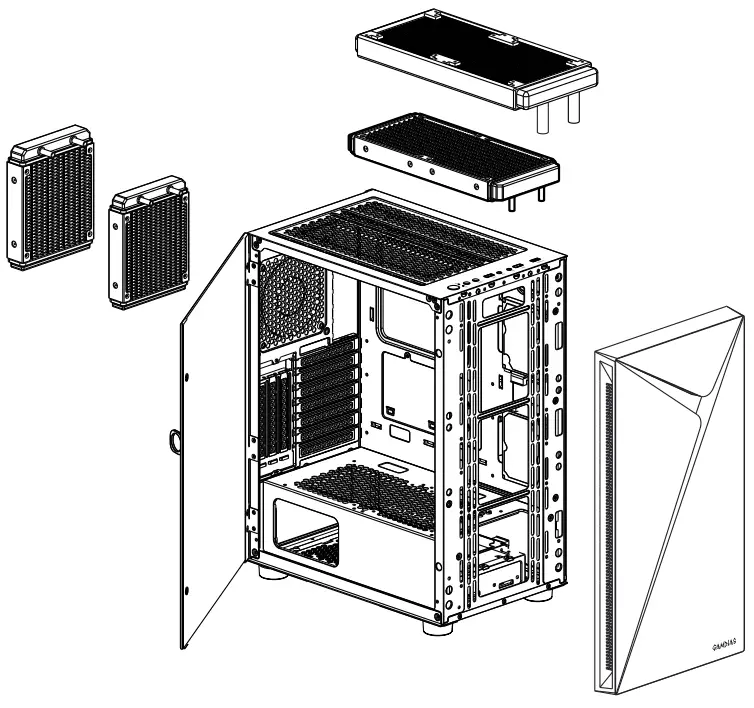

RADIATOR COMPATIBILITY
Top………………………..280 mm or 240 mm
Rear…………………….. 140 mm or 120 mm
I/O PORTS
| 1 | Power Button |
| 2 | Fan LED Control |
| 3 | USB 2.0 |
| 4 | Headphone |
| 5 | Mic |
| 6 | USB 2.0 |
| 7 | USB 3.0 |
Sync With Motherboard : Press and Hold the Fan LED Control Button for 3 Seconds.

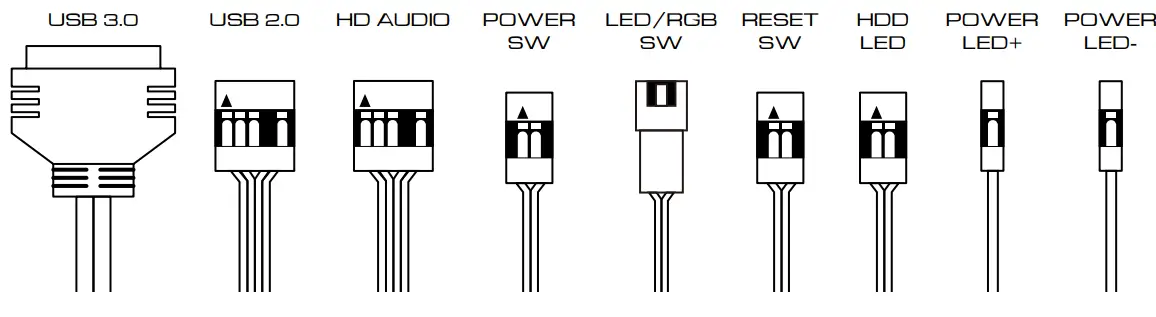

I/O CONNECTORS
See your motherboard’s manual for front panel header locations and pin-outs.
