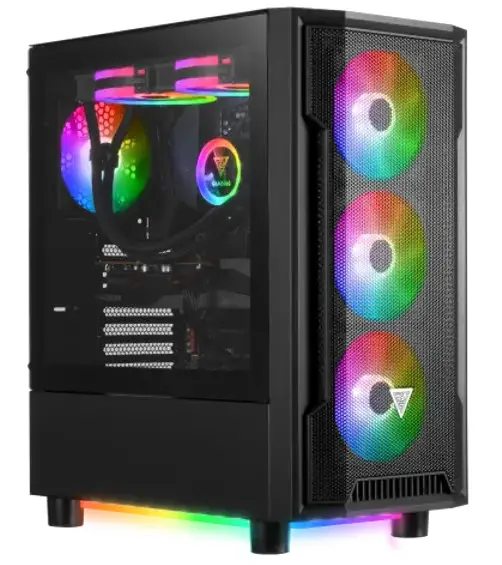

ATHENA M6 Mid Tower Case
Installation Guide
SPECIFICATIONS
| SERIES | Mesh Series |
| Product Name | ATHENA M6/ ATHENA M6 WH |
| Case Type | MID Tower |
| Dimension (L x W x H) | 410 x 230 x 477 mm 15.4 x 9 x 18.1 inch |
| Chassis Dimension (L x W x H) | 350 x 230 x 445 mm 13.7 x 9 x 17.5 inch |
| Motherboard Support | ATX, Micro-ATX,Mini-ITX |
| Expansion Slots | 7 |
| Material | SPCC, ABS, Tempered glass |
| Window | Left |
| Radiator Support | Top: 240mm Front: 360 mm, 280 mm Rear: 140mm, 120mm |
| Fan Support | Top: 2 x 120mm, 2 x 140mm Front: 3 x 120mm, 2 x 140mm Rear: 1 x 120mm, 1 x 140mm |
| Pre-installed Fans | Front: 3 x 120mm ARGB Fans Rear: 1 x 120mm ARGB Fan |
| Pre-installed Control BOX | Yes |
| Motherboard Sync | 5V 3-Pin Addressable Header |
| Drive Bays | 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 2 x 2.5″ |
| Clearance | CPU cooler height limitation: 190mm VGA length limitation: 340mm PSU length limitation: 180mm |
| I/O Port | USB 3.0 x1, USB 2.0 x2, HD Audio x1, Fan LED Control x1 |

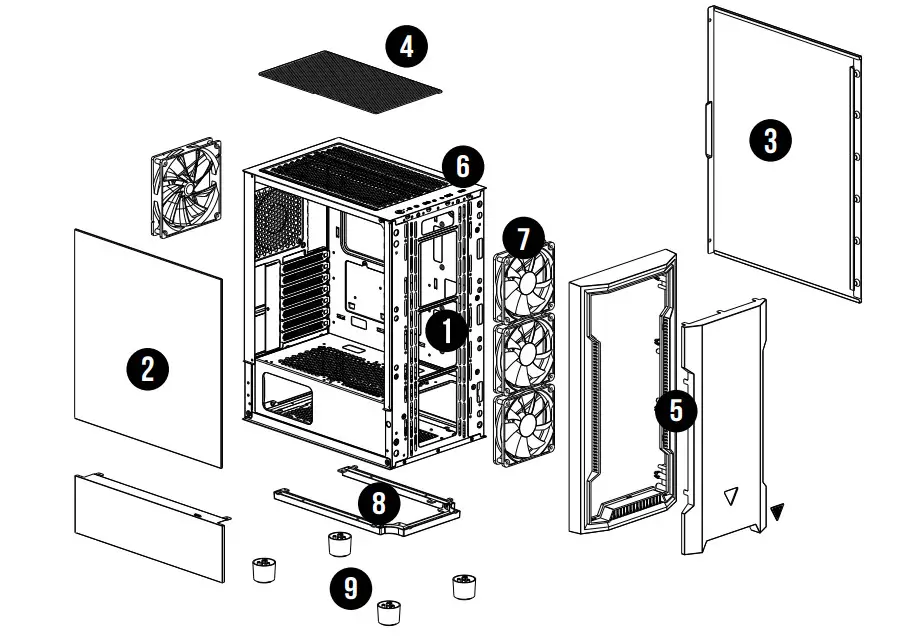

EXPLODED VIEW PARTS
| 1 | Chassis Body |
| 2 | Tempered Glass Side Pane & Screw |
| 3 | Right Side Panel |
| 4 | Top Dust Filters |
| 5 | Mesh Front Panel |
| 6 | IO Port |
| 7 | 120MM ARGB PWM FAN |
| 8 | Light Strips |
| 9 | Rubber Foot |
ACCESSORY
| Figure | Parts Name | Qty | Used for |
 | Stand-off 4.75 x 9.5 x 6.5mm | 3 | Motherboard |
| Screw #6 x 6 mm | 4 | PSU | |
| Screw #6 x 5 mm | 8 | HDD | |
| Screw M3 x 5 mm | 25 | 2.5″ HDD/Motherboard/ODD | |
| CableTie | 5 | Cable Management |

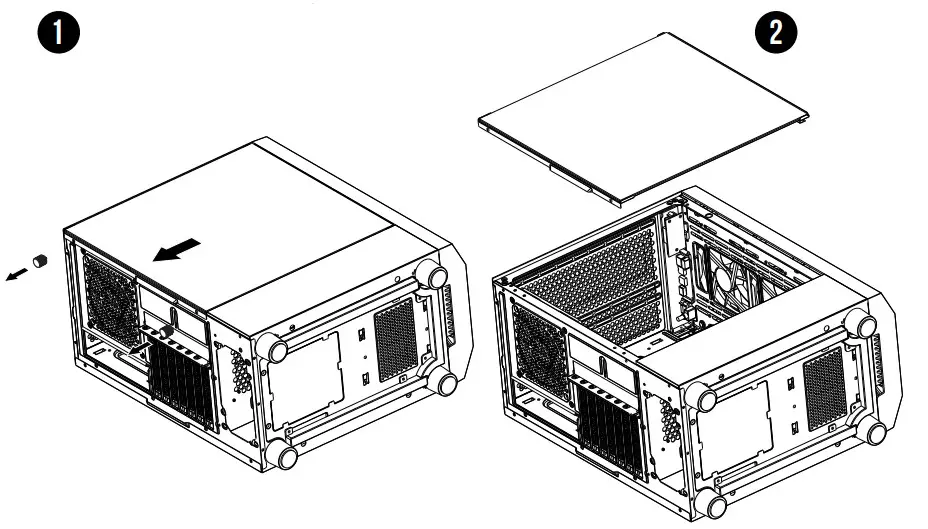

SIDE PANEL REMOVAL
Remove the side panel

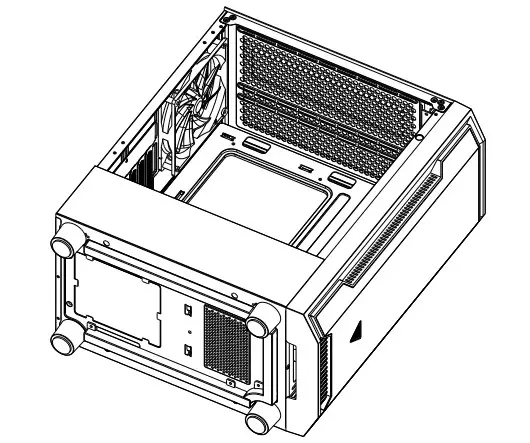

MOTHERBOARD INSTALLATION
Lay down the chassis
Install the motherboard in proper location and secure it with screws
PSU INSTALLATION
Place the PSU in proper location

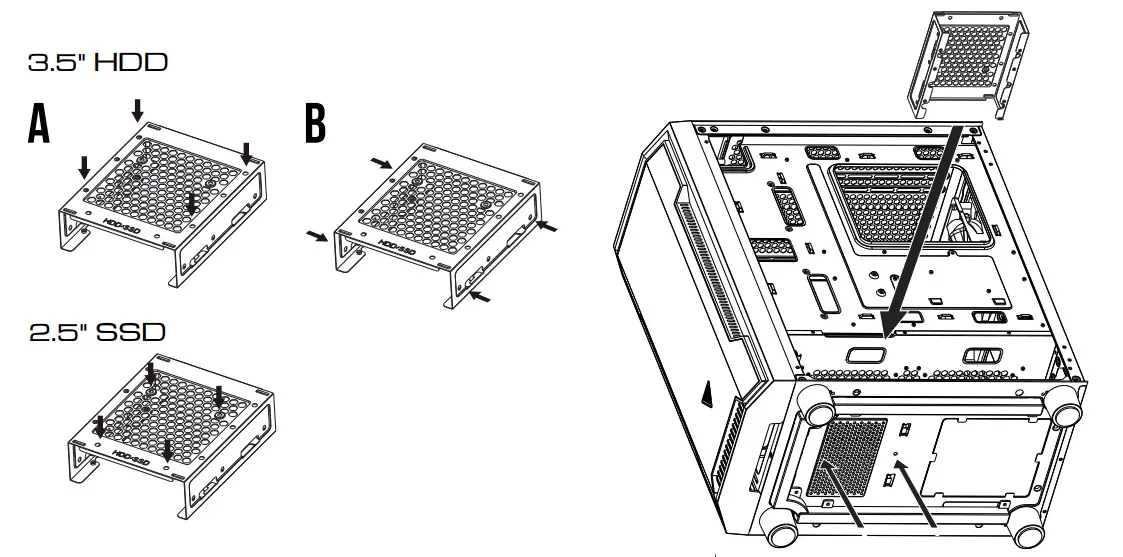

3.5″ 2.5″ HDD INSTALLATION
A. 3.5″ HDD
Align the HDD into the mounting holes and screw in.
B. 2.5″ SSD
Align the SSD into the mounting holes and screw in.

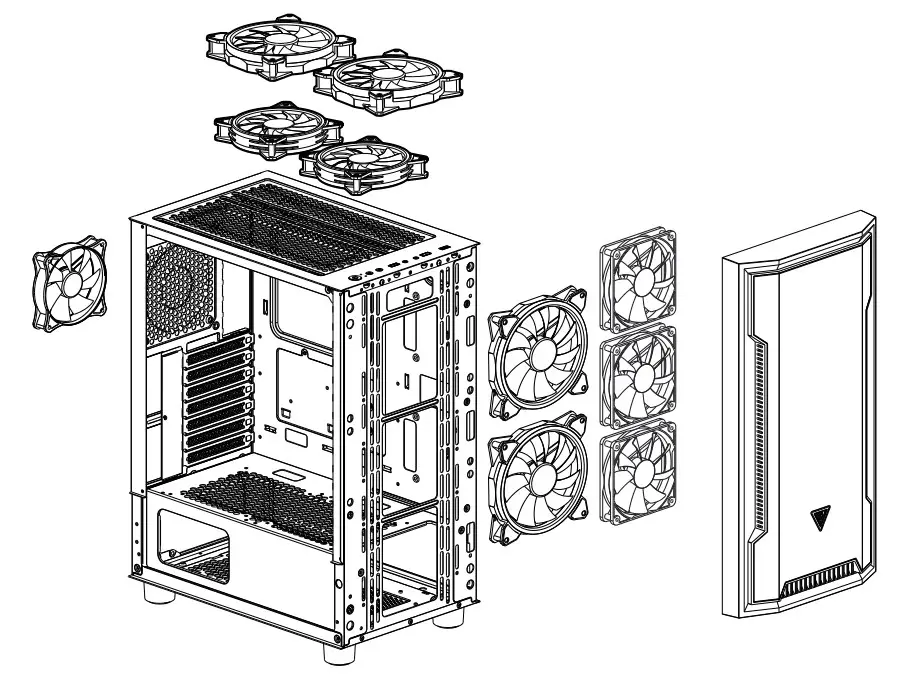

AIR COOLING COMPATIBILITY
Top 2 x 120mm
Front 3 x 120mm or 2 x 140mm
Rear 1 x 120mm or 1 x 140mm

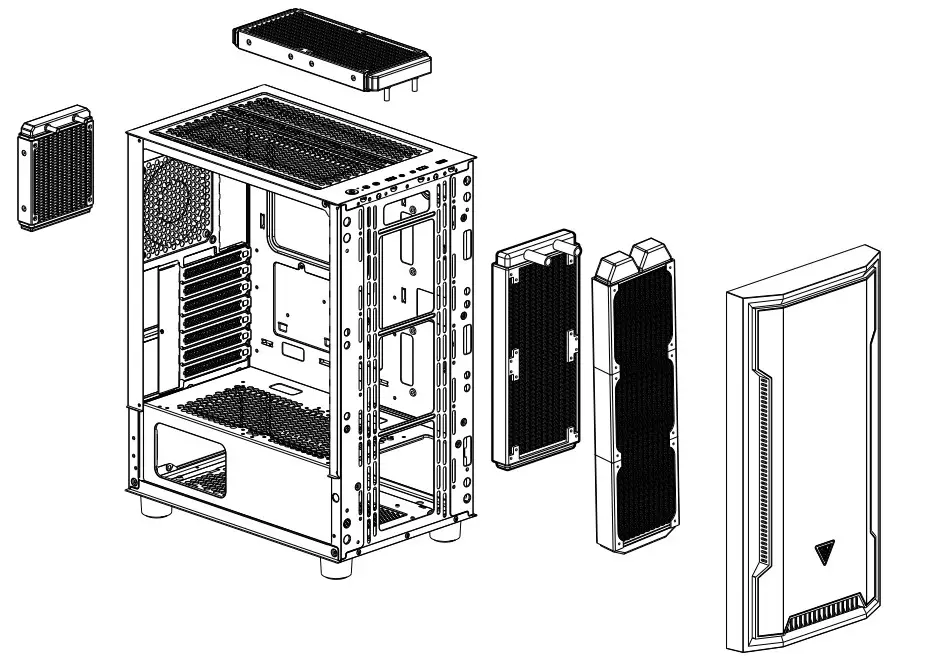

RADIATOR COMPATIBILITY
Top 240 mm
Front 360 mm or 280 mm
Rear 120 mm

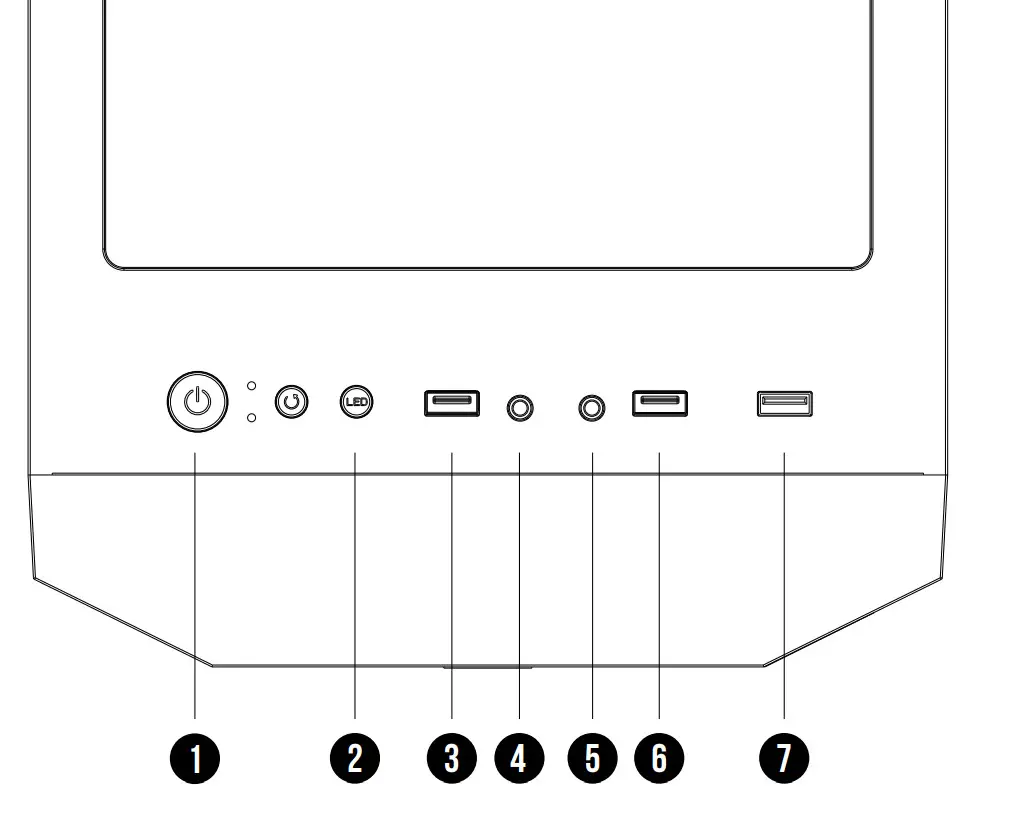

I/O PORTS
| 1 | Power Button | 5 | Mic |
| 2 | Fan LED Control | 6 | USB 2.0 |
| 3 | USB 2.0 | 7 | USB 3.0 |
| 4 | Headphone |
- Sync With Motherboard : Press and Hold the Fan LED Control Button for 3 Seconds.

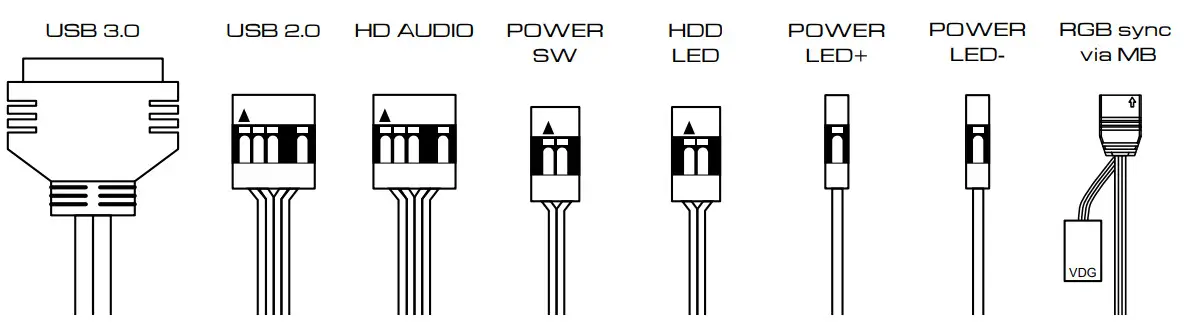

I/O CONNECTORS
See your motherboard’s manual for front panel header locations and pin-outs.
