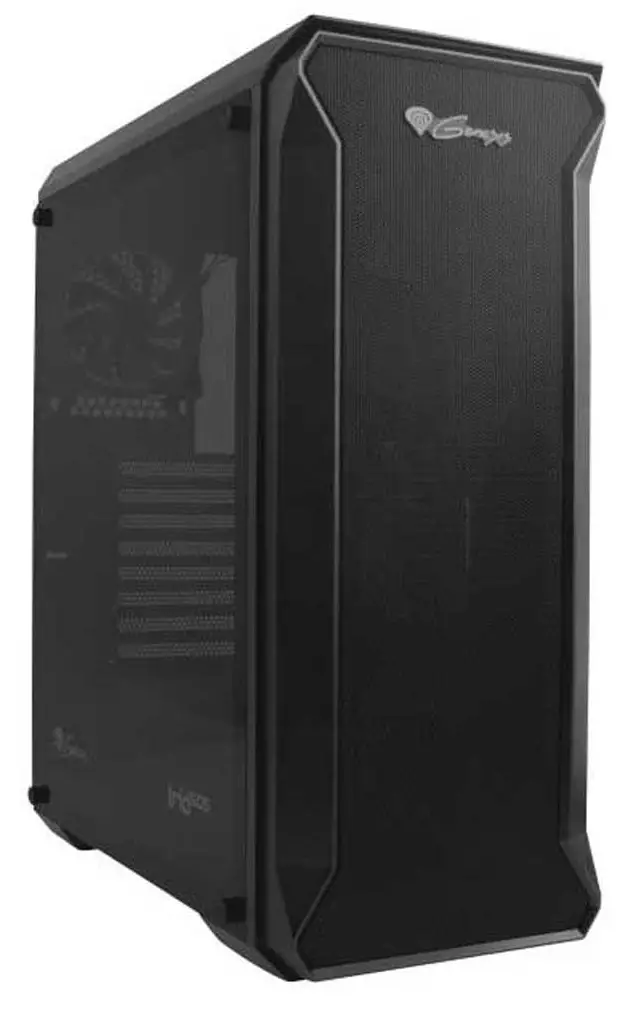

GENESIS IRID 505 F Crystal Tower Case Installation Guide

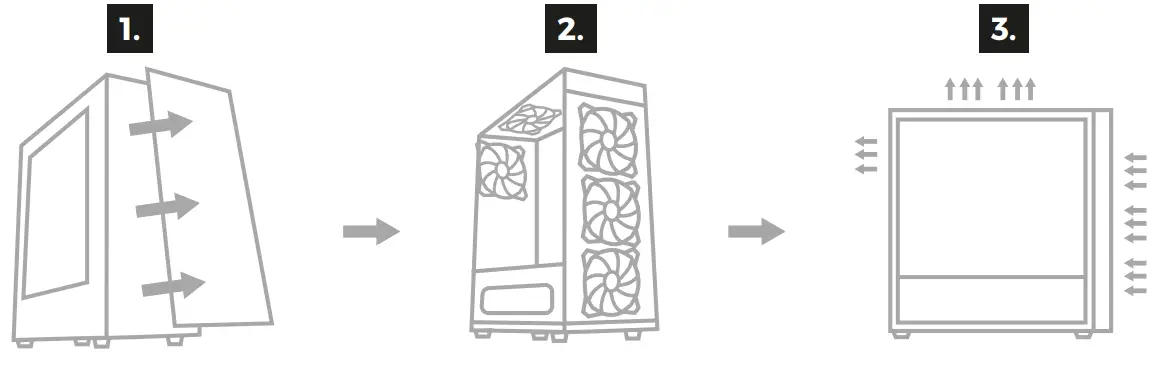

FAN INSTALLATION
- Remove front panel by gently pulling bottom part. Unscrew side panel.

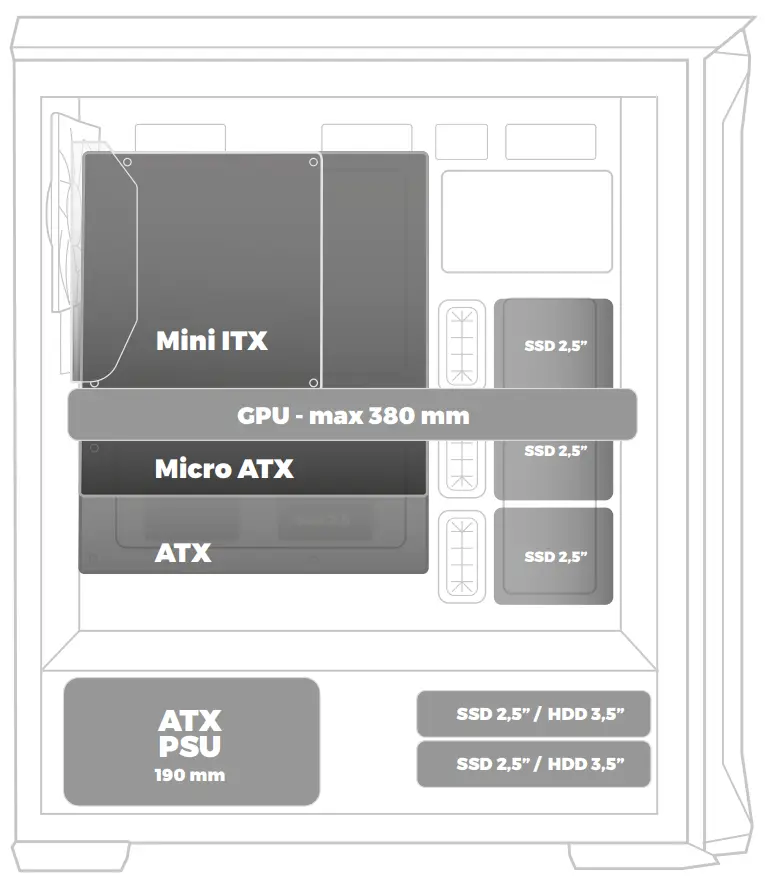

- Install fans accordingly using screws and according to case plan.

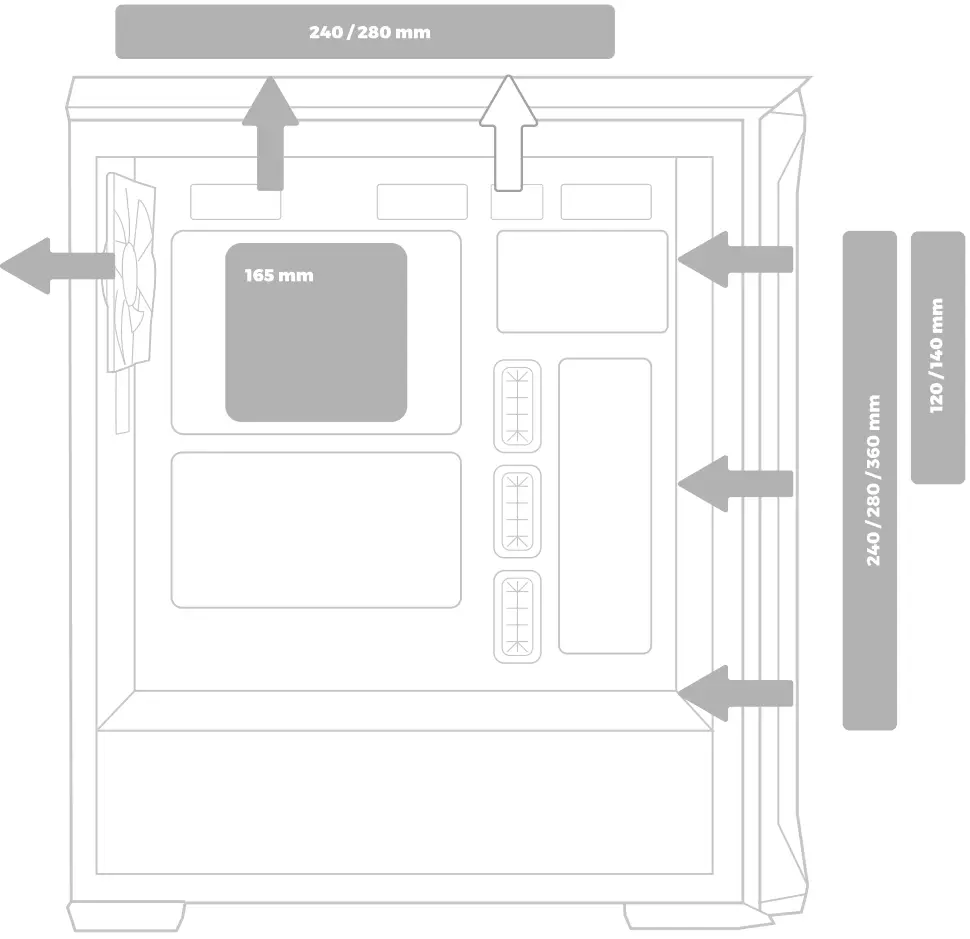

- Suggested fan airflow orientation.

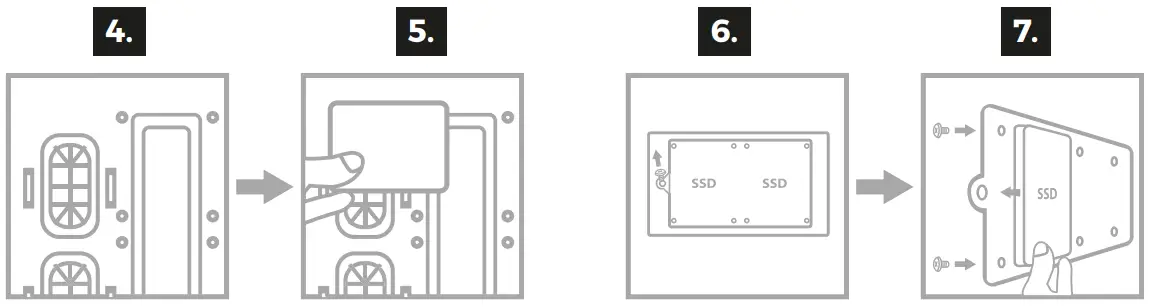

2,5” SSD INSTALLATION

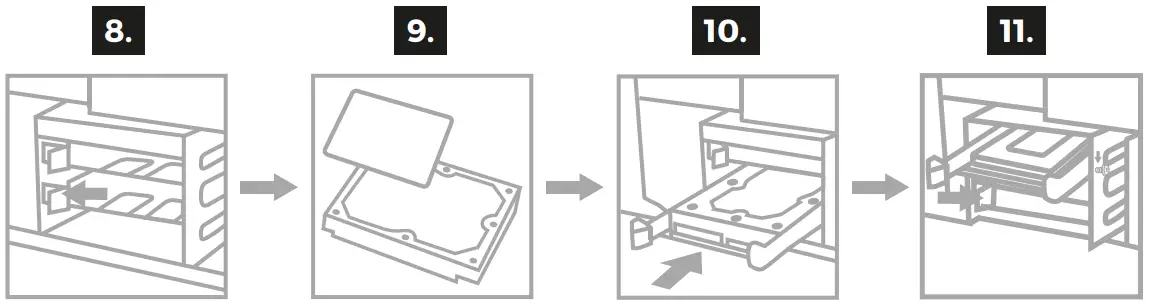

3,5” HDD INSTALLATION

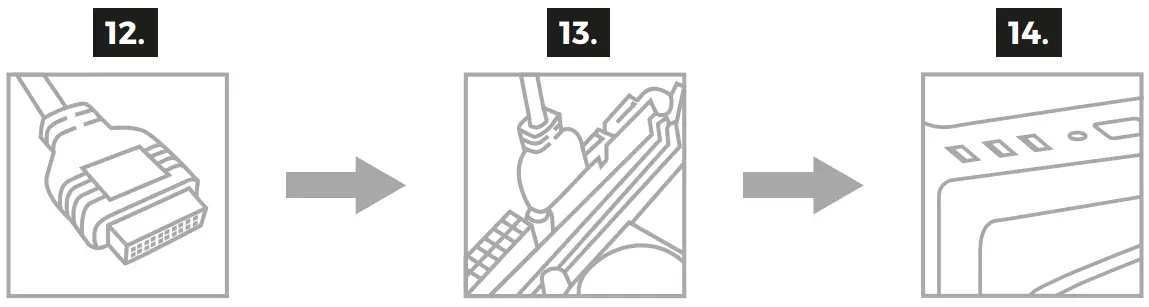

FRONT PANEL I/O PORTS INSTALLATION
- 12-14. Connect front panel I/O connectors to motherboard according to motherboard manual.
PRODUCT INFORMATION
PACKAGE CONTENT
- 1x PC case
- 5x 120 mm fan
- 2x Splitter
- 3x SF1 – Screw stand-off for motherboard
- 6x PS1 – Screw for PSU
- 37x MB1 – Screw for Motherboard/SSD on HDD bracket
- 8x HD1 – Screw for HDD in bracket
- 5x Cable tie
- 1x Speaker
- 1x Motherboard tray spacer screwing tool
- 1x Installation guide
REGULATORY
EU Declaration of Conformity – Hereby, IMPAKT S.A. declares that that the equipment type NPC-1997 is in compliance with Directives 2014/30/EU and 2011/65/UE. The full text of the EU declaration of conformity is available via the product tab at www.impakt.com.pl.
The WEEE symbol (the crossed-out wheeled bin) using indicates that this product in not home waste. Appropriate waste management aids in avoiding consequences which are harmful for people and environment and result from dangerous materials used in the device, as well as improper storage and processing. Segregated household waste collection aids recycle materials and components of which the device was made. In order to get detailed information about recycling this product please contact your retailer or a local authority
SAFETY INFORMATION
- Use as intended. Improper usage may damage the device.
- Non-authorized repairs or disassembly voids the warranty and may damage the product.
- Dropping or hitting the device may lead to device being damaged, scratched or flawed in other way.
- Do not use the product in low and high temperatures, strong magnetic fields and damp or dusty surroundings.
GENERAL
- The safe product, conforming to the EU requirements.
- The product is made in accordance with RoHS European standard.
- 2 years limited manufacturer warranty
