IRID 515
QUICK INSTALLATION GUIDE
WELCOME TO #GENESISGAMING
PRODUCT INFORMATION
PACKAGE CONTENT
 | 1x | PC case |
 | 2x | 120 mm fan |
 | 3x | SF1 – Screw stand-off for motherboard |
 | 8x | PS1 – Screw for PSU |
| 17x | MB1 – Screw for Motherboard/SSD on HDD bracket |
| 8x | HD1 – Screw for HDD in the bracket |
 | 8x | SS1 – Screw for SSD on MB tray |
 | 5x | Cable tie |
 | 1x | Speaker |
 | 1x | Stand-off tool |
 | 1x | Installation guide |
USER MANUAL
FAN INSTALLATION
- Remove the front panel by gently pulling the bottom part. Unscrew the side panel.

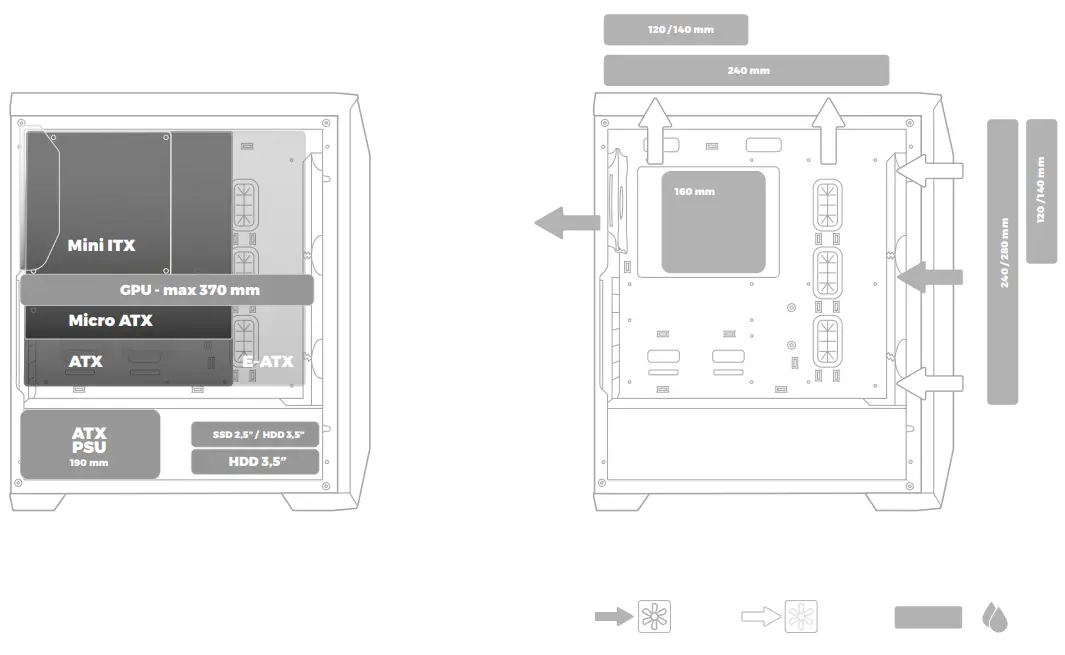

- Install fans accordingly using screws and according to the case plan.
- Suggested fan airflow orientation.
SSD INSTALLATION
4-7. Put SSD in a designated area, then fix it byscrews. Side-cover is necessary to be removed
HDD INSTALLATION
8-9. Remove HDD cage (pull out).
10. As the first screw-in HDD drive on top of HDD cage using HD1 (x4) screws into HDD bottom screw holes.
11. Second screw-in HDD drive inside HDD cage using HD1 (x4) screws into HDD side screw holes.
FRONT PANEL O/I PORTS INSTALLATION
12-14. Connect front panel I/O connectors to motherboard according to the motherboard manual.
EU Declaration of Conformity – Hereby, IMPAKT S.A. declares that the equipment type NPC-1683 is in compliance with Directives 2014/30/EU and 2011/65/UE. The full text of the EU declaration of conformity is available via the product tab at www.impakt.com.pl.
The WEEE symbol (the crossed-out wheeled bin) using indicates that this product in not home waste. Appropriate waste management aids in avoiding consequences that are harmful to people and the environment and result from dangerous materials used in the device, as well as improper storage and processing. Segregated household waste collection aids recycle materials and components of which the device was made. In order to get detailed information about recycling this product please contact your retailer or local authority.
SAFETY INFORMATION
- Use as intended. Improper usage may damage the device.
- Non-authorized repairs or disassembly voids the warranty and may damage the product.
- Dropping or hitting the device may lead to the device being damaged, scratched, or flawed in another way.
- Do not use the product in low and high temperatures, strong magnetic fields and damp or dusty surroundings.
GENERAL
- The safe product conforms to the EU requirements.
- The product is made in accordance with RoHS European standards.
- 2 years limited manufacturer warranty
PRODUCT & SUPPORT
INFORMATION | PLEASE SCAN QRCODE |
© GENESIS. All rights reserved. GENESIS name and logo, and all related product and service names, design marks and slogans are the trademarks or registered trademarks of GENESIS.
All other product and service marks contained herein are the trademarks of their respective owners. | V.1290
